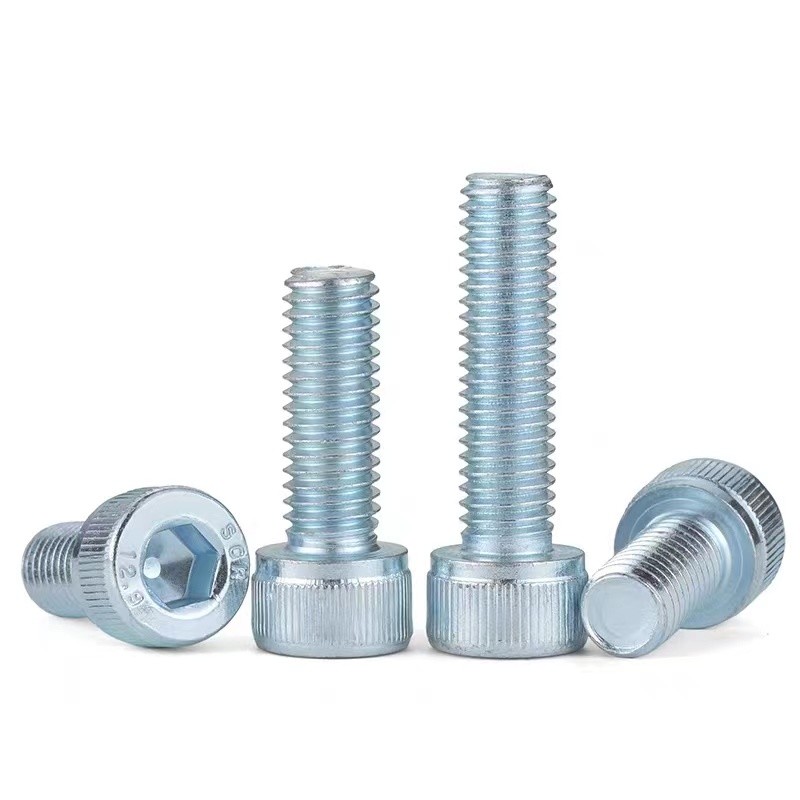

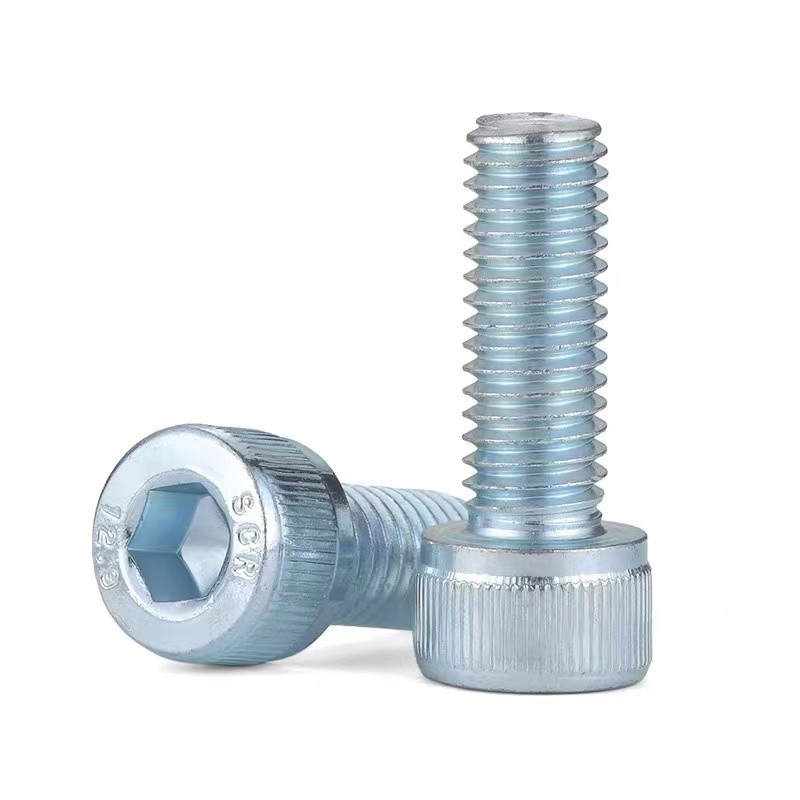

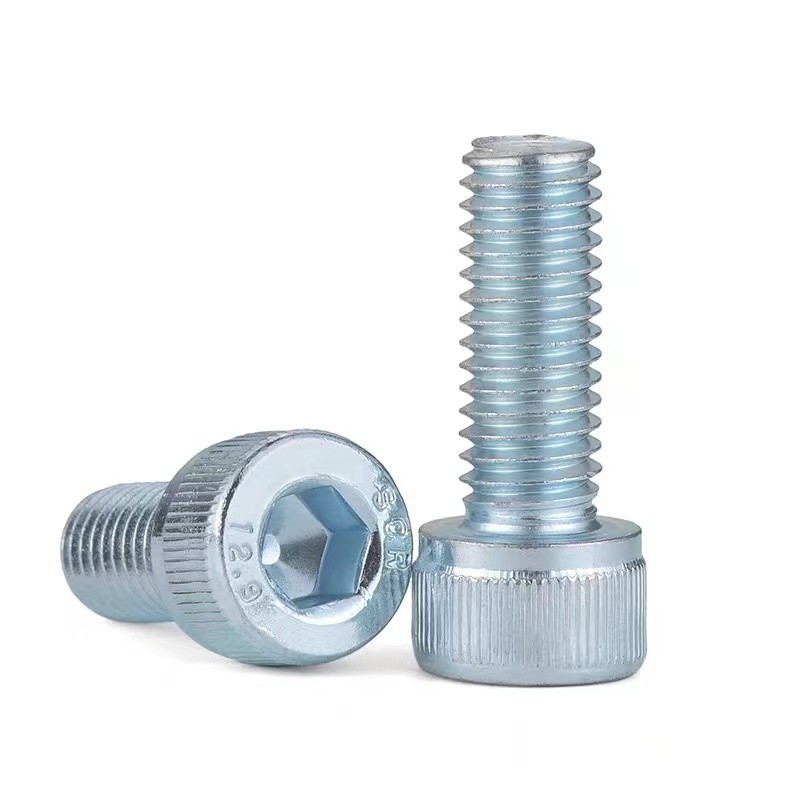

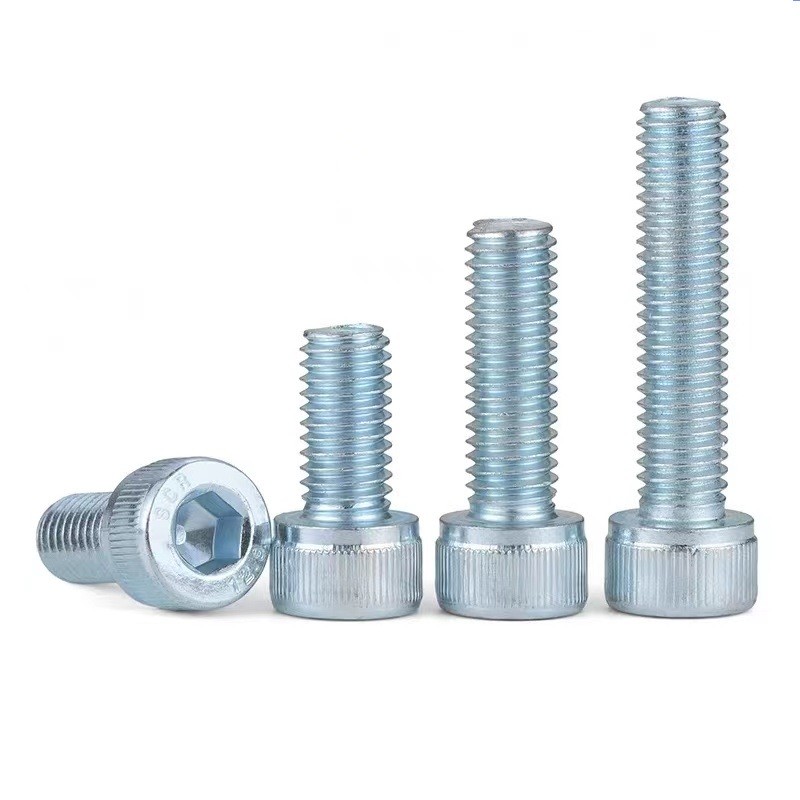

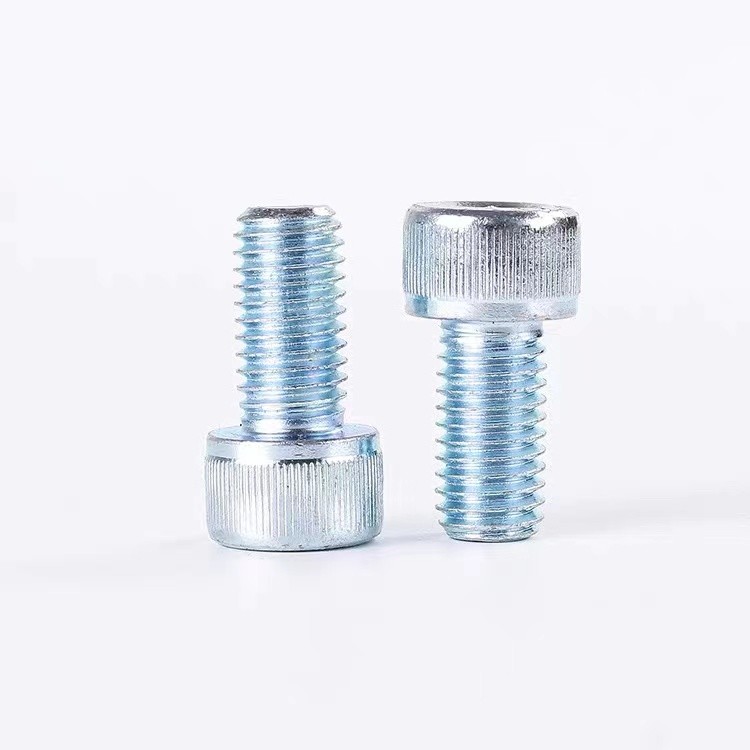

Fully Threaded Socket Head Cap Screws Zinc Plated Class 12.9 Alloy Steel

  • Fully Threaded Socket Head Cap Screws Zinc Plated Class 12.9 Alloy Steel
  • Fully Threaded Socket Head Cap Screws Zinc Plated Class 12.9 Alloy Steel
  • Fully Threaded Socket Head Cap Screws Zinc Plated Class 12.9 Alloy Steel
  • Fully Threaded Socket Head Cap Screws Zinc Plated Class 12.9 Alloy Steel
  • Fully Threaded Socket Head Cap Screws Zinc Plated Class 12.9 Alloy Steel
Place of Origin China
Brand Name XGFH
Certification ISO9001,EN10204 3.1Certificate
Model Number DIN912
Minimum Order Quantity 100pcs
Price 0.01-2.5usd/pc
Packaging Details 25kg per carbon box and then pallet.
Delivery Time 5-15 work days
Payment Terms T/T, L/C
Supply Ability 100000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Standard DIN912 Name Hex Socket Cap Head Screws
Material Alloy Steel Grade Class 12.9
Finish Zinc Plated Drive Hex Socket
Thread Full Thread Thread Type Coarse
HS CODE 731815.9000
High Light

Socket Head Cap Screws Zinc Plated

,

12.9 Alloy Steel Socket Cap Screws

,

Fully Threaded Socket Cap Screws
Leave a Message
Product Description

Product Description:



This Allen fully threaded socket head cap screws is Class 12.9 alloy steel fasteners in Zinc Plating.

Zinc plating offers a large improvement in protection from the elements while still staying with a class 12.9 heavy duty screw or bolt.

Stainless can't compare for strength.



Product Features:



Specifications DIN912/ISO4762
Threaded Full Threaded
Thread Size Coarse (Standard) Thread
Type Socket head cap screw
System of measurement Metric
Material Zinc Plated Class 12.9 Steel
Treatment Hydrogen Embrittlement



Product Drawing:





Hexagon socket head cap screws
DIN 912-1983
Fully Threaded Socket Head Cap Screws Zinc Plated Class 12.9 Alloy Steel 0
d(mm) P(mm) b(mm) dk(mm) k(mm) s(mm) t(mm)
min max min max min max min
M1.4 0.3 14 2.46 2.74 1.26 1.4 1.32 1.36 0.6
M1.6 0.35 15 2.86 3.14 1.46 1.6 1.52 1.56 0.7
M2 0.4 16 3.62 3.98 1.86 2 1.52 1.56 1
M2.5 0.45 17 4.32 4.68 2.36 2.5 2.02 2.06 1.1
M3 0.5 18 5.32 5.68 2.86 3 2.52 2.58 1.3
M4 0.7 20 6.78 7.22 3.82 4 3.02 3.08 2
M5 0.8 22 8.28 8.72 4.82 5 4.02 4.095 2.5
M6 1 24 9.78 10.22 5.7 6 5.02 5.14 3
M8 1.25/1 28 12.73 13.27 7.64 8 6.02 6.14 4
M10 1.5/1.25/1 32 15.73 16.27 9.64 10 8.025 8.175 5
M12 1.75/1.5/1.25 36 17.73 18.27 11.57 12 10.025 10.18 6
M14 2/1.5 40 20.67 21.33 13.57 14 12.032 12.21 7
M16 2/1.5 44 23.67 24.33 15.57 16 14.032 14.21 8
M18 2.5/2/1.5 48 26.67 27.33 17.57 18 14.032 14.21 9
M20 2.5/2/1.5 52 29.67 30.33 19.48 20 17.05 17.23 10
M22 2.5/2/1.5 56 32.61 33.39 21.48 22 17.05 17.23 11
M24 3/2 60 35.61 36.39 23.48 24 19.065 19.28 12
M27 3/2 66 39.61 40.39 26.48 27 19.065 19.28 13.5
M30 3.5/2 72 44.61 45.39 29.48 30 22.065 22.28 15.5
M33 3.5/2 78 49.61 50.39 32.38 33 24.065 24.28 18
M36 4/3 84 53.54 54.46 35.38 36 27.065 27.28 19
M42 4.5/3 96 62.54 63.46 41.38 42 32.08 32.33 24
M48 5/3 108 71.54 72.46 47.38 48 36.08 36.33 28
M56 5.5/4 124 83.46 84.54 56.26 57 41.08 41.33 34
M64 6/4 140 95.46 96.54 63.26 64 46.08 46.33 38
M72*4 6/4 156 107.5 108.5 71.26 72 55.1 55.4 43
M80*4 6/4 172 119.5 120.5 79.26 80 65.1 65.4 48
M90*4 6/4 192 134.4 135.6 89.13 90 75.1 75.4 54
M100*4 6/4 212 149.4 150.6 99.13 100 85.12 85.47 60




Production Workshop:



Fully Threaded Socket Head Cap Screws Zinc Plated Class 12.9 Alloy Steel 1



Product Warehouse:

Fully Threaded Socket Head Cap Screws Zinc Plated Class 12.9 Alloy Steel 2
