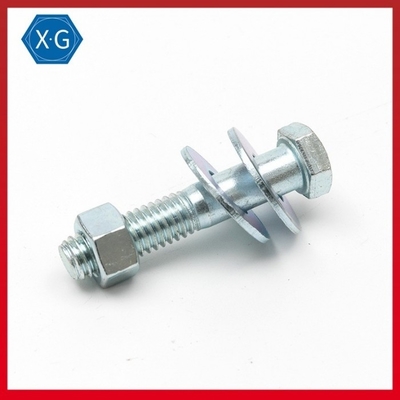

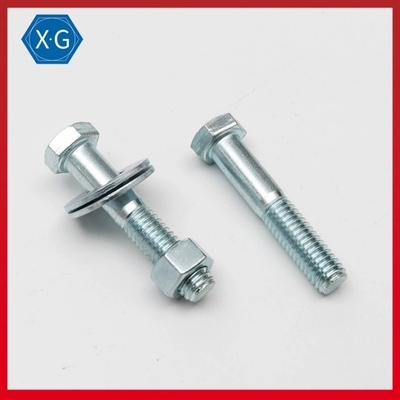

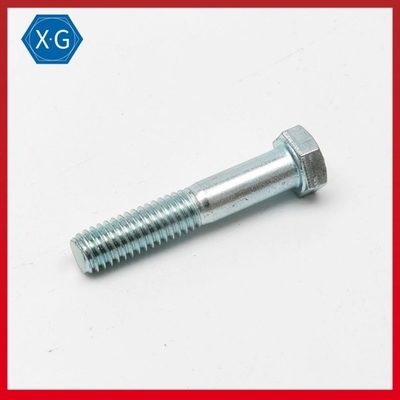

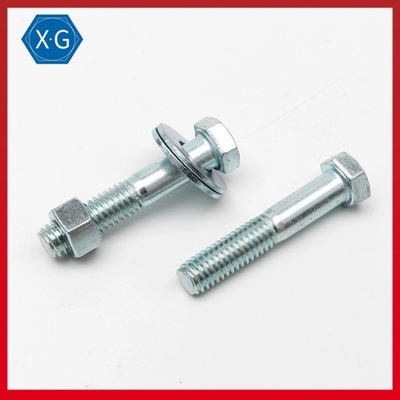

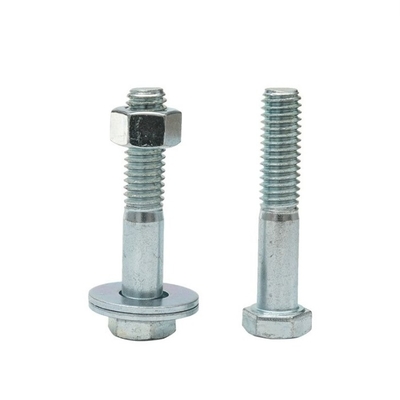

Class5 Zinc Plated Bolts And Nuts ASME ANSI B18 2.1 Bolts Hex Head Cap Screws

  • Class5 Zinc Plated Bolts And Nuts ASME ANSI B18 2.1 Bolts Hex Head Cap Screws
  • Class5 Zinc Plated Bolts And Nuts ASME ANSI B18 2.1 Bolts Hex Head Cap Screws
  • Class5 Zinc Plated Bolts And Nuts ASME ANSI B18 2.1 Bolts Hex Head Cap Screws
  • Class5 Zinc Plated Bolts And Nuts ASME ANSI B18 2.1 Bolts Hex Head Cap Screws
  • Class5 Zinc Plated Bolts And Nuts ASME ANSI B18 2.1 Bolts Hex Head Cap Screws
Place of Origin China
Brand Name XGFH
Certification ISO9001
Model Number ASME/ANSI B18.2.1
Minimum Order Quantity 100pcs
Price 0.01-0.9usd/pc
Packaging Details 20-25KG/Carton Box and then pallet
Delivery Time 5-15 work days
Payment Terms T/T, L/C
Supply Ability 500000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Hex Head Bolt And Nut Standard ASME/ANSI B18.2.1,B18.2.2
Material Medium-Strength Steel Grade Class5
Finish Zinc Plated Specification ASTM A449
System Of Measurement Inch Thread Fit Class 2A
Thread Type UNC Threading Partially Thread
High Light

ASME ANSI B18 2.1 Bolts xianggu

,

hex head cap screws Class 5

,

Class5 Zinc Plated Bolts And Nuts xianggu
Leave a Message
Product Description

Drawing:



Hex bolts
ASME/ANSI B18.2.1-2010
Class5 Zinc Plated Bolts And Nuts ASME ANSI B18 2.1 Bolts Hex Head Cap Screws 0
d(ich) ds(ich) s(ich) k(ich) b(ich)
min max min max min max L≤6 L>6
1/4 0.237 0.26 0.425 0.438 0.15 0.188 0.75 1
5/16 0.298 0.324 0.484 0.5 0.195 0.235 0.875 1.125
3/8 0.36 0.388 0.544 0.562 0.226 0.268 1 1.25
7/16 0.421 0.452 0.603 0.625 0.272 0.316 1.125 1.375
1/2 0.482 0.515 0.725 0.75 0.302 0.364 1.25 1.5
5/8 0.605 0.642 0.905 0.938 0.378 0.444 1.5 1.75
3/4 0.729 0.768 1.088 1.125 0.455 0.524 1.75 2
7/8 0.852 0.895 1.269 1.312 0.531 0.604 2 2.25
1 0.976 1.022 1.45 1.5 0.591 0.7 2.25 2.5
1-1/8 1.098 1.149 1.631 1.688 0.658 0.78 2.5 2.75
1-1/4 1.223 1.277 1.812 1.875 0.749 0.876 2.75 3
1-3/8 1.345 1.404 1.994 2.062 0.81 0.94 3 3.25
1-1/2 1.47 1.531 2.175 2.25 0.902 1.036 3.25 3.5
1-5/8 1.591 1.658 2.356 2.438 0.978 1.116 3.5 3.75
1-3/4 1.716 1.785 2.538 2.625 1.054 1.196 3.75 4
1-7/8 1.839 1.912 2.719 2.812 1.13 1.276 4 4.25
2 1.964 2.039 2.9 3 1.175 1.388 4.25 4.5
2-1/4 2.214 2.305 3.262 3.375 1.327 1.548 / 5
2-1/2 2.461 2.559 3.625 3.75 1.479 1.708 / 5.5
2-3/4 2.711 2.827 3.988 4.125 1.632 1.869 / 6
3 2.961 3.081 4.35 4.5 1.815 2.06 / 6.5
3-1/4 3.21 3.335 4.712 4.875 1.936 2.251 / 7
3-1/2 3.461 3.589 5.075 5.25 2.057 2.38 / 7.5
3-3/4 3.726 3.858 5.437 5.625 2.241 2.572 / 8
4 3.975 4.111 5.8 6 2.424 2.764 / 8.5



Medium-Strength Grade 5 Steel Hex Head Screws

Made from Grade 5 steel, these screws are suitable for fastening most machinery and equipment. Dimensions meet ASME B18.2.1 specifications. Grade 5 steel hex head screws are marked with three radial lines. Length is measured from under the head.

Black-oxide steel screws are mildly corrosion resistant in dry environments. Zinc-plated steel screws resist corrosion in wet environments. Black ultra-corrosion-resistant-coated steel screws resist chemicals and withstand 1,000 hours of salt spray per ASTM B117. To maintain corrosion resistance, use these screws with black ultra-corrosion-resistant-coated nuts and washers.

Match the thread spacing of mating components. Coarse threads are the industry standard; choose these screws if you don’t know the threads per inch. Fine and extra-fine threads are closely spaced to prevent loosening from vibration; the finer the thread, the better the resistance.

Screws that meet ASTM A449 or SAE J429 comply with specifications and testing requirements for material quality.





Mechanical Properties:



Mechanical Properties Grade 5
Tensile Load 120000psi
Yield strength 92000psi
Hardness Rockwell 25-34
Elongation in 4D min. 14%
Reduction of area min. 35%



Class5 Zinc Plated Bolts And Nuts ASME ANSI B18 2.1 Bolts Hex Head Cap Screws 1Class5 Zinc Plated Bolts And Nuts ASME ANSI B18 2.1 Bolts Hex Head Cap Screws 2Class5 Zinc Plated Bolts And Nuts ASME ANSI B18 2.1 Bolts Hex Head Cap Screws 3
