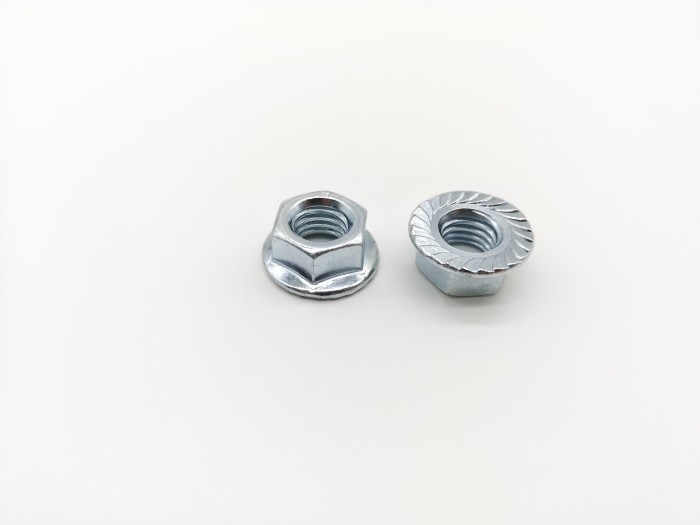

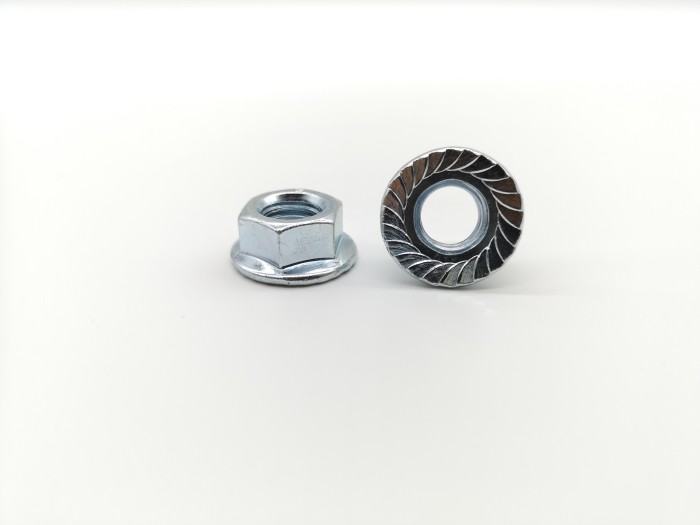

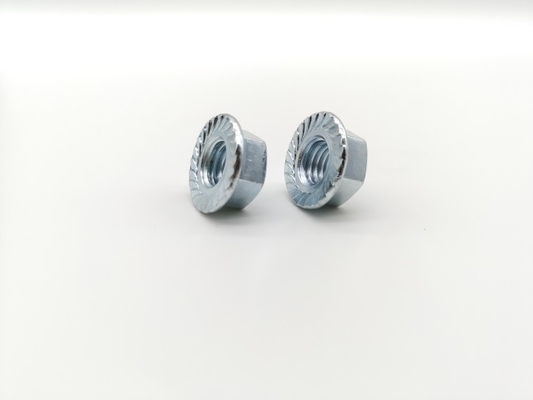

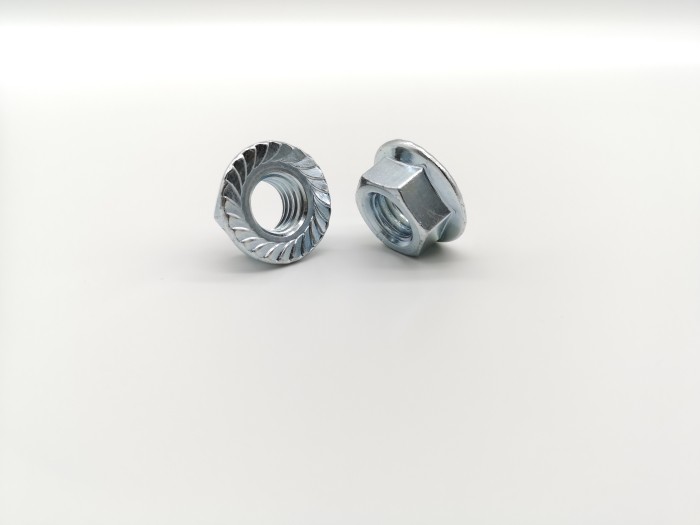

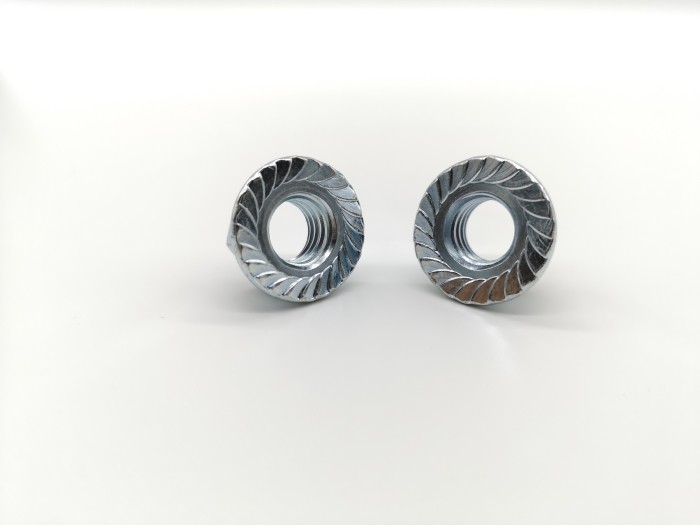

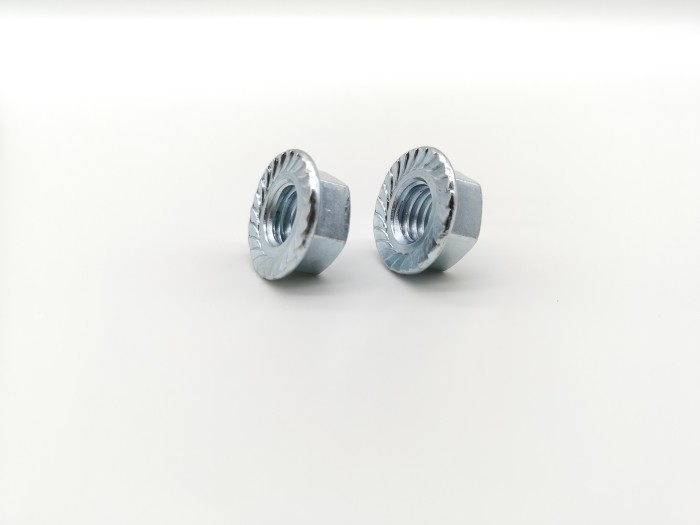

Zinc Finish Serrated Hex Flange Nuts DIN 6923 M5 To M20 Class 8

Place of Origin China
Brand Name XGFH
Certification ISO9001,EN10204 3.1Certificate
Model Number DIN6923
Minimum Order Quantity 100pcs
Price 0.01-0.9usd/pc
Packaging Details 20-25KG/Carton Box and then pallet
Delivery Time 5-15 work days
Payment Terms T/T, L/C
Supply Ability 500000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Name Hex Flange Nuts Standard DIN6923
Material Medium Carbon Steel Grade Class 8
Finish Zinc Plated Style Hex
System Of Measurement Metric Thread Fit Coarse 6g/6h
Thread Type Right Hand
High Light

Zinc Finish serrated hex flange nuts xianggu


DIN 6923 serrated hex flange nuts xianggu


flange nut din 6923

Leave a Message
Product Description

Metric Medium-Strength Steel Serrated Flange Locknuts—Class 8


Product Description:


Flange nuts have a washer like base to distribute pressure over a greater surface area and ensure the fastener stay tight.They are commonly used in manufacturing assembly lines where operations are speeded by using a single fastener instead of a nut and washer.


Product Features:


Strong enough for use in most machinery and equipment, these medium-strength metric nuts have serrations on the underside of the flange. The serrations prevent the nuts from loosening in applications with mild vibration.

Also known as collar nuts, they do not require a washer, which saves assembly time. Instead, the flange spreads the holding force across a wide area. Because the flange makes them wider than standard nuts, they may not fit into tight spots.

Zinc-plated steel nuts have a layer of zinc on the outside that prevents the steel from rusting in wet environments, extending the life of the nut.

To ensure compatibility with other parts and tools, some nuts meet ISO 4161 (formerly DIN 6923).



Product Drawing:


Hexagon Nuts With Flange
DIN 6923-1983
Zinc Finish Serrated Hex Flange Nuts DIN 6923 M5 To M20 Class 8 0
d(mm) p(mm) dc(mm) m(mm) s(mm)
max min max min max
M5 0.8 11.8 4.7 5 7.78 8
M6 1 14.2 5.7 6 9.78 10
M8 1/1.25 17.9 7.6 8 12.73 13
M10 1/1.25/1.5 21.8 9.6 10 14.73 15
M12 1.25/1.5/1.75 26 11.6 12 17.73 18
M14 1.5/2 29.9 13.3 14 20.67 21
M16 1.5/2 34.5 15.3 16 23.67 24
M20 1.5/2.5 42.8 18.9 20 29.67 30


Zinc Finish Serrated Hex Flange Nuts DIN 6923 M5 To M20 Class 8 1Zinc Finish Serrated Hex Flange Nuts DIN 6923 M5 To M20 Class 8 2
