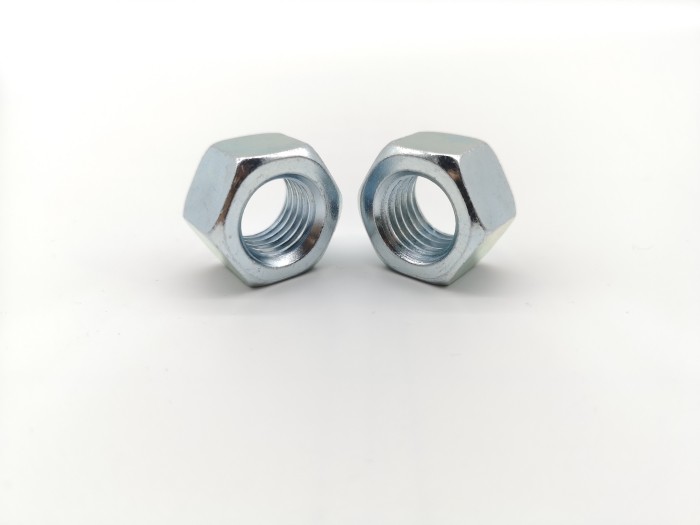

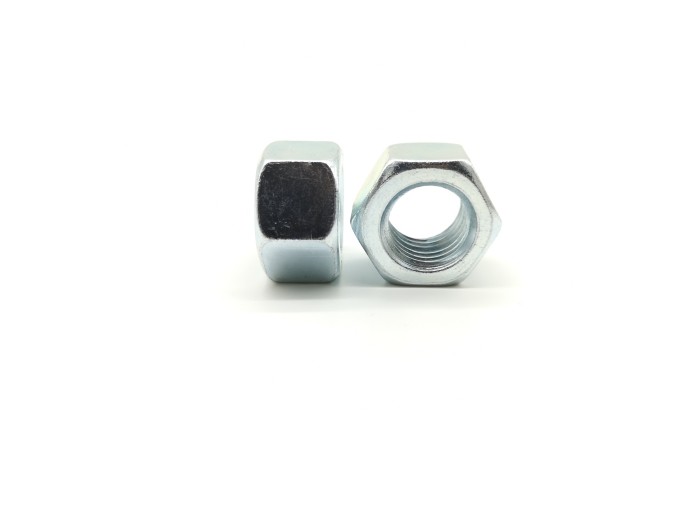

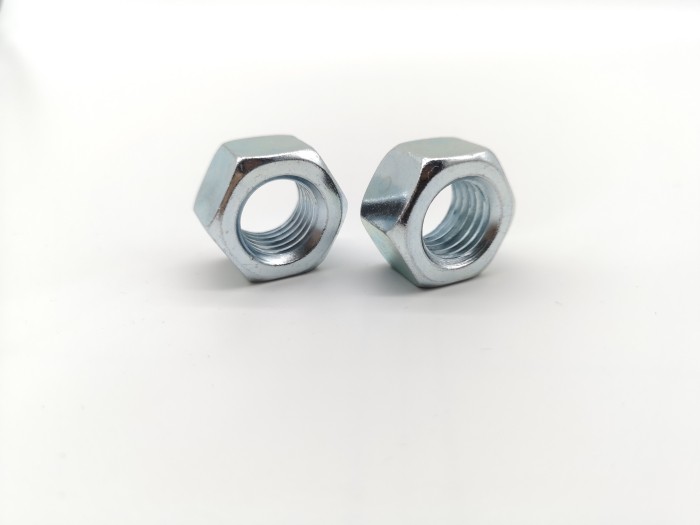

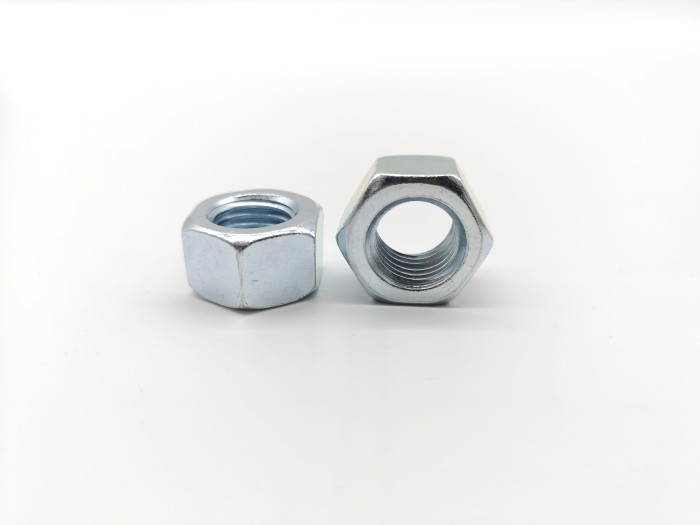

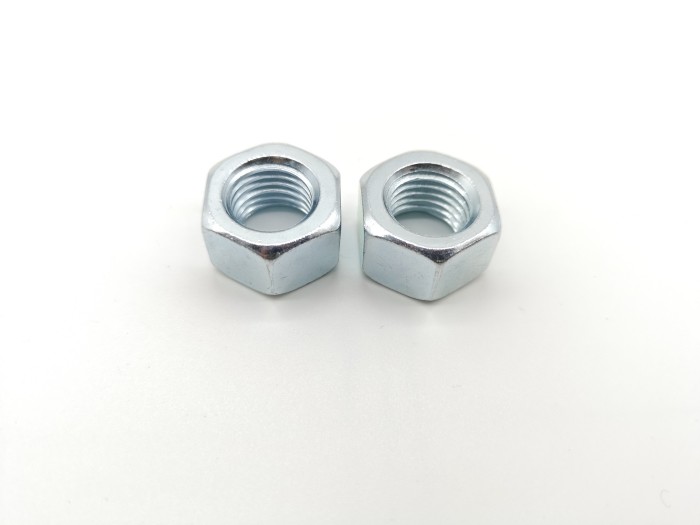

ISO 4032 Grade 8 Steel Zinc Plated Hex Nut Medium Carbon Steel

  • ISO 4032 Grade 8 Steel Zinc Plated Hex Nut Medium Carbon Steel
  • ISO 4032 Grade 8 Steel Zinc Plated Hex Nut Medium Carbon Steel
  • ISO 4032 Grade 8 Steel Zinc Plated Hex Nut Medium Carbon Steel
  • ISO 4032 Grade 8 Steel Zinc Plated Hex Nut Medium Carbon Steel
  • ISO 4032 Grade 8 Steel Zinc Plated Hex Nut Medium Carbon Steel
Place of Origin China
Brand Name XGFH
Certification ISO9001,EN10204 3.1Certificate
Model Number ISO4032
Minimum Order Quantity 100pcs
Price 0.01-0.9usd/pc
Packaging Details 20-25KG/Carton Box and then pallet
Delivery Time 5-15 work days
Payment Terms T/T, L/C
Supply Ability 500000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Hex Nuts Standard ISO4032
Material Medium Carbon Steel Grade Class 8
Finish Zinc Plated Style Hex
System Of Measurement Metric Thread Fit Coarse 6g/6h
Thread Type Right Hand
High Light

8 steel zinc plated hex nut xianggu

,

ISO 4032 zinc plated hex nut xianggu

,

6mm stainless nuts Medium Carbon Steel
Leave a Message
Product Description

Product Description:



Steel Hex Nuts Metric Thread

A hex nut is a six sided nut that fastens screws and bolts efficiently and securely.They are the most common hexagonal fastener that has internal threads that screw on to the shank of a bolt or a hex cap screw.Because a hex nut has six sides,they have good granularity angles for tools to utilise.It takes one sixth of a rotation to obtain the next side of the hexagon and grip is optimal.This makes them great for those tight spots.



Typical Applications:



Hex nuts are the most common type of nut and are for general purpose fastening applications.

Automotive applications.

Construction industry.

Machinery and Workshops.

DIY enthusiasts and professionals.



Product Features:



Hex nuts are available in a variety of sizes.

They are also available in different finishes and materials.

Offer an easy fasten and loosen experience for the users.

Accessible from a 360 degree angle because of their dynamic shape.

The hexagonal shaped nut makes it easy to work with and is versatile.

Steel full hex nut,bright zinc plated.

Grade 8





Product Drawing:



Hexagon nuts,type 1--product grades A and B
ISO4032&GB/T6170-2000
ISO 4032 Grade 8 Steel Zinc Plated Hex Nut Medium Carbon Steel 0
d(mm) P(mm) k(mm) s(mm)
min max min max
M1.6 0.35 1.05 1.3 3.02 3.2
M2 0.4 1.35 1.6 3.82 4
M2.5 0.45 1.75 2 4.82 5
M3 0.5 2.15 2.4 5.32 5.5
M3.5 0.6 2.55 2.8 5.82 6
M4 0.7 2.9 3.2 6.78 7
M5 0.8 4.4 4.7 7.78 8
M6 1 4.9 5.2 9.78 10
M8 1.25 6.44 6.8 12.73 13
M10 1.5 8.04 8.4 15.73 16
M12 1.75 10.37 10.8 17.73 18
M14 2 12.1 12.8 20.67 21
M16 2 14.1 14.8 23.67 24
M18 2.5 15.1 15.8 26.16 27
M20 2.5 16.9 18 29.16 30
M22 2.5 18.1 19.4 33 34
M24 3 20.2 21.5 35 36
M27 3 22.5 23.8 40 41
M30 3.5 24.3 25.6 45 46
M33 3.5 27.4 28.7 49 50
M36 4 29.4 31 53.8 55
M39 4 31.8 33.4 58.8 60
M42 4.5 32.4 34 63.1 65
M45 4.5 34.4 36 68.1 70
M48 5 36.4 38 73.1 75
M52 5 40.4 42 78.1 80
M56 5.5 43.4 45 82.8 85
M60 5.5 46.4 48 87.8 90
M64 6 49.1 51 92.8 95




ISO 4032 Grade 8 Steel Zinc Plated Hex Nut Medium Carbon Steel 1ISO 4032 Grade 8 Steel Zinc Plated Hex Nut Medium Carbon Steel 2
