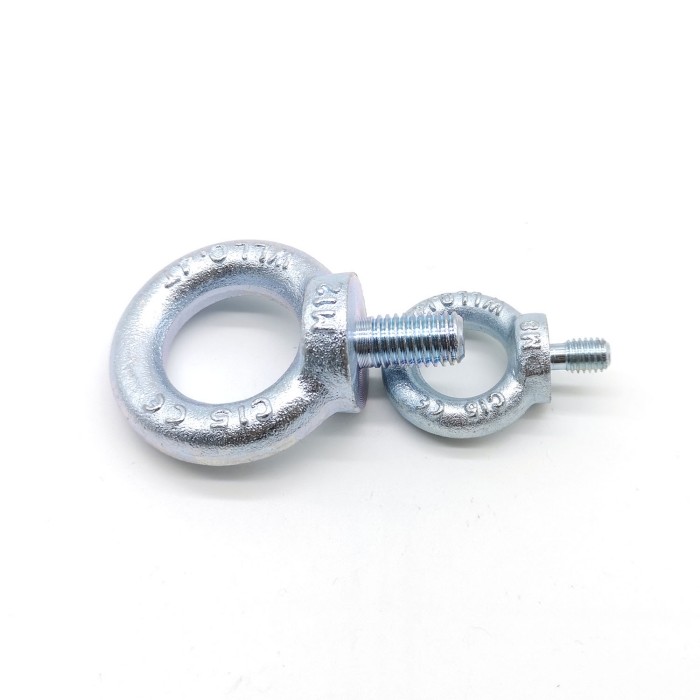

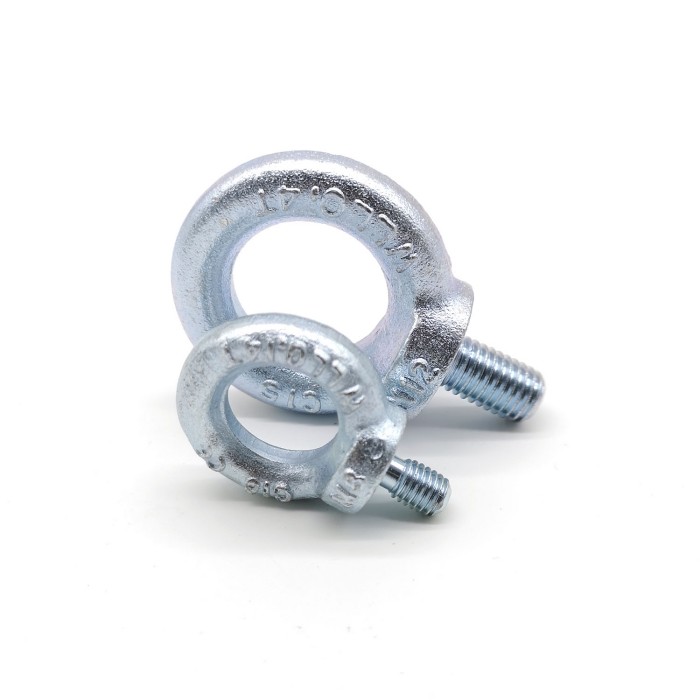

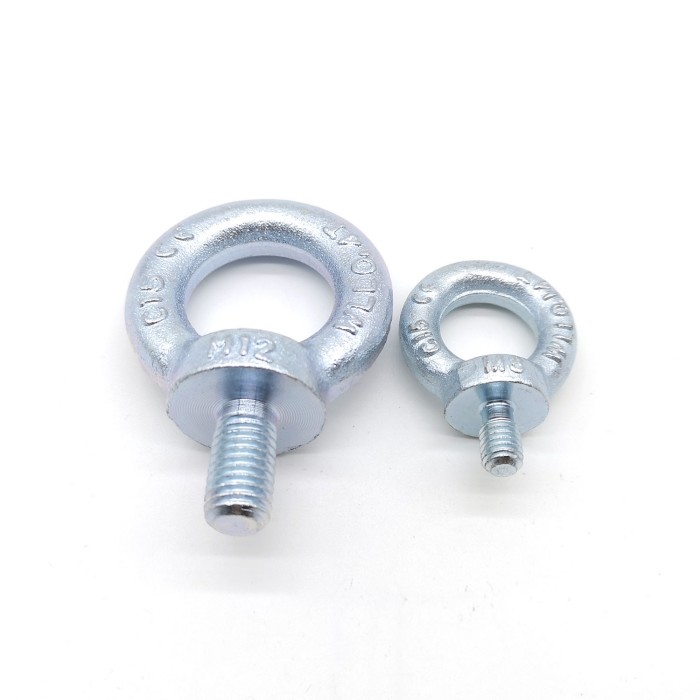

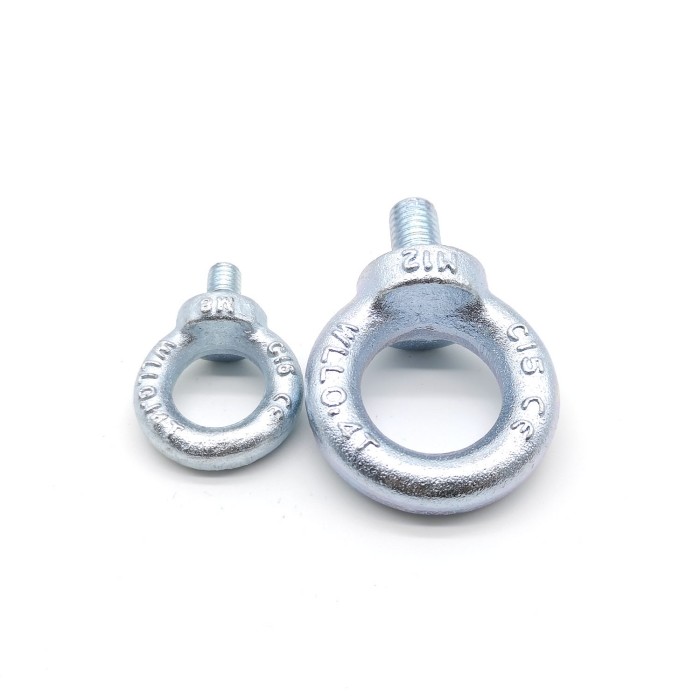

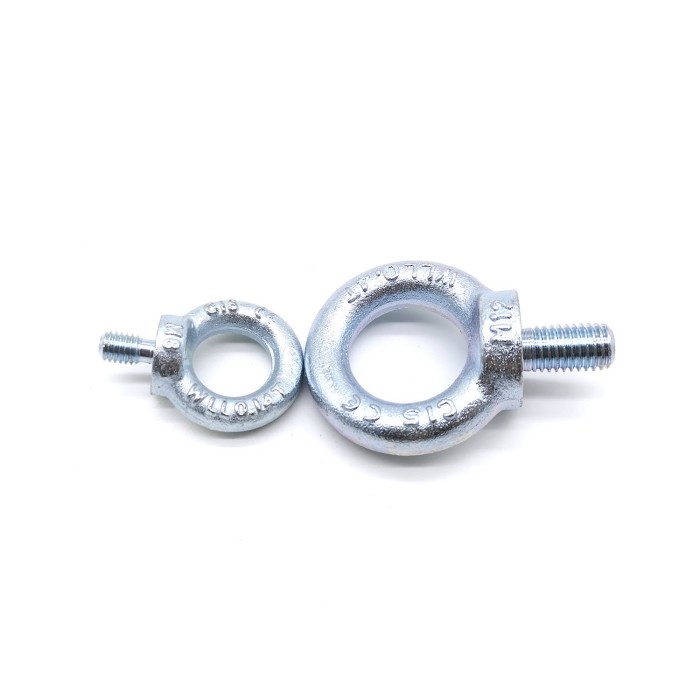

DIN 580 Zinc Plated Bolts And Nuts Steel Lifting Eye Bolts Class 4
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xName | Eye Bolts | Standard | DIN580 |
---|---|---|---|
Material | Steel | Grade | Class 4 |
Finish | Zinc Plated | Style | Lifting |
System Of Measurement | Metric | Thread Fit | Coarse 6g/6h |
Thread Type | Right Hand | Threading | Full Threaded |
High Light | xianggu DIN 580 Zinc Plated Bolts And Nuts,Steel Lifting Eye Bolts,Lifting Eye Bolts Class 4 |
Product Description:
Eye bolts For Lifting Also known as machinery eyebolts
Zinc-plated steel eyebolts offer good corrosion resistance.
Galvanized steel eyebolts have a hot-dipped finish for more corrosion resistance than zinc-plated steel.
304 stainless steel eyebolts are more corrosion resistant than galvanized steel.
316 stainless steel are the most corrosion resistant eyebolts.
Note: Capacities listed are for vertical lifting only. Eyebolts with shoulder can be used for angular lifting up to 45°, but the capacities will be significantly reduced. For angular lifting, we recommend Hoist Rings. Eyebolts without shoulder are for vertical lifting only.
Warning: Never use to lift people or items over people.
Product Features:
Eye bolts are externally threaded fasteners featuring loops that secure cables,wires,and chains to assist with vertical lifting.
Product Drawing:
Lifting Eye Bolts | ||||||||||||
DIN 580-2018 | ||||||||||||
d(mm) | d2(mm) | d4(mm) | D1(mm) | d3(mm) | d1(mm) | L(mm) | ||||||
min | max | min | max | min | max | min | max | min | max | min | max | |
M6 | 19.5 | 20.9 | 35.5 | 37.1 | 19.1 | 20.5 | 4.22 | 4.4 | 7.5 | 8.9 | 12.65 | 13.35 |
M8 | 19.5 | 20.9 | 35.5 | 37.1 | 19.1 | 20.5 | 5.82 | 6 | 7.5 | 8.9 | 12.65 | 13.35 |
M10 | 24.5 | 25.9 | 44.5 | 46.1 | 24.1 | 25.5 | 7.48 | 7.7 | 9.5 | 10.9 | 16.65 | 17.35 |
M12 | 29.5 | 30.9 | 53.5 | 55.1 | 29.1 | 30.5 | 9.18 | 9.4 | 11.5 | 12.9 | 20.08 | 20.92 |
M14 | 34.5 | 36.1 | 62.5 | 64.1 | 33.9 | 35.5 | 10.73 | 11 | 13.5 | 14.9 | 26.58 | 27.42 |
M16 | 34.5 | 36.1 | 62.5 | 64.1 | 33.9 | 35.5 | 12.73 | 13 | 13.5 | 14.9 | 26.58 | 27.42 |
M18 | 39.5 | 41.1 | 71.5 | 73.1 | 38.9 | 40.5 | 14.13 | 14.4 | 15.5 | 16.9 | 29.58 | 30.42 |
M20 | 39.5 | 41.1 | 71.5 | 73.1 | 38.9 | 40.5 | 16.13 | 16.4 | 15.5 | 16.9 | 29.58 | 30.42 |
M22 | 49.4 | 51.2 | 89.4 | 91.2 | 48.8 | 50.6 | 18.07 | 18.4 | 19.5 | 21.1 | 35.5 | 36.5 |
M24 | 49.4 | 51.2 | 89.4 | 91.2 | 48.8 | 50.6 | 19.27 | 19.6 | 19.5 | 21.1 | 35.5 | 36.5 |
M27 | 64.3 | 66.3 | 107.3 | 109.5 | 58.7 | 60.7 | 22.29 | 22.6 | 23.4 | 25.2 | 44.5 | 45.5 |
M30 | 64.3 | 66.3 | 107.3 | 109.5 | 58.7 | 60.7 | 24.67 | 25 | 23.4 | 25.2 | 44.5 | 45.5 |
M33 | 74.3 | 76.5 | 125.2 | 127.7 | 68.5 | 70.7 | 27.61 | 28 | 27.3 | 29.3 | 53.5 | 54.5 |
M36 | 74.3 | 76.5 | 125.2 | 127.7 | 68.5 | 70.7 | 29.91 | 30.3 | 27.3 | 29.3 | 53.5 | 54.5 |
M39 | 84.3 | 86.5 | 143.2 | 145.7 | 78.5 | 80.7 | 32.91 | 33.3 | 31.3 | 33.3 | 62.4 | 63.6 |
M42 | 84.3 | 86.5 | 143.2 | 145.7 | 78.5 | 80.7 | 35.21 | 35.6 | 31.3 | 33.3 | 62.4 | 63.6 |
M45 | 99.2 | 101.7 | 164.9 | 168.1 | 88.3 | 90.8 | 38.21 | 38.6 | 37.2 | 39.7 | 67.4 | 68.6 |
M48 | 99.2 | 101.7 | 164.9 | 168.1 | 88.3 | 90.8 | 40.61 | 41 | 37.2 | 39.7 | 67.4 | 68.6 |
M52 | 108.9 | 112.1 | 182.8 | 186.4 | 98.1 | 100.9 | 44.54 | 45 | 41.1 | 43.9 | 77.4 | 78.6 |
M56 | 108.9 | 112.1 | 182.8 | 186.4 | 98.1 | 100.9 | 47.91 | 48.3 | 41.1 | 43.9 | 77.4 | 78.6 |
M60 | 118.9 | 122.1 | 204.8 | 208.4 | 107.9 | 111.1 | 51.84 | 52.3 | 47.1 | 49.9 | 89.3 | 90.7 |
M64 | 118.9 | 122.1 | 204.8 | 208.4 | 107.9 | 111.1 | 55.24 | 55.7 | 47.1 | 49.9 | 89.3 | 90.7 |
M72 | 148.8 | 152.4 | 258.5 | 263 | 137.6 | 141.2 | 63.24 | 63.7 | 58.9 | 62.1 | 99.3 | 100.7 |
M80 | 168.5 | 173 | 294.3 | 299.3 | 157.3 | 161.3 | 71.24 | 71.7 | 66.8 | 70.4 | 111.3 | 112.7 |
M100 | 188.5 | 193 | 328.3 | 333.3 | 177 | 181.5 | 91.16 | 91.7 | 73.8 | 77.4 | 129.2 | 130.8 |
