ASME B18 5 Zinc Plated Bolts And Nuts Grade 2 Carriage Coach Bolt Round Head Square Neck

Place of Origin China
Brand Name XGFH
Certification ISO9001,EN10204 3.1Certificate
Model Number ASME B18.5
Minimum Order Quantity 100pcs
Price 0.01-0.9usd/pc
Packaging Details 20-25KG/Carton Box and then pallet
Delivery Time 5-15 work days
Payment Terms T/T, L/C
Supply Ability 500000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Carriage Bolts Standard ASME B18.5
Material Steel Grade Class 2
Finish Zinc Plated Style Round Head
System Of Measurement Imperial Inch Thread Fit Coarse UNC
Thread Type Right Hand Threading Full Threaded
High Light

ASME B18 5 xianggu

,

Zinc Plated Bolts And Nuts Square Neck xianggu

,

Grade 2 Carriage Coach Bolt

Leave a Message
Product Description

Product Description:

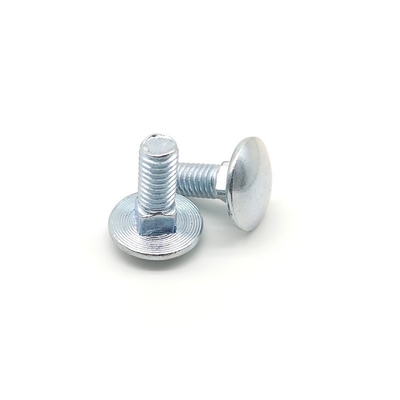

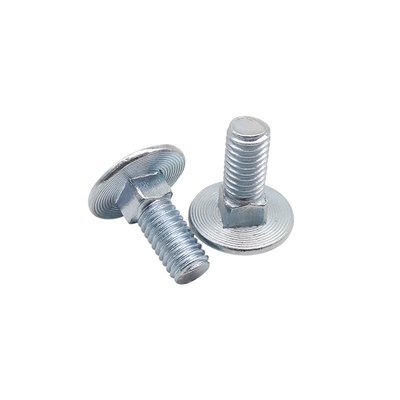

ASME B18.5 Zinc Plated Grade 2 Carriage Bolt Coach Bolt Round Head Square Neck Bolt



A carriage bolt also called coach bolt and round head square neck bolt is a form of bolt used to fasten metal to metal or,more commonly,wood to metal.Also known as a cup head bolt in Australia and New Zealand.

It’s distinguished from other bolts by its shallow mushroom head and the fact that the cross section of the shank,though circular for most of its length.





Products name ASME B18.5 Zinc Plated Grade 2 Carriage Bolt Coach Bolt Round Head Square Neck Bolt
Standard: DIN,ASTM/ANSI JIS EN ISO,AS,GB
Material Carbon Steel,Alloy Steel;Stainless Steel:SS304, SS316,SS316L
Steel Grade: 8.8,10.9,12.9,Grade2,5 and 8,Class A2-70,A4-70,A4-80
Finishing Black Oxide,HDG(Hot Dip Galvanized),Zinc Plated,Dacromet
Related Products Hex Nuts,Flat Washer,and Spring Washer
Applications Carriage bolt is used extensively in security applications,such as locks and hinges,where the bolt must be removable from one side only.
Stock Products Hex head screw most of sizes are in stock.
Get Free Samples for standard fastener from Jiangyin XiangGu Hardware Products Co.,Ltd
Focus On Supplying High Quality Fasteners.







Product Drawing:





Round head square neck bolts Table2
ASME/ANSI B18.5-2008
ASME B18 5 Zinc Plated Bolts And Nuts Grade 2 Carriage Coach Bolt Round Head Square Neck 0
d(ich) ds(ich) dk(ich) k(ich) s(ich) k1(ich)
min max min max min max min max min max
#10 0.159 0.199 0.436 0.469 0.094 0.114 0.185 0.199 0.094 0.125
1/4 0.213 0.26 0.563 0.594 0.125 0.145 0.245 0.26 0.125 0.156
5/16 0.272 0.324 0.688 0.719 0.156 0.176 0.307 0.324 0.156 0.187
3/8 0.329 0.388 0.782 0.844 0.188 0.208 0.368 0.388 0.188 0.219
7/16 0.385 0.452 0.907 0.969 0.219 0.239 0.431 0.452 0.219 0.25
1/2 0.444 0.515 1.032 1.094 0.25 0.27 0.492 0.515 0.25 0.281
5/8 0.559 0.642 1.219 1.344 0.313 0.344 0.616 0.642 0.313 0.344
3/4 0.678 0.768 1.469 1.594 0.375 0.406 0.741 0.768 0.375 0.406
7/8 0.795 0.895 1.719 1.844 0.438 0.469 0.865 0.895 0.438 0.469
1 0.91 1.022 1.969 2.094 0.5 0.531 0.99 1.022 0.5 0.531

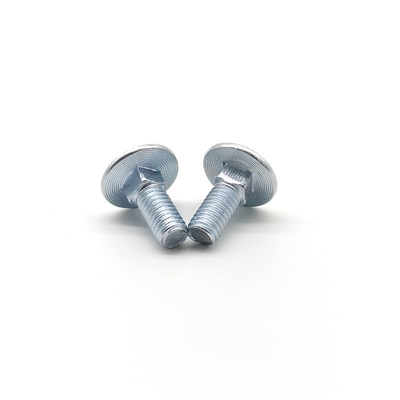

ASME B18 5 Zinc Plated Bolts And Nuts Grade 2 Carriage Coach Bolt Round Head Square Neck 1

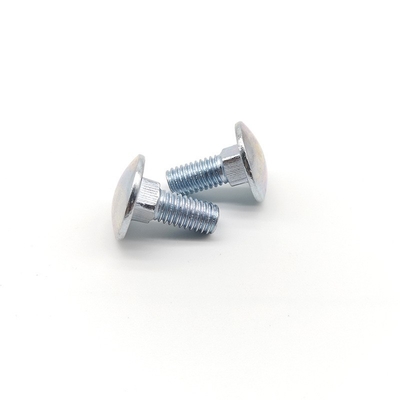

ASME B18 5 Zinc Plated Bolts And Nuts Grade 2 Carriage Coach Bolt Round Head Square Neck 2

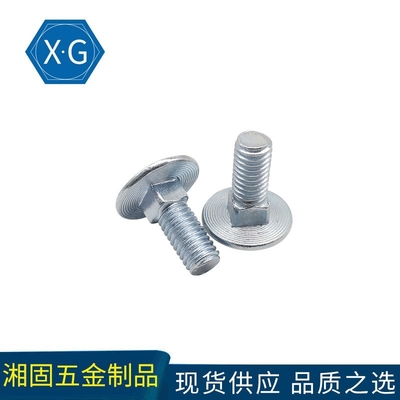

ASME B18 5 Zinc Plated Bolts And Nuts Grade 2 Carriage Coach Bolt Round Head Square Neck 3



FAQ

Q: Are you trading company or manufacturer ?

A: We are factory and OEM are available.

Q: How long is your delivery time?

A: Generally it is 2-5 days if the goods are in stock,or it is 15-30 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: 30% T/T in advance ,balance before shipment or L/C.
If you have another question, please feel free to contact us.
