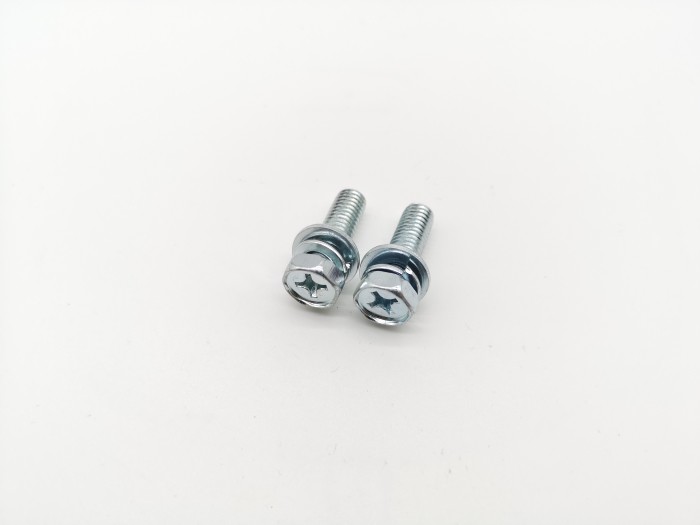

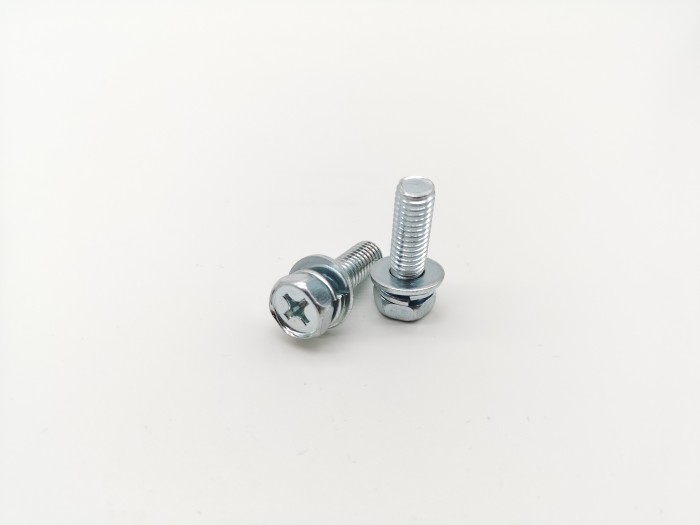

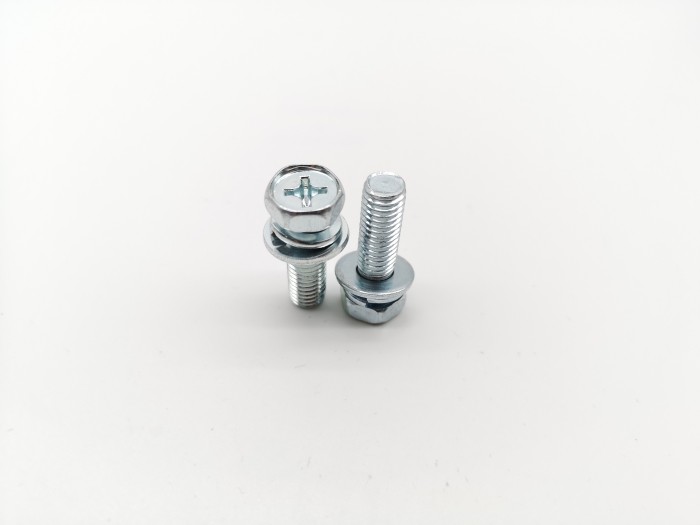

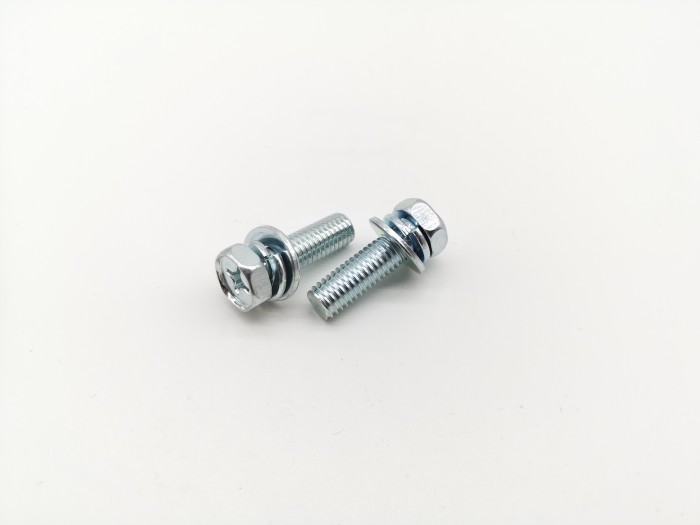

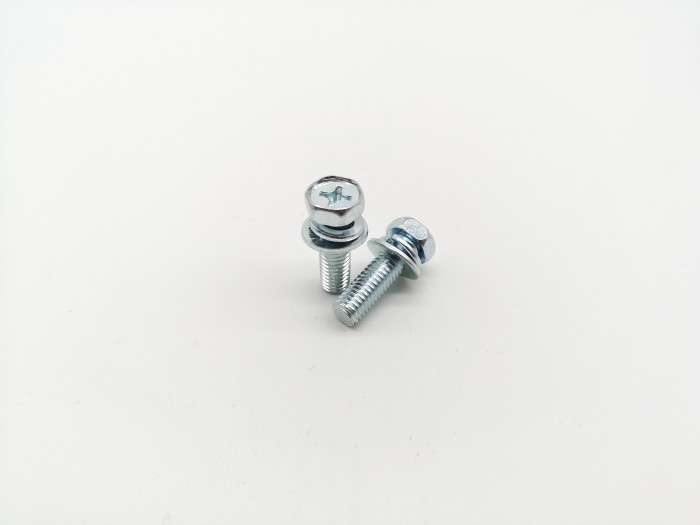

GB9074.13 Phillips Hex Head Machine Screw Flat Washer Lock Washer
| Place of Origin | China |
|---|---|
| Brand Name | XGFH |
| Certification | ISO9001,EN10204 3.1Certificate |
| Model Number | GB9074.13 |
| Minimum Order Quantity | 100pcs |
| Price | 0.01-0.9usd/pc |
| Packaging Details | 20-25KG/Carton Box and then pallet |
| Delivery Time | 5-15 work days |
| Payment Terms | T/T, L/C |
| Supply Ability | 500000pcs per month |
Product Details
| Name | Hex Head Combination Screws | Standard | GB9074.13 |
|---|---|---|---|
| Material | Steel | Grade | Class 4.8 |
| Finish | Zinc Plated | Style | Hex Phillips Drive |
| System Of Measurement | Metric | Thread Fit | Coarse 6g/6h |
| Thread Type | Right Hand | Threading | Full Threaded |
| Sets | Screw With Spring Washer And Plat Washer | ||
| Highlight | xianggu GB9074.13 Phillips Hex Head Machine Screw,xianggu Phillips Hex Head Machine Screw,xianggu flat washer lock washer |
||
Product Description
Product Drawing:
| Cross Recessed Hexagon Bolt With Indentation,Single Coil Lock Washer And Plain Washer Assemblies | |||||
| GB/T 9074.13-1988 | |||||
 |
|||||
| d | b(mm) | h(mm) | H(mm) | dc(mm) | d2(mm) |
| min | |||||
| M4 | 38 | 0.8 | 2.75 | 9 | 6.78 |
| M5 | 38 | 1 | 3.25 | 10 | 8.75 |
| M6 | 38 | 1.6 | 4 | 12 | 10.71 |
| M8 | 38 | 1.6 | 5 | 16 | 13.64 |
