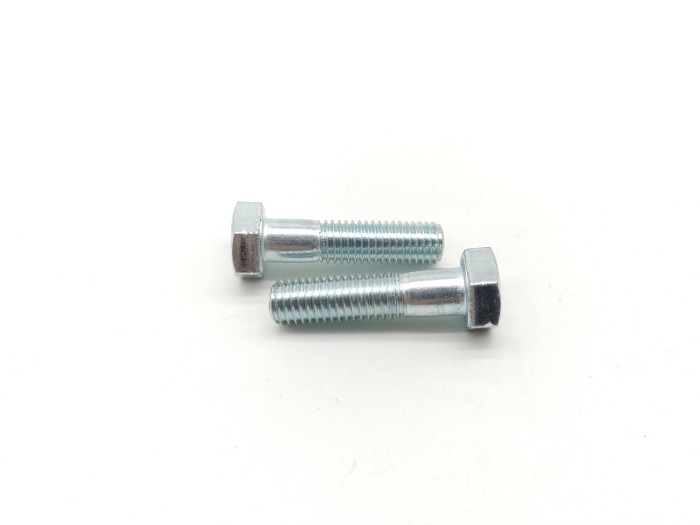

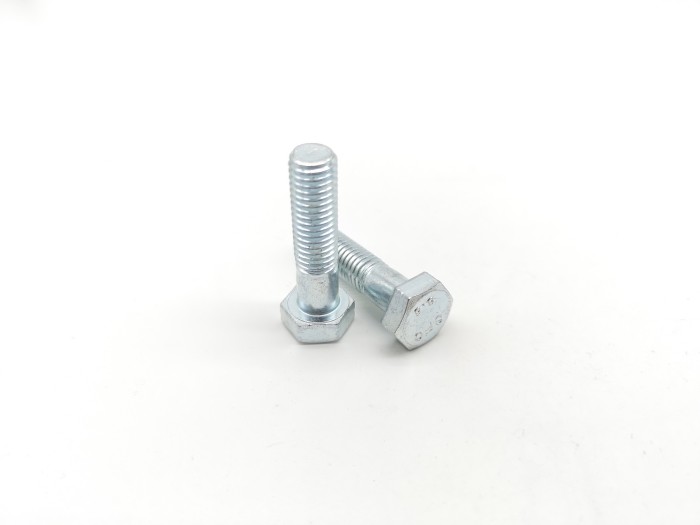

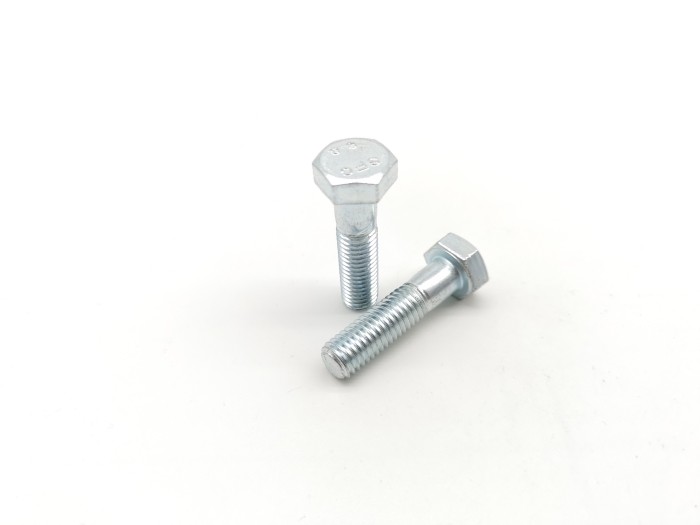

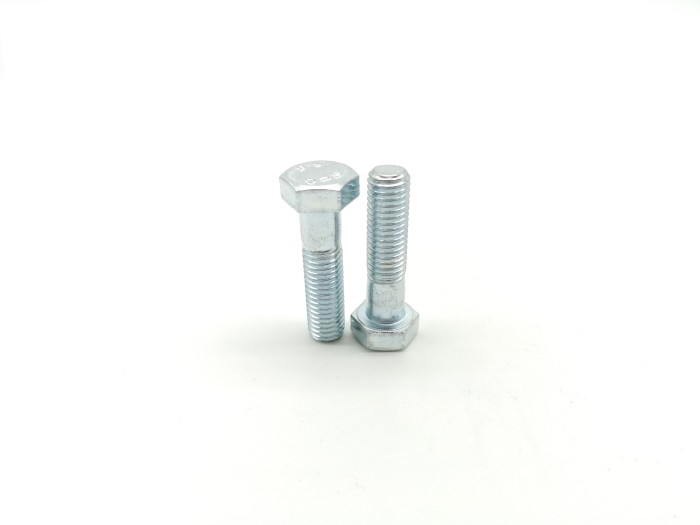

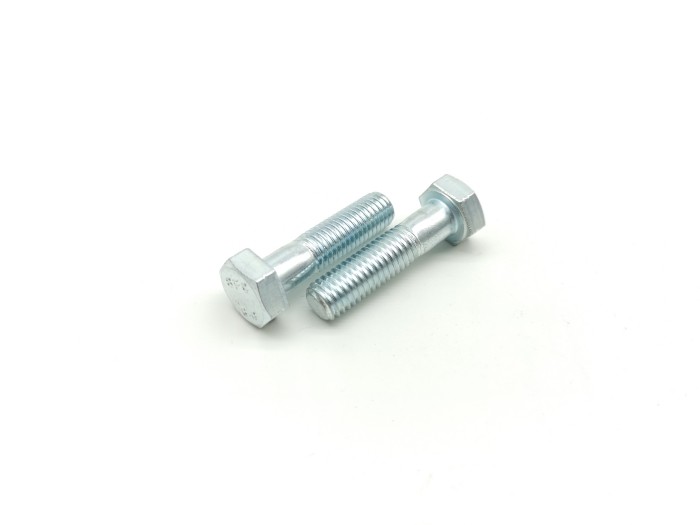

DIN 931 Partial Hex Head Cap Bolt Grade 8.8 Zinc Plated Bolts
| Place of Origin | China |
|---|---|
| Brand Name | XGFH |
| Certification | ISO9001,EN10204 3.1Certificate |
| Model Number | DIN931 |
| Minimum Order Quantity | 100pcs |
| Price | 0.01-0.9usd/pc |
| Packaging Details | 20-25KG/Carton Box and then pallet |
| Delivery Time | 5-15 work days |
| Payment Terms | T/T, L/C |
| Supply Ability | 500000pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Hex Head Bolts | Standard | DIN931 |
|---|---|---|---|
| Material | Medium Carbon Steel | Grade | Class 8.8 |
| Finish | Zinc Plated | Style | Hex |
| System Of Measurement | Metric | Thread Fit | Coarse 6g/6h |
| Thread Type | Right Hand | Threading | Half Threaded |
| High Light | Partial hex head cap bolt xianggu,DIN931 hex head cap bolt xianggu,8.8 Zinc Plated Bolts xianggu |
||
Product Description
Product Description:
Hex Head Cap Screws are designed for easy assembly into a tapped hole.Specification DIN931 represents partial thread.
These Class 8.8 steel screws are suitable for fastening most machinery and equipment. Dimensions meet ISO (formerly DIN) specifications. Length is measured from under the head.
Features:
Hexagon bolt fixing is a reliable fastener for a wide selection of building project and repair jobs.
Construction,Automobile,Engineering industries,Docks,Bridges,Highway structures.
Notes:
Requires a torque wrench or spanner.
We offer a range of hex head bolts in various thread sizes and lengths.Refer to the datasheet a range overview download file for details.
If 8.8 high tensile steel is not what you are looking for,we can also offer you the fasteners in stainless steel.Refer to the fasteners selection guide for details.
Product Drawing:
| Hex bolt & Hex Cap Screws partially threaded | ||||||||||||||
| DIN931-1987 | ||||||||||||||
 |
||||||||||||||
| d(mm) | P(mm) | b(mm) | ds(mm) | k(mm) | S(mm) | |||||||||
| L≤125 | 125＜L≤200 | L＞200 | min | Max | A | B | min | Max | ||||||
| A | B | min | max | min | max | A | B | |||||||
| M1.6 | 0.35 | 9 | / | / | 1.46 | / | 1.6 | 0.98 | 1.22 | / | / | 3.02 | / | 3.2 |
| M2 | 0.4 | 10 | / | / | 1.86 | / | 2 | 1.28 | 1.52 | / | / | 3.82 | / | 4 |
| M2.5 | 0.45 | 11 | / | / | 2.36 | / | 2.5 | 1.58 | 1.82 | / | / | 4.82 | / | 5 |
| M3 | 0.5 | 12 | / | / | 2.86 | / | 3 | 1.88 | 2.12 | / | / | 5.32 | / | 5.5 |
| M3.5 | 0.6 | 13 | / | / | 3.32 | / | 3.5 | 2.28 | 2.52 | / | / | 5.82 | / | 6 |
| M4 | 0.7 | 14 | / | / | 3.82 | / | 4 | 2.68 | 2.92 | / | / | 6.78 | / | 7 |
| M5 | 0.8 | 16 | 22 | / | 4.82 | / | 5 | 3.35 | 3.65 | / | / | 7.78 | / | 8 |
| M6 | 1 | 18 | 24 | / | 5.82 | / | 6 | 3.85 | 4.15 | / | / | 9.78 | / | 10 |
| M7 | 1 | 20 | 26 | / | 6.78 | / | 7 | 4.65 | 4.95 | / | / | 10.73 | / | 11 |
| M8 | 1.25 | 22 | 28 | / | 7.78 | / | 8 | 5.15 | 5.45 | / | / | 12.73 | / | 13 |
| M10 | 1.5 | 26 | 32 | 45 | 9.78 | / | 10 | 6.22 | 6.56 | / | / | 16.73 | / | 17 |
| M12 | 1.75 | 30 | 36 | 49 | 11.7 | / | 12 | 7.32 | 7.68 | / | / | 18.67 | / | 19 |
| M14 | 2 | 34 | 40 | 53 | 13.7 | / | 14 | 8.62 | 8.98 | / | / | 21.67 | / | 22 |
| M16 | 2 | 38 | 44 | 57 | 15.7 | 15.6 | 16 | 9.82 | 10.18 | 9.71 | 10.29 | 23.67 | 23.16 | 24 |
| M18 | 2.5 | 42 | 48 | 61 | 17.7 | 17.6 | 18 | 11.28 | 11.72 | 11.15 | 11.85 | 26.67 | 26.15 | 27 |
| M20 | 2.5 | 46 | 52 | 65 | 19.7 | 19.5 | 20 | 12.28 | 12.72 | 12.15 | 12.85 | 29.67 | 29.16 | 30 |
| M22 | 2.5 | 50 | 56 | 69 | 21.7 | 21.5 | 22 | 13.78 | 14.22 | 13.65 | 14.35 | 31.61 | 31 | 32 |
| M24 | 3 | 54 | 60 | 73 | 23.7 | 23.5 | 24 | 14.78 | 15.22 | 14.65 | 15.35 | 35.38 | 35 | 36 |
| M27 | 3 | 60 | 66 | 79 | / | 26.5 | 27 | / | / | 16.65 | 17.35 | / | 40 | 41 |
| M30 | 3.5 | 66 | 72 | 85 | / | 29.5 | 30 | / | / | 18.28 | 19.12 | / | 45 | 46 |
| M33 | 3.5 | 72 | 78 | 91 | / | 32.4 | 33 | / | / | 20.58 | 21.42 | / | 49 | 50 |
| M36 | 4 | 78 | 84 | 97 | / | 35.4 | 36 | / | / | 22.08 | 22.92 | / | 53.8 | 55 |
| M39 | 4 | 84 | 90 | 103 | / | 38.4 | 39 | / | / | 24.58 | 25.42 | / | 58.8 | 60 |
| M42 | 4.5 | 90 | 96 | 109 | / | 41.61 | 42 | / | / | 25.58 | 26.42 | / | 63.1 | 65 |
| M45 | 4.5 | 96 | 102 | 115 | / | 44.38 | 45 | / | / | 27.58 | 28.42 | / | 68.1 | 70 |
| M48 | 5 | 102 | 108 | 121 | / | 47.38 | 48 | / | / | 29.58 | 30.42 | / | 73.1 | 75 |
| M52 | 5 | / | 116 | 129 | / | 51.26 | 52 | / | / | 32.5 | 33.5 | / | 78.1 | 80 |
| M56 | 5.5 | / | 124 | 137 | / | 55.26 | 56 | / | / | 34.5 | 35.5 | / | 82.5 | 85 |
| M60 | 5.5 | / | 132 | 145 | / | 59.26 | 60 | / | / | 37.5 | 38.5 | / | 87.8 | 90 |
| M64 | 6 | / | 140 | 153 | / | 63.26 | 64 | / | / | 39.5 | 40.5 | / | 92.8 | 95 |
| M68 | 6 | / | 148 | 161 | / | 67.26 | 68 | / | / | 42.5 | 43.5 | / | 97.8 | 100 |
| M72 | 6 | / | 156 | 169 | / | 71.26 | 72 | / | / | 44.5 | 45.5 | / | 102.8 | 105 |
| M76 | 6 | / | 164 | 177 | / | 75.26 | 76 | / | / | 47.5 | 48.5 | / | 107.8 | 110 |
| M80 | 6 | / | 172 | 185 | / | 79.26 | 80 | / | / | 49.5 | 50.5 | / | 112.8 | 115 |
| M90 | 6 | / | 192 | 205 | / | 89.13 | 90 | / | / | 56.4 | 57.6 | / | 127.5 | 130 |
| M100 | 6 | / | / | 225 | / | 99.13 | 100 | / | / | 62.4 | 63.6 | / | 142.5 | 145 |
| M110 | 6 | / | / | 245 | / | 109.1 | 110 | / | / | 68.4 | 69.6 | / | 152.5 | 155 |
| M125 | 6 | / | / | 275 | / | 124 | 125 | / | / | 78.4 | 79.6 | / | 177.5 | 180 |
| M140 | 6 | / | / | 305 | / | 139 | 140 | / | / | 87.3 | 88.7 | / | 195.4 | 200 |
| M160 | 6 | / | / | 345 | / | 159 | 160 | / | / | 99.3 | 100.7 | / | 225.4 | 230 |
