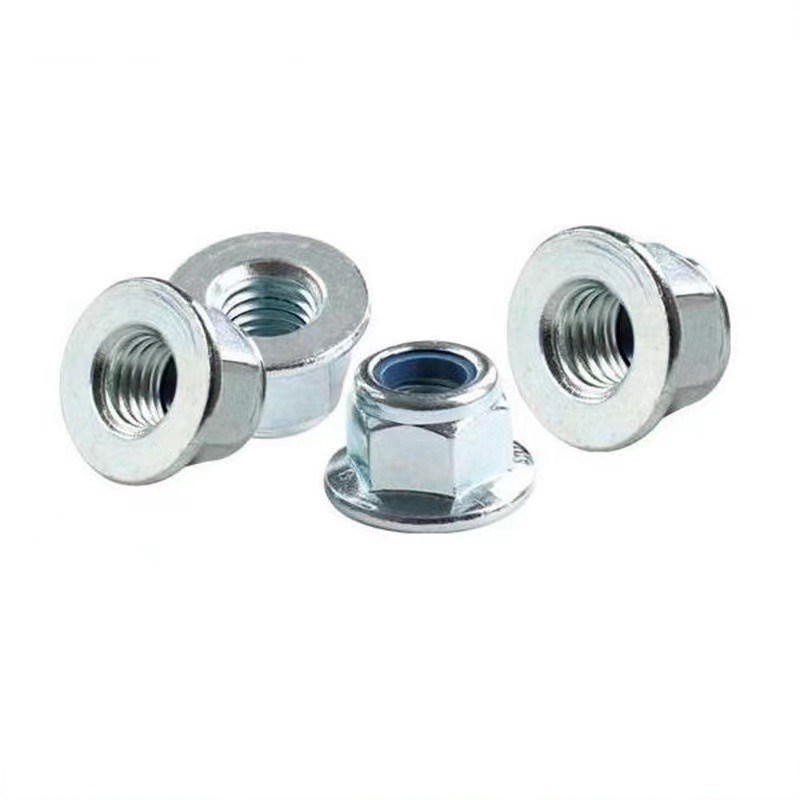

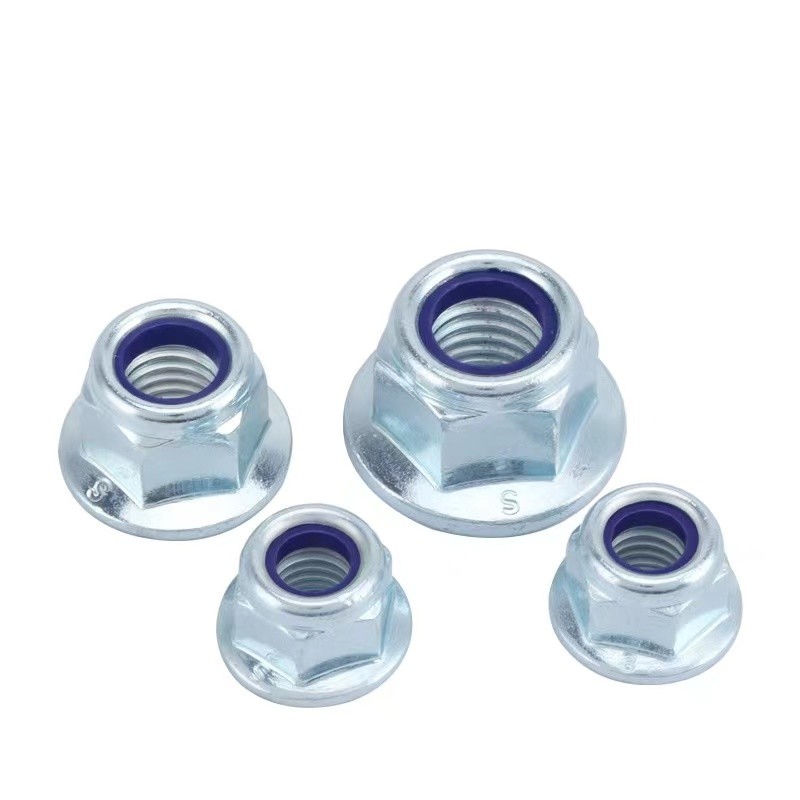

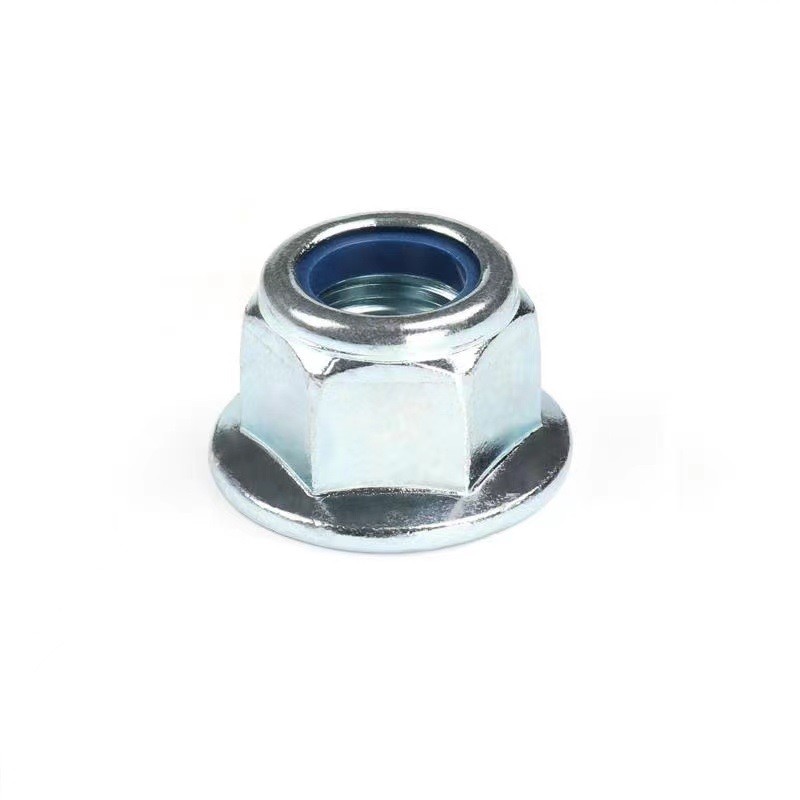

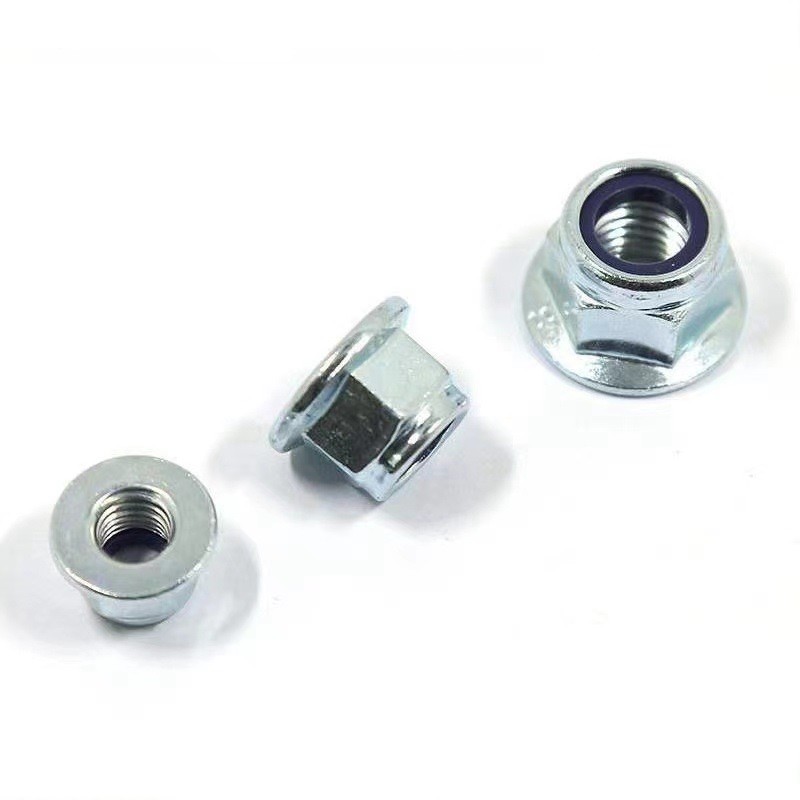

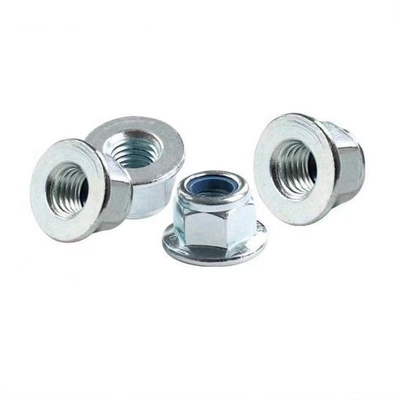

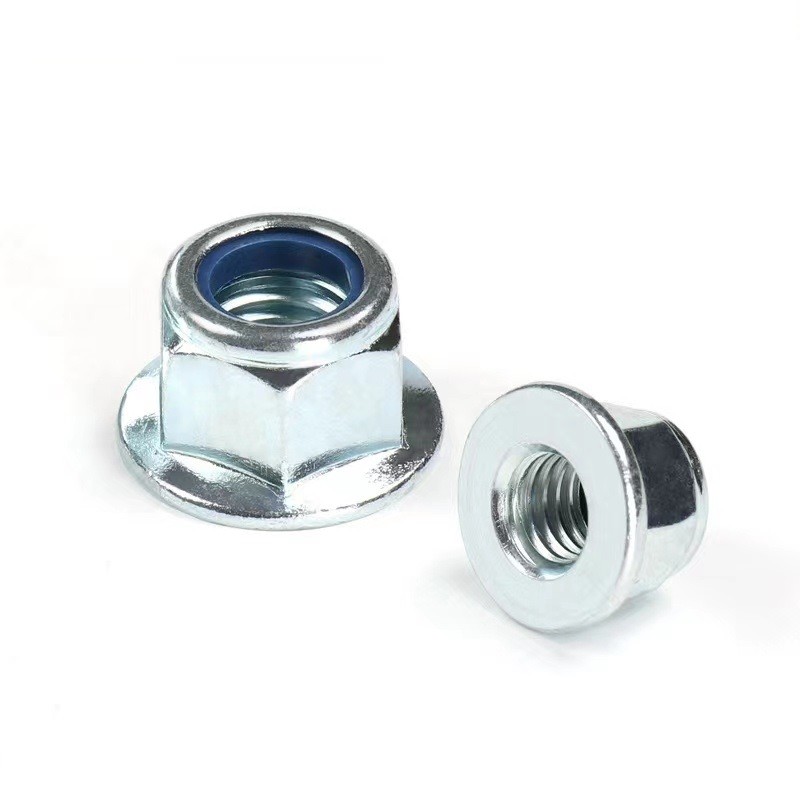

ISO7043 Grade8 M10 Zinc Plated Nylock Flange Nuts
| Place of Origin | China |
|---|---|
| Brand Name | XGFH |
| Certification | ISO9001,EN10204 3.1Certificate |
| Model Number | DIN6926,GB6183.1,ISO7043 |
| Minimum Order Quantity | 100PCS |
| Price | USD 0.25/PC |
| Packaging Details | Bulk into plastic bag and carton box,and then Pallet. |
| Delivery Time | 2-10work days |
| Payment Terms | T/T, L/C |
| Supply Ability | 500000PCS PER MONTH |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Standard | ISO7043 | Grade | Grade 8 |
|---|---|---|---|
| Material | Carbon Steel 35K | Coated | Blue White Zinc |
| Lock Type | Nylon Insert | Thread Direction | Right Hand |
| Thread Fit | Coarse | Thread Tolerance | 6H |
| Size | M5 To M20 | Name | Nylock Flange Nuts |
Product Description
Product Description:
| Products name | M10 Zinc Plated Nylock Flange Nuts |
| Standard: | DIN,ASTM/ANSI JIS EN ISO,AS,GB |
| Material | Stainless Steel: SS201, SS303, SS304, SS316,SS316L,SS904L ,F594 |
| Steel Grade: DIN: Gr.4,5,6,8.8,10,; SAE: Gr.2,5,8; ASTM: A563 | |
| Finishing | Polishing, Plain, Sand Blasting,Bright and Clean,Passivation. |
| Related Products | Hex Bolt；Socket Bolt；Carriage Bolt；T Bolt；Thread Rod |
| Customized Products Lead time |
Busy season:15-30days,Slack season:10-15days |
| Stock Products | Stainless Steel and Carbon Steel Bolts and Nuts |
| Get Free Samples for standard fastener from Jiangyin XiangGu Hardware Products Co.,Ltd | |
| Focus On Supplying High Quality Fasteners. | |
Product Drawing:
| Hexagon Flange Nut Nylon Insert | |||||||
| ISO 7043 & GB 6183.1 | |||||||
 |
|||||||
| d | p | dc | h | m | s | ||
| max | min | max | min | min | max | ||
| M5 | 0.8 | 11.8 | 6.52 | 7.1 | 4.7 | 7.78 | 8 |
| M6 | 1 | 14.2 | 8.52 | 9.1 | 5.7 | 9.78 | 10 |
| M8 | 1/1.25 | 17.9 | 10.4 | 11.1 | 7.64 | 12.73 | 13 |
| M10 | 1/1.25/1.5 | 21.8 | 12.8 | 13.5 | 9.64 | 14.73 | 15 |
| M12 | 1.25/1.5/1.75 | 26 | 15.4 | 16.1 | 11.57 | 17.73 | 18 |
| M14 | 1.5/2 | 29.9 | 16.9 | 18.2 | 13.3 | 20.67 | 21 |
| M16 | 1.5/2 | 34.5 | 19 | 20.3 | 15.3 | 23.67 | 24 |
| M20 | 1.5/2.5 | 42.8 | 22.7 | 24.8 | 18.7 | 29.16 | 30 |
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory and OEM are available.
Q: How long is your delivery time?
A: Generally it is 2-5 days if the goods are in stock,or it is 15-30 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: 30% T/T in advance ,balance before shipment or L/C.
If you have another question, please feel free to contact us.
