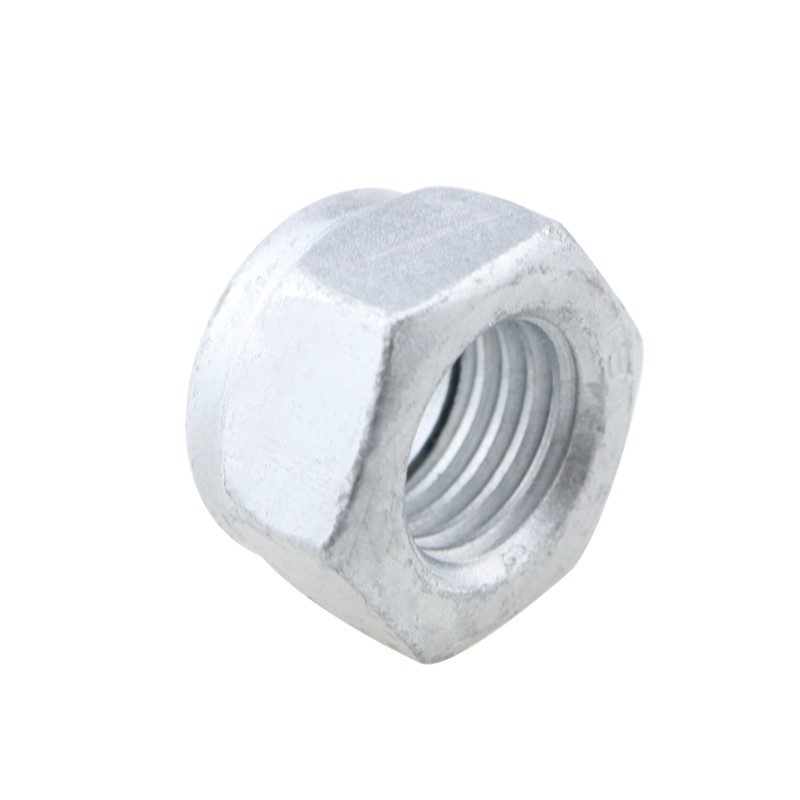

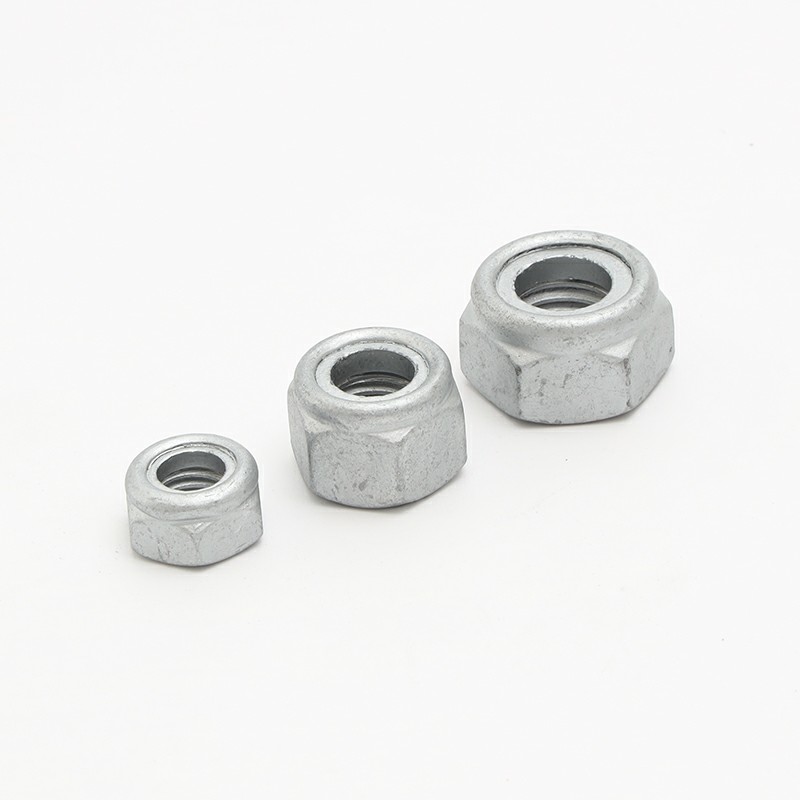

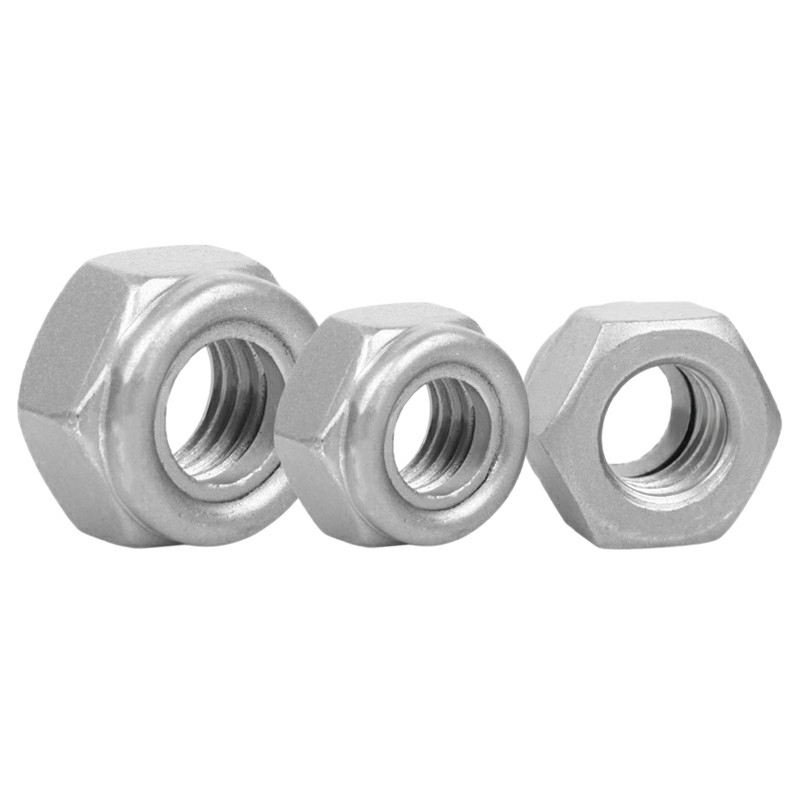

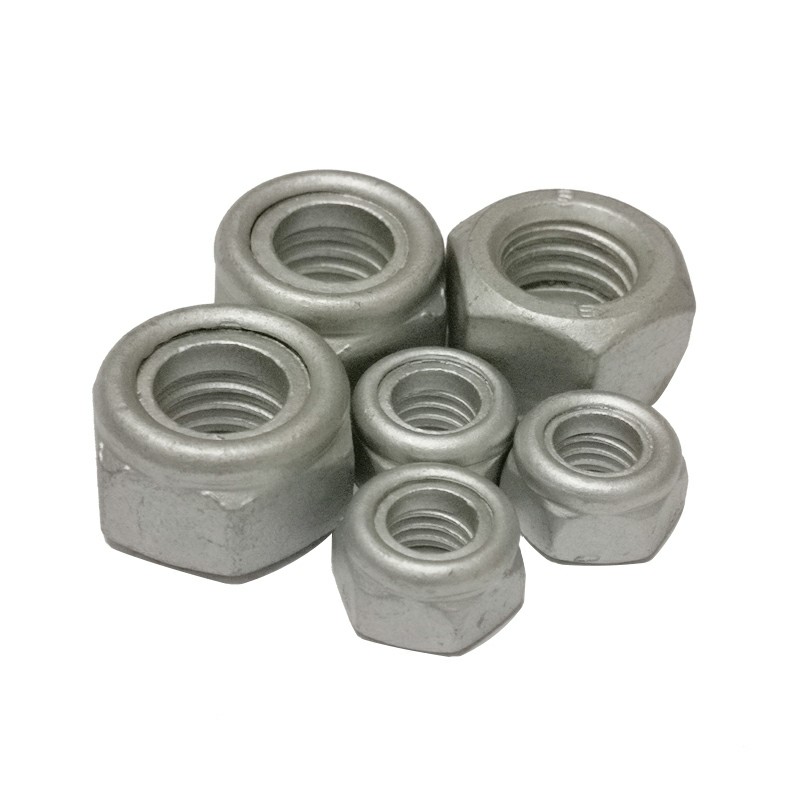

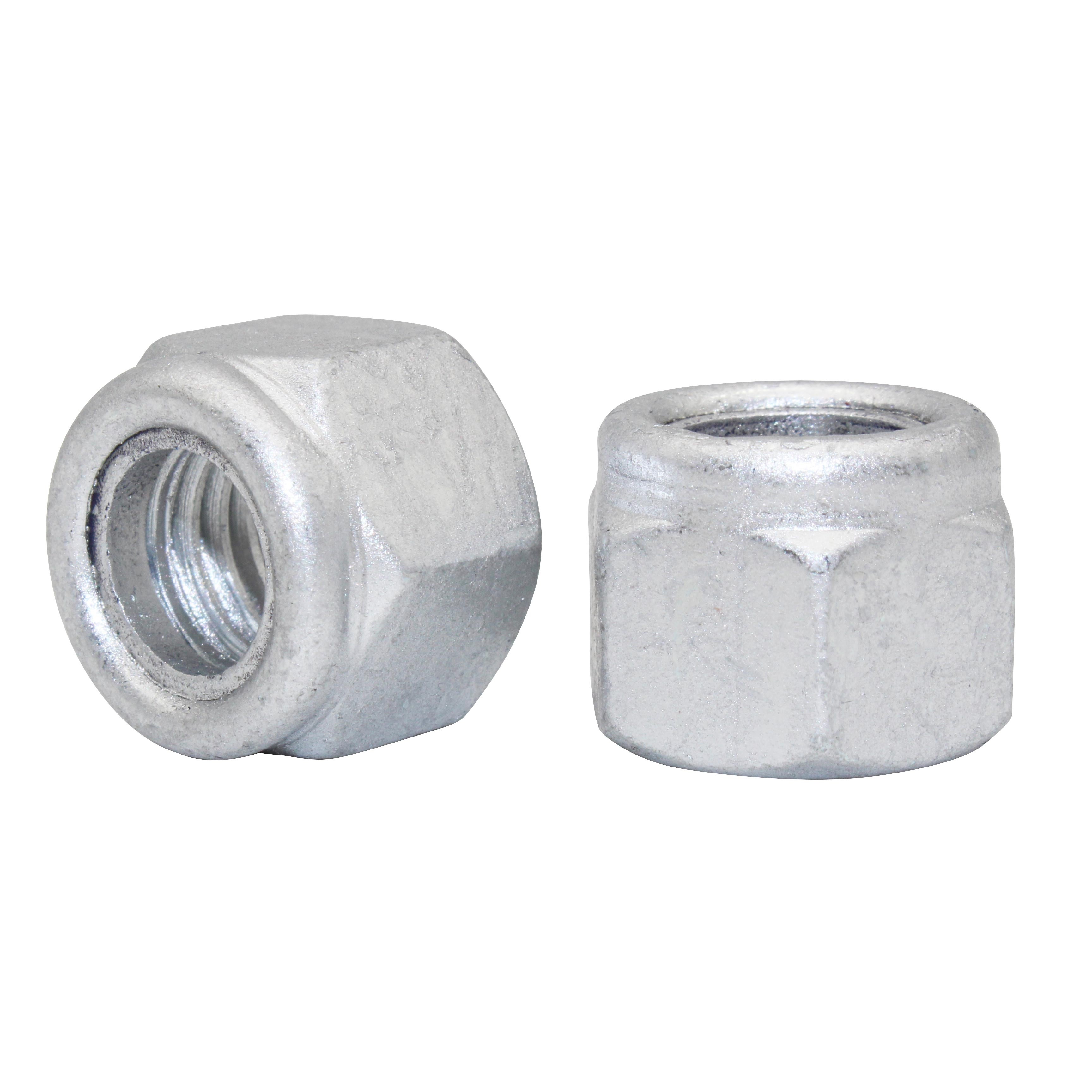

M12 M16 Nylon Insert Lock Nuts M10 Class 8 Heat Treatment Dacromet Finish
| Place of Origin | China |
|---|---|
| Brand Name | XGFH |
| Certification | ISO9001,EN10204 3.1Certificate |
| Model Number | ISO7040 |
| Minimum Order Quantity | 100PCS |
| Price | USD0.01-0.2/PC |
| Packaging Details | Bulk into plastic bag and carton box,and then Pallet. |
| Delivery Time | 2-10work days |
| Payment Terms | T/T, L/C |
| Supply Ability | 500000PCS PER MONTH |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Standard | ISO7040 | Grade | Class 8 |
|---|---|---|---|
| Material | Carbon Steel 35K | Coated | Dacromet |
| Lock Type | Nylon Insert | Thread Direction | Right Hand |
| Thread Fit | Coarse | Thread Tolerance | 6H |
| Description | Hex Nylon Insert Lock Nuts | ||
| High Light | M16 Nylon Insert Lock Nuts xianggu,M12 Nylon Insert Lock Nuts xianggu,nylon lock nut m10 |
||
Product Description
Class 8 Heat Treatment Dacromet Finish Nylon Insert Lock Nuts
Product Description:
Nylon insert locknuts are produced by forming and tapping nuts that include a tubular feature on top that receives a nylon ring.
The tubular top is crimped to capture and hold the ring from spinning while the mating part self threads into the nylon during assembly.
The nylon ring size and crimping process to secure the ring must be controlled to tight tolerances.
The nylon insert grips the bolt to resist loosening without damaging threads.
They're reusable, but their holding power lessens with each use.
| Products name | Class 8 Heat Treatment Dacromet Finish Nylon Insert Lock Nuts |
| Standard: | DIN,ASTM/ANSI JIS EN ISO,AS,GB |
| Material | Carbon Steel:Q235,#45,65Mn,#70;Stainless Steel:SS304, SS316,SS316L |
| Steel Grade: Class 4,Class 8,Class 10 and Class 12 | |
| Finishing | Black Oxide,HDG(Hot Dip Galvanized),,Yellow Zinc Plated,Blue White Zinc Plated,Dacromet,PTFE |
| Related Products | DIN933 Hex Bolts,DIN934 Hex Nuts,DIN125 Flat Washers |
| Application |
The Full Hex ISO 7040 locknut is commonly used in many general purpose applications. Produced in high volumes, the smaller diameter products are relatively inexpensive. As compared to All-Metal Locknuts, Nylon Insert Locknuts are less damaging to mating threads, but have heat limitations and the nylon develops memory and prevailing torque erodes. |
| Stock Products | Flange nut in stock with Black Oxide,Zinc Plated,Yellow Zinc and HDG |
| Get Free Samples for standard fastener from Jiangyin XiangGu Hardware Products Co.,Ltd | |
| Focus On Supplying High Quality Fasteners. | |
Product Drawing:
| Prevailing torque type hexagon nuts(with non-metallic insert),style 1 | |||||
| ISO7040 & GB/T 889.1-2000 | |||||
 |
|||||
| d(mm) | P(mm) | h(mm) | s(mm) | ||
| min | max | min | max | ||
| M3 | 0.5 | 4.02 | 4.5 | 5.32 | 5.5 |
| M4 | 0.7 | 5.52 | 6 | 6.78 | 7 |
| M5 | 0.8 | 6.22 | 6.8 | 7.78 | 8 |
| M6 | 1 | 7.42 | 8 | 9.78 | 10 |
| M8 | 1.25 | 8.92 | 9.5 | 12.73 | 13 |
| M10 | 1.5 | 11.2 | 11.9 | 15.73 | 16 |
| M12 | 1.75 | 14.2 | 14.9 | 17.73 | 18 |
| M14 | 2 | 15.9 | 17 | 20.67 | 21 |
| M16 | 2 | 17.8 | 19.1 | 23.67 | 24 |
| M20 | 2.5 | 20.7 | 22.8 | 29.16 | 30 |
| M24 | 3 | 25 | 27.1 | 35 | 36 |
| M30 | 3.5 | 30.1 | 32.6 | 45 | 46 |
| M36 | 4 | 36.4 | 38.9 | 53.8 | 55 |
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory and OEM are available.
Q: How long is your delivery time?
A: Generally it is 2-5 days if the goods are in stock,or it is 15-30 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: 30% T/T in advance ,balance before shipment or L/C.
If you have another question, please feel free to contact us.
