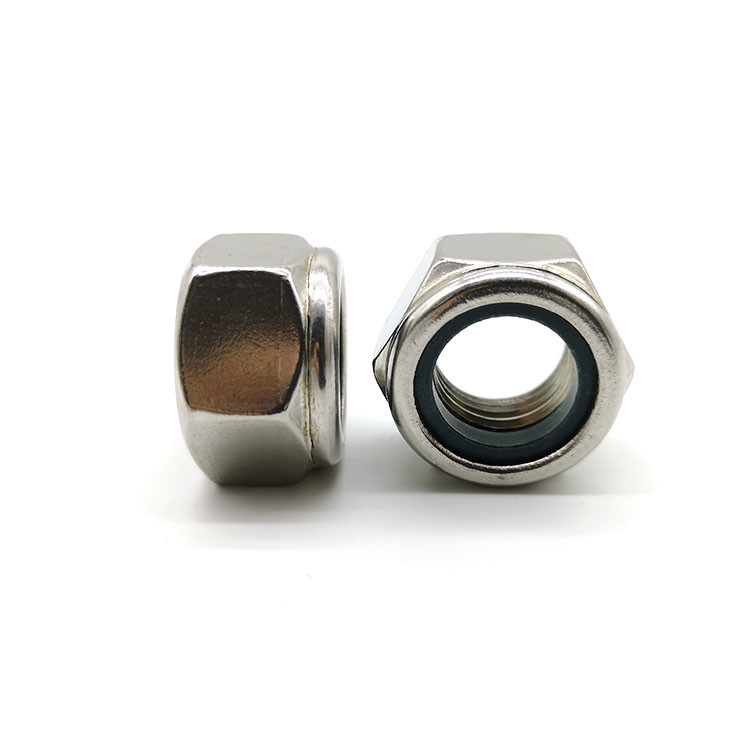

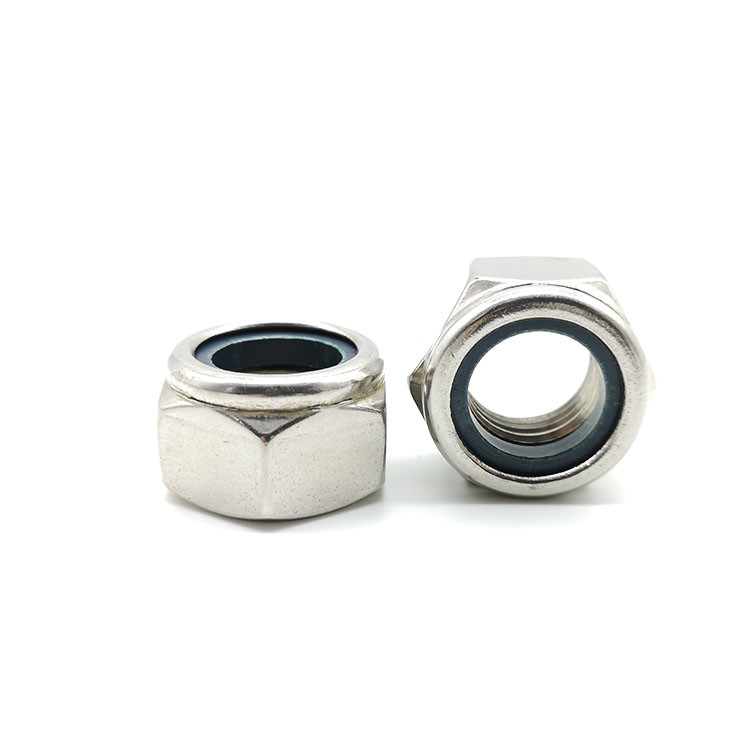

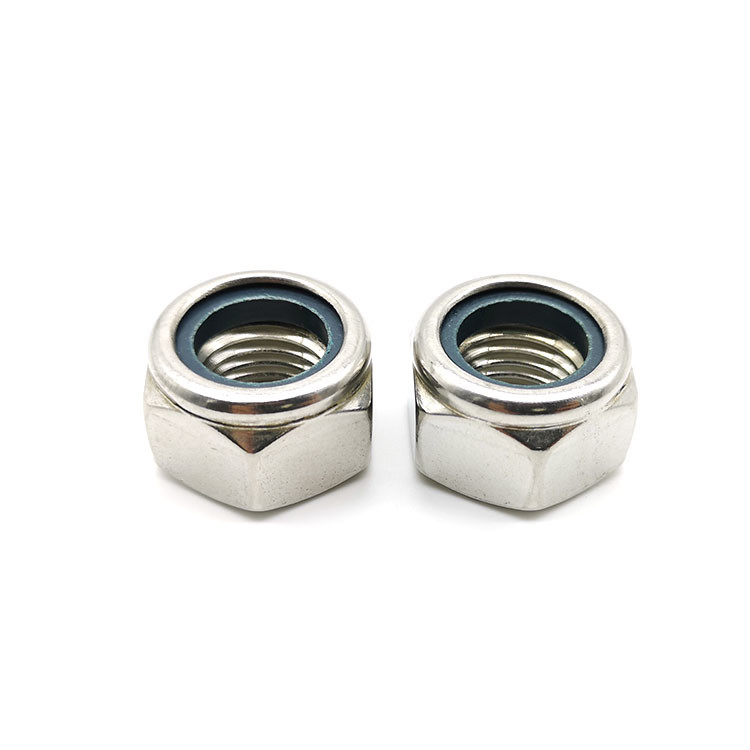

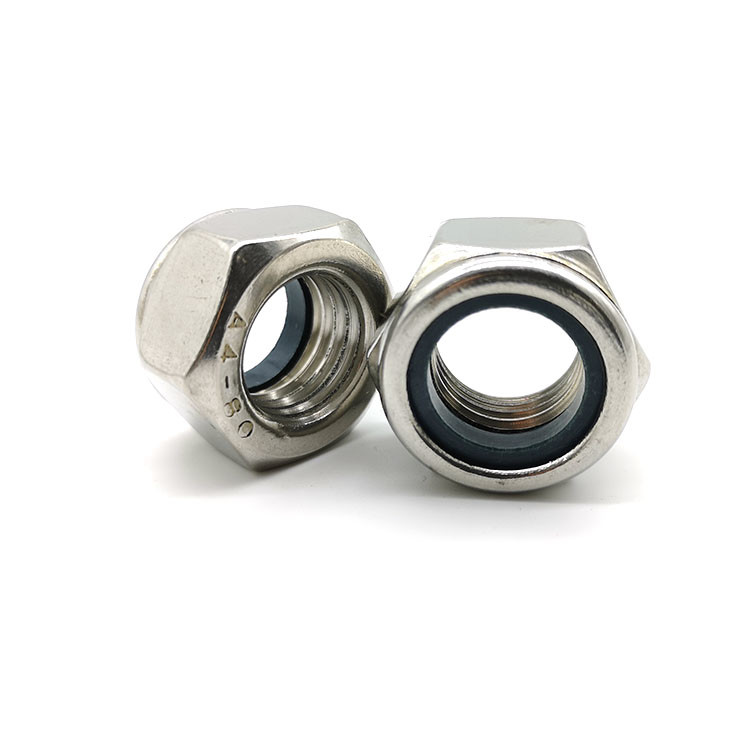

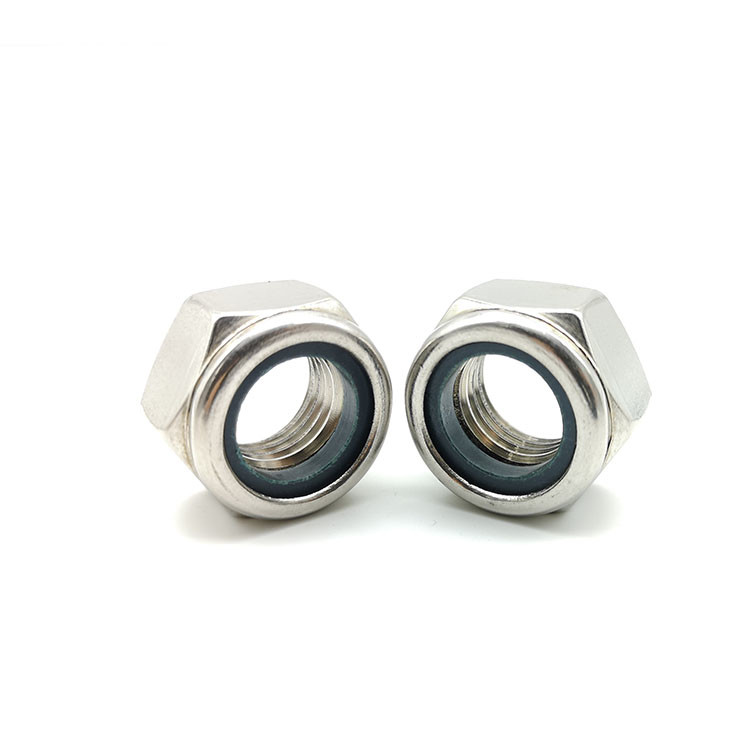

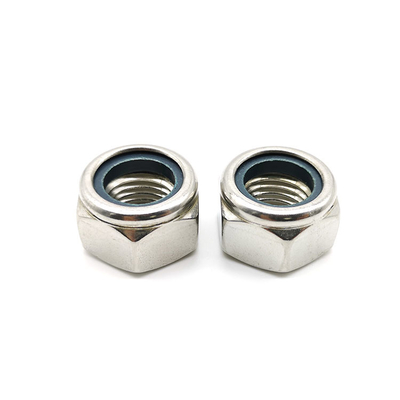

DIN 985 Stainless Steel Hex Nut With Nylon Insert SUS316 Right Hand

  • DIN 985 Stainless Steel Hex Nut With Nylon Insert SUS316 Right Hand
  • DIN 985 Stainless Steel Hex Nut With Nylon Insert SUS316 Right Hand
  • DIN 985 Stainless Steel Hex Nut With Nylon Insert SUS316 Right Hand
  • DIN 985 Stainless Steel Hex Nut With Nylon Insert SUS316 Right Hand
  • DIN 985 Stainless Steel Hex Nut With Nylon Insert SUS316 Right Hand
Place of Origin China
Brand Name XGFH
Certification ISO9001,EN10204 3.1Certificate
Model Number DIN985
Minimum Order Quantity 100PCS
Price USD0.01-0.2/PC
Packaging Details Bulk into plastic bag and carton box,and then Pallet.
Delivery Time 2-10work days
Payment Terms T/T, L/C
Supply Ability 500000PCS PER MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Standard DIN985 Grade Class A4-80
Material Stainless Steel 316 Finish Clean
Lock Type Nylon Insert Thread Direction Right Hand
Thread Fit Coarse Thread Tolerance 6H
Description Hex Nylon Insert Lock Nuts
High Light

DIN 985 hex nut with nylon insert xianggu

,

SUS316 hex nut with nylon insert

,

stainless steel nylon insert lock nuts
Leave a Message
Product Description

Product Description:



1. Certification: ISO9001, ROHS, SGS
2. Available Standard: DIN, ANSI, ASTM, JIS, BSW
3. Strength: Grade 4.8,Grade 8.8,Grade10.9,Grade12.9, A2-70, A4-70, A4-80
4. Finishing: Yellow Zinc, Blue White Zinc Plated, Galvanized,HDG,Chromate,Dacromet, PTFE
5. Available Material: Carbon steel, stainless steel SS304, A2 ,Stainless steel SS314,A4.
6. Size: M3-M36, MOQ: 500pcs, Port: Shanghai,Ningbo
7. Available Packing: Plastic bags+Chipboard Cartons+Plywood pallet with Belt &Film.



Product Name DIN985 SUS316 Nylon Ring Lock Nuts
Material Carbon Steel:C1010, C1018, C12L14, C1035
Color Black,Yellow,White,Blue,Gray
Standard DIN,ASME,ASNI,ISO
Grade Grade 4,Grade 8,Grade 10
Finished Galvanized Steel,Black Oxide,Nickel Plated,Chromat,Dacromet
Thread Coarse,Fine
Used Building Industry Machinery,Wind Energy



Product Drawing:



Prevailing Torque Type Hexagon Thin Nuts With Non-Metallic Insert
DIN 985-1987
DIN 985 Stainless Steel Hex Nut With Nylon Insert SUS316 Right Hand 0
d(mm) P(mm) h(mm) m(mm) s(mm)
max min min max min
M3 0.5 4 3.7 2.4 5.5 5.32
M4 0.7 5 4.7 2.9 7 6.78
M5 0.8 5 4.7 3.2 8 7.78
M6 1 6 5.7 4 10 9.78
M7 1 7.5 7.14 4.7 11 10.73
M8 1/1.25 8 7.64 5.5 13 12.73
M10 1/1.25/1.5 10 9.64 6.5 17 16.73
M12 1.25/1.5/1.75 12 11.57 8 19 18.67
M14 1.5/2 14 13.3 9.5 22 21.67
M16 1.5/2 16 15.3 10.5 24 23.67
M18 1.5/2/2.5 18.5 17.66 13 27 26.16
M20 1.5/2/2.5 20 18.7 14 30 29.16
M22 1.5/2/2.5 22 20.7 15 32 31
M24 2/3 24 22.7 15 36 35
M27 2/3 27 25.7 17 41 40
M30 2/3.5 30 28.7 19 46 45
M33 2/3.5 33 31.4 22 50 49
M36 3/4 36 34.4 25 55 53.8
M39 3/4 39 37.4 27 60 58.8
M42 3/4.5 42 40.4 29 65 63.8
M45 3/4.5 45 43.4 32 70 68.1
M48 3/5 48 46.4 36 75 73.1





DIN 985 Stainless Steel Hex Nut With Nylon Insert SUS316 Right Hand 1

DIN 985 Stainless Steel Hex Nut With Nylon Insert SUS316 Right Hand 2

DIN 985 Stainless Steel Hex Nut With Nylon Insert SUS316 Right Hand 3



FAQ

Q: Are you trading company or manufacturer ?

A: We are factory and OEM are available.

Q: How long is your delivery time?

A: Generally it is 2-5 days if the goods are in stock,or it is 15-30 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: 30% T/T in advance ,balance before shipment or L/C.
If you have another question, please feel free to contact us.
