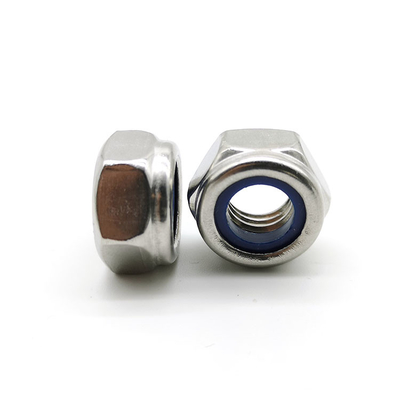

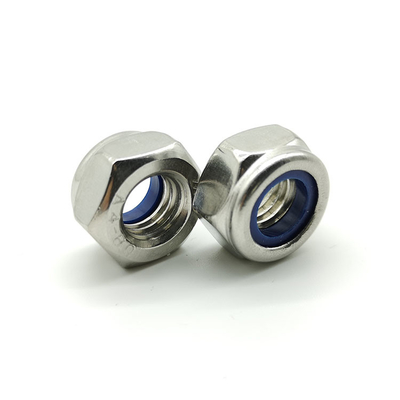

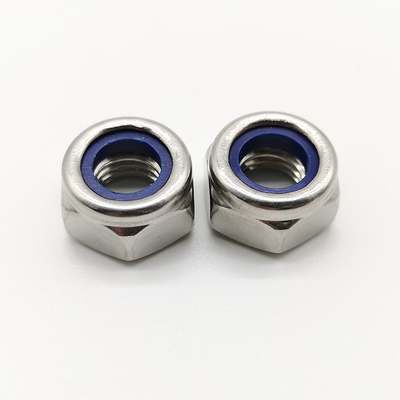

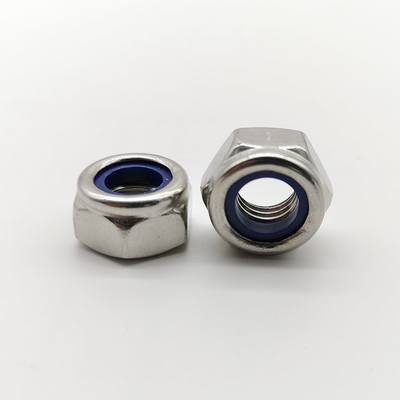

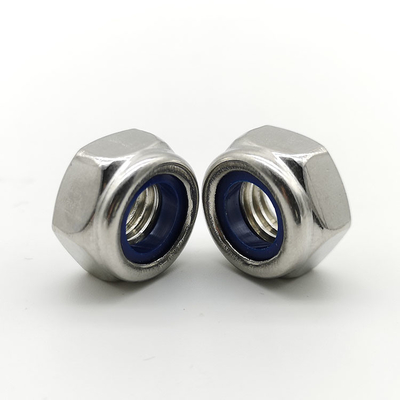

ISO10511 SS304 Nylon Insert Lock Nuts Prevailing Torque Hexagon Thin Nuts Non Metallic Insert

  • ISO10511 SS304 Nylon Insert Lock Nuts Prevailing Torque Hexagon Thin Nuts Non Metallic Insert
  • ISO10511 SS304 Nylon Insert Lock Nuts Prevailing Torque Hexagon Thin Nuts Non Metallic Insert
  • ISO10511 SS304 Nylon Insert Lock Nuts Prevailing Torque Hexagon Thin Nuts Non Metallic Insert
  • ISO10511 SS304 Nylon Insert Lock Nuts Prevailing Torque Hexagon Thin Nuts Non Metallic Insert
  • ISO10511 SS304 Nylon Insert Lock Nuts Prevailing Torque Hexagon Thin Nuts Non Metallic Insert
Place of Origin China
Brand Name XGFH
Certification ISO9001,EN10204 3.1Certificate
Model Number ISO10511
Minimum Order Quantity 100PCS
Price USD0.01-0.2/PC
Packaging Details Bulk into plastic bag and carton box,and then Pallet.
Delivery Time 2-10work days
Payment Terms T/T, L/C
Supply Ability 500000PCS PER MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Standard ISO10511 Grade Grade A2-70
Material Stainless Steel 304 Coated Bright And Clean
Lock Type Nylon Insert Thread Direction Right Hand
Thread Fit Coarse Thread Tolerance 6H
High Light

ISO10511 Nylon Insert Lock Nuts xianggu

,

SS304 Nylon Insert Lock Nuts xianggu

,

Prevailing Torque Hexagon Thin Nuts
Leave a Message
Product Description

ISO10511 SS304 Prevailing Torque Type Hexagon Thin Nuts With Non-Metallic Insert



Product Description:

1. Certification: ISO9001, ROHS, SGS
2. Available Standard: DIN, ANSI, ASTM, JIS, BSW
3. Strength: Grade 4.8,Grade 8.8,Grade10.9,Grade12.9, A2-70, A4-70, A4-80
4. Finishing: Yellow Zinc, Blue White Zinc Plated, Galvanized,HDG,Chromate,Dacromet, PTFE
5. Available Material: Carbon steel, stainless steel SS304, A2 ,Stainless steel SS314,A4.
6. Size: M3-M36, MOQ: 500pcs, Port: Shanghai,Ningbo
7. Available Packing: Plastic bags+Chipboard Cartons+Plywood pallet with Belt &Film.



Product Details:



Product Name ISO10511 SS304 Thin Nylon Insert Lock Nuts
Material Stainless steel 304,304L,316,316L
Color Bright and Clean
Standard DIN,ASME,ASNI,ISO
Grade A2-70,A4-70,A4-80
Finished Clean,Passivating
Thread Coarse,Fine
Used Building Industry Machinery,Mechanical Equipment



Applications:



The Full Hex ISO10511 locknut is commonly used in many general purpose applications.

Produced in high volumes, the smaller diameter products are relatively inexpensive.

As compared to All-Metal Locknuts, Nylon Insert Locknuts are less damaging to mating threads, but have heat limitations and the nylon develops memory and prevailing torque erodes.



Product Drawing:



Prevailing Torque Type Hexagon Thin Nuts(with Non-Metallic Insert)
ISO 10511-1997
ISO10511 SS304 Nylon Insert Lock Nuts Prevailing Torque Hexagon Thin Nuts Non Metallic Insert 0
d p h s m
min max min max min
M3 0.5 3.42 3.9 5.32 5.5 1.55
M4 0.7 4.52 5 6.78 7 1.95
M5 0.8 4.52 5 7.78 8 2.45
M6 1 5.52 6 9.78 10 2.9
M8 1.25 6.18 6.76 12.73 13 3.7
M10 1.5 7.98 8.56 15.73 16 4.7
M12 1.75 9.53 10.23 17.73 18 5.7
M14 2 10.22 11.32 20.67 21 6.42
M16 2 11.32 12.42 23.67 24 7.42
M20 2.5 13.1 14.9 29.16 30 9.1
M24 3 16 17.8 35 36 10.9
M30 3.5 20.1 22.2 45 46 13.9
M36 4 23.4 25.5 53.8 55 16.9





ISO10511 SS304 Nylon Insert Lock Nuts Prevailing Torque Hexagon Thin Nuts Non Metallic Insert 1

ISO10511 SS304 Nylon Insert Lock Nuts Prevailing Torque Hexagon Thin Nuts Non Metallic Insert 2
