DIN982 A4-80 m8 Nylon Insert Lock Nut Specifications Stainless Steel 316L

Place of Origin China
Brand Name XGFH
Certification ISO9001,EN10204 3.1Certificate
Model Number DIN982
Minimum Order Quantity 100PCS
Price USD0.01-0.2/PC
Packaging Details Bulk into plastic bag and carton box,and then Pallet.
Delivery Time 2-10work days
Payment Terms T/T, L/C
Supply Ability 500000PCS PER MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Standard DIN982 Grade Class A4-80
Material Stainless Steel 316L Coated Bright
Lock Type Nylon Insert Thread Direction Right Hand
Thread Fit Coarse Thread Tolerance 6g/6h
High Light

A4-80 nylon insert lock nut specifications xianggu

,

DIN 982 nylon insert lock nut specifications

,

m8 nylon lock nuts

Leave a Message
Product Description

Metric Super-Corrosion-Resistant 316 Stainless Steel Nylon-Insert Locknuts


Product Description:

Made from 316 stainless steel, these locknuts have excellent resistance to chemicals and salt water. The nylon insert grips the bolt to resist loosening without damaging threads. They're reusable, but their holding power lessens with each use. Metric 316 stainless steel is also known as A4 stainless steel. Nuts may be mildly magnetic.
All meet DIN 982, which are no longer active standards, but are still a common reference point for designers.
Threads are molded into the nylon insert locking the bolt into place.
Nylon Insert Lock Nuts typically have a cased metal outside formed into a hex pattern easily torqued by a wrench or socket.
A4-70 Stainless steel per ISO 3506-2.
6H thread requirement.

Product Drawing:



Prevailing torque type hexagon thick nuts with non-metallic insert
DIN 982-1987

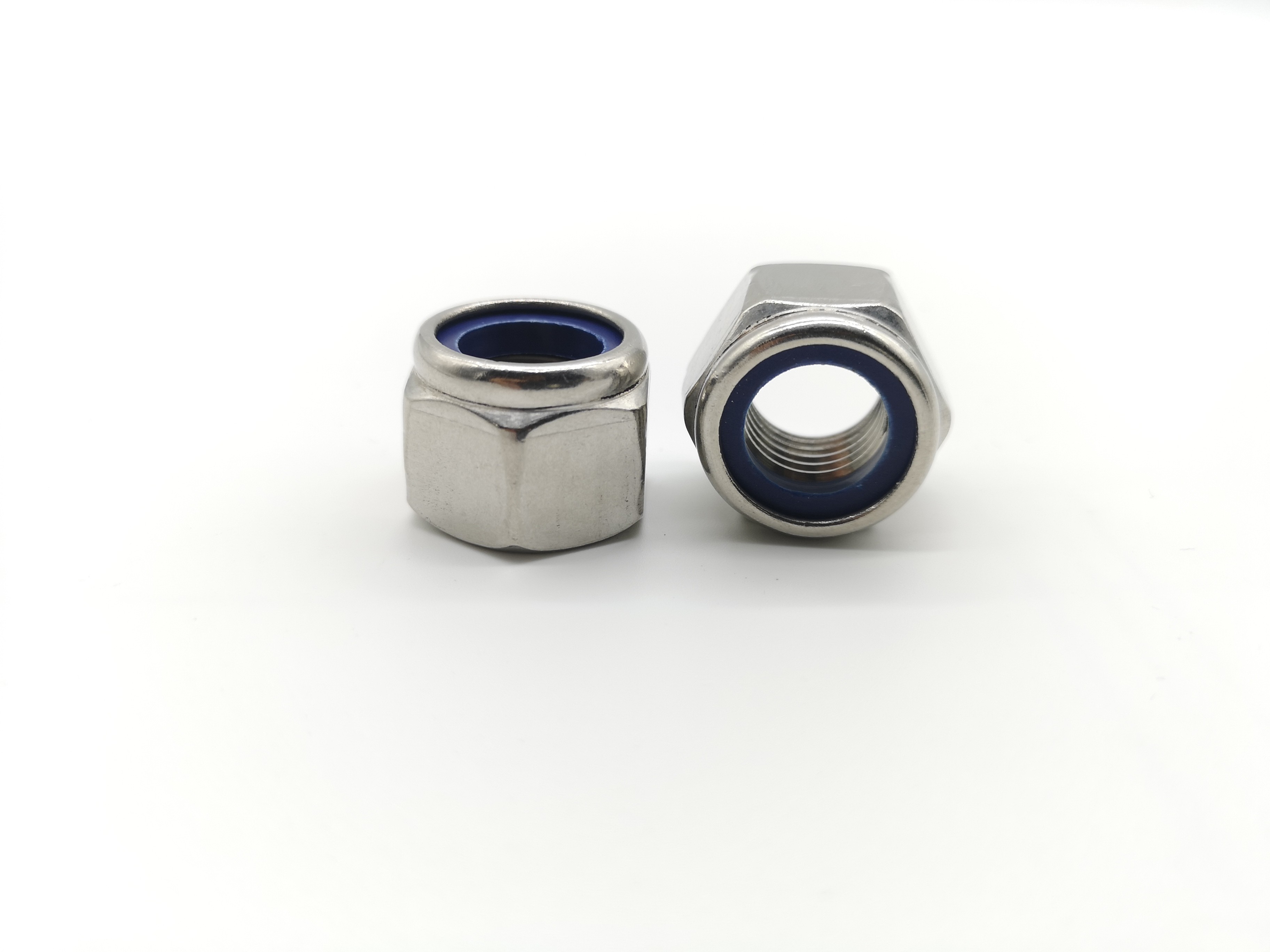

DIN982 A4-80 m8 Nylon Insert Lock Nut Specifications Stainless Steel 316L 0
d P h s m
min max min max min
M5 0.8 6 6.3 7.78 8 4.4
M6 1 7.7 8 9.78 10 4.9
M7 1 8.2 8.5 10.73 11 6.14
M8 1/1.25 9.14 9.5 12.73 13 6.44
M10 1/1.25/1.5 11.14 11.5 16.73 17 8.04
M12 1.25/1.5/1.75 13.64 14 18.67 19 10.37
M14 1.5/2 15.3 16 21.67 22 12.1
M16 1.5/2 17.3 18 23.67 24 14.1
M18 1.5/2/2.5 19.16 20 26.16 27 15.1
M20 1.5/2/2.5 20.7 22 29.16 30 16.9
M22 1.5/2/2.5 23.7 25 31 32 18.1
M24 2/3 26.7 28 35 36 20.2

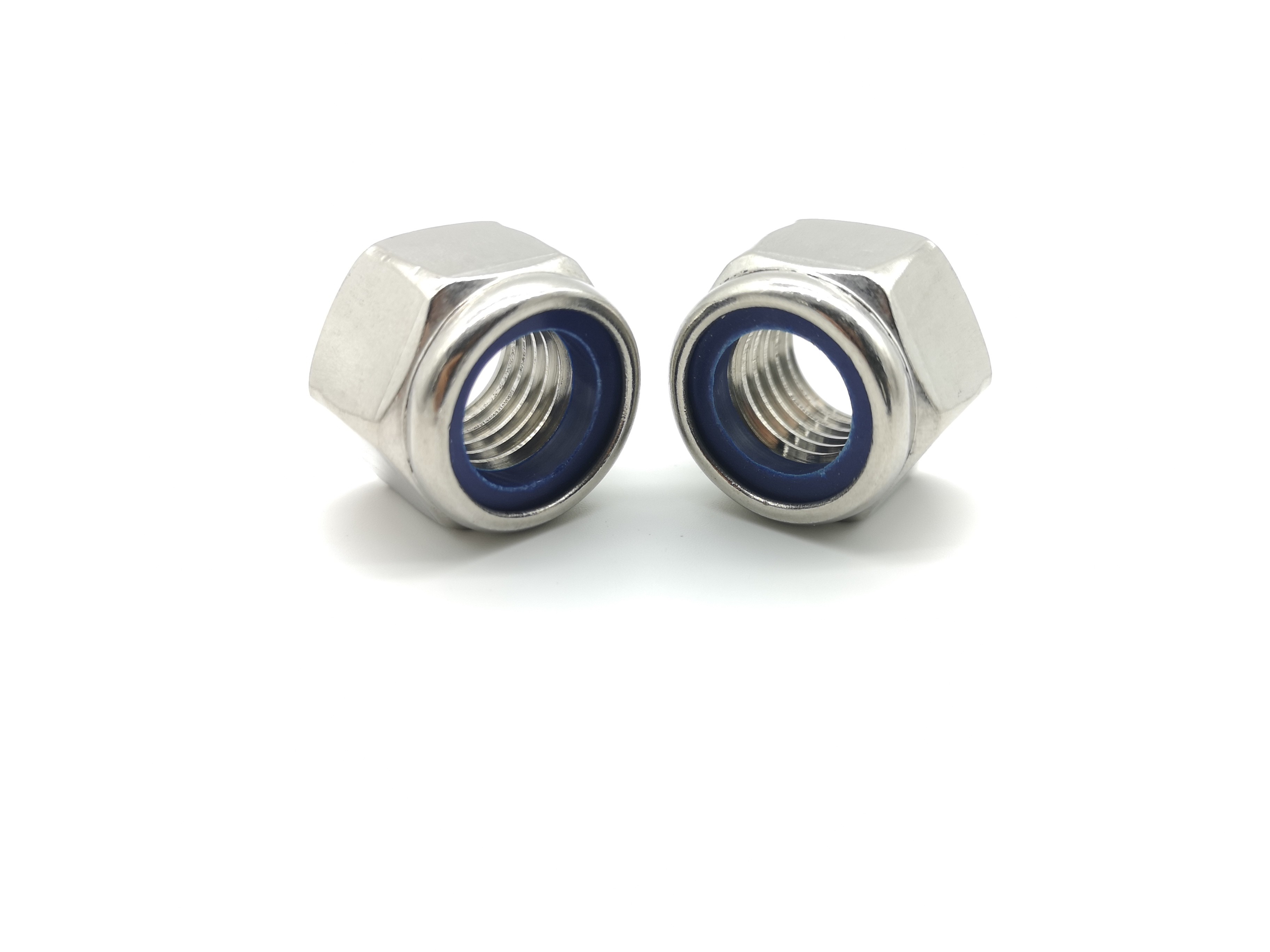

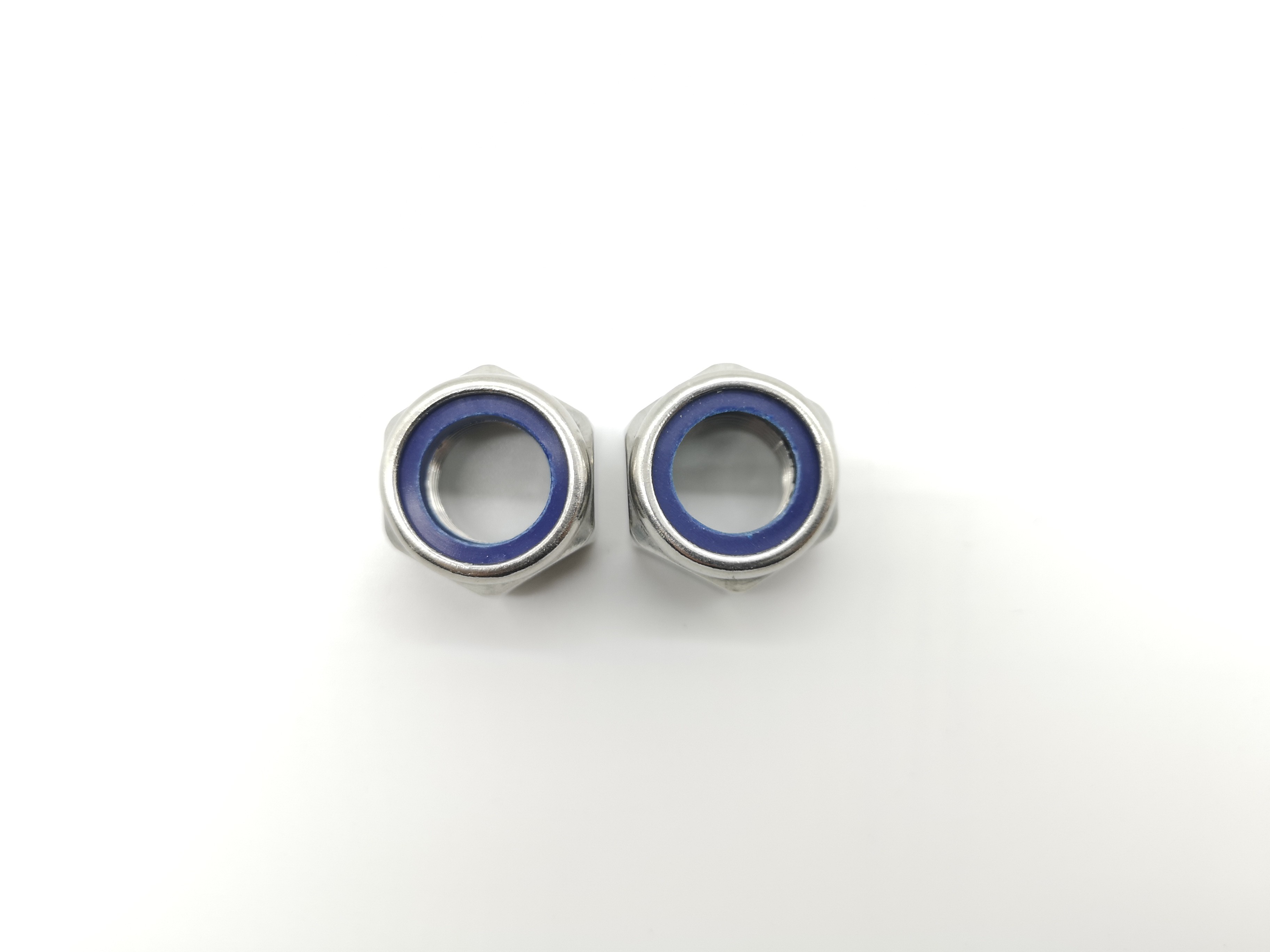

DIN982 A4-80 m8 Nylon Insert Lock Nut Specifications Stainless Steel 316L 1DIN982 A4-80 m8 Nylon Insert Lock Nut Specifications Stainless Steel 316L 2
FAQ

Q: Are you trading company or manufacturer ?

A: We are factory and OEM are available.

Q: How long is your delivery time?

A: Generally it is 2-5 days if the goods are in stock,or it is 15-30 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: 30% T/T in advance ,balance before shipment or L/C.
If you have another question, please feel free to contact us.
