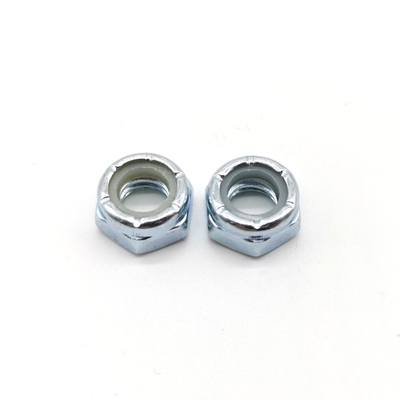

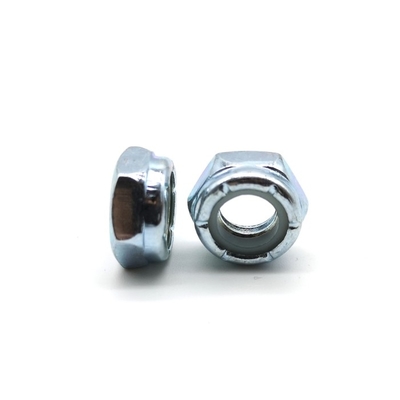

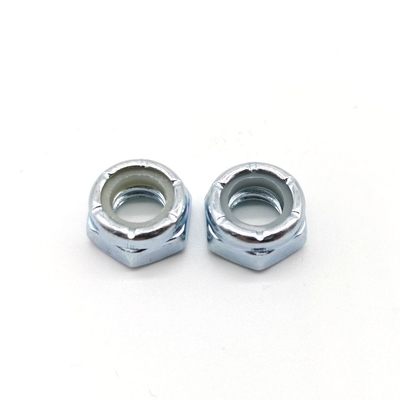

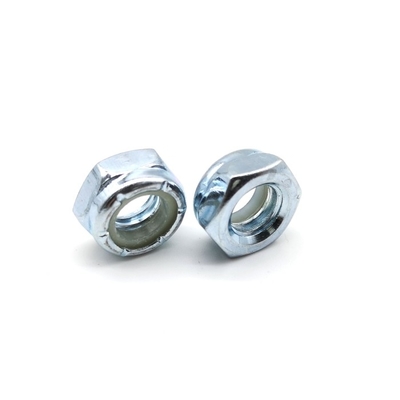

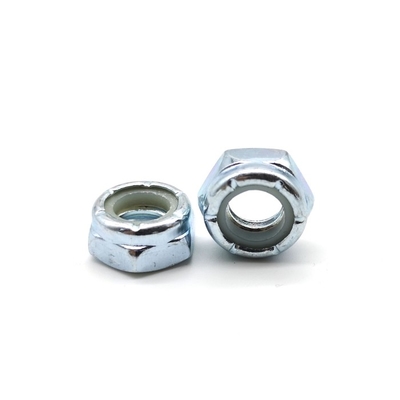

Gr.2 Nylon Insert Lock Nuts ASME B18 16.6 Zinc Plated C1018 Coarse
| Place of Origin | China |
|---|---|
| Brand Name | XGFH |
| Certification | ISO9001,EN10204 3.1Certificate |
| Model Number | ASME B18.16.6 |
| Minimum Order Quantity | 100PCS |
| Price | USD0.01-0.2/PC |
| Packaging Details | Bulk into plastic bag and carton box,and then Pallet. |
| Delivery Time | 2-10work days |
| Payment Terms | T/T, L/C |
| Supply Ability | 500000PCS PER MONTH |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Standard | ASME B18.16.6 | Grade | Grade 2 |
|---|---|---|---|
| Material | C1018 | Coated | Zinc Plated |
| Lock Type | Nylon Insert | Thread Direction | Right Hand |
| Thread Fit | Coarse | Thread Tolerance | 2B |
| High Light | Gr.2 Nylon Insert Lock Nuts,Nylon Insert Lock Nuts Zinc Plated,asme b18 16.6 xianggu |
||
Product Description
Product Description:
1. Certification: ISO9001, ROHS, SGS
2. Available Standard: DIN, ANSI, ASTM, JIS, BSW
3. Strength: Grade 4.8,Grade 8.8,Grade10.9,Grade12.9, A2-70, A4-70, A4-80
4. Finishing: Yellow Zinc, Blue White Zinc Plated, Galvanized,HDG,Chromate,Dacromet, PTFE
5. Available Material: Carbon steel, stainless steel SS304, A2 ,Stainless steel SS314,A4.
6. Size: M3-M36, MOQ: 500pcs, Port: Shanghai,Ningbo
7. Available Packing: Plastic bags+Chipboard Cartons+Plywood pallet with Belt &Film.
| Product Name | Gr.2 ASME B18.16.6 Zinc Plated Nylon Insert Lock Thin Nuts |
| Material | Carbon Steel:C1010, C1018, C12L14, C1035 |
| Color | Black,Yellow,White,Blue,Gray |
| Standard | DIN,ASME,ASNI,ISO |
| Grade | Grade 4,Grade 8,Grade 10 |
| Finished | Galvanized Steel,Black Oxide,Nickel Plated,Chromat,Dacromet |
| Thread | Coarse,Fine |
| Used | Building Industry Machinery |
Product Drawing:
| Style NTE Nylon Insert Locknut | ||||||||
| ANSI/ASTM B18.16.6-2017 Table 4 | ||||||||
 |
||||||||
| d(ich) | PP | s(ich) | h(ich) | m(ich) | ||||
| UNC | UNF | UNEF | min | max | min | max | min | |
| 1/4 | 20 | 28 | 32 | 0.43 | 0.439 | 0.188 | 0.218 | 0.125 |
| 5/16 | 18 | 24 | 32 | 0.492 | 0.502 | 0.235 | 0.265 | 0.158 |
| 3/8 | 16 | 24 | 32 | 0.553 | 0.564 | 0.251 | 0.281 | 0.15 |
| 7/16 | 14 | 20 | 28 | 0.615 | 0.627 | 0.298 | 0.328 | 0.225 |
| 1/2 | 13 | 20 | 28 | 0.741 | 0.752 | 0.298 | 0.328 | 0.19 |
| 9/16 | 12 | 18 | 24 | 0.865 | 0.877 | 0.344 | 0.374 | 0.225 |
| 5/8 | 11 | 18 | 24 | 0.928 | 0.94 | 0.376 | 0.406 | 0.265 |
| 3/4 | 10 | 16 | 20 | 1.052 | 1.064 | 0.391 | 0.421 | 0.288 |
| 7/8 | 9 | 14 | 20 | 1.239 | 1.252 | 0.454 | 0.484 | 0.34 |
| 1 | 8 | 12 | 20 | 1.427 | 1.44 | 0.516 | 0.578 | 0.405 |
| 1-1/8 | 7 | 12 | 18 | 1.614 | 1.627 | 0.61 | 0.672 | 0.5 |
| 1-1/4 | 7 | 12 | 18 | 1.801 | 1.815 | 0.703 | 0.765 | 0.523 |
| 1-3/8 | 6 | 12 | 18 | 1.973 | 2.008 | 0.759 | 0.821 | 0.493 |
| 1-1/2 | 6 | 12 | 18 | 2.159 | 2.197 | 0.766 | 0.828 | 0.565 |
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory and OEM are available.
Q: How long is your delivery time?
A: Generally it is 2-5 days if the goods are in stock,or it is 15-30 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: 30% T/T in advance ,balance before shipment or L/C.
If you have another question, please feel free to contact us.
