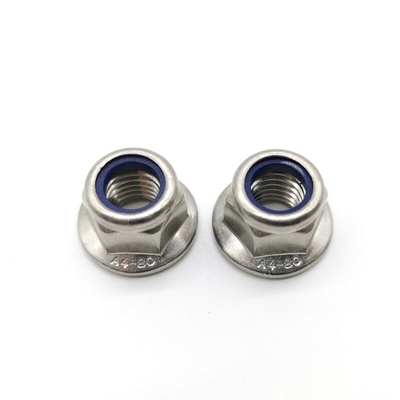

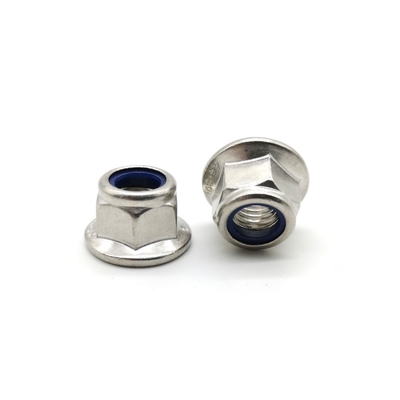

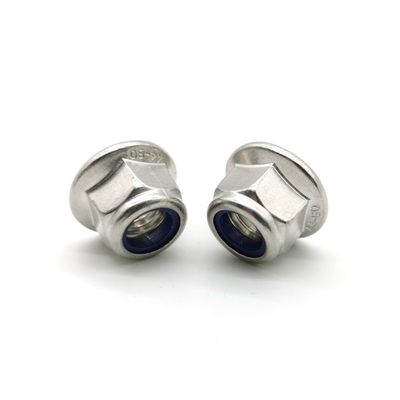

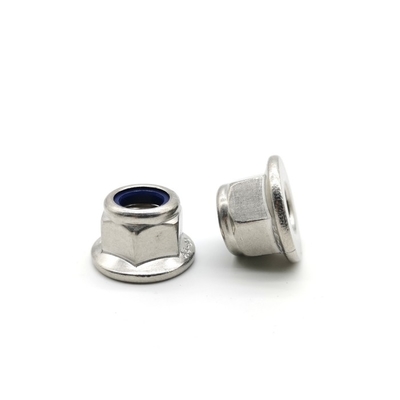

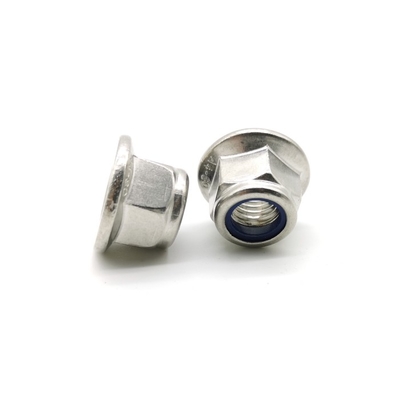

M12 Nylon Insert Lock Nuts DIN 6926 A4-80 316L Stainless Steel Hex Flange Nut
| Place of Origin | China |
|---|---|
| Brand Name | XGFH |
| Certification | ISO9001,EN10204 3.1Certificate |
| Model Number | DIN6926 |
| Minimum Order Quantity | 100PCS |
| Price | USD 0.25/PC |
| Packaging Details | Bulk into plastic bag and carton box,and then Pallet. |
| Delivery Time | 2-10work days |
| Payment Terms | T/T, L/C |
| Supply Ability | 500000PCS PER MONTH |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Standard | DIN6926 | Grade | Grade A4-80 |
|---|---|---|---|
| Material | Stainless Steel 316L | Coated | Bright And Clean |
| Lock Type | Nylon Insert | Thread Direction | Right Hand |
| Thread Fit | Coarse | Thread Tolerance | 6H |
| Size | M5 To M20 | Name | Hex Flange Nylon Lock Nuts |
| High Light | M12 Nylon Insert Lock Nuts xianggu,Nylon Insert Lock Nuts DIN 6926 xianggu,316L Stainless Steel Hex Flange Nut xianggu |
||
Product Description
Product Description:
M12 DIN6926 A4-80 Stainless Steel 316L Hex Flange Nut Nylon Insert Lock Nuts
M12 DIN6926 A4-80 Stainless Steel 316L Hex Flange Nut Nylon Insert Lock Nuts,nylon self-locking nuts made in China.
We offer low carbon steel, medium carbon steel, alloy steel, stainless steel and brass, aluminum alloy nuts.
Nuts can be heated, oxidized black, galvanized, hot bucket galvanized, black zinc, copper plating, nickel plating, chromium plating, Dakota and other treatments to meet various corrosion resistance or strength requirements. Please state this requirement in your inquiry.
| Products name | M12 DIN6926 A4-80 Stainless Steel 316L Hex Flange Nut Nylon Insert Lock Nuts |
| Standard: | DIN,ASTM/ANSI JIS EN ISO,AS,GB |
| Material | Stainless Steel: SS201, SS303, SS304, SS316,SS316L,SS904L ,F594 |
| Steel Grade: DIN: Gr.4,5,6,8.8,10,; SAE: Gr.2,5,8; ASTM: A563 | |
| Finishing | Polishing, Plain, Sand Blasting,Bright and Clean,Passivation. |
| Related Products | Hex Bolt；Socket Bolt；Carriage Bolt；T Bolt；Thread Rod |
| Customized Products Lead time | Busy season:15-30days,Slack season:10-15days |
| Stock Products | Stainless Steel and Carbon Steel Bolts and Nuts |
| Get Free Samples for standard fastener from Jiangyin XiangGu Hardware Products Co.,Ltd | |
| Focus On Supplying High Quality Fasteners. | |
Product Drawing:
| Metric Nylon-Insert Flange Locknuts | |||||||
| DIN 6926-1983 | |||||||
 | |||||||
| d | p | dc | h | m | s | ||
| max | min | max | min | min | max | ||
| M5 | 0.8 | 11.8 | 6.74 | 7.1 | 4.7 | 7.78 | 8 |
| M6 | 1 | 14.2 | 8.74 | 9.1 | 5.7 | 9.78 | 10 |
| M8 | 1/1.25 | 17.9 | 10.67 | 11.1 | 7.6 | 12.73 | 13 |
| M10 | 1/1.25/1.5 | 21.8 | 13.07 | 13.5 | 9.6 | 14.73 | 15 |
| M12 | 1.25/1.5/1.75 | 26 | 15.67 | 16.1 | 11.6 | 17.73 | 18 |
| M14 | 1.5/2 | 29.9 | 17.68 | 18.2 | 13.3 | 20.67 | 21 |
| M16 | 1.5/2 | 34.5 | 19.46 | 20.3 | 15.3 | 23.67 | 24 |
| M20 | 1.5/2.5 | 42.8 | 23.96 | 24.8 | 18.9 | 29.16 | 30 |
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory and OEM are available.
Q: How long is your delivery time?
A: Generally it is 2-5 days if the goods are in stock,or it is 15-30 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: 30% T/T in advance ,balance before shipment or L/C.
If you have another question, please feel free to contact us.
