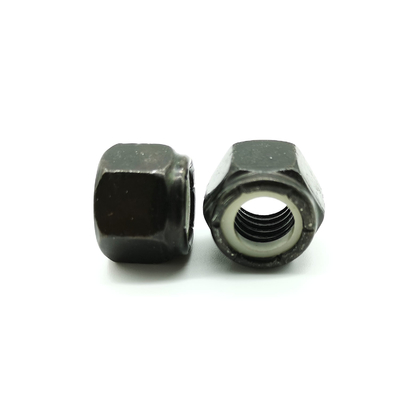

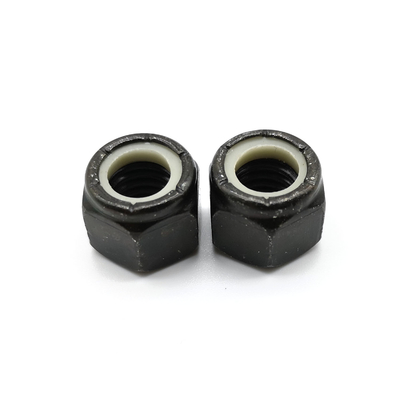

1/2-13 UNC Nylon Insert Lock Nuts ASME B18 16.6 Grade 5 Steel Black Zinc

Place of Origin China
Brand Name XGFH
Certification ISO9001,EN10204 3.1Certificate
Model Number ASME B18.16.6
Minimum Order Quantity 100PCS
Price USD0.01-0.2/PC
Packaging Details Bulk into plastic bag and carton box,and then Pallet.
Delivery Time 2-10work days
Payment Terms T/T, L/C
Supply Ability 500000PCS PER MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Description Hex Nylon Insert Lock Nuts Standard ASME B18.16.6
Grade Class 5 Material Carbon Steel 35K
Coated Black Zinc Lock Type Nylon Insert
Thread Direction Right Hand Thread Fit Coarse
Thread Tolerance 6H System Of Measurement Imperial Inch
High Light

ASME B18 16.6 xianggu

,

Nylon Insert Lock Nuts Grade 5

,

Nylon Insert Lock Nuts Steel Black Zinc

Leave a Message
Product Description

ASME B18.16.6 Grade 5 Steel Black Zinc 1/2-13UNC Nylon Insert Lock Nuts





Product Description:



1. Certification: ISO9001, ROHS, SGS
2. Available Standard: DIN, ANSI, ASTM, JIS, BSW
3. Strength: Grade 4.8,Grade 8.8,Grade10.9,Grade12.9, A2-70, A4-70, A4-80
4. Finishing: Yellow Zinc, Blue White Zinc Plated, Galvanized,HDG,Chromate,Dacromet,Teflon PTFE
5. Available Material: Carbon steel, stainless steel SS304, A2 ,Stainless steel SS314,A4.
6. Size: M3-M36, MOQ: 500pcs, Port: Shanghai,Ningbo
7. Available Packing: Plastic bags+Chipboard Cartons+Plywood pallet with Belt &Film.



Product Name ASME B18.16.6 Grade 5 Steel Black Zinc Nylon Insert Lock Nuts
Material Carbon Steel:C1010, C1018, C12L14, C1035
Color Black,Yellow,White,Blue,Gray
Standard DIN,ASME,ASNI,ISO
Grade Grade 4,Grade 8,Grade 10
Finished Galvanized Steel,Black Oxide,Nickel Plated,Chromat,Dacromet
Thread Coarse,Fine
Used Building Industry Machinery,Wind Energy



Product Drawing:



Hex nylon lock nuts-thick type
ASME/ANSI B 18.16.6-2008
1/2-13 UNC Nylon Insert Lock Nuts ASME B18 16.6 Grade 5 Steel Black Zinc 0
d(inch) PP s(inch) k(inch) m(inch)
UNC min max min max min
1/4 20 0.43 0.439 0.298 0.328 0.225
5/16 18 0.489 0.502 0.329 0.359 0.25
3/8 16 0.551 0.564 0.438 0.468 0.335
7/16 14 0.616 0.627 0.438 0.468 0.324
1/2 13 0.736 0.752 0.579 0.609 0.464
9/16 12 0.861 0.877 0.626 0.656 0.469
5/8 11 0.922 0.94 0.735 0.765 0.593
3/4 10 1.052 1.064 0.86 0.89 0.742
7/8 9 1.239 1.252 0.969 0.999 0.79
1 8 1.427 1.44 1.016 1.078 0.825
1-1/8 7 1.614 1.627 1.141 1.203 0.93
1-1/4 7 1.801 1.815 1.36 1.422 1.125
1-3/8 6 1.973 2.008 1.547 1.609 1.282
1-1/2 6 2.159 2.197 1.578 1.64 1.313

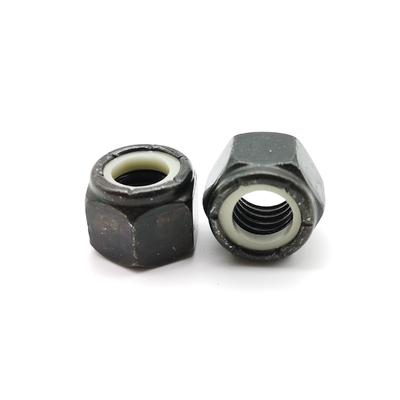

1/2-13 UNC Nylon Insert Lock Nuts ASME B18 16.6 Grade 5 Steel Black Zinc 1

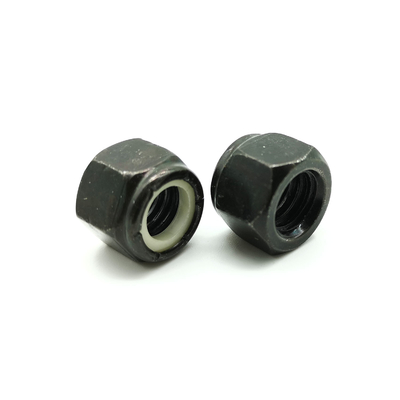

1/2-13 UNC Nylon Insert Lock Nuts ASME B18 16.6 Grade 5 Steel Black Zinc 2

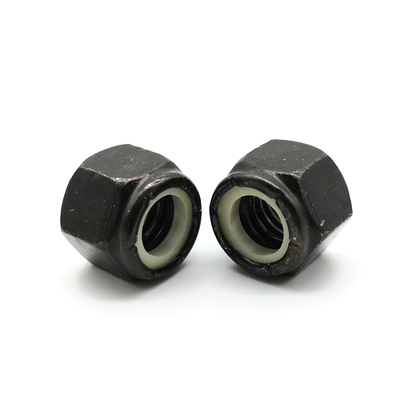

1/2-13 UNC Nylon Insert Lock Nuts ASME B18 16.6 Grade 5 Steel Black Zinc 3





FAQ

Q: Are you trading company or manufacturer ?

A: We are factory and OEM are available.

Q: How long is your delivery time?

A: Generally it is 2-5 days if the goods are in stock,or it is 15-30 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: 30% T/T in advance ,balance before shipment or L/C.
If you have another question, please feel free to contact us.
