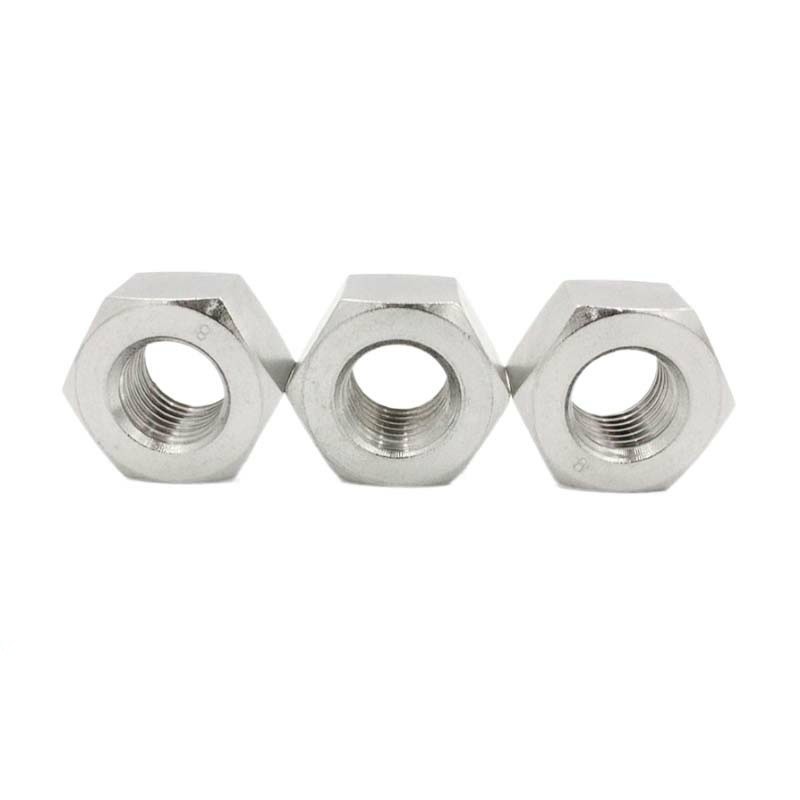

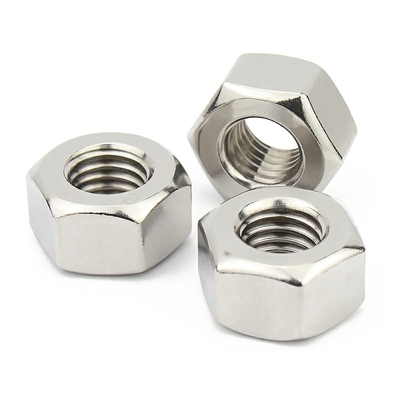

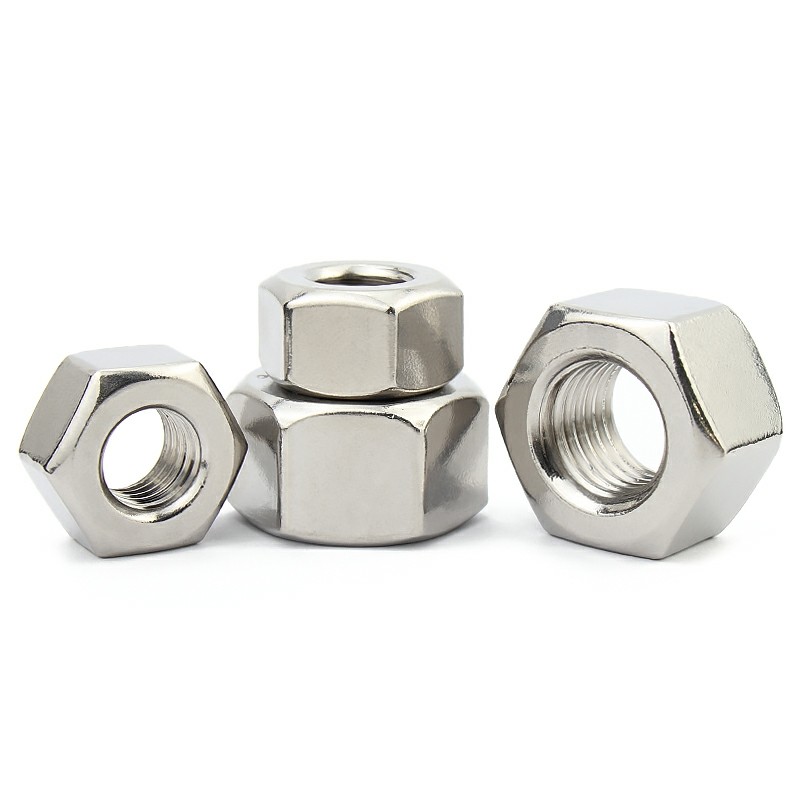

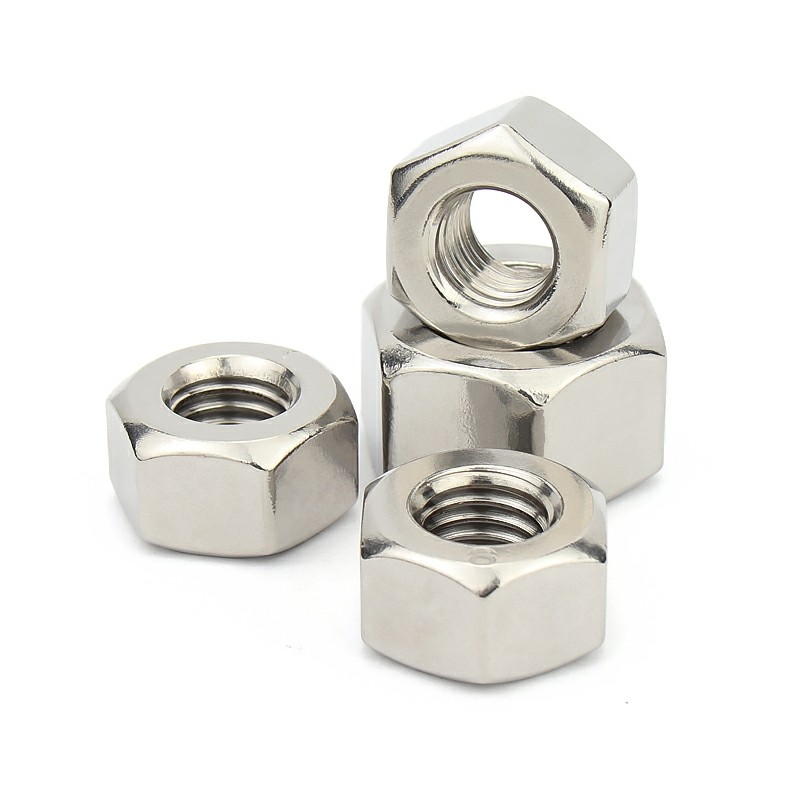

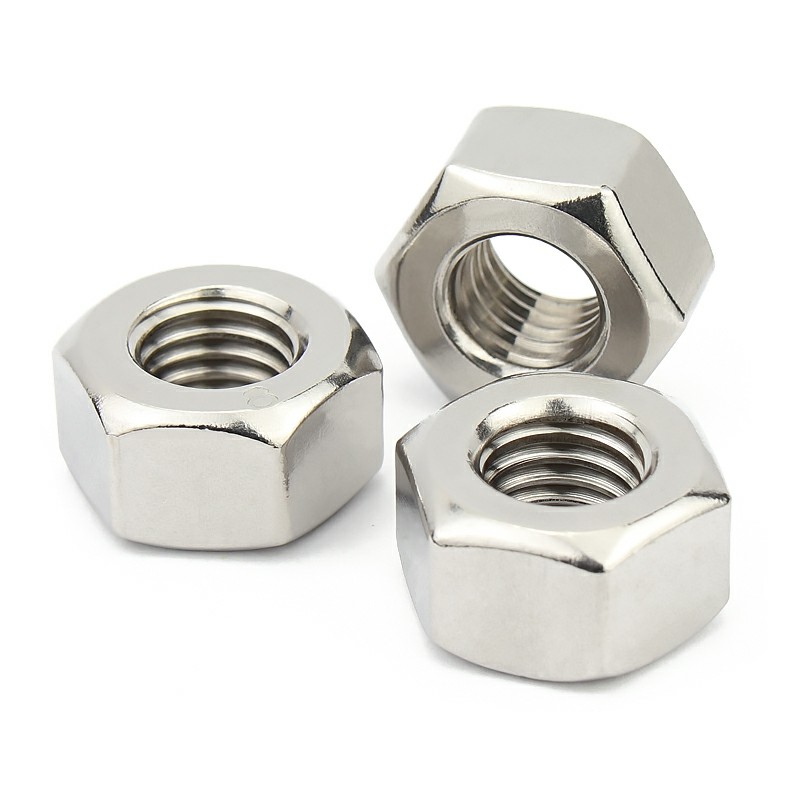

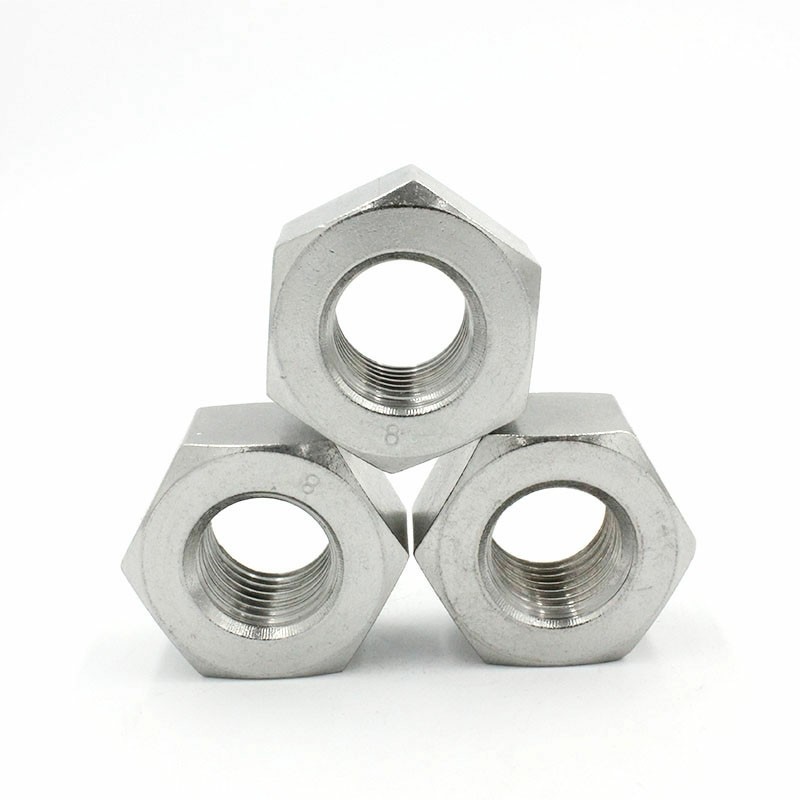

Stainless Steel 316 Heavy Hex Nut A194 Gr 8M Carbide Solution Treatment

  • Stainless Steel 316 Heavy Hex Nut A194 Gr 8M Carbide Solution Treatment
  • Stainless Steel 316 Heavy Hex Nut A194 Gr 8M Carbide Solution Treatment
  • Stainless Steel 316 Heavy Hex Nut A194 Gr 8M Carbide Solution Treatment
  • Stainless Steel 316 Heavy Hex Nut A194 Gr 8M Carbide Solution Treatment
  • Stainless Steel 316 Heavy Hex Nut A194 Gr 8M Carbide Solution Treatment
Place of Origin China
Brand Name XGFH
Certification ISO9001,EN10204 3.1Certificate
Model Number ASME/ANSI B18.2.2
Minimum Order Quantity 100pcs
Price 0.1-2.5usd/pc
Packaging Details 25kg per carbon box and then pallet.
Delivery Time 5-15 work days
Payment Terms T/T, L/C
Supply Ability 100000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Standard ASME/ANSI B18.2.2 Name Hex Heavy Nuts
Material Stainless Steel 316 Grade ASTM A194 Grade 8M
Finish Carbide Solution Treatment Hex Nut Profile Extra Wide
Thread Type UNC Thread Fit Class 2B
High Light

316 Heavy Hex Nut A194 xianggu

,

Heavy Hex Nut A194 ASTM xianggu

,

astm a194 gr 8m xianggu
Leave a Message
Product Description

ASTM A194 GRADE 8M Stainless Steel 316 Heavy Hex Nut



Product Description:



ASTM A194 Heavy hex nuts shall be hot or cold forged, or shall be machined from hot-forged, hot-rolled or cold-drawn bars.

Unless otherwise specifified, the American National Standard Heavy Hex Series shall be used and nuts shall be either double chamfered or have a machined or forged washer face, at the option of the manufacturer, and, conform to the angularity requirements of ANSI B 18.2.2 and ANSI B 18.2.4.6M.



Products name ASTM A194 GRADE 8M Stainless Steel 316 Heavy Hex Nut
Standard: DIN,ASTM/ANSI JIS EN ISO,AS,GB
Material Carbon Steel:Q235,#45,65Mn,#70;Stainless Steel:SS304, SS316,SS316L
Steel Grade: Class 4,Class 8,Class 10 and Class 12
Finishing Black Oxide,HDG(Hot Dip Galvanized),,Yellow Zinc Plated,Blue White Zinc Plated,Dacromet,PTFE
Related Products ASTM A193 B8M Hex Bolts
Application

This hex nut maintain their strength in high-pressure and high-temperature environments and are used with ASTM A193 bolts to fasten pressure tanks, valves, and flanges.

Also known as heavy hex nuts, they are about 10% wider and taller than standard hex nuts and distribute the load over a large area.
Stock Products Some sizes are in stock.
Get Free Samples for standard fastener from Jiangyin XiangGu Hardware Products Co.,Ltd
Focus On Supplying High Quality Fasteners.





Dimensions Drawing:





Heavy Hex Nuts Table 10
ANSI/ASME B18.2.2-2015
Stainless Steel 316 Heavy Hex Nut A194 Gr 8M Carbide Solution Treatment 0
d(ich) PP s(ich) e(ich) k(ich)
UNC min max min max min max
1/4 0.25 20 0.488 0.5 0.556 0.577 0.218 0.25
5/16 0.3125 18 0.546 0.562 0.622 0.65 0.28 0.314
3/8 0.375 16 0.669 0.688 0.673 0.794 0.341 0.377
7/16 0.4375 14 0.728 0.75 0.83 0.866 0.403 0.411
1/2 0.5 13 0.85 0.875 0.969 1.01 0.464 0.504
9/16 0.5625 12 0.909 0.938 1.037 1.083 0.526 0.568
5/8 0.625 11 1.031 1.062 1.175 1.227 0.587 0.631
3/4 0.75 10 1.212 1.25 1.382 1.443 0.71 0.758
7/8 0.875 9 1.394 1.438 1.589 1.66 0.833 0.885
1 1 8 1.575 1.625 1.796 1.876 0.956 1.012
1-1/8 1.125 7 1.756 1.812 2.002 2.093 1.079 1.139
1-1/4 1.25 7 1.938 2 2.209 2.309 1.187 1.251
1-3/8 1.375 6 2.119 2.188 2.416 2.526 1.31 1.378
1-1/2 1.5 6 2.3 2.375 2.622 2.742 1.433 1.505
1-5/8 1.625 0 2.481 2.562 2.828 2.959 1.556 1.632
1-3/4 1.75 5 2.662 2.75 3.035 3.175 1.679 1.759
1-7/8 1.875 0 2.844 2.938 3.242 3.392 1.802 1.886
2 2 5 3.025 3.125 3.449 3.608 1.925 2.013
2-1/4 2.25 5 3.388 3.5 3.862 4.041 2.155 2.251
2-1/2 2.5 4 3.75 3.875 4.275 4.474 2.401 2.505
2-3/4 2.75 4 4.112 4.25 4.688 4.907 2.647 2.759
3 3 4 4.475 4.625 5.102 5.34 2.893 3.013
3-1/4 3.25 4 4.838 5 5.515 5.774 3.124 3.252
3-1/2 3.5 4 5.2 5.375 5.928 6.207 3.37 3.506
3-3/4 3.75 4 5.562 5.75 6.341 6.64 3.616 3.76
4 4 4 5.925 6.125 6.755 7.073 3.862 4.014



Product Features:



ASTM A194 Heavy hex nuts shall be hot or cold forged, or shall be machined from hot-forged, hot-rolled or cold-drawn bars.

Unless otherwise specifified, the American National Standard Heavy Hex Series shall be used and nuts shall be either double chamfered or have a machined or forged washer face, at the option of the manufacturer, and, conform to the angularity requirements of ANSI B 18.2.2 and ANSI B 18.2.4.6M.



Stainless Steel 316 Heavy Hex Nut A194 Gr 8M Carbide Solution Treatment 1

Stainless Steel 316 Heavy Hex Nut A194 Gr 8M Carbide Solution Treatment 2

Stainless Steel 316 Heavy Hex Nut A194 Gr 8M Carbide Solution Treatment 3



FAQ

Q: Are you trading company or manufacturer ?

A: We are factory and OEM are available.

Q: How long is your delivery time?

A: Generally it is 2-5 days if the goods are in stock,or it is 15-30 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: 30% T/T in advance ,balance before shipment or L/C.
If you have another question, please feel free to contact us.
