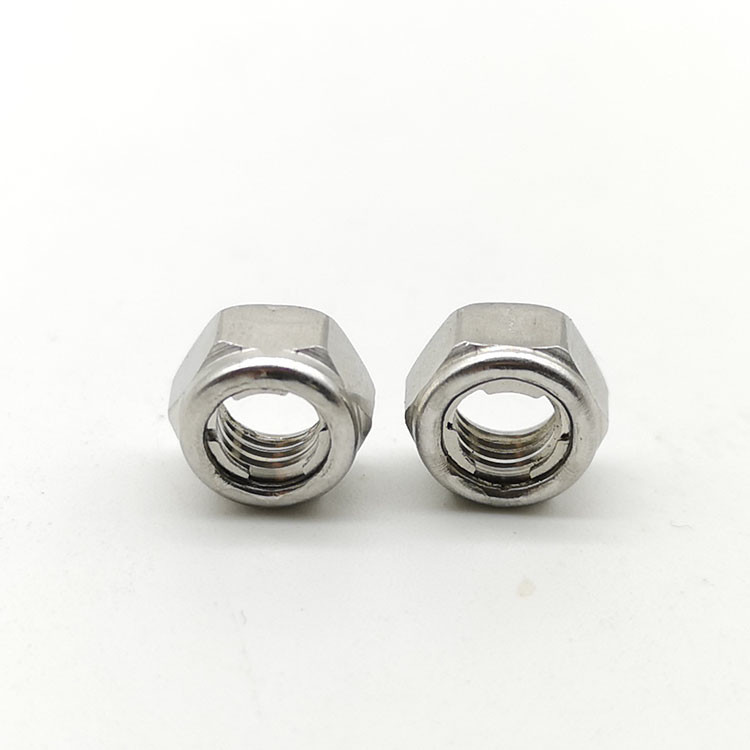

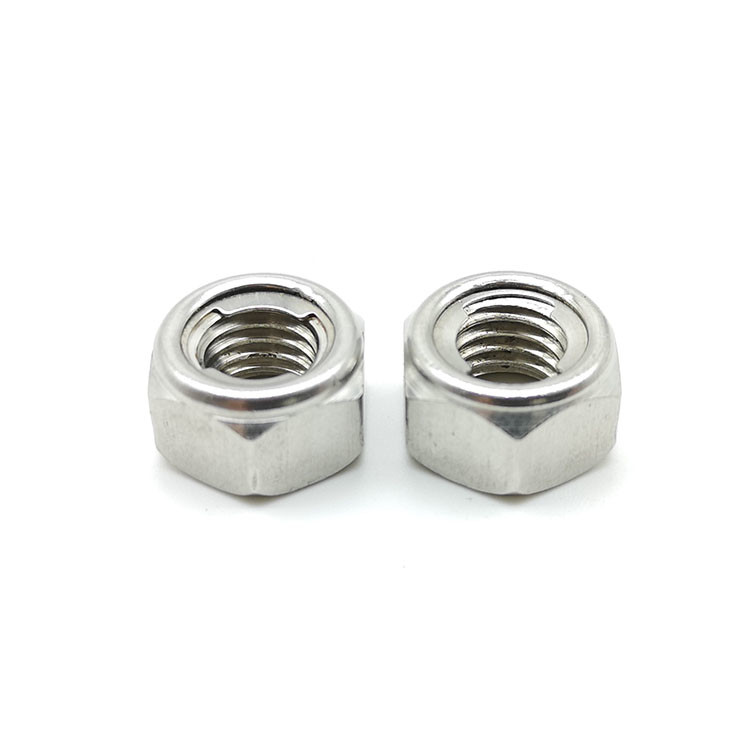

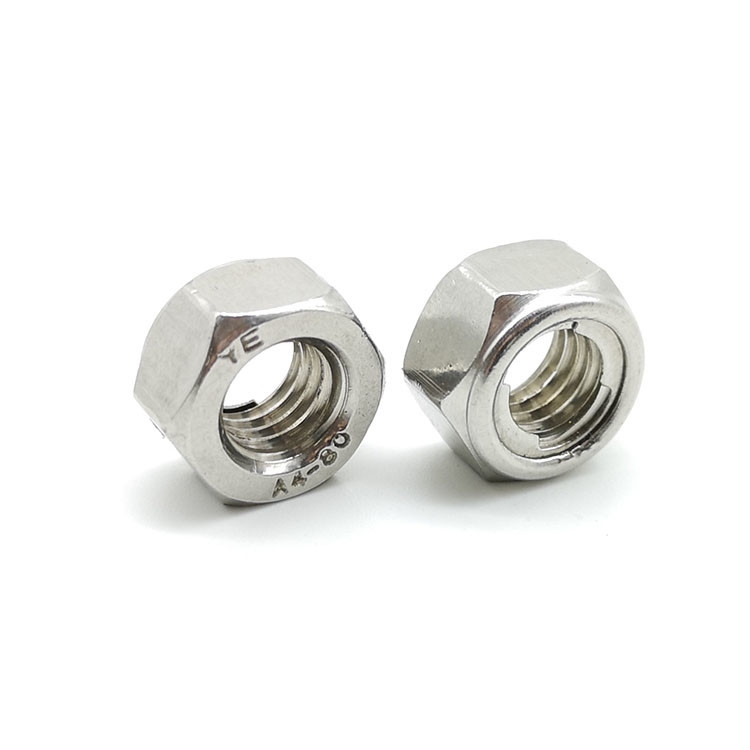

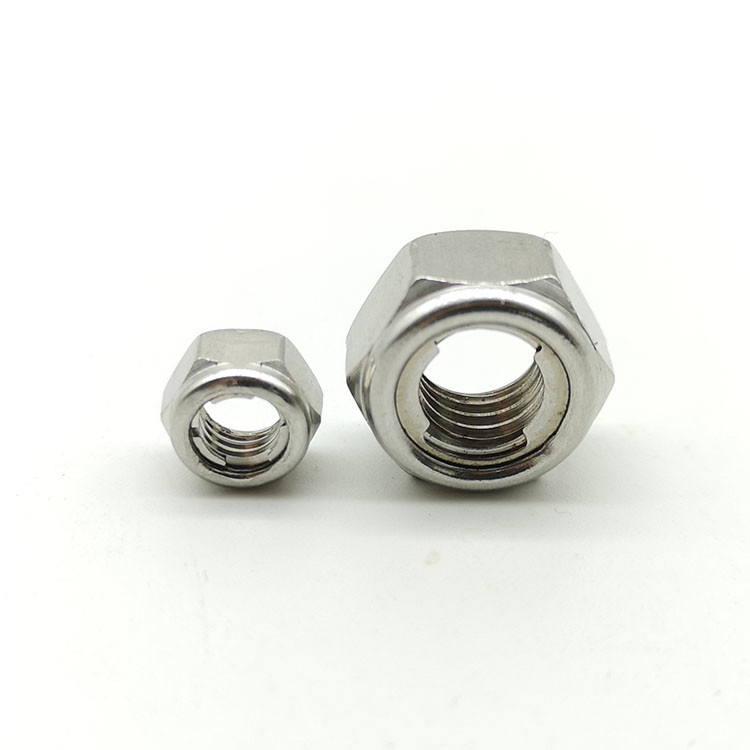

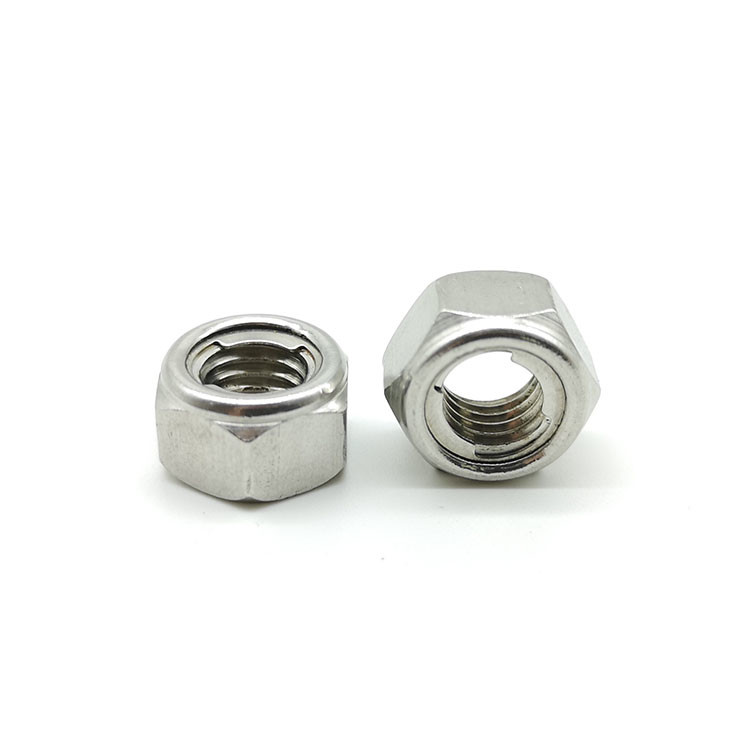

GB 6184 Stainless Steel Metric Nuts Spring Stop Metal Insert Lock Nuts

  • GB 6184 Stainless Steel Metric Nuts Spring Stop Metal Insert Lock Nuts
  • GB 6184 Stainless Steel Metric Nuts Spring Stop Metal Insert Lock Nuts
  • GB 6184 Stainless Steel Metric Nuts Spring Stop Metal Insert Lock Nuts
  • GB 6184 Stainless Steel Metric Nuts Spring Stop Metal Insert Lock Nuts
  • GB 6184 Stainless Steel Metric Nuts Spring Stop Metal Insert Lock Nuts
Place of Origin China
Brand Name XGFH
Certification ISO9001,EN10204 3.1Certificate
Model Number GB6184
Minimum Order Quantity 100pcs
Price 0.1-2.5usd/pc
Packaging Details 25kg per carbon box and then pallet.
Delivery Time 5-15 work days
Payment Terms T/T, L/C
Supply Ability 100000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Standard GB6184 Name Hex Lock Nuts
Material Stainless Steel 316 Grade A4-80
Finish Clean And Bright Type Chamfer
Wrench Hex Thread Coarse
High Light

GB 6184 stainless steel metric nuts xianggu

,

stainless steel metric nuts xianggu

,

Metal Insert Lock Nuts xianggu
Leave a Message
Product Description

Metric Stainless Steel Spring-Stop Locknuts Metal Insert Lock Nuts



Product Description:



For a secure hold where chemicals are a concern, these stainless steel locknuts—also known as Fuji locknuts—have a spring that creates tension when tightened. Reuse them without losing holding power like you do with nylon-insert locknuts. Made of metal, they'll stand up to high temperatures and vibration. They're designed for easy installation and removal. May be mildly magnetic.




Product Drawing:






Prevailing Torque Type All-Metal Hexagon Nuts
GB/T6184-2000
GB 6184 Stainless Steel Metric Nuts Spring Stop Metal Insert Lock Nuts 0
d(mm) P(mm) h(mm) s(mm)
min max min max
M5 0.8 4.8 5.3 7.78 8
M6 1 5.4 5.9 9.78 10
M8 1.25 6.44 7.1 12.73 13
M10 1.5 8.04 9 15.73 16
M12 1.75 10.37 11.6 17.73 18
M14 2 12.1 13.2 20.67 21
M16 2 14.1 15.2 23.67 24
M18 2.5 15.01 17 26.16 27
M20 2.5 16.9 19 29.16 30
M22 2.5 18.1 21 33 34
M24 3 20.2 23 35 36
M30 3.5 24.3 26.9 45 46
M36 4 29.4 32.5 53.8 55
