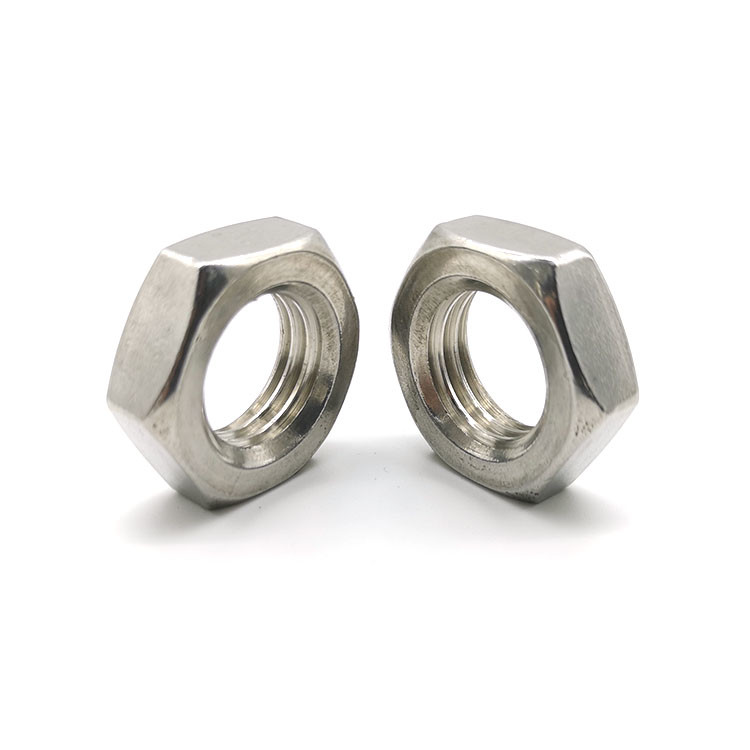

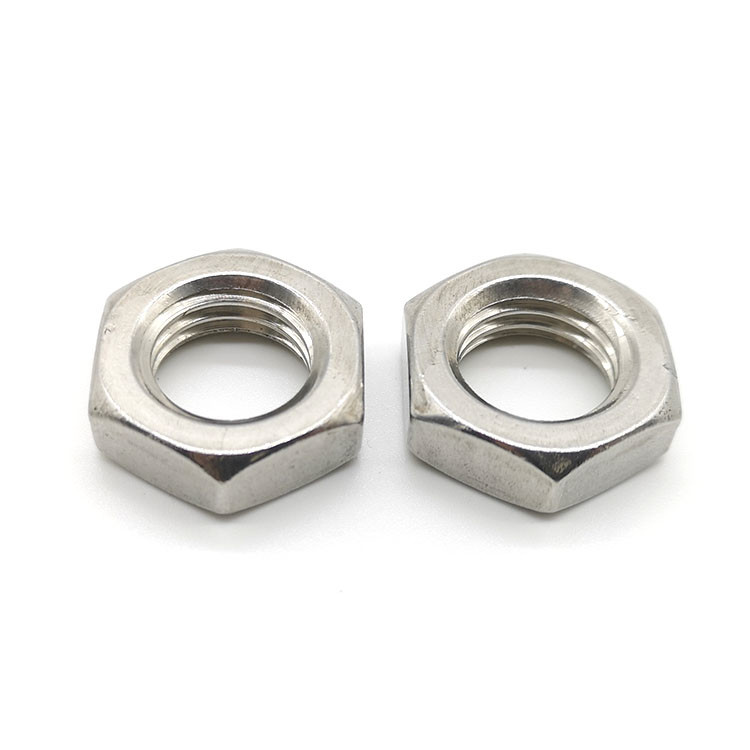

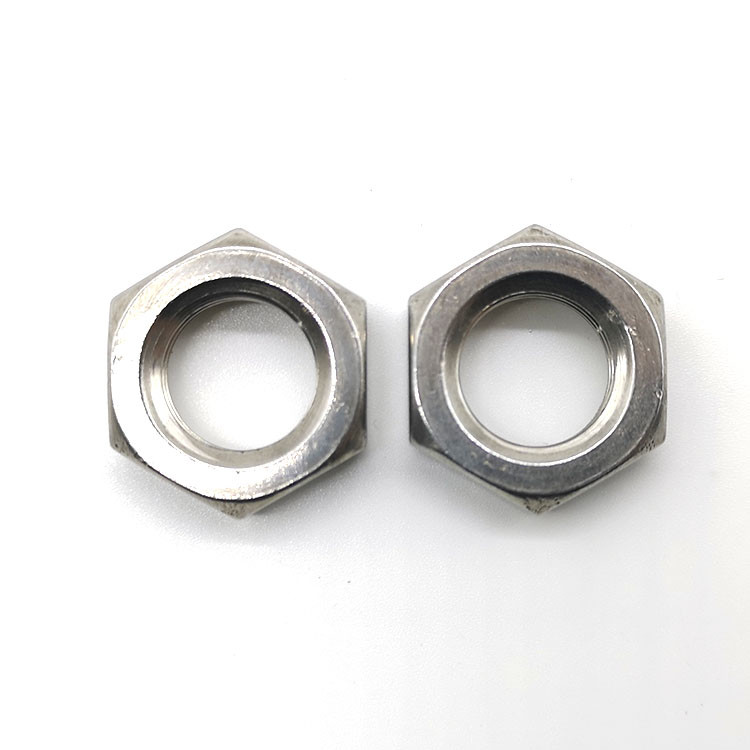

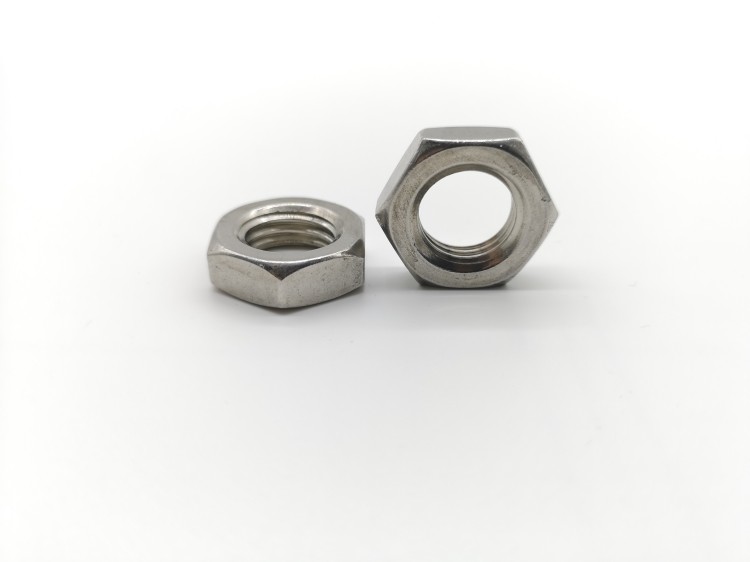

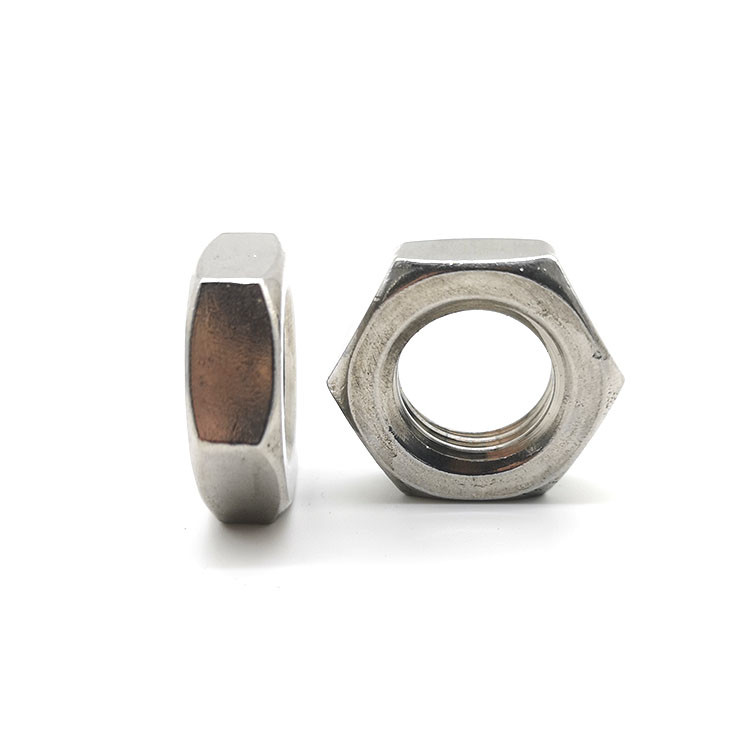

Chamfer A2 035 Stainless Steel Hex Nuts DIN 439 Jam Thin Hexagon Nuts

  • Chamfer A2 035 Stainless Steel Hex Nuts DIN 439 Jam Thin Hexagon Nuts
  • Chamfer A2 035 Stainless Steel Hex Nuts DIN 439 Jam Thin Hexagon Nuts
  • Chamfer A2 035 Stainless Steel Hex Nuts DIN 439 Jam Thin Hexagon Nuts
  • Chamfer A2 035 Stainless Steel Hex Nuts DIN 439 Jam Thin Hexagon Nuts
  • Chamfer A2 035 Stainless Steel Hex Nuts DIN 439 Jam Thin Hexagon Nuts
Place of Origin China
Brand Name XGFH
Certification ISO9001,EN10204 3.1Certificate
Model Number DIN439B
Minimum Order Quantity 100pcs
Price 0.01-2.5usd/pc
Packaging Details 25kg per carbon box and then pallet.
Delivery Time 5-15 work days
Payment Terms T/T, L/C
Supply Ability 100000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Standard DIN439B Name Hex Thin Nuts
Material Stainless Steel 304 Grade A2-035
Finish Clean And Bright Type Chamfer
Marking A2-035 Thread Coarse
High Light

Jam Thin Stainless Steel Hex Nuts xianggu

,

Stainless Steel Hex Nuts DIN 439 xianggu

,

Jam thin hexagon nuts xianggu
Leave a Message
Product Description

High Quality Jam Nuts DIN439 Stainless Steel Thin Hex Nuts

Metric 18-8 Stainless Steel Thin Hex Nuts



Product Description:



Useful in low-clearance applications, these metric nuts are roughly half the height of standard hex nuts, but aren’t as strong.

Commonly used as locknuts, threading a thin nut against any other hex nut prevents loosening caused by vibration.

You can also use them as jam nuts by threading two of these thin nuts against each other on a threaded rod to create a gripping point for turning the rod without damaging its threads. All are 18-8 stainless steel, which is nearly as strong as steel but won’t rust in outdoor, washdown, and other corrosive environments.

ISO 4035 nuts are functionally the same as DIN 439B nuts (sometimes called DIN 439-2), but have slightly different width tolerances. These nuts have chamfered edges that make them less sharp than DIN 936 nuts.



Mechanical Properties:





Property Class A2-035
Stress under proof load 350Mpa min.





Product Drawing:





Hexagon Thin Nuts
DIN 439-1987
Chamfer A2 035 Stainless Steel Hex Nuts DIN 439 Jam Thin Hexagon Nuts 0
d(mm) P(mm) k(mm) s(mm)
UNC UNF1 UNF2 UNF3 min max min max
M1.6 0.35 / / / 0.75 1 3.08 3.2
M1.8 0.35 / / / 0.85 1.1 3.38 3.5
M2 0.4 / / / 0.95 1.2 3.82 4
M2.5 0.45 / / / 1.35 1.6 4.82 5
M3 0.5 / / / 1.55 1.8 5.32 5.5
M3.5 0.6 / / / 1.75 2 5.82 6
M4 0.7 / / / 1.95 2.2 6.78 7
M5 0.8 / / / 2.45 2.7 7.78 8
M6 1 / / / 2.9 3.2 9.78 10
M8 1.25 1 / / 3.7 4 12.73 13
M10 1.5 1 1.25 / 4.7 5 16.73 17
M12 1.75 1.5 1.25 / 5.7 6 18.67 19
M14 2 1.5 / / 6.42 7 21.67 22
M16 2 1.5 / / 7.42 8 23.67 24
M18 2.5 1.5 2 / 8.42 9 26.16 27
M20 2.5 2 1.5 / 9.1 10 29.16 30
M22 2.5 1.5 2 / 9.9 11 31 32
M24 3 2 1.5 / 10.9 12 35 36
M27 3 2 / 1.5 12.4 13.5 40 41
M30 3.5 2 / 1.5 13.9 15 45 46
M33 3.5 2 / 1.5 15.4 16.5 49 50
M36 4 3 2 1.5 16.9 18 53.8 55
M39 4 3 2 1.5 18.2 19.5 58.8 60
M42 4.5 3 2 1.5 19.7 21 63.1 65
M45 4.5 3 2 1.5 21.2 22.5 68.1 70
M48 5 3 2 1.5 22.7 24 73.1 75
M52 5 3 2 1.5 24.7 26 78.1 80
