316 Stainless Steel Hex Nuts ISO 4032 A4 80 Super Corrosion Resistant

  • 316 Stainless Steel Hex Nuts ISO 4032 A4 80 Super Corrosion Resistant
  • 316 Stainless Steel Hex Nuts ISO 4032 A4 80 Super Corrosion Resistant
  • 316 Stainless Steel Hex Nuts ISO 4032 A4 80 Super Corrosion Resistant
  • 316 Stainless Steel Hex Nuts ISO 4032 A4 80 Super Corrosion Resistant
  • 316 Stainless Steel Hex Nuts ISO 4032 A4 80 Super Corrosion Resistant
Place of Origin China
Brand Name XGFH
Certification ISO9001,EN10204 3.1Certificate
Model Number ISO4032
Minimum Order Quantity 100pcs
Price 0.1-2.5usd/pc
Packaging Details 25kg per carbon box and then pallet.
Delivery Time 5-15 work days
Payment Terms T/T, L/C
Supply Ability 100000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Standard ISO4032 Name Hex Nuts
Material Stainless Steel 316 Finish Clean And Bright
Specification ISO3506-2 Size M1.6 To M64
Thread Fit Coarse Thread Right Hand
High Light

316 Stainless Steel Hex Nuts xianggu

,

Stainless Steel Hex Nuts Super Corrosion Resistant xianggu

,

ISO 4032 A4 xianggu
Leave a Message
Product Description

Metric Super-Corrosion-Resistant 316 Stainless Steel Hex Nuts



Product Description:



This International Standard specifies the characteristics of hexagon regular nuts (style 1), with threads from M1,6 up to and including M64, with product grade A for threads D ≤ M16 and product grade B for threads D > M16. If, in special cases, specifications other than those listed in this International Standard are required, they can be selected from existing International Standards, for example ISO 724, ISO 898-2, ISO 965-1, ISO 3506-2 and ISO 4759-1.



Product Mechanical Requirements:



Item Value
Grade A4-80
Stress under proof load 800min. Mpa



Product Drawing:



Hexagon nuts,type 1--product grades A and B
ISO4032&GB/T6170-2000

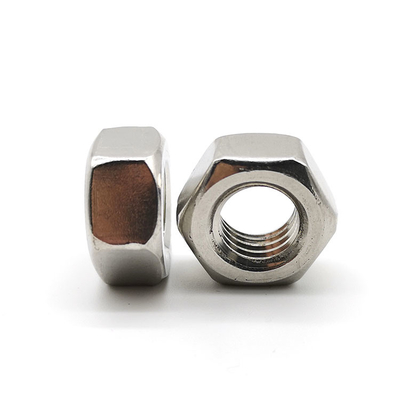

316 Stainless Steel Hex Nuts ISO 4032 A4 80 Super Corrosion Resistant 0
d(mm) P(mm) k(mm) s(mm)
min max min max
M1.6 0.35 1.05 1.3 3.02 3.2
M2 0.4 1.35 1.6 3.82 4
M2.5 0.45 1.75 2 4.82 5
M3 0.5 2.15 2.4 5.32 5.5
M3.5 0.6 2.55 2.8 5.82 6
M4 0.7 2.9 3.2 6.78 7
M5 0.8 4.4 4.7 7.78 8
M6 1 4.9 5.2 9.78 10
M8 1.25 6.44 6.8 12.73 13
M10 1.5 8.04 8.4 15.73 16
M12 1.75 10.37 10.8 17.73 18
M14 2 12.1 12.8 20.67 21
M16 2 14.1 14.8 23.67 24
M18 2.5 15.1 15.8 26.16 27
M20 2.5 16.9 18 29.16 30
M22 2.5 18.1 19.4 33 34
M24 3 20.2 21.5 35 36
M27 3 22.5 23.8 40 41
M30 3.5 24.3 25.6 45 46
M33 3.5 27.4 28.7 49 50
M36 4 29.4 31 53.8 55
M39 4 31.8 33.4 58.8 60
M42 4.5 32.4 34 63.1 65
M45 4.5 34.4 36 68.1 70
M48 5 36.4 38 73.1 75
M52 5 40.4 42 78.1 80
M56 5.5 43.4 45 82.8 85
M60 5.5 46.4 48 87.8 90
M64 6 49.1 51 92.8 95



Product Features:



Stainless steel is steel combined with alloying elements,principally chromium,to enhance corrosion resistance and impart other desired properties depending upon the alloying elements in use and their proportions.

Many stainless steel fasteners are non-magnetic or less magnetic than regular steel fasteners.

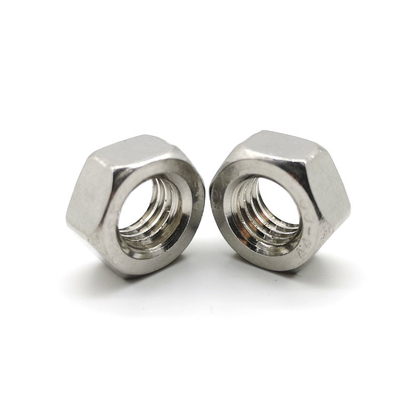

316 Stainless Steel Hex Nuts ISO 4032 A4 80 Super Corrosion Resistant 1
