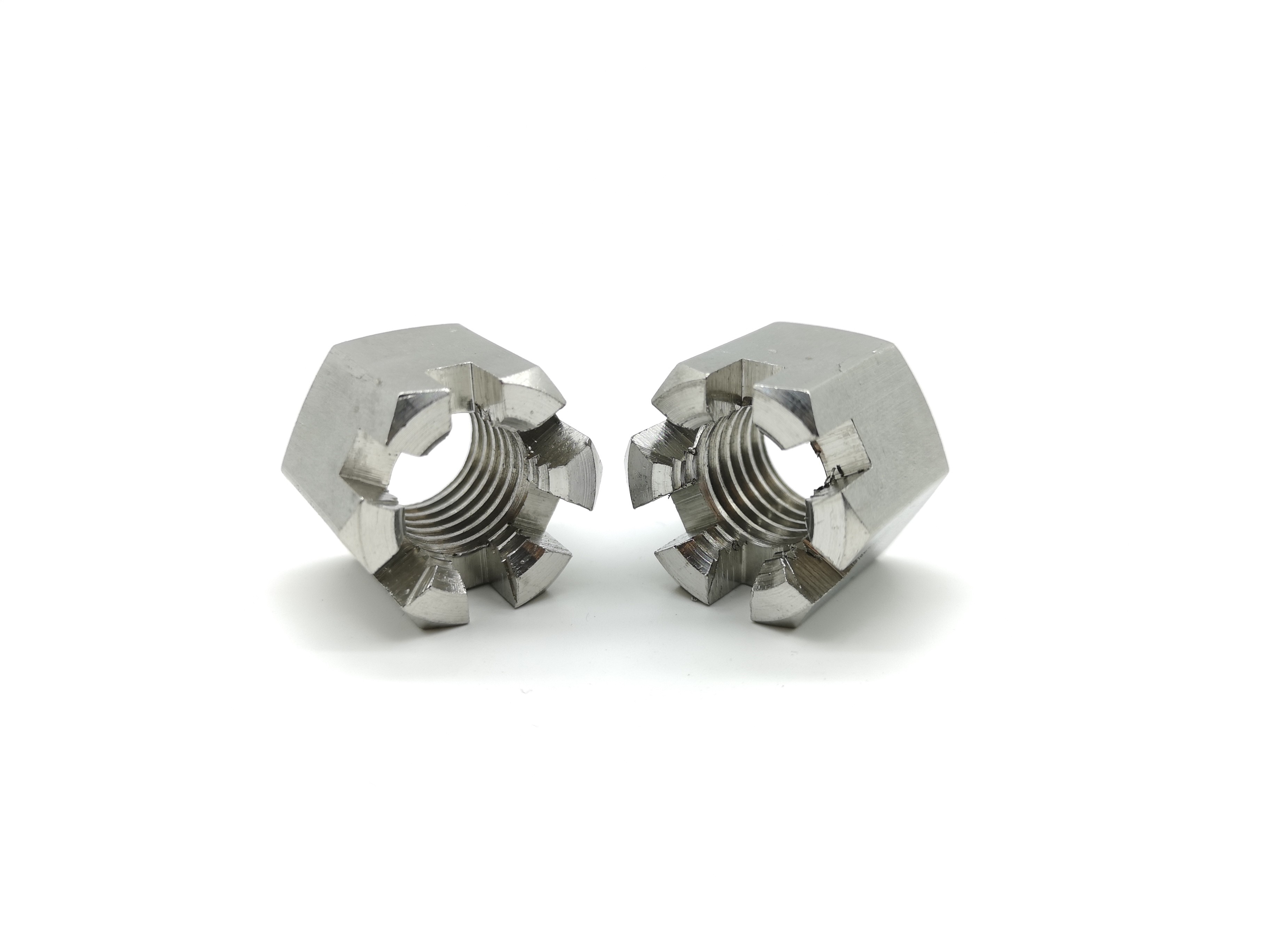

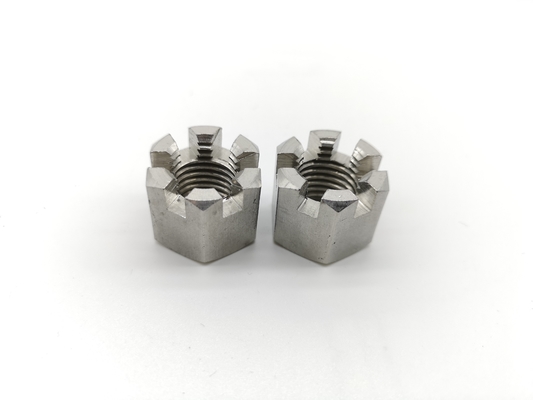

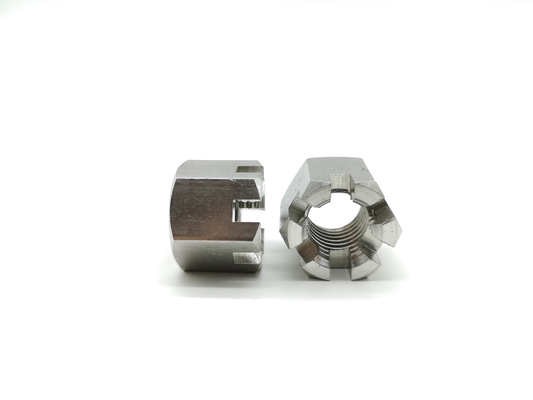

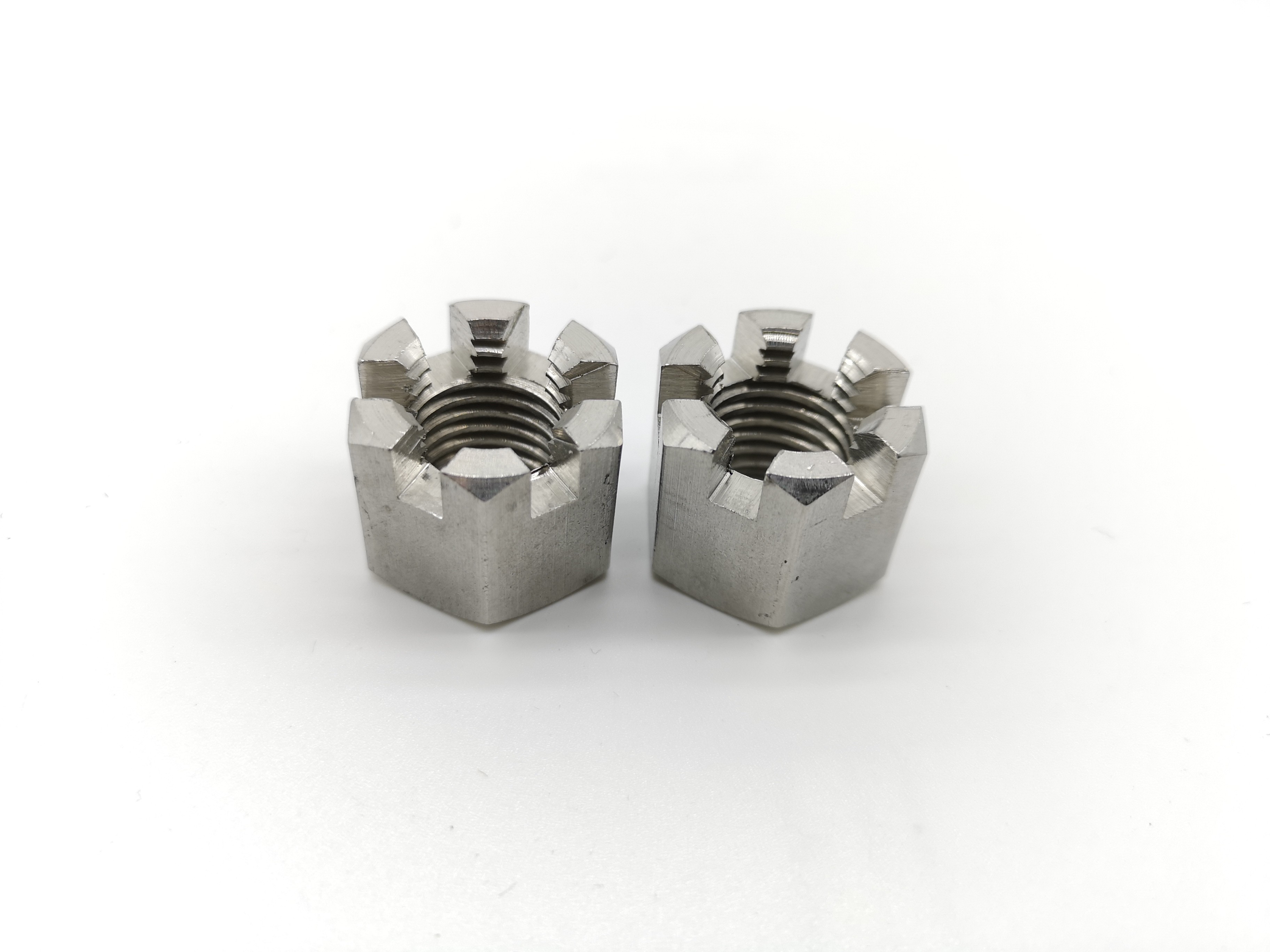

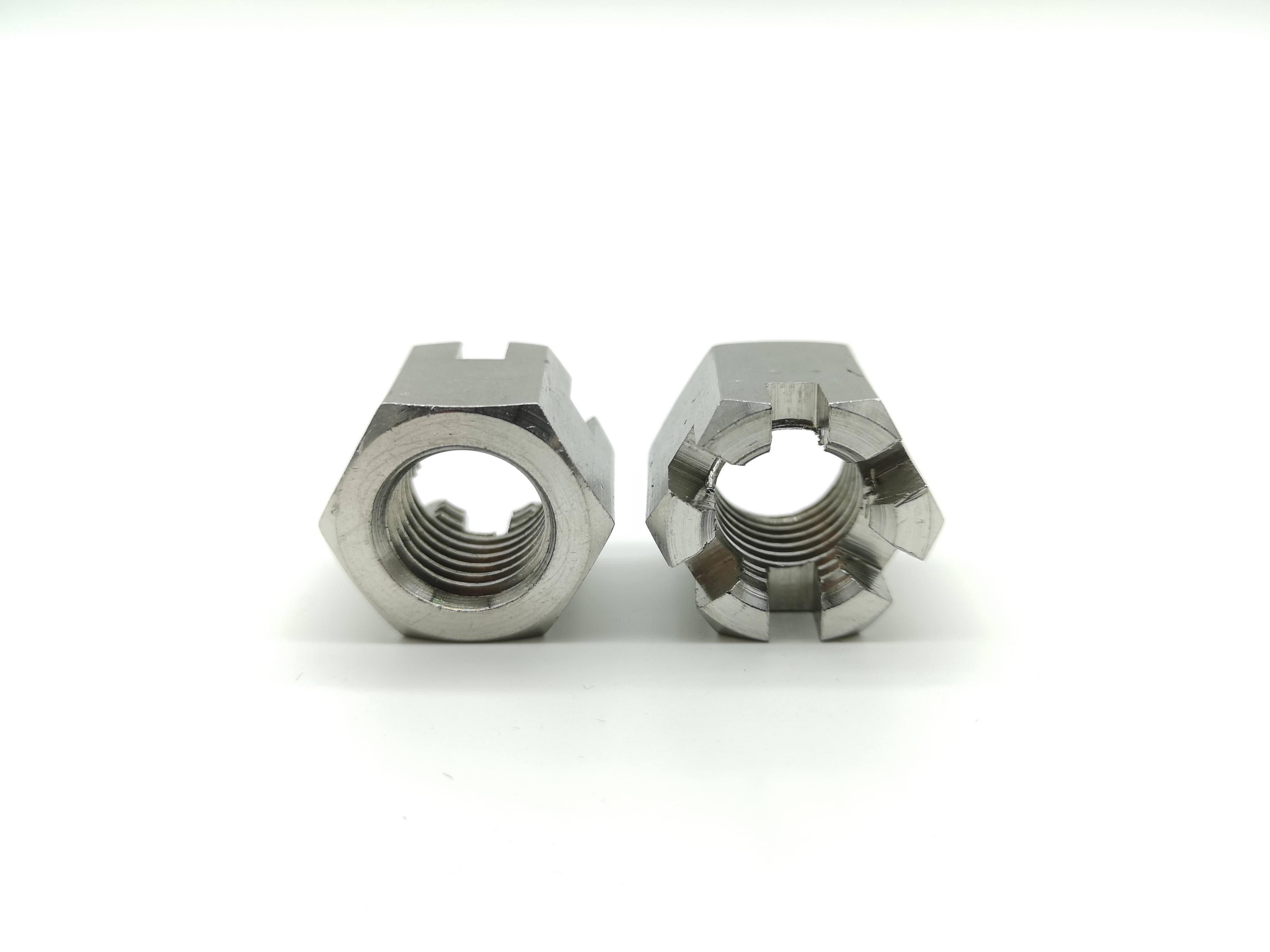

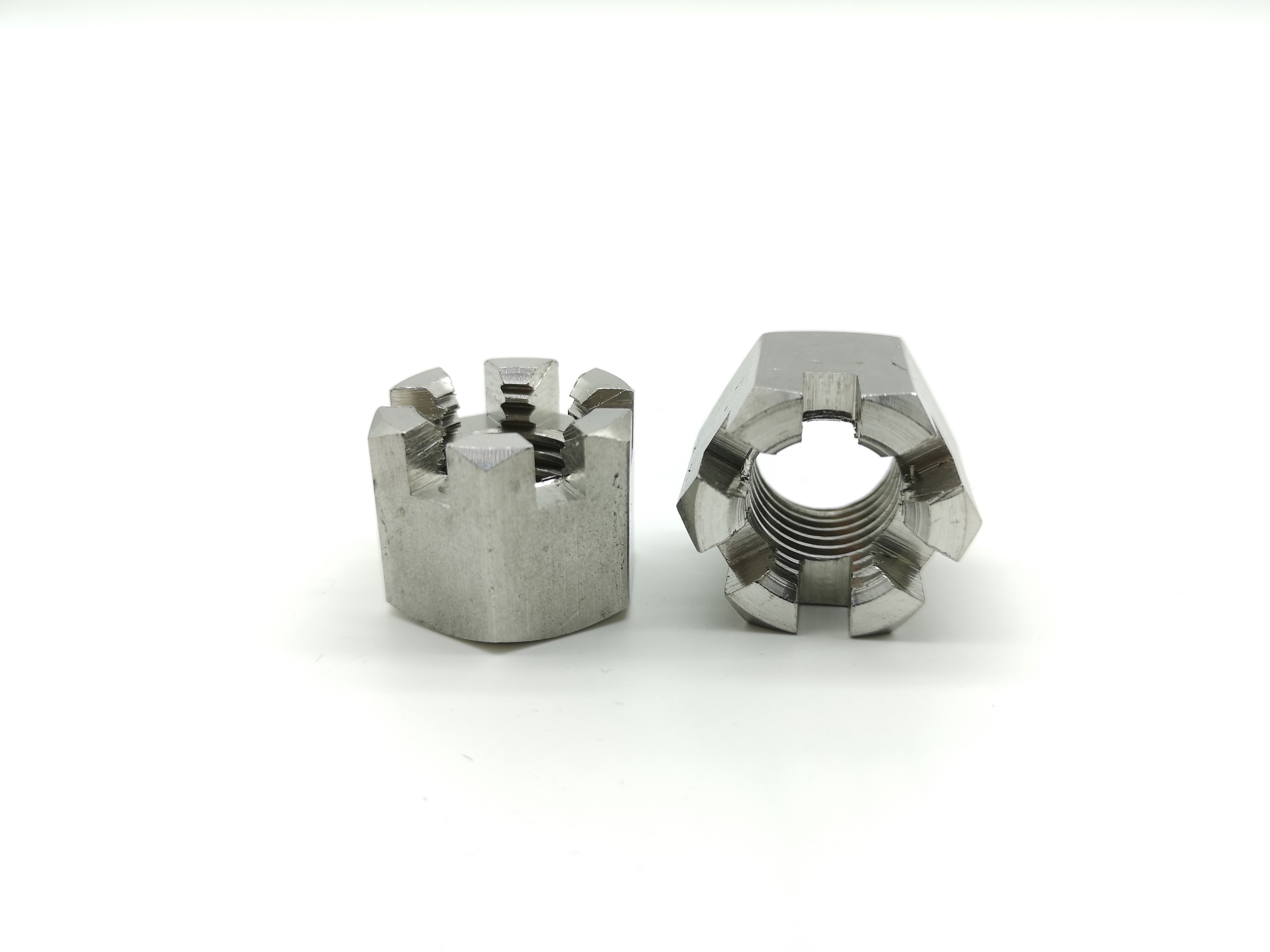

Stainless Steel Hexagon Slotted Nut Cotter Pins DIN 935 Castle Nuts

  • Stainless Steel Hexagon Slotted Nut Cotter Pins DIN 935 Castle Nuts
  • Stainless Steel Hexagon Slotted Nut Cotter Pins DIN 935 Castle Nuts
  • Stainless Steel Hexagon Slotted Nut Cotter Pins DIN 935 Castle Nuts
  • Stainless Steel Hexagon Slotted Nut Cotter Pins DIN 935 Castle Nuts
  • Stainless Steel Hexagon Slotted Nut Cotter Pins DIN 935 Castle Nuts
Place of Origin China
Brand Name XGFH
Certification ISO9001,EN10204 3.1Certificate
Model Number DIN935
Minimum Order Quantity 100pcs
Price 0.01-2.5usd/pc
Packaging Details 25kg per carbon box and then pallet.
Delivery Time 5-15 work days
Payment Terms T/T, L/C
Supply Ability 100000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Standard DIN935 Name Hex Slotted Nuts
Material Stainless Steel 316 Grade A4-70
Finish Clean And Bright Type Chamfer
Wrench Hex Thread Coarse
High Light

Stainless Steel hex slotted nuts xianggu

,

hexagon slotted nut Cotter Pins xianggu

,

DIN 935 Castle Nuts xianggu
Leave a Message
Product Description

Stainless Steel Locknuts for use with Cotter Pins



Product Description:



These locknuts have good chemical resistance and may be mildly magnetic. Also known as castle nuts, secure them by inserting a cotter pin or safety wire through the slots in the nut and a drilled hole in your bolt for mild loosening resistance.

They’re not recommended for use on parts exposed to high vibration because the pin is prone to shearing under prolonged stress. Height includes the slots. Cotter pins are not included.




Product Drawing:



Hexagon slotted nuts
DIN 935-2013
Stainless Steel Hexagon Slotted Nut Cotter Pins DIN 935 Castle Nuts 0
D(mm) P(mm) m(mm) n(mm) s(mm) w(mm)
min max min max min max min max
M4 0.7 4.7 5 1.2 1.45 6.78 7 2.9 3.2
M5 0.8 5.7 6 1.4 1.65 7.78 8 3.7 4
M6 1 7.14 7.5 2 2.25 9.78 10 4.7 5
M7 1 7.64 8 2 2.25 10.73 11 5.2 5.5
M8 1/1.25 9.14 9.5 2.5 2.75 12.73 13 6.14 6.5
M10 1/1.25/1.5 11.57 12 2.8 3.05 15.73/16.73 16/17 7.64 8
M12 1.25/1.5/1.75 14.57 15 3.5 3.8 17.73/18.67 18/19 9.64 10
M14 1.5/2 15.57 16 3.5 3.8 20.67/21.67 21/22 10.57 11
M16 1.5/2 18.48 19 4.5 4.8 23.67 24 12.57 13
M18 1.5/2/2.5 20.16 21 4.5 4.8 26.16 27 14.57 15
M20 1.5/2/2.5 21.16 22 4.5 4.8 29.16 30 15.57 16
M22 1.5/2/2.5 25.16 26 5.5 5.8 31/33 32/34 17.57 18
M24 2/3 26.16 27 5.5 5.8 35 36 18.48 19
M27 2/3 29.16 30 5.5 5.8 40 41 21.48 22
M30 2/3.5 32 33 7 7.36 45 46 23.48 24
M33 2/3.5 34 35 7 7.36 49 50 25.48 26
M36 3/4 37 38 7 7.36 53.8 55 28.48 29
M39 3/4 39 40 7 7.36 58.8 60 30.28 31
M42 3/4.5 45 46 9 9.36 63.1 65 33.38 34
M45 3/4.5 47 48 9 9.36 68.1 70 35.38 36
M48 3/5 49 50 9 9.36 73.1 75 37.38 38
M52 3/5 52.8 54 9 9.36 78.1 80 41.38 42
M56 4/5.5 55.8 57 9 9.36 82.8 85 44.38 45
M60 4/5.5 61.8 63 11 11.43 87.8 90 47.38 48
M64 4/6 64.8 66 11 11.43 92.8 95 50.26 51
M68 4/6 67.8 69 11 11.43 97.8 100 53.26 54
M72 4/6 71.8 73 11 11.43 102.8 105 57.26 58
M76 4/6 74.8 76 11 11.43 107.8 110 60.26 61
M80 4/6 77.6 79 11 11.43 112.8 115 63.26 64
M85 4/6 86.6 88 14 14.43 117.8 120 67.26 68
M90 4/6 90.6 92 14 14.43 127.5 130 71.26 72
M100 4/6 98.6 100 14 14.43 142.5 145 79.26 80




Product Features:

Slotted nuts,also known as castellated nuts,have grooved heads that align with holes in the mated bolt to accept the insertion of a cotter pin,locking the nut in place.

They are commonly used to ensure that shaft components in certain automotive assemblies do not separate or to maintain machine settings in manufacturing environments.





Factory:

Stainless Steel Hexagon Slotted Nut Cotter Pins DIN 935 Castle Nuts 1

Applications:



Stainless Steel Hexagon Slotted Nut Cotter Pins DIN 935 Castle Nuts 2
