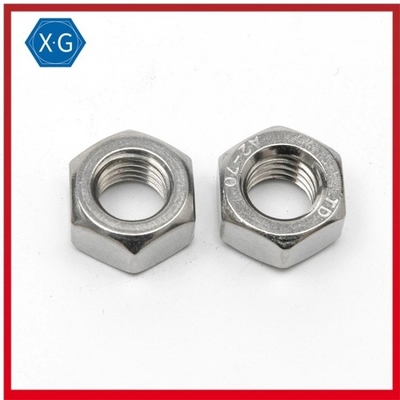

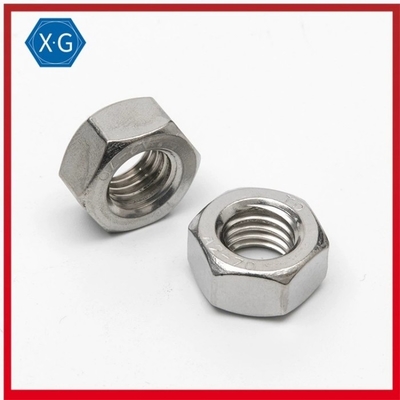

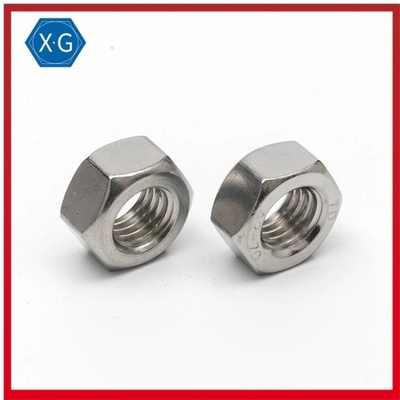

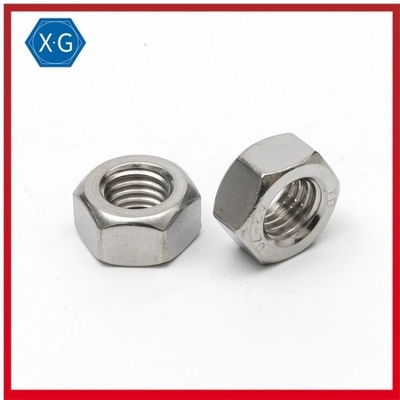

M3 M4 M5 M6 M8 M10 SS304 Stainless Steel Hex Nuts DIN 934 A2 70

  • M3 M4 M5 M6 M8 M10 SS304 Stainless Steel Hex Nuts DIN 934 A2 70
  • M3 M4 M5 M6 M8 M10 SS304 Stainless Steel Hex Nuts DIN 934 A2 70
  • M3 M4 M5 M6 M8 M10 SS304 Stainless Steel Hex Nuts DIN 934 A2 70
  • M3 M4 M5 M6 M8 M10 SS304 Stainless Steel Hex Nuts DIN 934 A2 70
Place of Origin China
Brand Name XGFH
Certification ISO9001
Model Number DIN934
Minimum Order Quantity 100pcs
Price 0.01-0.5
Packaging Details 20-25KG/CTN, and then pallet.
Delivery Time 3-10workdays
Payment Terms T/T, L/C
Supply Ability 500000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Hex Nuts Standard DIN934
Material Stainless Steel 304 Grade A2-70
Finish Passivate Specification ISO3506-2
Proof Load 700Mpa Measurement System Metric
Thread Direction Right Thread Thread Fit Coarse 6G
High Light

SS304 Stainless Steel Hex Nuts xianggu

,

M8 M10 Stainless Steel Hex Nuts xianggu

,

DIN 934 A2 70 xianggu
Leave a Message
Product Description

Drawing:



Hexagon nuts with metric screw threads,product grades A and B
DIN 934-1987
M3 M4 M5 M6 M8 M10 SS304 Stainless Steel Hex Nuts DIN 934 A2 70 0
d(mm) p(mm) m(mm) s(mm) d(mm) P(mm) m(mm) S(mm)
min max min max min max min max
M1 0.25 0.55 0.8 2.4 2.5 M27 2/3 20.7 22 40 41
M1.2 0.25 0.75 1 2.9 3 M30 2/3.5 22.7 24 45 46
M1.4 0.3 0.95 1.2 2.9 3 M33 2/3.5 24.7 26 49 50
M1.6 0.35 1.05 1.3 3.02 3.2 M36 3/4 27.4 29 53.8 55
M1.7 0.35 1.15 1.4 3.38 3.5 M39 3/4 29.4 31 58.8 60
M2 0.4 1.35 1.6 3.82 4 M42 3/4.5 32.4 34 63.1 65
M2.3 0.45 1.55 1.8 4.32 4.5 M45 3/4.5 34.4 36 68.1 70
M2.5 0.45 1.75 2 4.82 5 M48 3/5 36.4 38 73.1 75
M2.6 0.45 1.75 2 4.82 5 M52 3/5 40.4 42 78.1 80
M3 0.5 2.15 2.4 5.32 5.5 M56 4/5.5 43.4 45 82.8 85
M3.5 0.6 2.55 2.8 5.82 6 M60 4/5.5 46.4 48 87.8 90
M4 0.7 2.9 3.2 6.78 7 M64 4/6 49.1 51 92.8 95
M5 0.8 3.7 4 7.78 8 M68 4/6 52.1 54 97.8 100
M6 1 4.7 5 9.78 10 M72 4/6 56.1 58 102.8 105
M7 1 5.2 5.5 10.73 11 M76 4/6 59.1 61 107.8 110
M8 1/1.25 6.14 6.5 12.73 13 M80 4/6 62.1 64 112.8 115
M10 1/1.25/1.5 7.64 8 16.73 17 M85 4/6 66.1 66 117.8 120
M12 1.25/1.5/1.75 9.64 10 18.67 19 M90 4/6 70.1 72 127.5 130
M14 1.5/2 10.3 11 21.67 22 M100 4/6 78.1 80 142.5 145
M16 1.5/2 12.3 13 23.67 24 M110 4/6 85.8 88 152.5 155
M18 1.5/2/2.5 14.3 15 26.16 27 M125 4/6 97.8 100 177.5 180
M20 1.5/2/2.5 14.9 16 29.16 30 M140 4/6 109.8 112 195.4 200
M22 1.5/2/2.5 16.9 18 31 32 M160 4/6 125.5 128 225.4 230
M24 2/3 17.7 19 35 36





These nuts have good chemical resistance and may be mildly magnetic. Metric 18-8 stainless steel is also known as A2 stainless steel.





Use a hex nut with a screw or hex head bolt to fasten two or more wood or metal parts.

Hex nuts are often used in construction for framing or to create a bolted joint.



Hex nuts are designed to mechanically join materials by fastening to a bolt.

Stainless steel finish offers best-in-class corrosion resistance.

Can be installed by screwing onto exposed thread by hand and tightening with a wrench.

Safe for use in most general home and commercial applications.

Recommended for use with bolts and washers of a similar size and finish.

Parts feature coarse threads.



M3 M4 M5 M6 M8 M10 SS304 Stainless Steel Hex Nuts DIN 934 A2 70 1

M3 M4 M5 M6 M8 M10 SS304 Stainless Steel Hex Nuts DIN 934 A2 70 2
