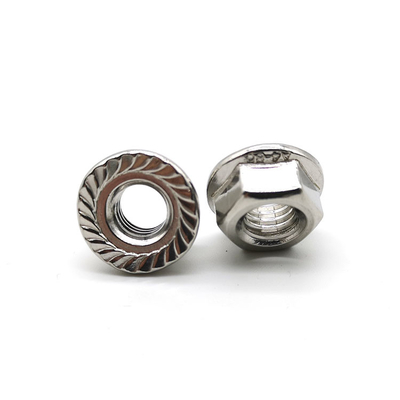

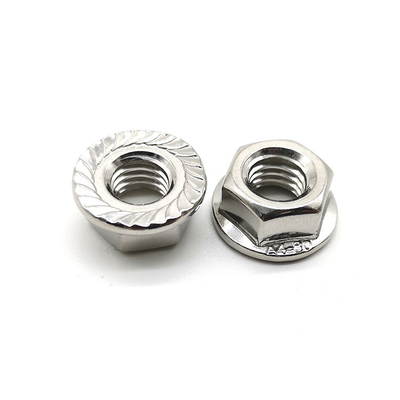

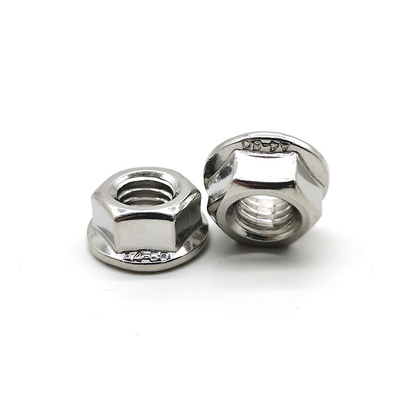

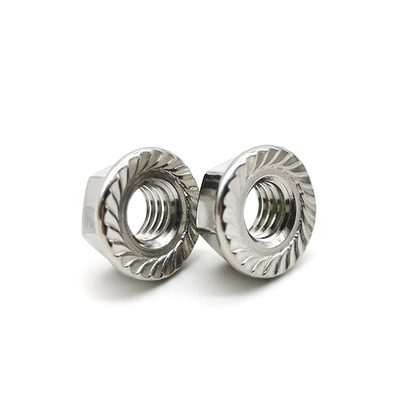

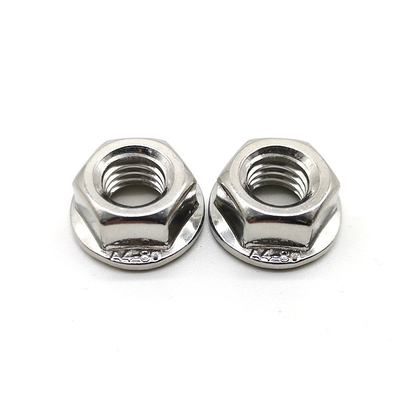

DIN 6923 Stainless Steel Hex Nuts A4 80 M4 M8 Serrated Hex Flange Nuts

  • DIN 6923 Stainless Steel Hex Nuts A4 80 M4 M8 Serrated Hex Flange Nuts
  • DIN 6923 Stainless Steel Hex Nuts A4 80 M4 M8 Serrated Hex Flange Nuts
  • DIN 6923 Stainless Steel Hex Nuts A4 80 M4 M8 Serrated Hex Flange Nuts
  • DIN 6923 Stainless Steel Hex Nuts A4 80 M4 M8 Serrated Hex Flange Nuts
  • DIN 6923 Stainless Steel Hex Nuts A4 80 M4 M8 Serrated Hex Flange Nuts
Place of Origin China
Brand Name XGFH
Certification ISO9001,EN10204 3.1Certificate
Model Number DIN6923
Minimum Order Quantity 100pcs
Price 0.1-2.5usd/pc
Packaging Details 25kg per carbon box and then pallet.
Delivery Time 5-15 work days
Payment Terms T/T, L/C
Supply Ability 100000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Standard DIN6923 Name Hex Flange Nuts
Material Stainless Steel 316 Finish Clean And Bright
Specification ISO3506-2 Size M6 To M16
Thread Fit Coarse Thread Right Hand
High Light

DIN 6923 Stainless Steel Hex Nuts xianggu

,

Stainless Steel Hex Nuts A4 80 xianggu

,

m8 Serrated Hex Flange Nuts xianggu
Leave a Message
Product Description

Metric Super-Corrosion-Resistant 316 Stainless Steel Serrated Hex Flange Nuts



Product Description:



These flange nuts have excellent resistance to chemicals and can be used in saltwater environments. A flange distributes pressure where the nut meets the material surface, eliminating the need for a separate washer. They may be mildly magnetic. Height includes the flange.



Product Mechanical Requirements:



Item Value
Grade A4-80
Stress under proof load 800min. Mpa



Product Drawing:



Hexagon nuts with flange
DIN 6923-1983
DIN 6923 Stainless Steel Hex Nuts A4 80 M4 M8 Serrated Hex Flange Nuts 0
d(mm) p(mm) dc(mm) m(mm) s(mm)
max min max min max
M5 0.8 11.8 4.7 5 7.78 8
M6 1 14.2 5.7 6 9.78 10
M8 1/1.25 17.9 7.6 8 12.73 13
M10 1/1.25/1.5 21.8 9.6 10 14.73 15
M12 1.25/1.5/1.75 26 11.6 12 17.73 18
M14 1.5/2 29.9 13.3 14 20.67 21
M16 1.5/2 34.5 15.3 16 23.67 24
M20 1.5/2.5 42.8 18.9 20 29.67 30





Product Features:



Stainless steel is steel combined with alloying elements,principally chromium,to enhance corrosion resistance and impart other desired properties depending upon the alloying elements in use and their proportions.

Many stainless steel fasteners are non-magnetic or less magnetic than regular steel fasteners.



Testing Equipment:



DIN 6923 Stainless Steel Hex Nuts A4 80 M4 M8 Serrated Hex Flange Nuts 1

Packing:



DIN 6923 Stainless Steel Hex Nuts A4 80 M4 M8 Serrated Hex Flange Nuts 2
