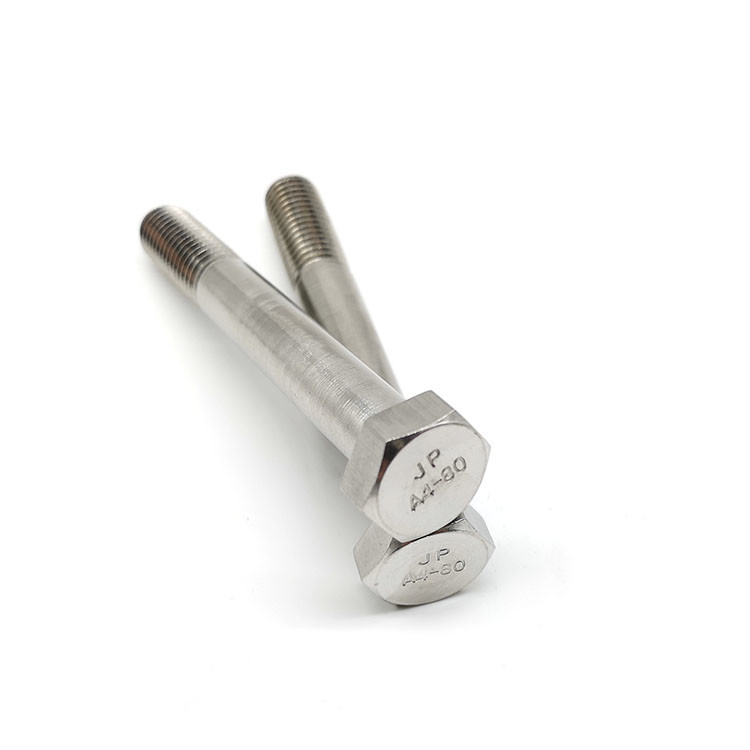

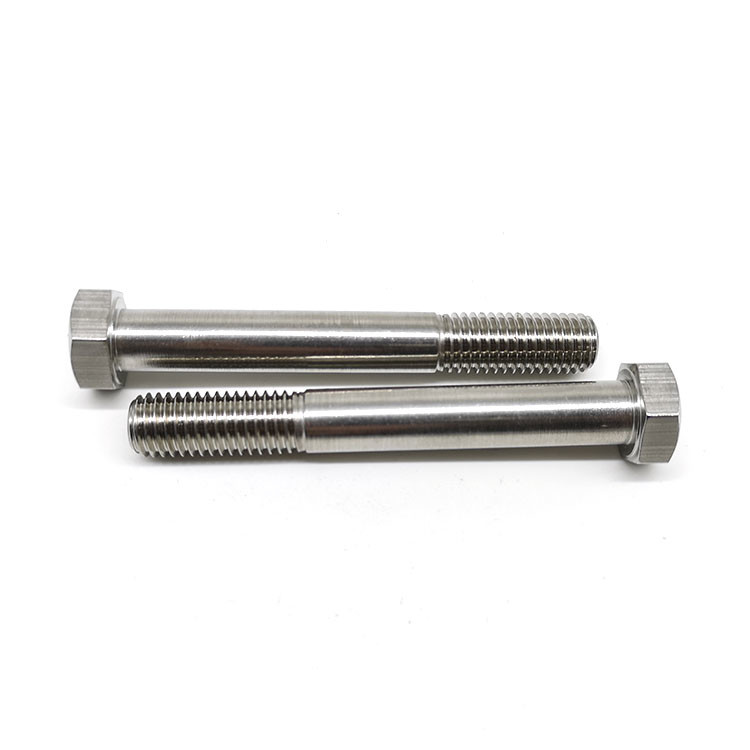

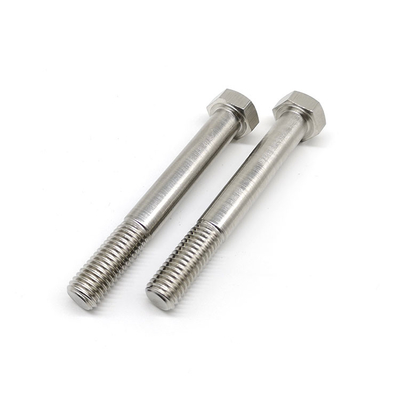

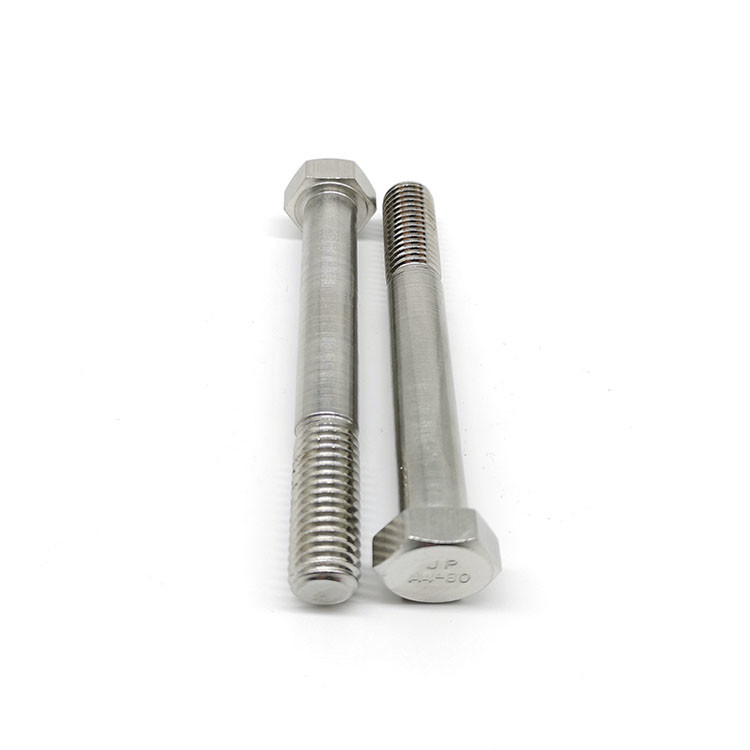

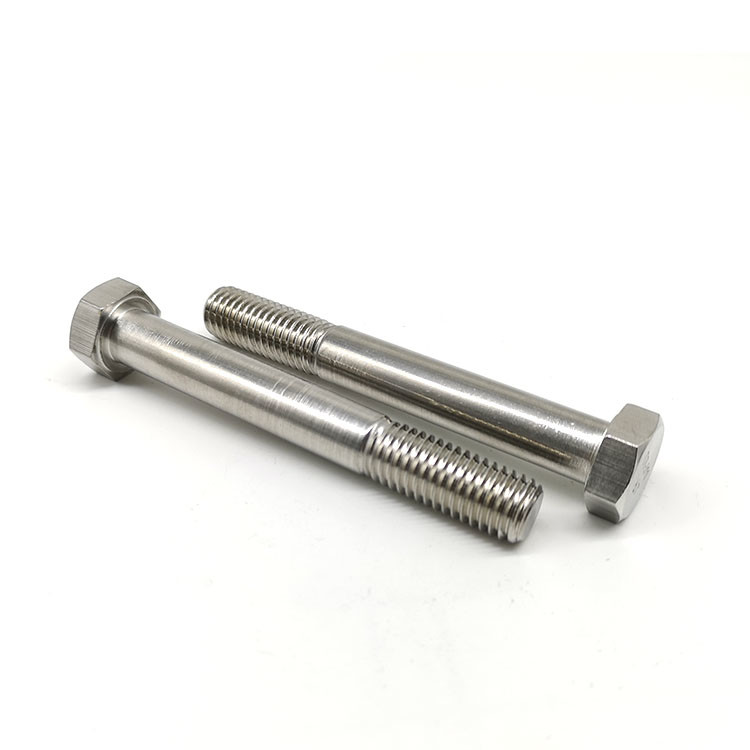

ISO 4014 Wind Energy Fasteners SS316 Hex Head Cap Screws Partially Threaded Bolt

  • ISO 4014 Wind Energy Fasteners SS316 Hex Head Cap Screws Partially Threaded Bolt
  • ISO 4014 Wind Energy Fasteners SS316 Hex Head Cap Screws Partially Threaded Bolt
  • ISO 4014 Wind Energy Fasteners SS316 Hex Head Cap Screws Partially Threaded Bolt
  • ISO 4014 Wind Energy Fasteners SS316 Hex Head Cap Screws Partially Threaded Bolt
  • ISO 4014 Wind Energy Fasteners SS316 Hex Head Cap Screws Partially Threaded Bolt
Place of Origin China
Brand Name XGFH
Certification ISO9001,EN10204 3.1Certificate
Model Number ISO4014
Minimum Order Quantity 10000pcs
Price 0.1-2.1usd/pc
Packaging Details 20-25KG/Carton box and then pallet.
Delivery Time 3-10 work days
Payment Terms T/T, L/C
Supply Ability 500000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Hex Head Screws Standard ISO4014
Material Stainless Steel 316 Grade A4-80
Finish Clean And Bright Thread Partially Thread
System Of Measurement Metric Thread Tip Coarse
Thread Direction Right Hand Head Type Hex Head
Thread Fit 6g
High Light

ISO 4014 Wind Energy Fasteners xianggu

,

316ss hex head screws xianggu

,

partially threaded bolt xianggu
Leave a Message
Product Description

Product Description:





Wind Energy Fasteners ISO4014 SUS316 Hex Head Cap Screws Partially Threaded



Wind Energy Fasteners ISO4014 SUS316 Hex Head Cap Screws Partially Threaded Made In China.

This International Standard specifies the characteristics of hexagon head screws with threads from M6 up to M64.

As compared to stainless steel grade 304,grade 316 provides better overall corrosion resistant properties.This holds true particularly as grade 316 stainless steel has a higher resistance to both pitting as well as crevice corrosion in chloride environments.



Products name Wind Energy Fasteners ISO4014 SUS316 Hex Head Cap Screws Partially Threaded
Standard: DIN,ASTM/ANSI JIS EN ISO,AS,GB
Material Carbon Steel,Alloy Steel;Stainless Steel:SS304, SS316,SS316L
Steel Grade: 8.8,10.9,12.9,Grade2,5 and 8,Class A2-70,A4-70,A4-80
Finishing Black Oxide,HDG(Hot Dip Galvanized),Zinc Plated,Dacromet
Related Products Hex Nuts,Flat Washer,and Spring Washer
Applications Nuclear power,Wind tower,Automotive industry,Railway,Electronic,Construction industry.
Stock Products ISO4017 Hex bolt most of size in stock.
Get Free Samples for standard fastener from Jiangyin XiangGu Hardware Products Co.,Ltd
Focus On Supplying High Quality Fasteners.





Drawing:


Hex bolt partially threaded GradeA and B
GB/T 5782-2016 & ISO 4014-2011
ISO 4014 Wind Energy Fasteners SS316 Hex Head Cap Screws Partially Threaded Bolt 0
d P(mm) b (mm) ds (mm) k (mm) s (mm)
min max A B min max
L≤125 125＜L≤200 L＞200 A B min max min max A B
M1.6 0.35 9 15 28 1.46 1.35 1.6 0.975 1.225 0.9 1.3 3.02 2.9 3.2
M2 0.4 10 16 29 1.86 1.75 2 1.275 1.525 1.2 1.6 3.82 3.7 4
M2.5 0.45 11 17 30 2.36 2.25 2.5 1.575 1.825 1.5 1.9 4.82 4.7 5
M3 0.5 12 18 31 2.86 2.75 3 1.875 2.125 1.8 2.2 5.32 5.2 5.5
M3.5 0.6 13 19 32 3.32 3.2 3.5 2.275 2.525 2.2 2.6 5.82 5.7 6
M4 0.7 14 20 33 3.82 3.7 4 2.675 2.925 2.6 3 6.78 6.64 7
M5 0.8 16 22 35 4.82 4.7 5 3.35 3.65 3.26 3.74 7.78 7.64 8
M6 1 18 24 37 5.82 5.7 6 3.85 4.15 3.76 4.24 9.78 9.64 10
M8 1.25 22 28 41 7.78 7.64 8 5.15 5.45 5.06 5.54 12.73 12.57 13
M10 1.5 26 32 45 9.78 9.64 10 6.22 6.58 6.11 6.69 15.73 15.57 16
M12 1.75 30 36 49 11.73 11.57 12 7.32 7.68 7.21 7.79 17.73 17.57 18
M14 2 34 40 53 13.73 13.57 14 8.62 8.98 8.51 9.09 20.67 20.16 21
M16 2 38 44 57 15.73 15.57 16 9.82 10.18 9.71 10.29 23.67 23.16 24
M18 2.5 42 48 61 17.73 17.57 18 11.285 11.715 11.15 11.85 26.67 26.16 27
M20 2.5 46 52 65 19.67 19.48 20 12.285 12.715 12.15 12.85 29.67 29.16 30
M22 2.5 50 56 69 21.67 21.48 22 13.785 14.215 13.65 14.35 33.38 33 34
M24 3 54 60 73 23.67 23.48 24 14.785 15.215 14.65 15.35 35.38 35 36
M27 3 60 66 79 / 26.48 27 / / 16.65 17.35 / 40 41
M30 3.5 66 72 85 / 29.48 30 / / 18.28 19.12 / 45 46
M33 3.5 / 78 91 / 32.38 33 / / 20.58 21.42 / 49 50
M36 4 / 84 97 / 35.38 36 / / 22.08 22.92 / 53.8 55
M39 4 / 90 103 / 38.38 39 / / 24.58 25.42 / 58.8 60
M42 4.5 / 96 109 / 41.38 42 / / 25.58 26.42 / 63.1 65
M45 4.5 / 102 115 / 44.38 45 / / 27.58 28.42 / 68.1 70
M48 5 / 108 121 / 47.38 48 / / 29.58 30.42 / 73.1 75
M52 5 / 116 129 / 51.26 52 / / 32.5 33.5 / 78.1 80
M56 5.5 / / 137 / 55.26 56 / / 34.5 35.5 / 82.8 85
M60 5.5 / / 145 / 59.26 60 / / 37.5 38.5 / 87.8 90
M64 6 / / 153 / 63.26 64 / / 39.5 40.5 / 92.8 95

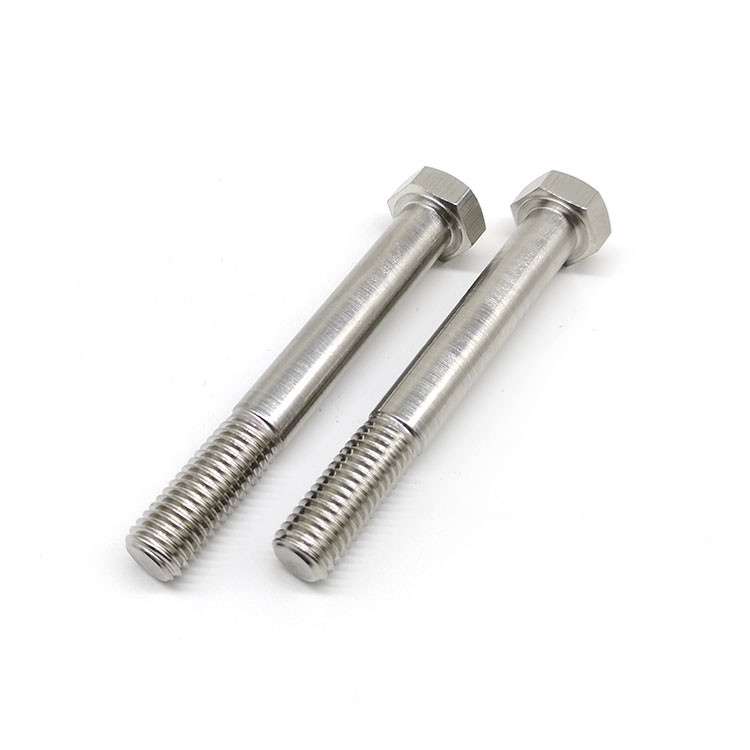

ISO 4014 Wind Energy Fasteners SS316 Hex Head Cap Screws Partially Threaded Bolt 1ISO 4014 Wind Energy Fasteners SS316 Hex Head Cap Screws Partially Threaded Bolt 2

ISO 4014 Wind Energy Fasteners SS316 Hex Head Cap Screws Partially Threaded Bolt 3




FAQ

Q: Are you trading company or manufacturer ?

A: We are factory and OEM are available.

Q: How long is your delivery time?

A: Generally it is 2-5 days if the goods are in stock,or it is 15-30 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: 30% T/T in advance ,balance before shipment or L/C.
If you have another question, please feel free to contact us.
