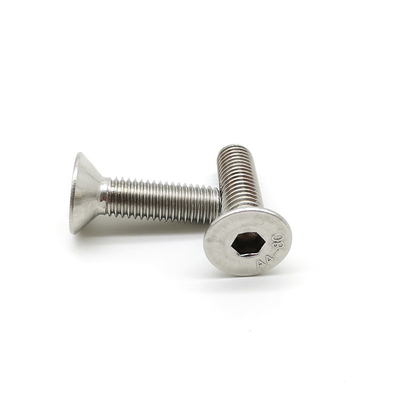

A4.80 DIN 7991 Hexagon Socket Countersunk Head Screws Hex Flat Head Cap Screw

Place of Origin China
Brand Name XGFH
Certification ISO9001,EN10204 3.1Certificate
Model Number DIN7991
Minimum Order Quantity 10000pcs
Price 0.1-2.1usd/pc
Packaging Details 20-25KG/Carton box and then pallet.
Delivery Time 3-10 work days
Payment Terms T/T, L/C
Supply Ability 500000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Hex Socket Flat Head Screws Standard DIN7991
Material Stainless Steel 316 Grade A4-80
Finish Clean And Bright Thread Full Thread
System Of Measurement Metric Thread Tip Coarse
Thread Direction Right Hand Head Type Countersunk Head
Thread Fit 6g
High Light

hexagon socket countersunk head screws xianggu

,

DIN 7991 hex flat head cap screw xianggu

,

A4.80 hex flat head cap screw xianggu

Leave a Message
Product Description

Product Description:





Wind Energy Fasteners A4.80 DIN7991 Hexagon Socket Countersunk Head Cap Screws



Wind Energy Fasteners A4.80 DIN7991 Hexagon Socket Countersunk Head Cap Screws Made In China.



Products name Wind Energy Fasteners A4.80 DIN7991 Hexagon Socket Countersunk Head Cap Screws
Standard: DIN,ASTM/ANSI JIS EN ISO,AS,GB
Material Carbon Steel,Alloy Steel;Stainless Steel:SS304, SS316,SS316L
Steel Grade: 8.8,10.9,12.9,Grade2,5 and 8,Class A2-70,A4-70,A4-80
Finishing Black Oxide,HDG(Hot Dip Galvanized),Zinc Plated,Dacromet
Related Products Hex Nuts,Flat Washer,and Spring Washer
Applications Nuclear power,Wind tower,Automotive industry,Railway,Electronic,Construction industry.
Stock Products DIN7991 most of size in stock.
Get Free Samples for standard fastener from Jiangyin XiangGu Hardware Products Co.,Ltd
Focus On Supplying High Quality Fasteners.



Drawing:


Hexagon socket countersunk head cap screws
DIN 7991-1986

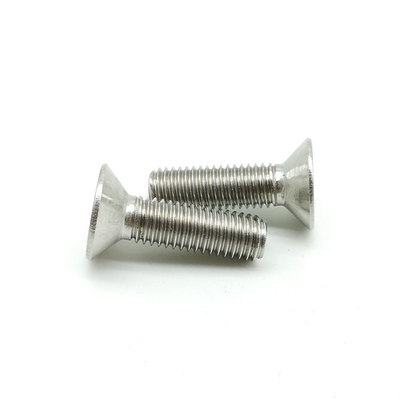

A4.80 DIN 7991 Hexagon Socket Countersunk Head Screws Hex Flat Head Cap Screw 0
d(mm) P(mm) b(mm) dk(mm) ds(mm) k(mm) s(mm) t(mm)
L≤125 125<L≤200 L>200 min max min max max min max min max
M3 0.5 12 / / 5.7 6 2.86 3 1.7 2.02 2.1 0.95 1.2
M4 0.7 14 / / 7.64 8 3.82 4 2.3 2.52 2.6 1.55 1.8
M5 0.8 16 / / 9.64 10 4.82 5 2.8 3.02 3.1 2.05 2.3
M6 1 18 24 / 11.57 12 5.82 6 3.3 4.02 4.12 2.25 2.5
M8 1.25 22 28 / 15.57 16 7.78 8 4.4 5.02 5.14 3.2 3.5
M10 1.5 26 32 45 19.48 20 9.78 10 5.5 6.02 7.175 4.1 4.4
M12 1.75 30 36 49 23.48 24 11.73 12 6.5 8.025 8.175 4.3 4.6
M14 2 34 40 53 26.48 27 13.73 14 7 10.025 10.175 4.5 4.8
M16 2 38 44 57 29.48 30 15.73 16 7.5 10.025 10.175 5 5.3
M18 2.5 42 48 61 32.38 33 17.73 18 8 12.032 12.212 5.2 5.5
M20 2.5 46 52 65 35.38 36 19.67 20 8.5 12.032 12.212 5.6 5.9
M22 2.5 50 56 69 35.38 36 21.67 22 13.1 14.032 14.212 8.44 8.8
M24 3 54 60 73 38.38 39 23.67 24 14 14.032 14.212 9.87 10.3

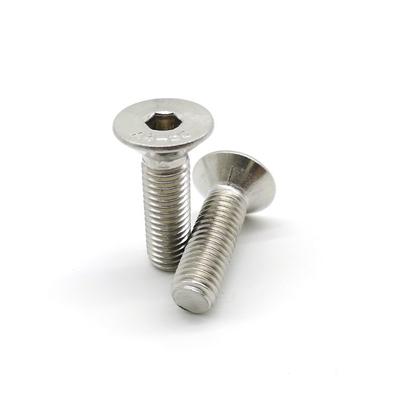

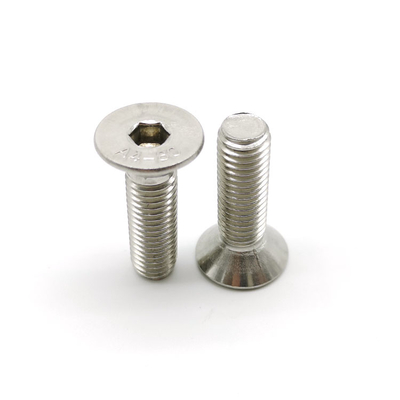

A4.80 DIN 7991 Hexagon Socket Countersunk Head Screws Hex Flat Head Cap Screw 1A4.80 DIN 7991 Hexagon Socket Countersunk Head Screws Hex Flat Head Cap Screw 2

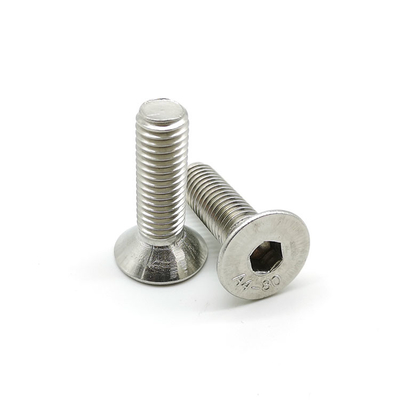

A4.80 DIN 7991 Hexagon Socket Countersunk Head Screws Hex Flat Head Cap Screw 3




FAQ

Q: Are you trading company or manufacturer ?

A: We are factory and OEM are available.

Q: How long is your delivery time?

A: Generally it is 2-5 days if the goods are in stock,or it is 15-30 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: 30% T/T in advance ,balance before shipment or L/C.
If you have another question, please feel free to contact us.
