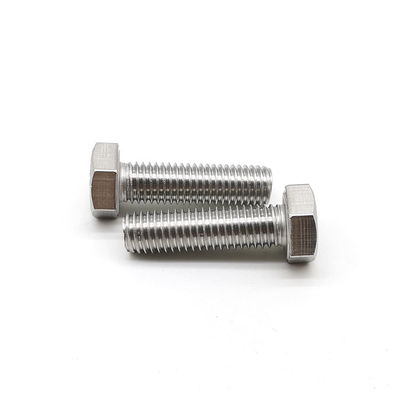

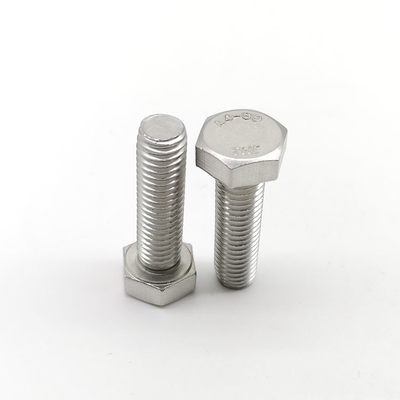

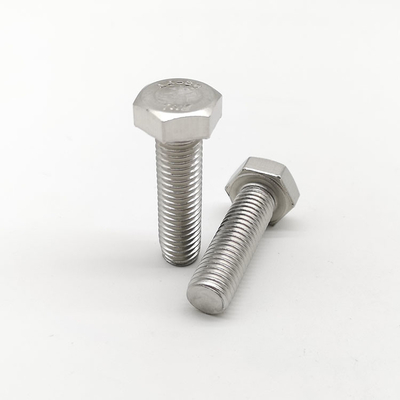

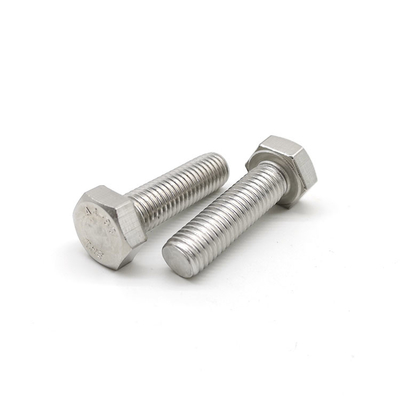

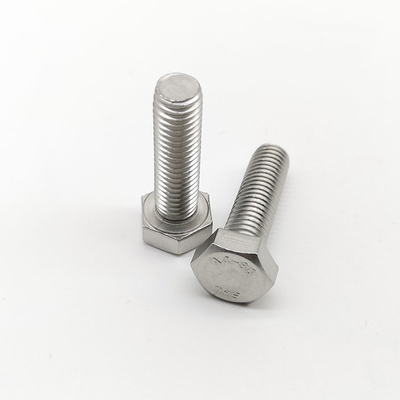

Hexagon Head Bolts Thread Up To End ISO 4017 A4 80 Stainless Steel 316
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xName | Hex Head Bolts | Standard | ISO4017 |
---|---|---|---|
Material | Stainless Steel 316 | Grade | A4-80 |
Finish | Clean And Bright | Thread | Full Thread |
System Of Measurement | Metric | Thread Tip | Coarse |
Thread Direction | Right Hand | Head Type | Hexagon |
High Light | hexagon head bolts xianggu,ISO 4017 A4 80 xianggu,hex head cap bolt Stainless Steel 316 xianggu |
Product Description:
Wind Energy Fasteners Hexagon Head Bolts Thread Up to End ISO4017 A4.80 Stainless Steel 316
Wind Energy Fasteners Hexagon Head Bolts Thread Up to End ISO4017 A4.80 Stainless Steel 316
Made In China.
This International Standard specifies the characteristics of hexagon head screws with threads from M1.6 up to M64.
As compared to stainless steel grade 304,grade 316 provides better overall corrosion resistant properties.This holds true particularly as grade 316 stainless steel has a higher resistance to both pitting as well as crevice corrosion in chloride environments.
Products name | Wind Energy Fasteners Hexagon Head Bolts Thread Up to End ISO4017 A4.80 Stainless Steel 316 |
Standard: | DIN,ASTM/ANSI JIS EN ISO,AS,GB |
Material | Carbon Steel,Alloy Steel;Stainless Steel:SS304, SS316,SS316L |
Steel Grade: 8.8,10.9,12.9,Grade2,5 and 8,Class A2-70,A4-70,A4-80 | |
Finishing | Black Oxide,HDG(Hot Dip Galvanized),Zinc Plated,Dacromet |
Related Products | Hex Nuts,Flat Washer,and Spring Washer |
Applications | Nuclear power,Wind tower,Automotive industry,Railway,Electronic,Construction industry. |
Stock Products | ISO4017 Hex bolt most of size in stock. |
Get Free Samples for standard fastener from Jiangyin XiangGu Hardware Products Co.,Ltd | |
Focus On Supplying High Quality Fasteners. |
Drawing:
Hexagon head bolts-Full thread--Product grades A and B | ||||||||
ISO4017 & GB/T5783 | ||||||||
d | P(mm) | k(mm) | s(mm) | |||||
A | B | min | max | |||||
min | max | min | max | A | B | |||
M1.6 | 0.35 | 0.975 | 1.225 | 0.9 | 1.3 | 3.02 | 2.9 | 3.2 |
M2 | 0.4 | 1.275 | 1.525 | 1.2 | 1.6 | 3.82 | 3.7 | 4 |
M2.5 | 0.45 | 1.575 | 1.825 | 1.5 | 1.9 | 4.82 | 4.7 | 5 |
M3 | 0.5 | 1.875 | 2.125 | 1.8 | 2.2 | 5.32 | 5.2 | 5.5 |
M3.5 | 0.6 | 2.275 | 2.525 | 2.2 | 2.6 | 5.82 | 5.7 | 6 |
M4 | 0.7 | 2.675 | 2.925 | 2.6 | 3 | 6.78 | 6.64 | 7 |
M5 | 0.8 | 3.35 | 3.65 | 3.26 | 3.74 | 7.78 | 7.64 | 8 |
M6 | 1 | 3.85 | 4.15 | 3.76 | 4.24 | 9.78 | 9.64 | 10 |
M8 | 1.25 | 5.15 | 5.45 | 5.06 | 5.54 | 12.73 | 12.57 | 13 |
M10 | 1.5 | 6.22 | 6.58 | 6.11 | 6.69 | 15.73 | 15.57 | 16 |
M12 | 1.75 | 7.32 | 7.68 | 7.21 | 7.79 | 17.73 | 17.57 | 18 |
M14 | 2 | 8.62 | 8.98 | 8.51 | 9.09 | 20.67 | 20.16 | 21 |
M16 | 2 | 9.82 | 10.18 | 9.71 | 10.29 | 23.67 | 23.16 | 24 |
M18 | 2.5 | 11.29 | 11.72 | 11.15 | 11.85 | 26.67 | 26.16 | 27 |
M20 | 2.5 | 12.29 | 12.72 | 12.15 | 12.85 | 29.67 | 29.16 | 30 |
M22 | 2.5 | 13.79 | 14.22 | 13.65 | 14.35 | 33.38 | 33 | 34 |
M24 | 3 | 14.79 | 15.22 | 14.65 | 15.35 | 35.38 | 35 | 36 |
M27 | 3 | / | / | 16.65 | 17.35 | / | 40 | 41 |
M30 | 3.5 | / | / | 18.28 | 19.12 | / | 45 | 46 |
M33 | 3.5 | / | / | 20.58 | 21.42 | / | 49 | 50 |
M36 | 4 | / | / | 22.08 | 22.92 | / | 53.8 | 55 |
M39 | 4 | / | / | 24.58 | 25.42 | / | 58.8 | 60 |
M42 | 4.5 | / | / | 25.58 | 26.42 | / | 63.1 | 65 |
M45 | 4.5 | / | / | 27.58 | 28.42 | / | 68.1 | 70 |
M48 | 5 | / | / | 29.58 | 30.42 | / | 73.1 | 75 |
M52 | 5 | / | / | 32.5 | 33.5 | / | 78.1 | 80 |
M56 | 5.5 | / | / | 34.5 | 35.5 | / | 82.8 | 85 |
M60 | 5.5 | / | / | 37.5 | 38.5 | / | 87.8 | 90 |
M64 | 6 | / | / | 39.5 | 40.5 | / | 92.8 | 95 |
