DIN 6916 Wind Energy Fasteners HV Connections C45 HDG Structural Steel Washers
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xName | Structural Flat Washer | Standard | DIN6916 |
---|---|---|---|
Material | C45 | Finish | Hot Dipped Galvanized |
Size | Inner Dia. From 12mm To 36mm | Measurement System | Metric |
Coating Thickness | 50-80micro | Marking | HV |
Type | Heavy Type | ||
High Light | DIN 6916 Wind Energy Fasteners xianggu,Wind Energy Fasteners HV Connections xianggu,C45 HDG structural steel washers xianggu |
Product Description:

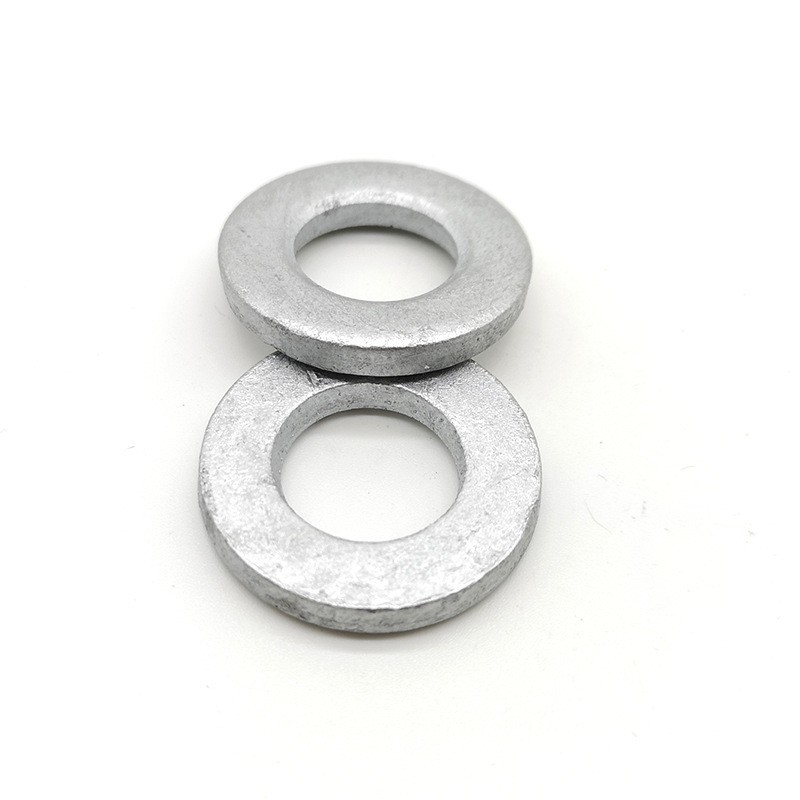

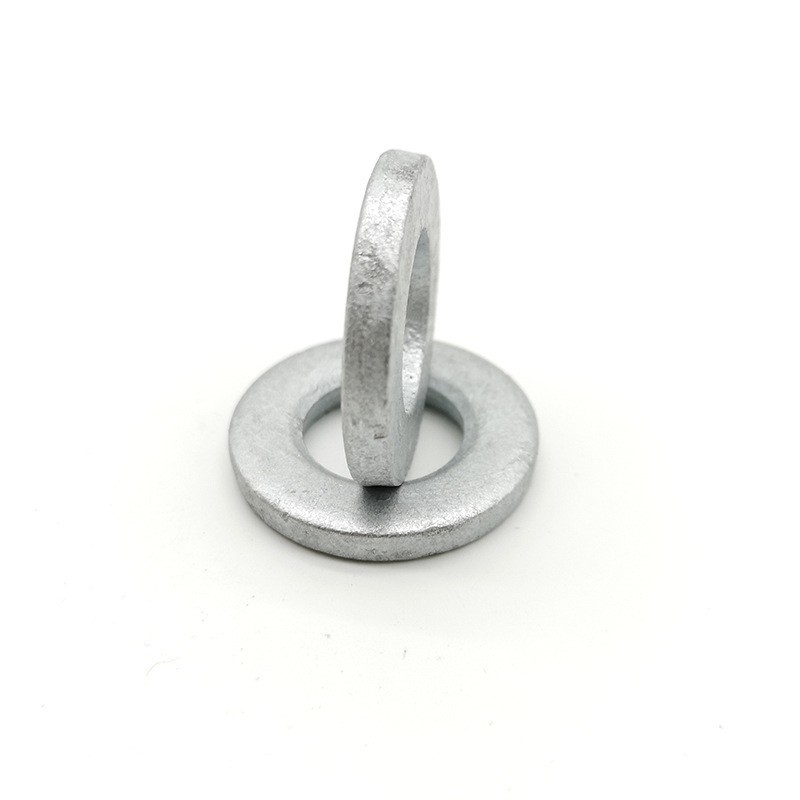

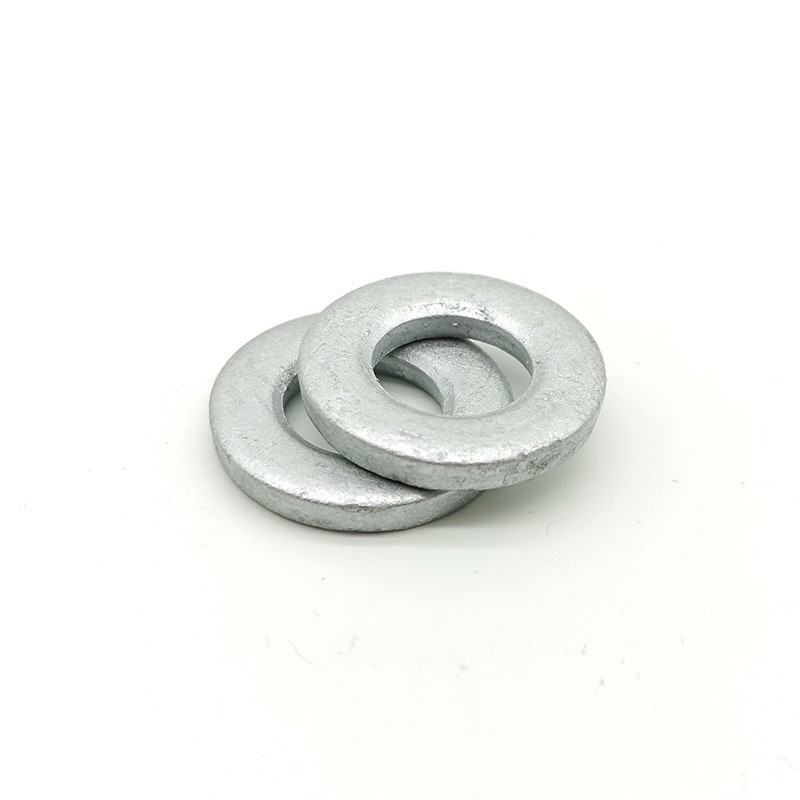

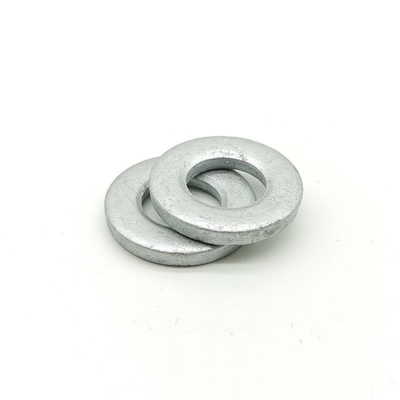

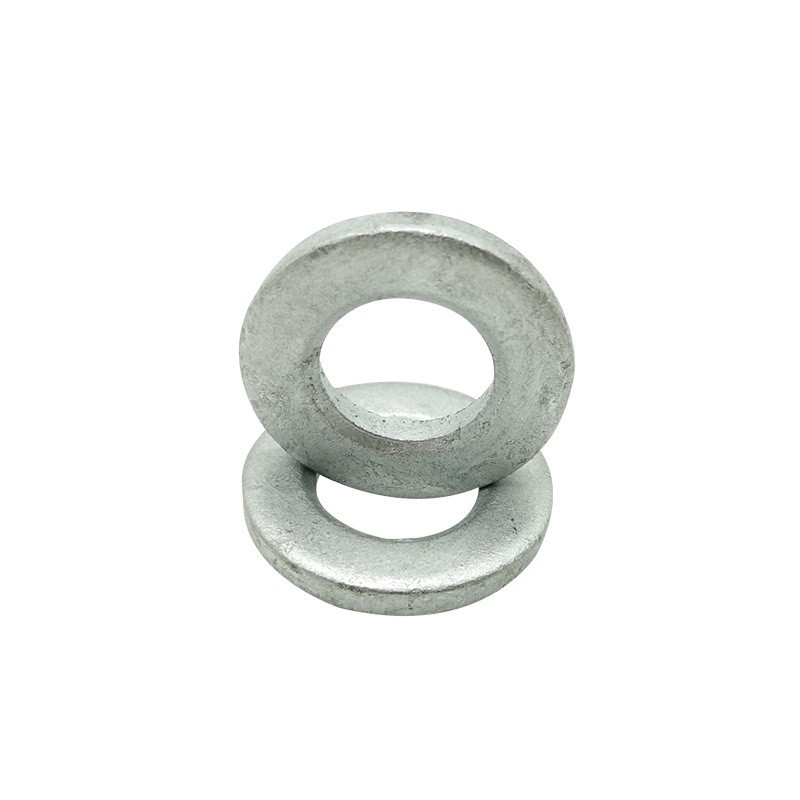

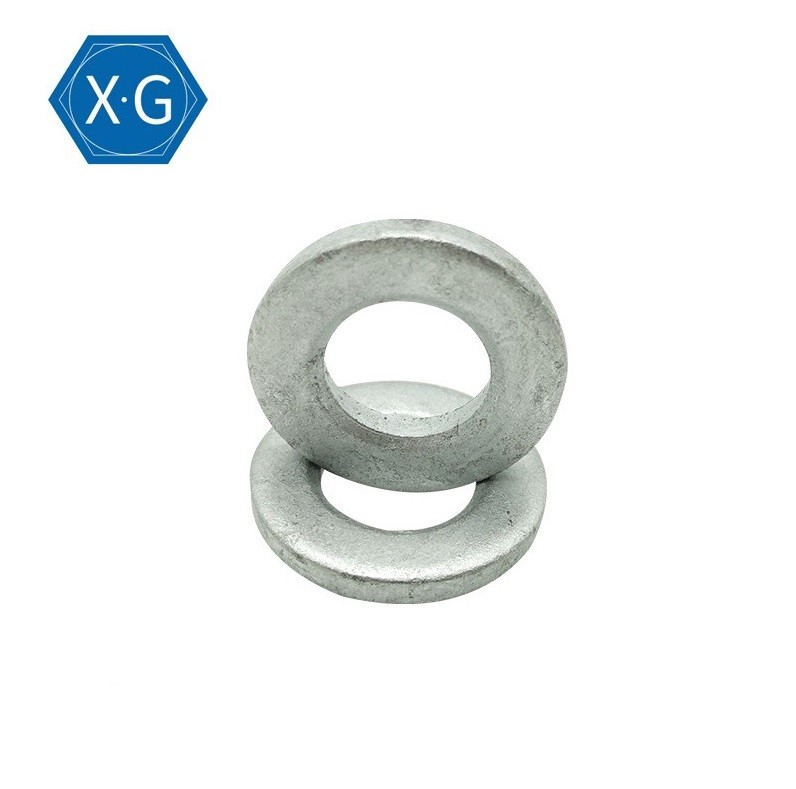

Wind Energy Fasteners DIN6916 Slices Round For HV Connections C45 Steel HDG Structural Washers
Wind Energy Fasteners DIN6916 Slices Round For HV Connections C45 Steel HDG Structural Washers Made In China.
Steel structural flat washers are thicker than standard washers and are primarily used in heavy duty construction.
These washers will often feature gripping attributes in order to prevent spinning.
Products name | Wind Energy Fasteners DIN6916 Slices Round For HV Connections C45 Steel HDG Structural Washers |
Standard: | DIN,ASTM/ANSI JIS EN ISO,AS,GB |
Material | Carbon Steel:Q235,C45,65Mn;Stainless Steel:SS304, SS316,SS316L |
Steel Grade: 100HV,200HV,300HV,350HV,450HV | |
Finishing | Black Oxide,HDG(Hot Dip Galvanized),Zinc Plated,Dacromet |
Related Products | DIN EN 14399 Hex structural bolts and heavy nuts |
Applications | Wind Energy,Construction Industry. |
Stock Products | Structural Washer in stock with Black Oxide,Zinc Plated and HDG |
Get Free Samples for standard fastener from Jiangyin XiangGu Hardware Products Co.,Ltd | |
Focus On Supplying High Quality Fasteners. |
Product Specification:
High strength plain washers | |||||||
DIN 6916 & DIN EN 14399-6 | |||||||
d | d(mm) | dc(mm) | h(mm) | ||||
min | max | min | max | Nom | min | max | |
M12 | 13 | 13.27 | 23.48 | 24 | 3 | 2.7 | 3.3 |
M14 | 15 | 15.27 | 27.48 | 28 | 3 | 2.7 | 3.3 |
M16 | 17 | 17.27 | 29.48 | 30 | 4 | 3.7 | 4.3 |
M18 | 19 | 19.33 | 33.38 | 34 | 4 | 3.7 | 4.3 |
M20 | 21 | 21.33 | 36.38 | 37 | 4 | 3.7 | 4.3 |
M22 | 23 | 23.33 | 38.38 | 39 | 4 | 3.7 | 4.3 |
M24 | 25 | 25.33 | 43.38 | 44 | 4 | 3.7 | 4.3 |
M27 | 28 | 28.52 | 49 | 50 | 5 | 4.4 | 5.6 |
M30 | 31 | 31.62 | 54.8 | 56 | 5 | 4.4 | 5.6 |
M36 | 37 | 37.62 | 64.8 | 66 | 6 | 5.4 | 6.6 |
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory and OEM are available.
Q: How long is your delivery time?
A: Generally it is 2-5 days if the goods are in stock,or it is 15-30 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: 30% T/T in advance ,balance before shipment or L/C.
If you have another question, please feel free to contact us.
