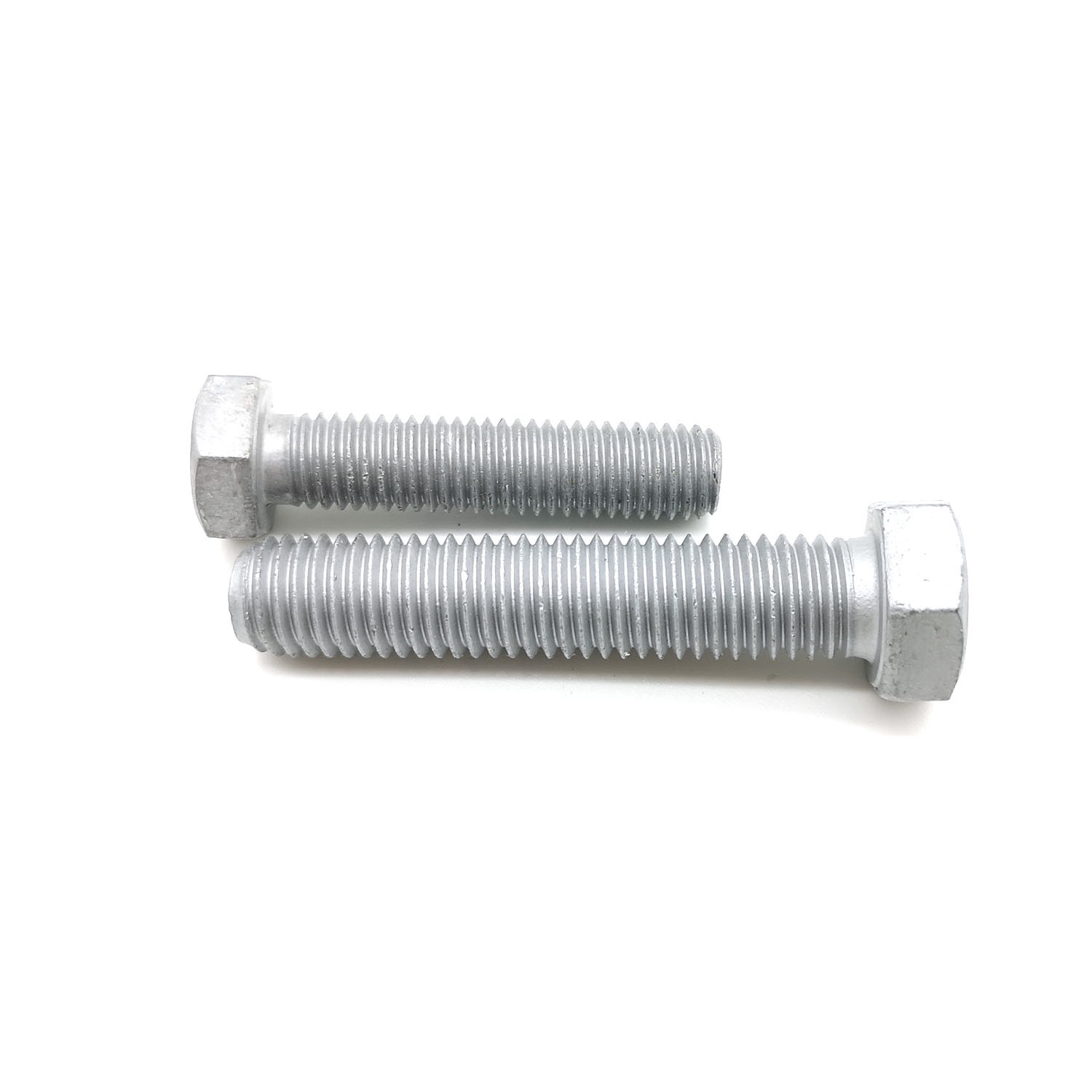

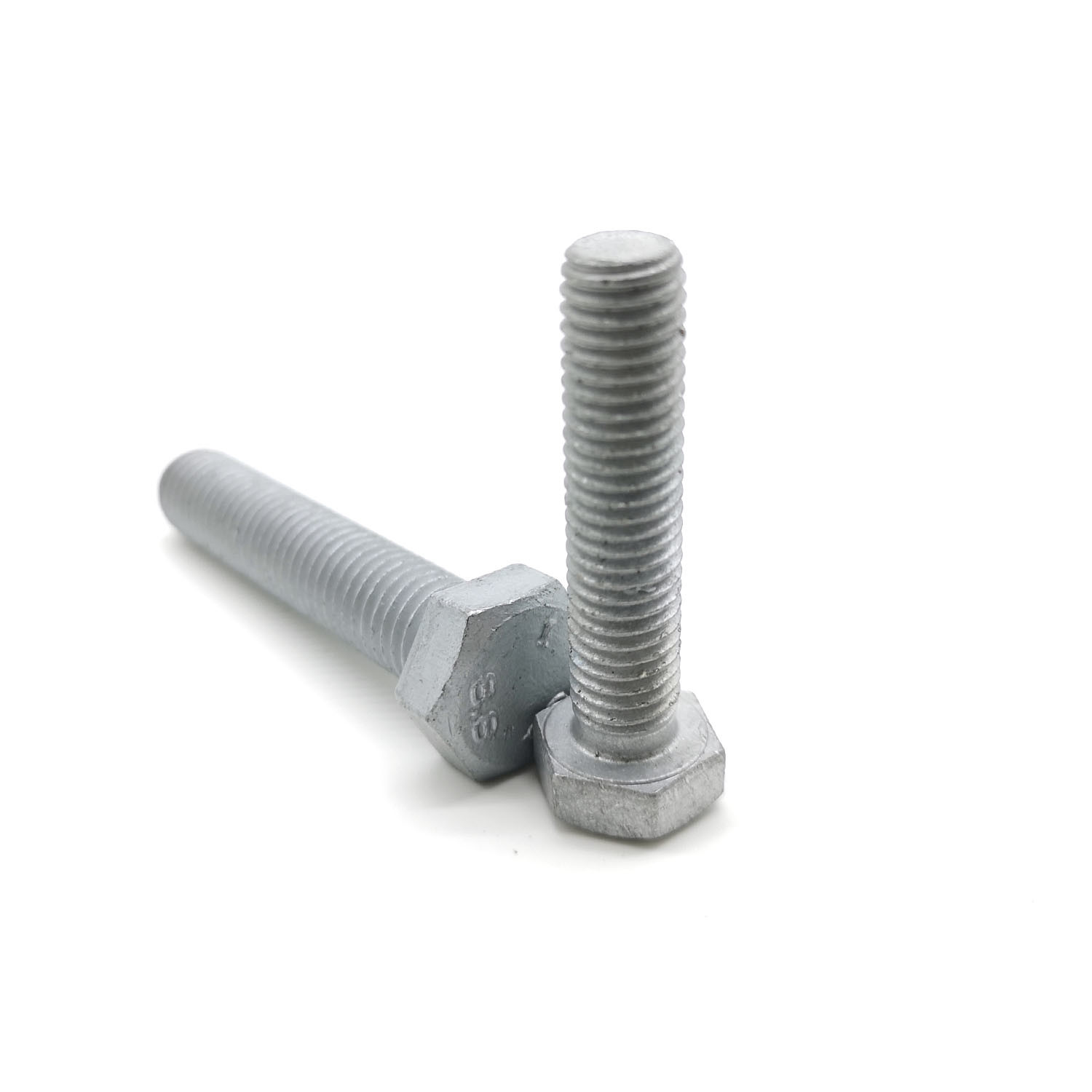

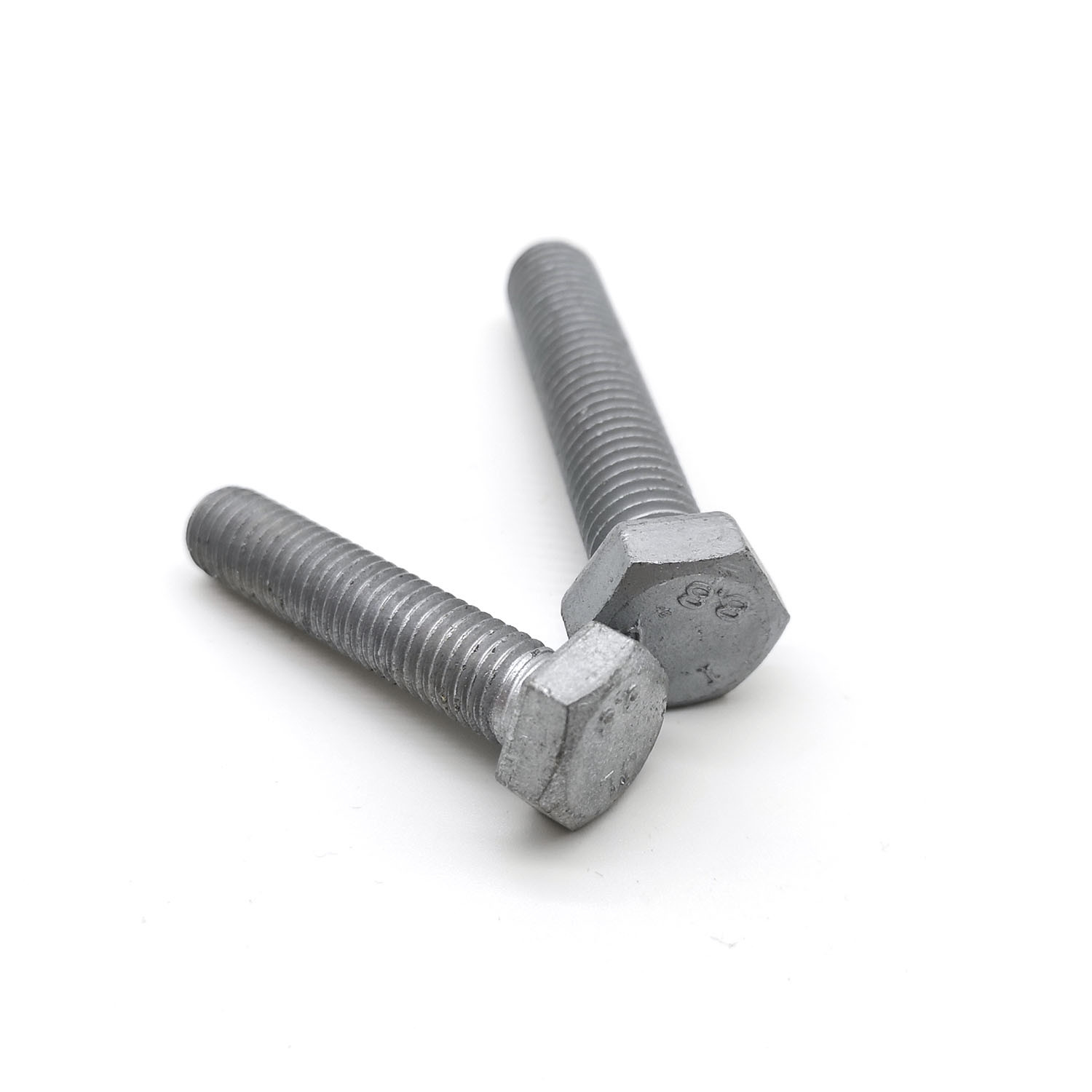

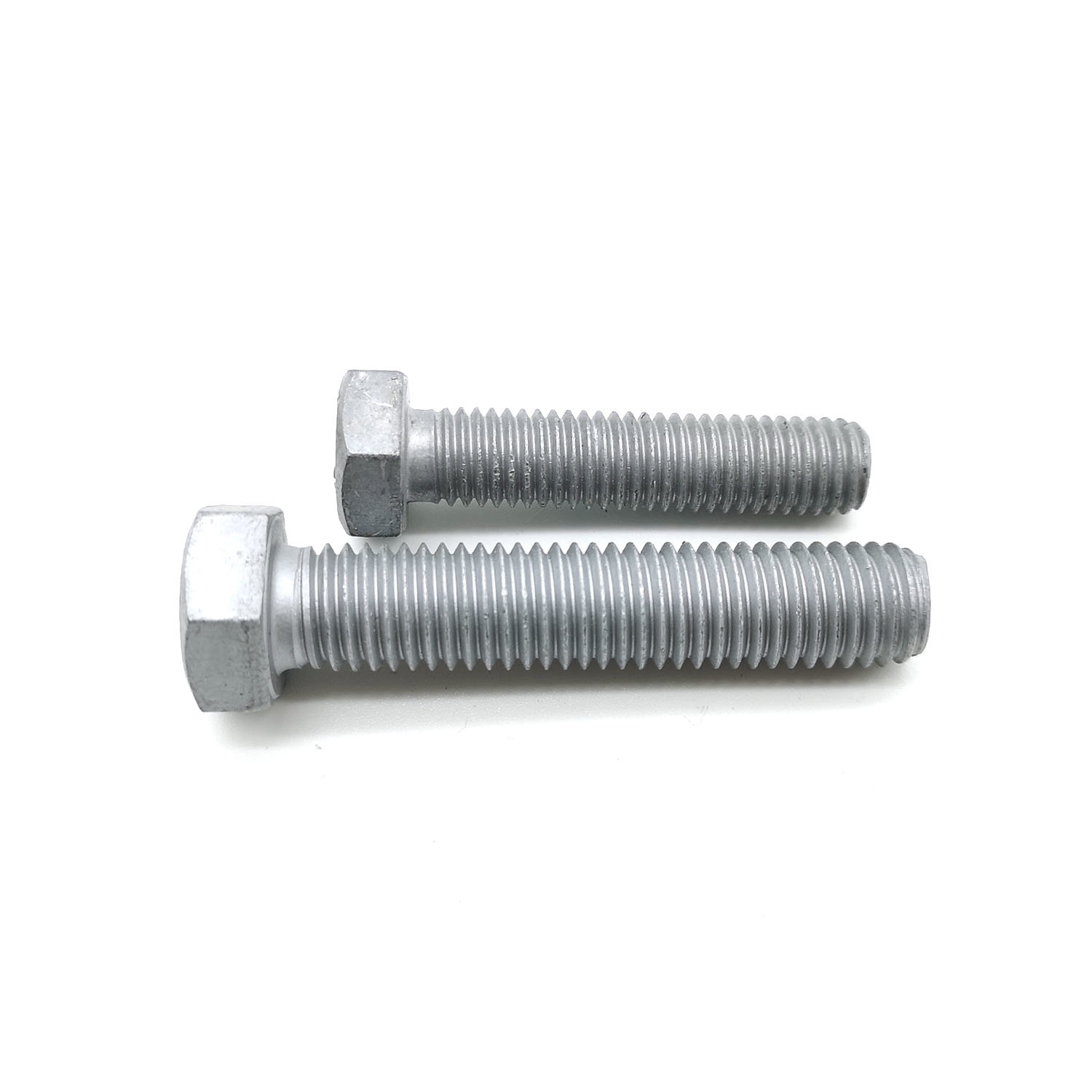

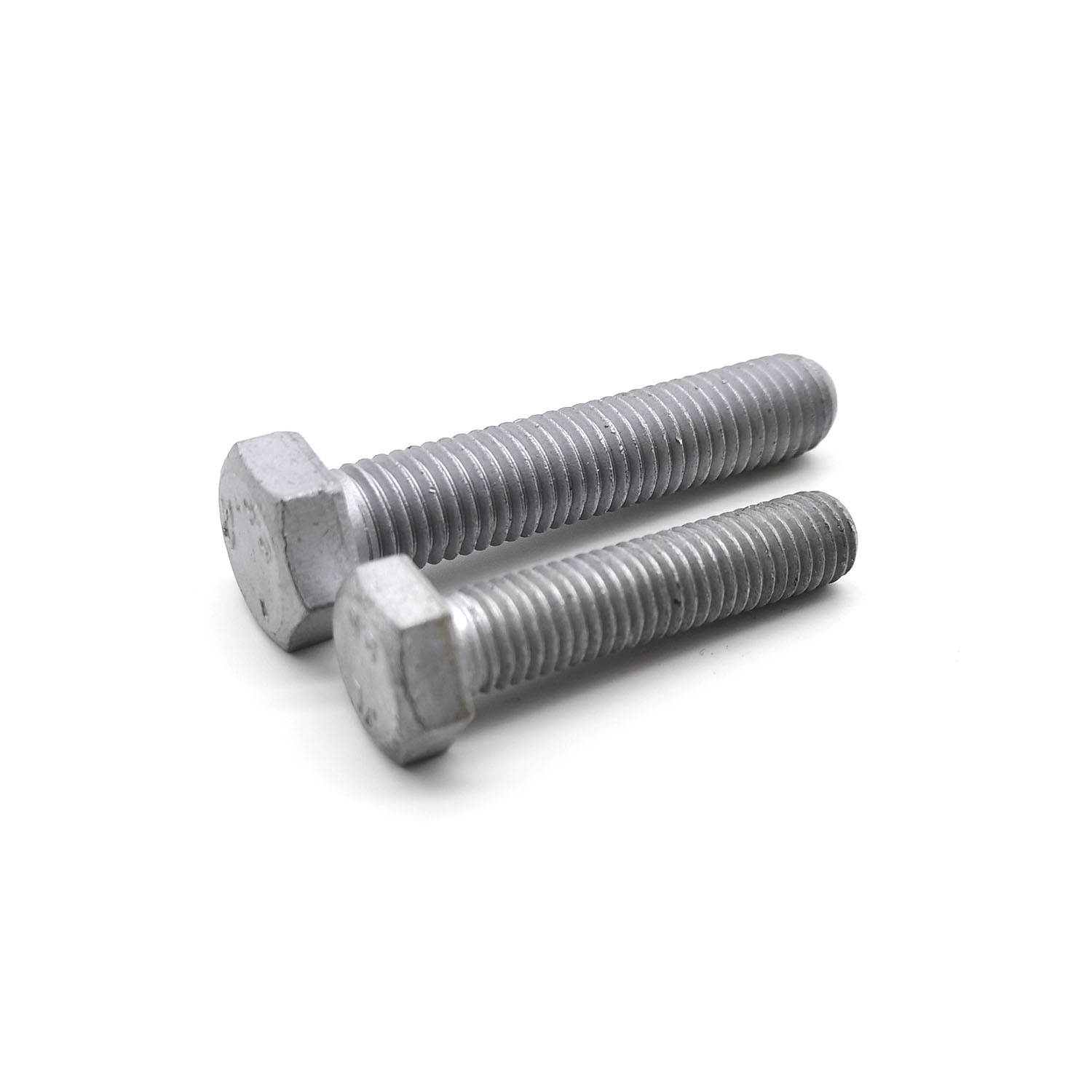

ISO 4017 Full Thread Hex Bolt Coarse Wind Energy Fasteners Dacromet

  • ISO 4017 Full Thread Hex Bolt Coarse Wind Energy Fasteners Dacromet
  • ISO 4017 Full Thread Hex Bolt Coarse Wind Energy Fasteners Dacromet
  • ISO 4017 Full Thread Hex Bolt Coarse Wind Energy Fasteners Dacromet
  • ISO 4017 Full Thread Hex Bolt Coarse Wind Energy Fasteners Dacromet
  • ISO 4017 Full Thread Hex Bolt Coarse Wind Energy Fasteners Dacromet
Place of Origin China
Brand Name XGFH
Certification ISO9001,EN10204 3.1Certificate
Model Number ISO4017
Minimum Order Quantity 10000pcs
Price 0.1-2.1usd/pc
Packaging Details 20-25KG/Carton box and then pallet.
Delivery Time 3-10 work days
Payment Terms T/T, L/C
Supply Ability 500000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Hex Head Bolts Standard ISO4017
Material Medium Carbon Steel Grade Class 8.8
Finish Dacromet Thread Full Thread
System Of Measurement Metric Thread Tip Coarse
Thread Direction Right Hand Head Type Hexagon
Finish Thickness 8-15micro
High Light

ISO 4017 Wind Energy Fasteners xianggu

,

Wind Energy Fasteners Dacromet xianggu

,

full thread hex bolt xianggu
Leave a Message
Product Description

Product Description:





Wind Energy Fasteners Hex Bolts Full Threaded ISO4017 Standard Dacromet 1000hours Spray Test

Wind Energy Fasteners Hex Bolts Full Threaded ISO4017 Standard Dacromet 1000hours Spray Test Made In China.

This International Standard specifies the characteristics of hexagon head screws with threads from M1.6 up to M64.



Products name Wind Energy Fasteners Hex Bolts Full Threaded ISO4017 Standard Dacromet 1000hours Spray Test
Standard: DIN,ASTM/ANSI JIS EN ISO,AS,GB
Material Carbon Steel,Alloy Steel;Stainless Steel:SS304, SS316,SS316L
Steel Grade: 8.8,10.9,12.9,Grade2,5 and 8,Class A2-70,A4-70,A4-80
Finishing Black Oxide,HDG(Hot Dip Galvanized),Zinc Plated,Dacromet
Related Products Hex Nuts,Flat Washer,and Spring Washer
Applications Nuclear power,Wind tower,Automotive industry,Railway,Electronic,Construction industry.
Stock Products ISO4017 Hex bolt most of size in stock.
Get Free Samples for standard fastener from Jiangyin XiangGu Hardware Products Co.,Ltd
Focus On Supplying High Quality Fasteners.





Drawing:


Hexagon head bolts-Full thread--Product grades A and B
ISO4017 & GB/T5783
ISO 4017 Full Thread Hex Bolt Coarse Wind Energy Fasteners Dacromet 0
d P(mm) k(mm) s(mm)
A B min max
min max min max A B
M1.6 0.35 0.975 1.225 0.9 1.3 3.02 2.9 3.2
M2 0.4 1.275 1.525 1.2 1.6 3.82 3.7 4
M2.5 0.45 1.575 1.825 1.5 1.9 4.82 4.7 5
M3 0.5 1.875 2.125 1.8 2.2 5.32 5.2 5.5
M3.5 0.6 2.275 2.525 2.2 2.6 5.82 5.7 6
M4 0.7 2.675 2.925 2.6 3 6.78 6.64 7
M5 0.8 3.35 3.65 3.26 3.74 7.78 7.64 8
M6 1 3.85 4.15 3.76 4.24 9.78 9.64 10
M8 1.25 5.15 5.45 5.06 5.54 12.73 12.57 13
M10 1.5 6.22 6.58 6.11 6.69 15.73 15.57 16
M12 1.75 7.32 7.68 7.21 7.79 17.73 17.57 18
M14 2 8.62 8.98 8.51 9.09 20.67 20.16 21
M16 2 9.82 10.18 9.71 10.29 23.67 23.16 24
M18 2.5 11.29 11.72 11.15 11.85 26.67 26.16 27
M20 2.5 12.29 12.72 12.15 12.85 29.67 29.16 30
M22 2.5 13.79 14.22 13.65 14.35 33.38 33 34
M24 3 14.79 15.22 14.65 15.35 35.38 35 36
M27 3 / / 16.65 17.35 / 40 41
M30 3.5 / / 18.28 19.12 / 45 46
M33 3.5 / / 20.58 21.42 / 49 50
M36 4 / / 22.08 22.92 / 53.8 55
M39 4 / / 24.58 25.42 / 58.8 60
M42 4.5 / / 25.58 26.42 / 63.1 65
M45 4.5 / / 27.58 28.42 / 68.1 70
M48 5 / / 29.58 30.42 / 73.1 75
M52 5 / / 32.5 33.5 / 78.1 80
M56 5.5 / / 34.5 35.5 / 82.8 85
M60 5.5 / / 37.5 38.5 / 87.8 90
M64 6 / / 39.5 40.5 / 92.8 95


ISO 4017 Full Thread Hex Bolt Coarse Wind Energy Fasteners Dacromet 1ISO 4017 Full Thread Hex Bolt Coarse Wind Energy Fasteners Dacromet 2

ISO 4017 Full Thread Hex Bolt Coarse Wind Energy Fasteners Dacromet 3




FAQ

Q: Are you trading company or manufacturer ?

A: We are factory and OEM are available.

Q: How long is your delivery time?

A: Generally it is 2-5 days if the goods are in stock,or it is 15-30 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: 30% T/T in advance ,balance before shipment or L/C.
If you have another question, please feel free to contact us.
