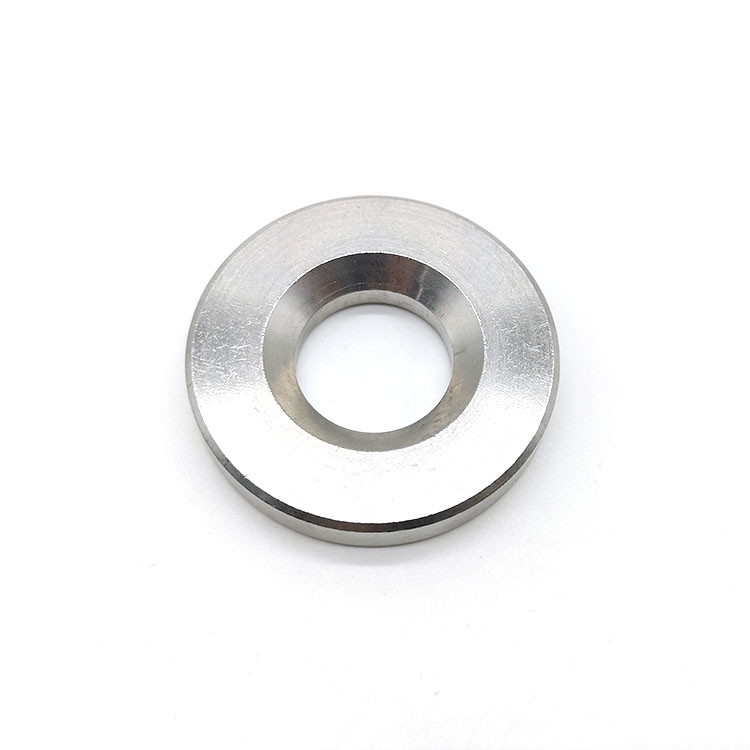

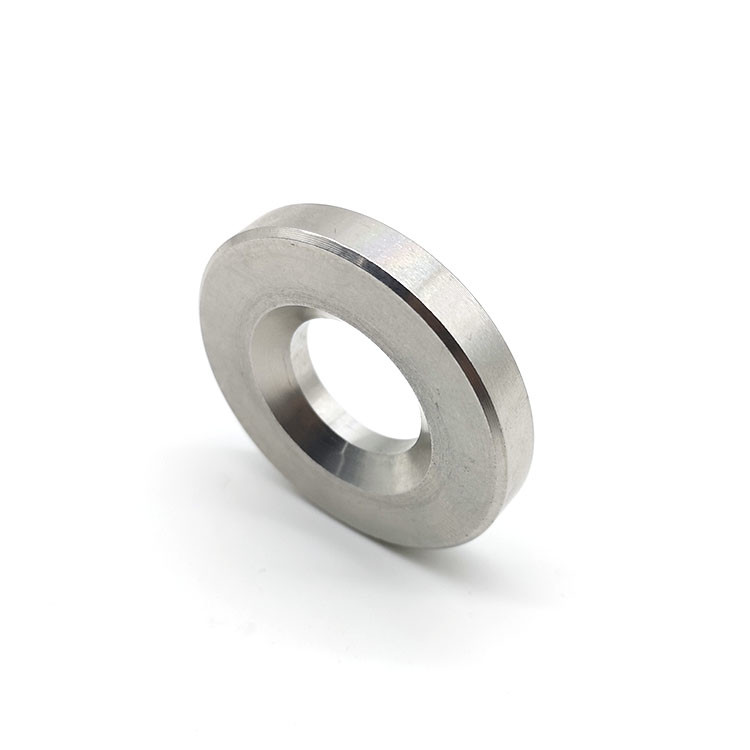

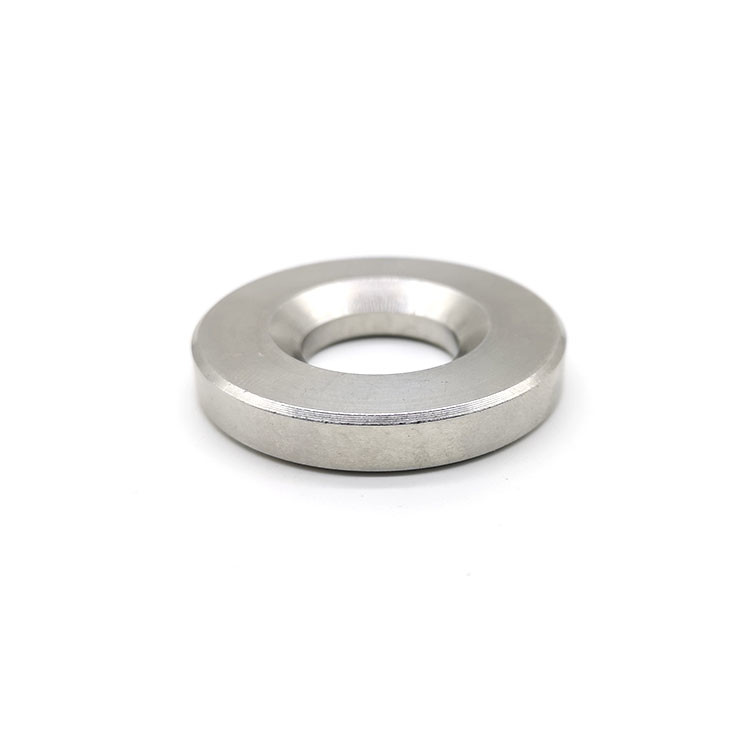

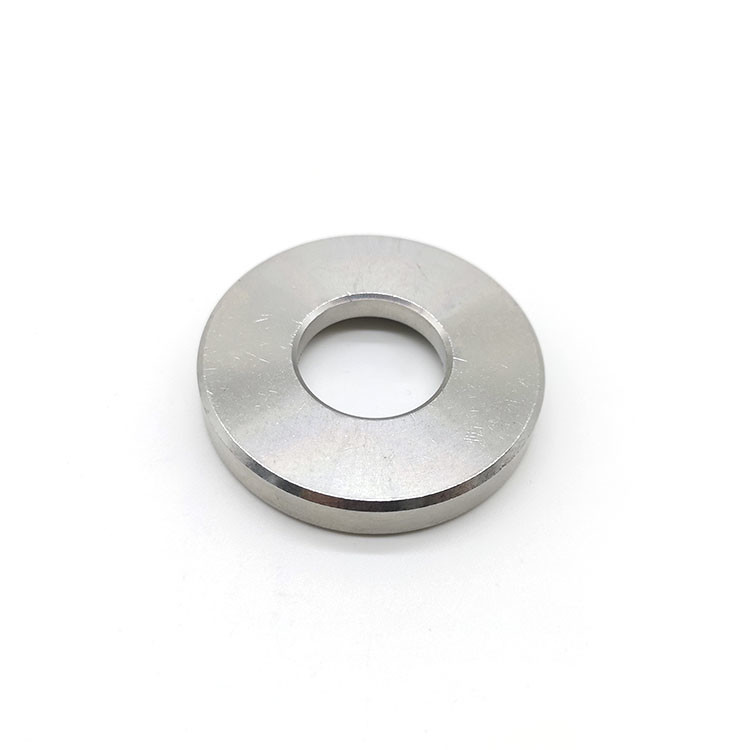

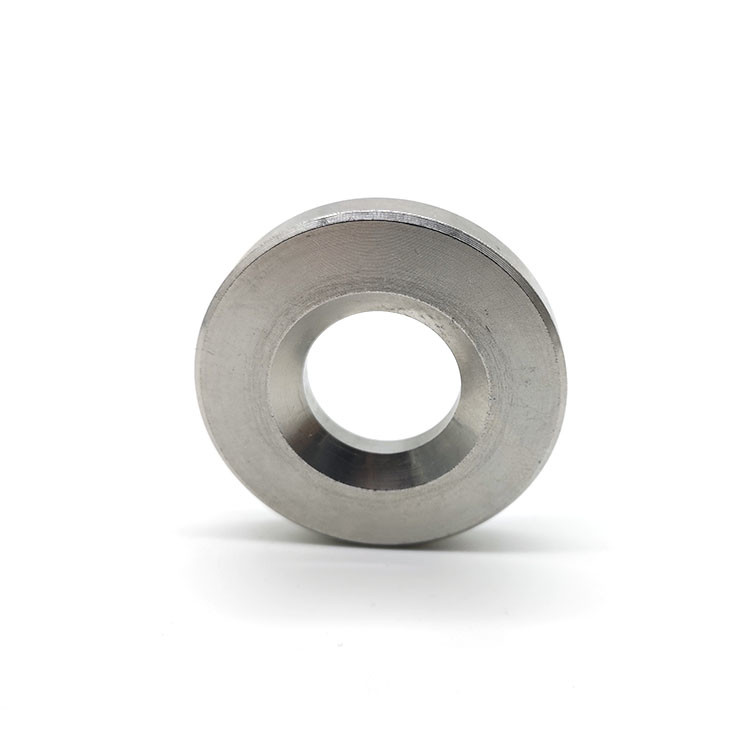

Female Dished Stainless Steel Spherical Washers A4 DIN 6319 Form D
| Place of Origin | China |
|---|---|
| Brand Name | XGFH |
| Certification | ISO9001,EN10204 3.1Certificate |
| Model Number | DIN6319D |
| Minimum Order Quantity | 10000pcs |
| Price | 0.1-2.1usd/pc |
| Packaging Details | 20-25KG/Carton box and then pallet. |
| Delivery Time | 3-10 work days |
| Payment Terms | T/T, L/C |
| Supply Ability | 500000pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Spherical Washer | Standard | DIN6319D |
|---|---|---|---|
| Material | Stainless Steel 316 | Grade | A4 |
| Finish | Clean And Bright | Thread | Non Thread |
| System Of Measurement | Metric | Type | Type D |
| Highlight | Female Dished Stainless Steel Spherical Washers xianggu,Stainless Steel Spherical Washers A4 xianggu,dIN 6319 form d xianggu |
||
Product Description
Product Description:
Stainless Steel A4 Wind Energy Fasteners DIN6319 Type D Female Dished Spherical Washers
Stainless Steel A4 Wind Energy Fasteners DIN6319 Type D Female Dished Spherical Washers Made In China.
Type G dished washers with enlarged outer diameter are mainly used on elongated holes.
When utilizing DIN6330 type B fixture nuts with spherical end,use either the type D or Type G spherical dished washers.The type C spherical seat washer is not required.
Specification:
Type C/D
Steel
Case-hardened all round depth 0.2 to 0.4mm
Hardness (550+100) HV 10
Type G
Heat treated steel
Tempered
Hardness (350+80) HV 30
| Products name | Stainless Steel A4 Wind Energy Fasteners DIN6319 Type D Female Dished Spherical Washers |
| Standard: | DIN,ASTM/ANSI JIS EN ISO,AS,GB |
| Material | Carbon Steel:Q235,#45,65Mn;Stainless Steel:SS304, SS316,SS316L |
| Steel Grade: 100HV,200HV,300HV,350HV,450HV | |
| Finishing | Black Oxide,HDG(Hot Dip Galvanized),Zinc Plated,Dacromet |
| Related Products | Bolts and Nuts |
| Applications | Spherical washers DIN6319 are used for clamping on non-parallel surfaces. |
| Stock Products | DIN6319 Washer do not stock,Lead time is 10-20days. |
| Get Free Samples for standard fastener from Jiangyin XiangGu Hardware Products Co.,Ltd | |
| Focus On Supplying High Quality Fasteners. | |

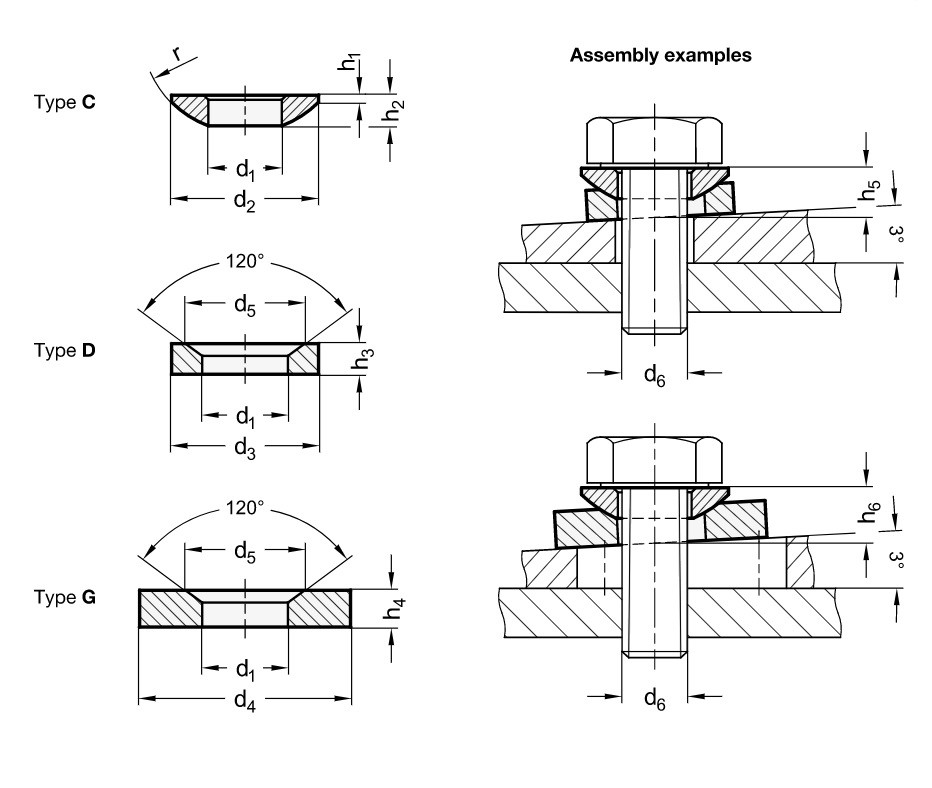

Drawing:
| Spherical Washers, Conical Seats - Type D | |||||
| DIN 6319(D) | |||||
 | |||||
| d | d(mm) | dc(mm) | d1(mm) | h(mm) | |
| min | max | ||||
| M6 | 7.1 | 7.32 | 12 | 11 | 2.8 |
| M8 | 9.6 | 9.82 | 17 | 14.5 | 3.5 |
| M10 | 12 | 12.27 | 21 | 18.5 | 4.2 |
| M12 | 14.2 | 14.47 | 24 | 20 | 5 |
| M14 | 16.5 | 16.77 | 28 | 24.8 | 5.6 |
| M16 | 19 | 19.33 | 30 | 26 | 6.2 |
| M20 | 23.2 | 23.53 | 36 | 31 | 7.5 |
| M24 | 28 | 28.33 | 44 | 37 | 9.5 |
| M30 | 35 | 35.39 | 56 | 49 | 12 |
| M36 | 42 | 42.39 | 68 | 60 | 15 |
| M42 | 49 | 49.39 | 78 | 70 | 18 |
| M48 | 56 | 56.46 | 92 | 82 | 22 |
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory and OEM are available.
Q: How long is your delivery time?
A: Generally it is 2-5 days if the goods are in stock,or it is 15-30 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: 30% T/T in advance ,balance before shipment or L/C.
If you have another question, please feel free to contact us.
