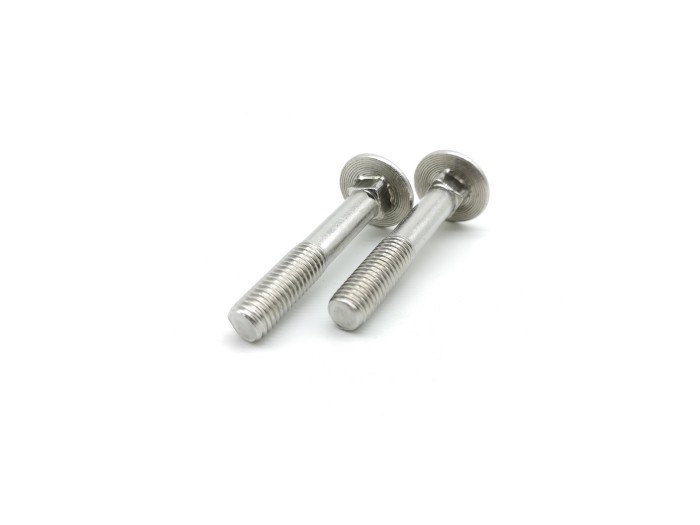

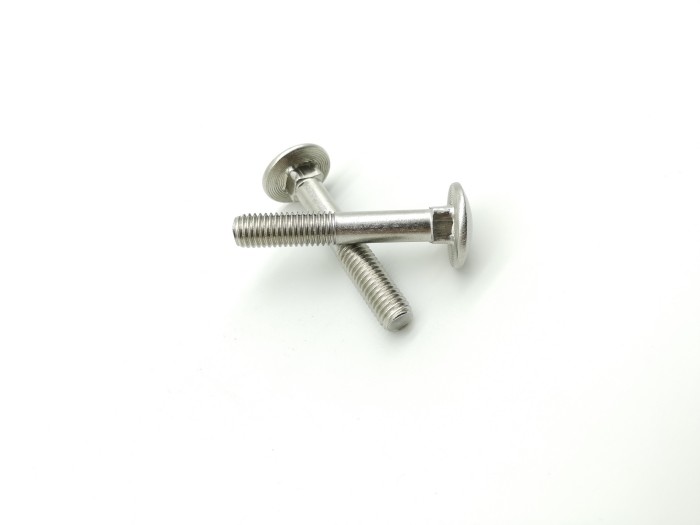

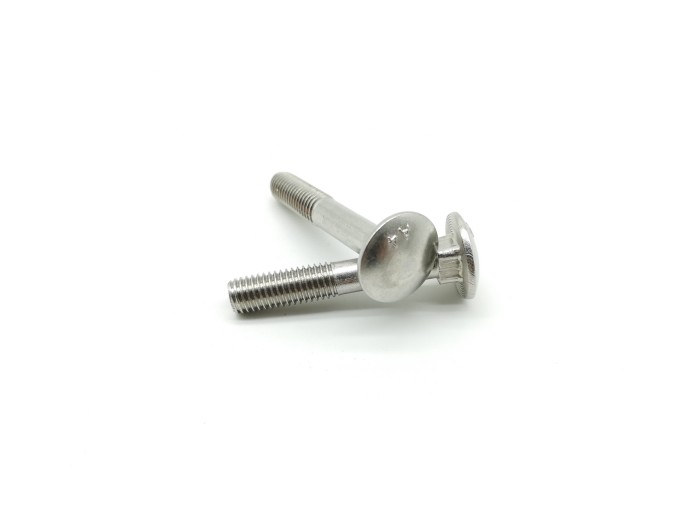

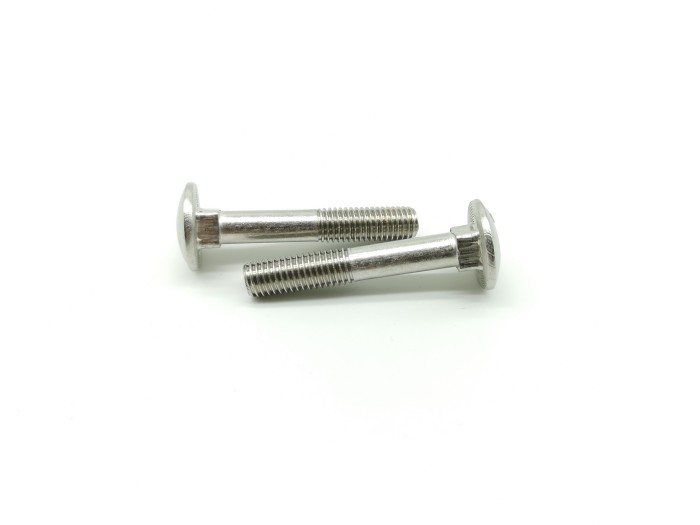

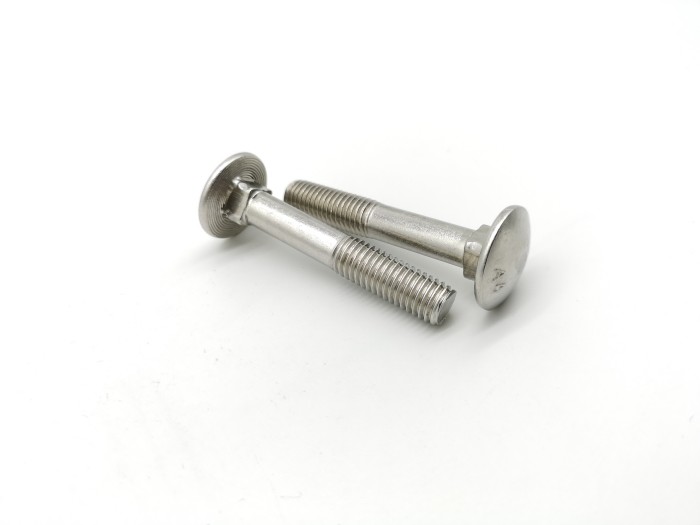

DIN 603 SS 316 A4.70 Carriage Mushroom Head Square Neck Bolts

  • DIN 603 SS 316 A4.70 Carriage Mushroom Head Square Neck Bolts
  • DIN 603 SS 316 A4.70 Carriage Mushroom Head Square Neck Bolts
  • DIN 603 SS 316 A4.70 Carriage Mushroom Head Square Neck Bolts
  • DIN 603 SS 316 A4.70 Carriage Mushroom Head Square Neck Bolts
  • DIN 603 SS 316 A4.70 Carriage Mushroom Head Square Neck Bolts
Place of Origin China
Brand Name XGFH
Certification ISO9001,EN10204 3.1Certificate
Model Number DIN603
Minimum Order Quantity 10000pcs
Price 0.1-2.1usd/pc
Packaging Details 20-25KG/Carton box and then pallet.
Delivery Time 3-10 work days
Payment Terms T/T, L/C
Supply Ability 500000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Carriage Bolts Standard DIN603
Material Stainless Steel 316 Grade A4-70
Finish Clean And Bright Thread Full Thread And Half Thread
System Of Measurement Metric Thread Tip Coarse
Thread Direction Right Hand Head Type Mushroom Head
Thread Fit 6g
High Light

mushroom head square neck bolts xianggu

,

A4.70 mushroom head square neck bolts xianggu

,

SS316 mushroom head carriage bolt xianggu
Leave a Message
Product Description

Product Description:





Wind Energy Fasteners DIN603 SS316 A4.70 Mushroom Head Square Neck Carriage Bolt



Wind Energy Fasteners DIN603 SS316 A4.70 Mushroom Head Square Neck Carriage Bolt Made In China.

More corrosion resistant than 18-8 stainless steel bolts, these 316 stainless steel bolts have excellent resistance to chemicals and salt water and are a good choice for ACQ-treated (arsenic-free) lumber. They may be mildly magnetic. A square neck keeps them from turning when tightening a nut. A smooth, rounded head provides a finished look. Dimensions meet ASME B18.5 or DIN 603 specifications.

Length is measured from under the head.



Products name Wind Energy Fasteners DIN603 SS316 A4.70 Mushroom Head Square Neck Carriage Bolt
Standard: DIN,ASTM/ANSI JIS EN ISO,AS,GB
Material Carbon Steel,Alloy Steel;Stainless Steel:SS304, SS316,SS316L
Steel Grade: 8.8,10.9,12.9,Grade2,5 and 8,Class A2-70,A4-70,A4-80
Finishing Black Oxide,HDG(Hot Dip Galvanized),Zinc Plated,Dacromet
Related Products Hex Nuts,Flat Washer,and Spring Washer
Applications Nuclear power,Wind tower,Automotive industry,Railway,Electronic,Construction industry.
Stock Products DIN603 Carriage Bolt most of size in stock.
Get Free Samples for standard fastener from Jiangyin XiangGu Hardware Products Co.,Ltd
Focus On Supplying High Quality Fasteners.





Drawing:


Mushroom head square neck bolts
DIN603-2010
DIN 603 SS 316 A4.70 Carriage Mushroom Head Square Neck Bolts 0
d(mm) M5 M6 M8 M10 M12 M16 M20
P(mm) 0.8 1 1.25 1.5 1.75 2 2.5
b(mm) L≤125 16 18 22 26 30 38 46
125<L≤200 22 24 28 32 36 44 52
L>200 / / 41 45 49 57 65
dk(mm) min 12.45 15.45 19.35 23.35 29.35 37.2 45.2
max 13.55 16.55 20.65 24.65 30.65 38.8 46.8
ds(mm) min 4.52 5.52 7.42 9.42 11.3 15.3 19.16
max 5 6 8 10 12 16 20
k(mm) min 2.7 3.12 4.12 4.62 6.05 8.05 9.95
max 3.3 3.88 4.88 5.38 6.95 8.95 11.05
s(mm) min 4.52 5.52 7.42 9.42 11.3 15.3 19.16
max 5.48 6.48 8.58 10.58 12.7 16.7 20.84
k1(mm) min 2.9 3.4 4.4 5.4 7.25 11.1 14.1
max 4.1 4.6 5.6 6.6 8.75 12.9 15.9





DIN 603 SS 316 A4.70 Carriage Mushroom Head Square Neck Bolts 1DIN 603 SS 316 A4.70 Carriage Mushroom Head Square Neck Bolts 2

DIN 603 SS 316 A4.70 Carriage Mushroom Head Square Neck Bolts 3




FAQ

Q: Are you trading company or manufacturer ?

A: We are factory and OEM are available.

Q: How long is your delivery time?

A: Generally it is 2-5 days if the goods are in stock,or it is 15-30 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: 30% T/T in advance ,balance before shipment or L/C.
If you have another question, please feel free to contact us.
