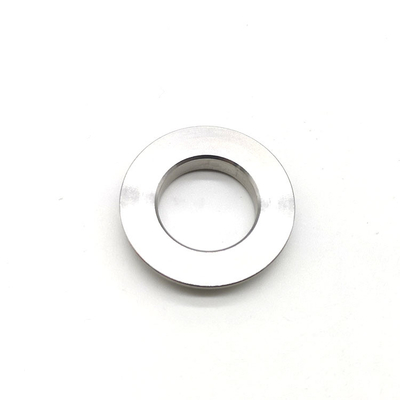

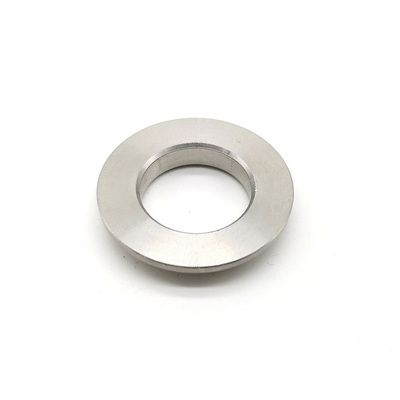

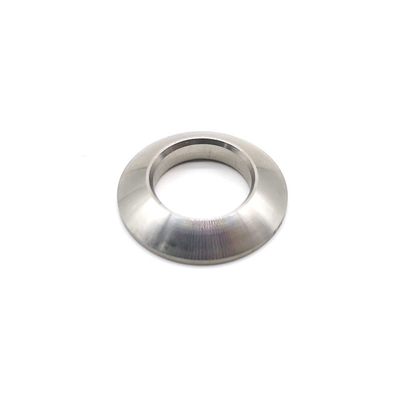

Stainless Steel A4 Din 6319 Spherical Washer Type C Spherical Seat Washers

  • Stainless Steel A4 Din 6319 Spherical Washer Type C Spherical Seat Washers
  • Stainless Steel A4 Din 6319 Spherical Washer Type C Spherical Seat Washers
  • Stainless Steel A4 Din 6319 Spherical Washer Type C Spherical Seat Washers
  • Stainless Steel A4 Din 6319 Spherical Washer Type C Spherical Seat Washers
  • Stainless Steel A4 Din 6319 Spherical Washer Type C Spherical Seat Washers
  • Stainless Steel A4 Din 6319 Spherical Washer Type C Spherical Seat Washers
Place of Origin China
Brand Name XGFH
Certification ISO9001,EN10204 3.1Certificate
Model Number DIN6319C
Minimum Order Quantity 10000pcs
Price 0.1-2.1usd/pc
Packaging Details 20-25KG/Carton box and then pallet.
Delivery Time 3-10 work days
Payment Terms T/T, L/C
Supply Ability 500000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Spherical Seat Washer Standard DIN6319
Material Stainless Steel 316 Grade A4
Finish Clean And Bright Thread Non Thread
System Of Measurement Metric Type Type C
High Light

A4 Din 6319 Spherical Washer xianggu

,

Stainless Steel Din 6319 Spherical Washer xianggu

,

Type C Spherical Seat Washers xianggu
Leave a Message
Product Description

Product Description:





Wind Energy Fasteners Stainless Steel A4 DIN6319 Type C Spherical Seat Washers



Wind Energy Fasteners Stainless Steel A4 DIN6319 Type C Spherical Seat Washers Made In China.

Type G dished washers with enlarged outer diameter are mainly used on elongated holes.

When utilizing DIN6330 type B fixture nuts with spherical end,use either the type D or Type G spherical dished washers.The type C spherical seat washer is not required.



Specification:

Type C/D

Steel

Case-hardened all round depth 0.2 to 0.4mm

Hardness (550+100) HV 10

Type G

Heat treated steel

Tempered

Hardness (350+80) HV 30



Products name Wind Energy Fasteners Stainless Steel A4 DIN6319 Type C Spherical Seat Washers
Standard: DIN,ASTM/ANSI JIS EN ISO,AS,GB
Material Carbon Steel:Q235,#45,65Mn;Stainless Steel:SS304, SS316,SS316L
Steel Grade: 100HV,200HV,300HV,350HV,450HV
Finishing Black Oxide,HDG(Hot Dip Galvanized),Zinc Plated,Dacromet
Related Products Bolts and Nuts
Applications Spherical washers DIN6319 are used for clamping on non-parallel surfaces.
Stock Products DIN6319 Washer do not stock,Lead time is 10-20days.
Get Free Samples for standard fastener from Jiangyin XiangGu Hardware Products Co.,Ltd
Focus On Supplying High Quality Fasteners.

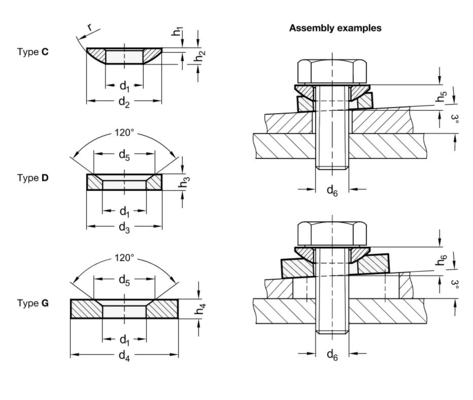

Drawing:


Spherical Washers, Conical Seats - Type C
DIN 6319(c)
Stainless Steel A4 Din 6319 Spherical Washer Type C Spherical Seat Washers 0
d d(mm) dc(mm) h(mm)
min max
M6 6.4 6.62 12 2.3
M8 8.4 8.62 17 3.2
M10 10.15 10.77 21 4
M12 13 13.27 24 4.6
M14 15 15.27 28 5
M16 17 17.27 30 5.3
M20 21 21.33 36 6.3
M24 25 25.33 44 8.2
M30 31 31.39 56 11.2
M36 37 37.39 68 14
M42 43 43.39 78 17
M48 50 50.39 92 21

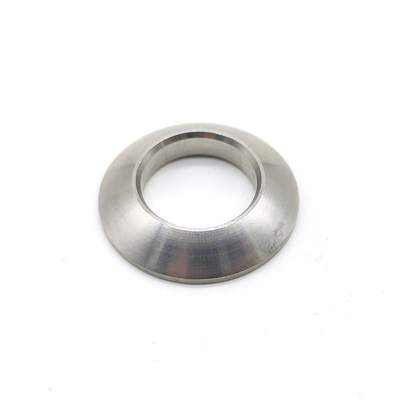

Stainless Steel A4 Din 6319 Spherical Washer Type C Spherical Seat Washers 1Stainless Steel A4 Din 6319 Spherical Washer Type C Spherical Seat Washers 2

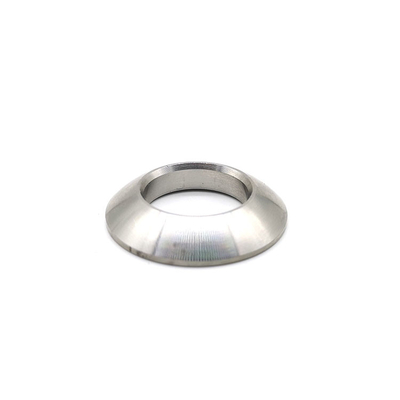

Stainless Steel A4 Din 6319 Spherical Washer Type C Spherical Seat Washers 3




FAQ

Q: Are you trading company or manufacturer ?

A: We are factory and OEM are available.

Q: How long is your delivery time?

A: Generally it is 2-5 days if the goods are in stock,or it is 15-30 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: 30% T/T in advance ,balance before shipment or L/C.
If you have another question, please feel free to contact us.
