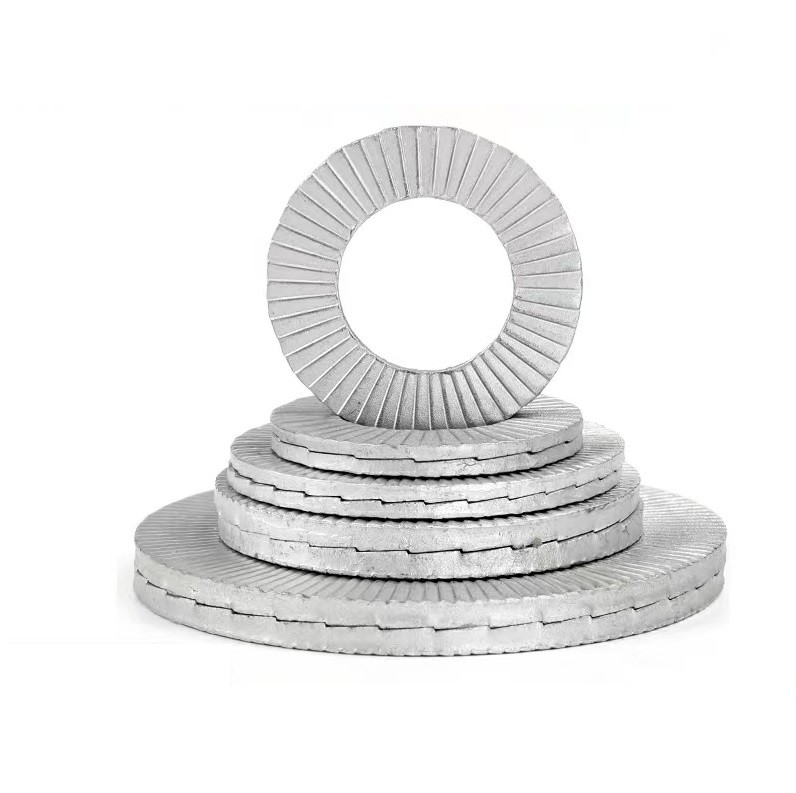

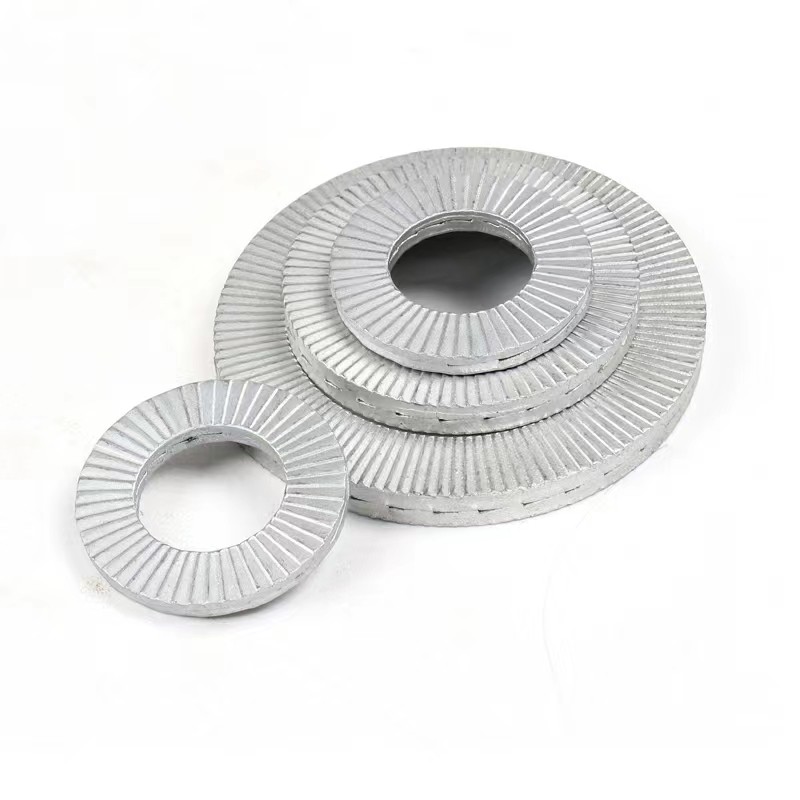

Dacromet Din 25201 Double Fold Self Wedge Washers For Wind Energy

  • Dacromet Din 25201 Double Fold Self Wedge Washers For Wind Energy
  • Dacromet Din 25201 Double Fold Self Wedge Washers For Wind Energy
  • Dacromet Din 25201 Double Fold Self Wedge Washers For Wind Energy
  • Dacromet Din 25201 Double Fold Self Wedge Washers For Wind Energy
  • Dacromet Din 25201 Double Fold Self Wedge Washers For Wind Energy
Place of Origin China
Brand Name XGFH
Certification ISO9001,EN10204 3.1Certificate
Model Number DIN25201
Minimum Order Quantity 10000pcs
Price 0.01-0.2usd/pc
Packaging Details 20-25KG/Carton box and then pallet.
Delivery Time 3-10 work days
Payment Terms T/T, L/C
Supply Ability 500000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Wedge Washer Standard DIN2201
Material 65Mn Grade 520HV
Finish Dacromet Thread Coarse
System Of Measurement Metric Type Double
Highlight

Din 25201 xianggu

,

din 25201 xianggu

,

Double Fold Self wedge lock washers xianggu
Leave a Message
Product Description

Product Description:





DIN25201 Finish Dacromet  Double Fold Self Wedge  Washers



DIN25201 Finish Dacromet  Double Fold Self Wedge  Washers Made In China.

 Washers have a high corrosion resistance and can be reused up to 5 times.

They are available in thread sized from M3 to M42 and diameters from 7mm to 63mm and they meet the DIN25201 standard.



Advantages:

Resist loosening caused by vibration or movement;

Ease of assembly and disassembly;

 function is not lost by lubrication;

Positive  at low and high preload levels;

Same temperature characteristics as standard bolt or nut;

Reusable up to 5 times.



Products name DIN25201 Finish Dacromet  Double Fold Self Wedge Washers
Standard: DIN,ASTM/ANSI JIS EN ISO,AS,GB
Material Carbon Steel:Q235,#45,65Mn;Stainless Steel:SS304, SS316,SS316L
Steel Grade: 100HV,200HV,300HV,350HV,450HV
Finishing Black Oxide,HDG(Hot Dip Galvanized),Zinc Plated,Dacromet
Related Products Bolts and Nuts
Applications

These l washers ensure that bolts and screws subjected to transverse loads,chattering or vibrations do not work loose.A joint is also secure at low levels of tension.If the bolt or nut tends to loosen independently in bolted joints under dynamic stress,the bolt or nut carries its positive washer with it,the sloped surfaces of which run directly up against the angled surfaces of the counter washer.

In the other words,the more a bolted joint tries to loosen itself,the more securely the wedge action of the washer  the attempt.

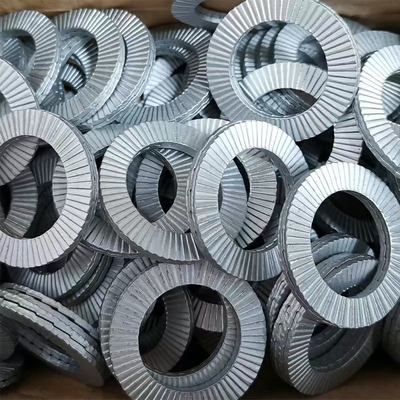

Stock Products  Washer in stock with Black Oxide,Zinc Plated and HDG
Get Free Samples for standard fastener from Jiangyin XiangGu Hardware Products Co.,Ltd
Focus On Supplying High Quality Fasteners.



Drawing:


Double fold self washer
DIN 25201
Dacromet Din 25201 Double Fold Self Wedge Washers For Wind Energy 0
d 螺栓规格 d(mm) dc(mm) h(mm)
米制 英制 min max Nom min max Nom min max
3 M3 #5 3.3 3.5 7 6.8 7.2 1.8 1.55 2.05
3.5 M3.5 #6 3.8 4 7.6 7.4 7.8 1.8 1.55 2.05
3.5 M3.5 #6 3.8 4 9 8.8 9.2 1.8 1.55 2.05
4 M4 #8 4.3 4.5 7.6 7.4 7.8 1.8 1.55 2.05
4 M4 #8 4.3 4.5 9 8.8 9.2 1.8 1.55 2.05
5 M5 #10 5.3 5.5 9 8.8 9.2 1.8 1.55 2.05
5 M5 #10 5.3 5.5 10.8 10.6 11 1.8 1.55 2.05
6 M6 / 6.4 6.6 10.8 10.6 11 1.8 1.55 2.05
6 M6 / 6.4 6.6 13.5 13.3 13.7 2.5 2.25 2.75
1/4 / 1/4 7.1 7.3 11.5 11.3 11.7 2.5 2.25 2.75
1/4 / 1/4 7.1 7.3 13.5 13.3 13.7 2.5 2.25 2.75
8 M8 5/16 8.6 8.8 13.5 13.3 13.7 2.5 2.25 2.75
8 M8 5/16 8.6 8.8 16.6 16.4 16.8 2.5 2.25 2.75
3/8 / 3/8 10.1 10.5 16.6 16.4 16.8 2.5 2.25 2.75
3/8 / 3/8 10.1 10.5 21.2 20.8 21.2 2.5 2.25 2.75
10 M10 / 10.5 10.9 16.6 16.4 16.8 2.5 2.25 2.75
10 M10 / 10.5 10.9 21 20.8 21.2 2.5 2.25 2.75
11 M11 7/16 11.2 11.6 18.5 18.3 18.7 2.5 2.25 2.75
12 M12 / 12.8 13.2 19.5 19.3 19.7 2.5 2.25 2.75
12 M12 / 12.8 13.2 25.4 25.2 25.6 3.4 3.15 3.65
1/2 / 1/2 13.3 13.7 19.5 19.3 19.7 2.5 2.25 2.75
1/2 / 1/2 13.3 13.7 25.4 25.2 25.6 3.4 3.15 3.65
14 M14 9/16 15 15.4 23 22.8 23.2 3.4 3.15 3.65
14 M14 9/16 15 15.4 30.7 30.5 30.9 3.4 3.15 3.65
16 M16 5/8 16.8 17.2 25.4 25.2 25.6 3.4 3.15 3.65
16 M16 5/8 16.8 17.2 30.7 30.5 30.9 3.4 3.15 3.65
18 M18 / 19.3 19.7 29 28.8 29.2 3.4 3.15 3.65
18 M18 / 19.3 19.7 34.5 34.3 34.7 3.4 3.15 3.65
3/4 / 3/4 19.8 20.2 30.7 30.5 30.9 3.4 3.15 3.65
3/4 / 3/4 19.8 20.2 39 38.8 39.2 3.4 3.15 3.65
20 M20   21.2 21.6 30.7 30.5 30.9 3.4 3.15 3.65
20 M20   21.2 21.6 39 38.8 39.2 3.4 3.15 3.65
22 M22 7/8 23.2 23.6 34.5 34.3 34.7 3.4 3.15 3.65
22 M22 7/8 23.2 23.6 42 41.8 42.2 4.6 4.35 4.85
24 M24   25.1 25.5 39 38.8 39.2 3.4 3.15 3.65
24 M24   25.1 25.5 48.5 48.3 48.7 4.6 4.35 4.85
1 / 1 27.7 28.1 39 38.7 39.3 3.4 3.15 3.65
1 / 1 27.7 28.1 48.5 48.2 48.8 4.6 4.35 4.85
27 M27   28.2 28.6 42 41.7 42.3 5.8 5.55 6.05
27 M27   28.2 28.6 48.5 48.2 48.8 5.8 5.55 6.05
30 M30 1-1/8 31.2 31.6 47 46.7 47.3 5.8 5.55 6.05
30 M30 1-1/8 31.2 31.6 58.5 58.2 58.8 6.6 6.1 7

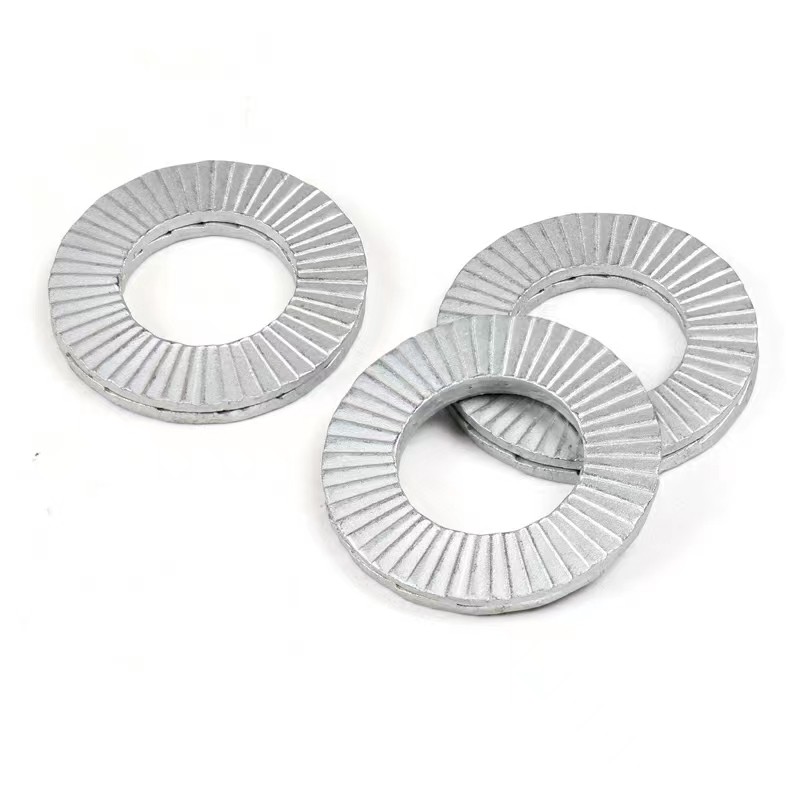

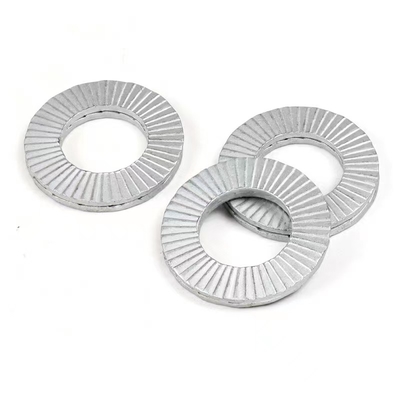

Dacromet Din 25201 Double Fold Self Wedge Washers For Wind Energy 1Dacromet Din 25201 Double Fold Self Wedge Washers For Wind Energy 2

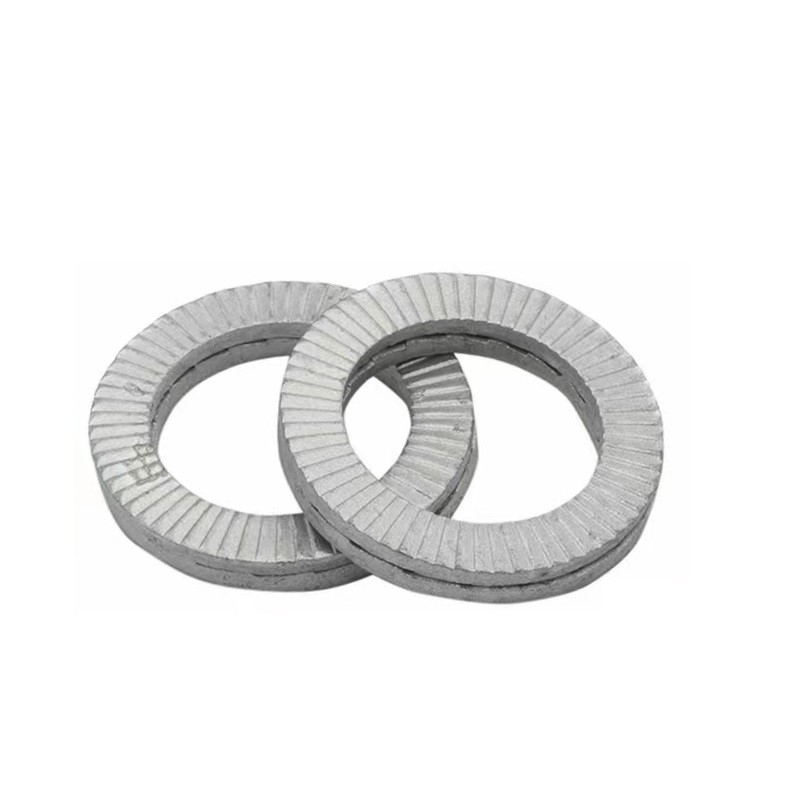

Dacromet Din 25201 Double Fold Self Wedge Washers For Wind Energy 3




FAQ

Q: Are you trading company or manufacturer ?

A: We are factory and OEM are available.

Q: How long is your delivery time?

A: Generally it is 2-5 days if the goods are in stock,or it is 15-30 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: 30% T/T in advance ,balance before shipment or L/C.
If you have another question, please feel free to contact us.
