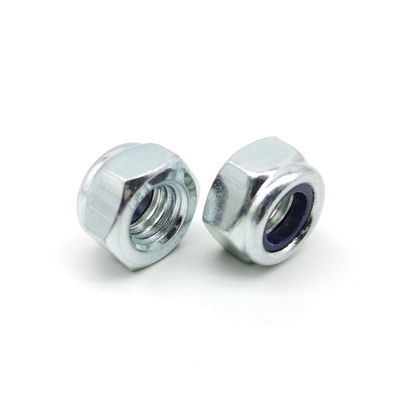

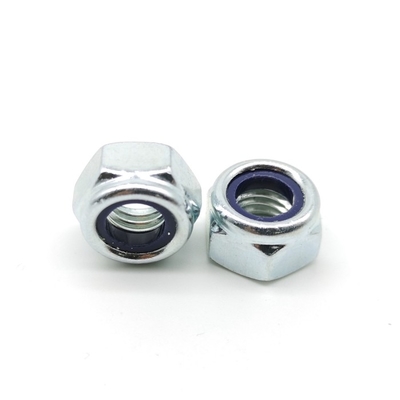

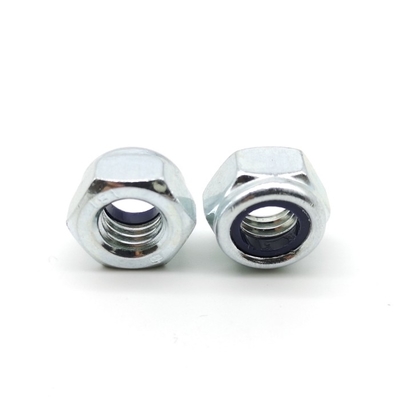

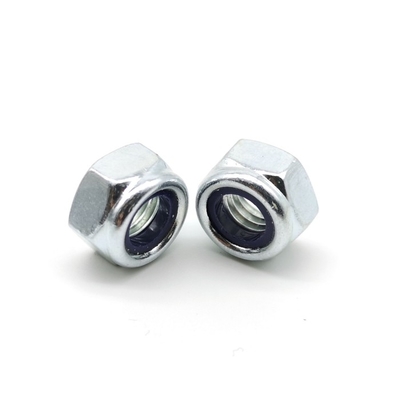

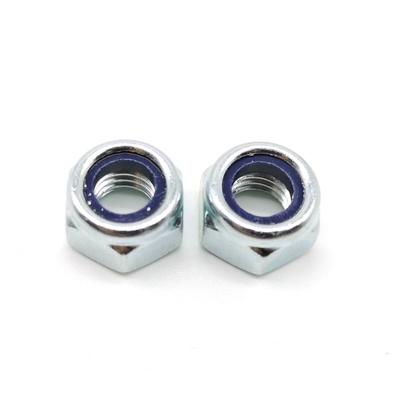

M6 M5 M4 Nylon Lock Nut Metric DIN 985 Low Profile Hexagon Lock Nut

  • M6 M5 M4 Nylon Lock Nut Metric DIN 985 Low Profile Hexagon Lock Nut
  • M6 M5 M4 Nylon Lock Nut Metric DIN 985 Low Profile Hexagon Lock Nut
  • M6 M5 M4 Nylon Lock Nut Metric DIN 985 Low Profile Hexagon Lock Nut
  • M6 M5 M4 Nylon Lock Nut Metric DIN 985 Low Profile Hexagon Lock Nut
  • M6 M5 M4 Nylon Lock Nut Metric DIN 985 Low Profile Hexagon Lock Nut
Place of Origin China
Brand Name XGFH
Certification ISO9001,EN10204 3.1Certificate
Model Number DIN985
Minimum Order Quantity 100PCS
Price USD0.01-0.2/PC
Packaging Details Bulk into plastic bag and carton box,and then Pallet.
Delivery Time 2-10work days
Payment Terms T/T, L/C
Supply Ability 500000PCS PER MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Standard DIN985 Grade Grade 8
Material 35K Coated Zinc Plated
Lock Type Nylon Insert Thread Direction Right Hand
Thread Fit Coarse Thread Tolerance 6g/6h
High Light

m4 nylon lock nut

,

M5 nylon lock nut

,

DIN 985 Low Profile Hexagon Lock Nut
Leave a Message
Product Description

Metric DIN 985 Low Profile Nylon Insert Hexagon Stop Lock Nuts



Product Description:

1. Certification: ISO9001, ROHS, SGS
2. Available Standard: DIN, ANSI, ASTM, JIS, BSW
3. Strength: Grade 4.8,Grade 8.8,Grade10.9,Grade12.9, A2-70, A4-70, A4-80
4. Finishing: Yellow Zinc, Blue White Zinc Plated, Galvanized,HDG,Chromate,Dacromet, PTFE
5. Available Material: Carbon steel, stainless steel SS304, A2 ,Stainless steel SS314,A4.
6. Size: M3-M36, MOQ: 500pcs, Port: Shanghai,Ningbo
7. Available Packing: Plastic bags+Chipboard Cartons+Plywood pallet with Belt &Film.



Product Name Carbon Steel Zinc Plated Nylon Insert Lock Nuts
Material Carbon Steel:C1010, C1018, C12L14, C1035
Color Black,Yellow,White,Blue,Gray
Standard DIN,ASME,ASNI,ISO
Grade Grade 4,Grade 8,Grade 10
Finished Galvanized Steel,Black Oxide,Nickel Plated,Chromat,Dacromet
Thread Coarse,Fine
Used Building Industry Machinery



Product Drawing:



Prevailing Torque Type Hexagon Thin Nuts With Non-Metallic Insert
DIN 985-1987
M6 M5 M4 Nylon Lock Nut Metric DIN 985 Low Profile Hexagon Lock Nut 0
d(mm) P(mm) h(mm) m(mm) s(mm)
max min min max min
M3 0.5 4 3.7 2.4 5.5 5.32
M4 0.7 5 4.7 2.9 7 6.78
M5 0.8 5 4.7 3.2 8 7.78
M6 1 6 5.7 4 10 9.78
M7 1 7.5 7.14 4.7 11 10.73
M8 1/1.25 8 7.64 5.5 13 12.73
M10 1/1.25/1.5 10 9.64 6.5 17 16.73
M12 1.25/1.5/1.75 12 11.57 8 19 18.67
M14 1.5/2 14 13.3 9.5 22 21.67
M16 1.5/2 16 15.3 10.5 24 23.67
M18 1.5/2/2.5 18.5 17.66 13 27 26.16
M20 1.5/2/2.5 20 18.7 14 30 29.16
M22 1.5/2/2.5 22 20.7 15 32 31
M24 2/3 24 22.7 15 36 35
M27 2/3 27 25.7 17 41 40
M30 2/3.5 30 28.7 19 46 45
M33 2/3.5 33 31.4 22 50 49
M36 3/4 36 34.4 25 55 53.8
M39 3/4 39 37.4 27 60 58.8
M42 3/4.5 42 40.4 29 65 63.8
M45 3/4.5 45 43.4 32 70 68.1
M48 3/5 48 46.4 36 75 73.1





M6 M5 M4 Nylon Lock Nut Metric DIN 985 Low Profile Hexagon Lock Nut 1M6 M5 M4 Nylon Lock Nut Metric DIN 985 Low Profile Hexagon Lock Nut 2



FAQ

Q: Are you trading company or manufacturer ?

A: We are factory and OEM are available.

Q: How long is your delivery time?

A: Generally it is 2-5 days if the goods are in stock,or it is 15-30 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: 30% T/T in advance ,balance before shipment or L/C.
If you have another question, please feel free to contact us.
