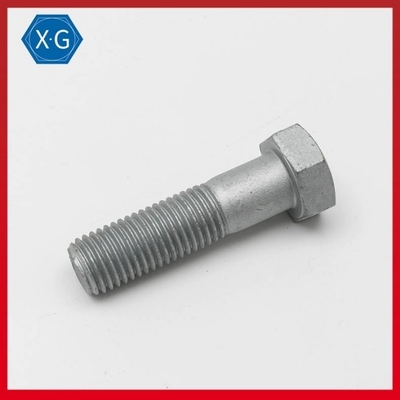

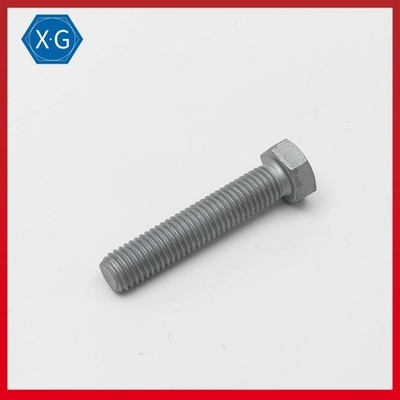

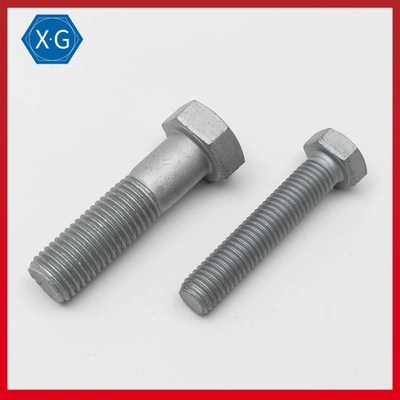

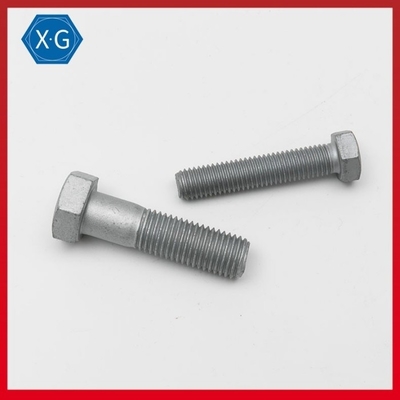

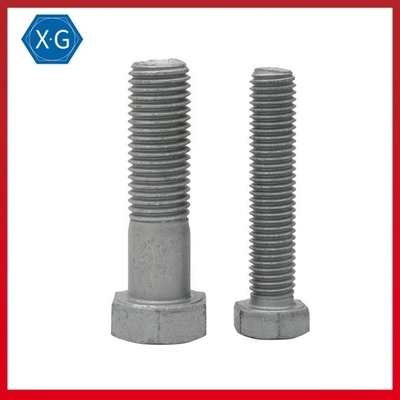

ISO 4014 ISO 4017 Wind Energy Fasteners Dacromet Geomet 500B Class 8.8 Screw
| Place of Origin | China |
|---|---|
| Brand Name | XGFH |
| Certification | ISO9001,EN1024 3.1 |
| Model Number | ISO4017 |
| Minimum Order Quantity | 100pcs |
| Price | 0.1-0.9usd/pc |
| Packaging Details | 20-25kg/carton box and then pallet. |
| Delivery Time | 2-10 work days |
| Payment Terms | T/T, L/C |
| Supply Ability | 500000pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Hex Bolts | Standard | ISO4017 |
|---|---|---|---|
| Material | Carbon Steel 35K | Grade | Class 8.8 |
| Finsih | Geomet 500B | Salt Spray Test | 1000hours |
| Head Type | Hexagon Head | Specification | ISO898-1 |
| System Of Measurement | Metric | Thread Fit | Coarse 6h/6g |
| High Light | Wind Energy Fasteners Dacromet xianggu,ISO 4017 Wind Energy Fasteners Dacromet xianggu,Wind Energy Fasteners Dacromet Geomet 500B xianggu |
||
Product Description
Drawing:
| Hexagon head bolts-Full thread--Product grades A and B | ||||||||
| ISO4017 & GB/T5783 | ||||||||
 |
||||||||
| d | P(mm) | k(mm) | s(mm) | |||||
| A | B | min | max | |||||
| min | max | min | max | A | B | |||
| M1.6 | 0.35 | 0.975 | 1.225 | 0.9 | 1.3 | 3.02 | 2.9 | 3.2 |
| M2 | 0.4 | 1.275 | 1.525 | 1.2 | 1.6 | 3.82 | 3.7 | 4 |
| M2.5 | 0.45 | 1.575 | 1.825 | 1.5 | 1.9 | 4.82 | 4.7 | 5 |
| M3 | 0.5 | 1.875 | 2.125 | 1.8 | 2.2 | 5.32 | 5.2 | 5.5 |
| M3.5 | 0.6 | 2.275 | 2.525 | 2.2 | 2.6 | 5.82 | 5.7 | 6 |
| M4 | 0.7 | 2.675 | 2.925 | 2.6 | 3 | 6.78 | 6.64 | 7 |
| M5 | 0.8 | 3.35 | 3.65 | 3.26 | 3.74 | 7.78 | 7.64 | 8 |
| M6 | 1 | 3.85 | 4.15 | 3.76 | 4.24 | 9.78 | 9.64 | 10 |
| M8 | 1.25 | 5.15 | 5.45 | 5.06 | 5.54 | 12.73 | 12.57 | 13 |
| M10 | 1.5 | 6.22 | 6.58 | 6.11 | 6.69 | 15.73 | 15.57 | 16 |
| M12 | 1.75 | 7.32 | 7.68 | 7.21 | 7.79 | 17.73 | 17.57 | 18 |
| M14 | 2 | 8.62 | 8.98 | 8.51 | 9.09 | 20.67 | 20.16 | 21 |
| M16 | 2 | 9.82 | 10.18 | 9.71 | 10.29 | 23.67 | 23.16 | 24 |
| M18 | 2.5 | 11.29 | 11.72 | 11.15 | 11.85 | 26.67 | 26.16 | 27 |
| M20 | 2.5 | 12.29 | 12.72 | 12.15 | 12.85 | 29.67 | 29.16 | 30 |
| M22 | 2.5 | 13.79 | 14.22 | 13.65 | 14.35 | 33.38 | 33 | 34 |
| M24 | 3 | 14.79 | 15.22 | 14.65 | 15.35 | 35.38 | 35 | 36 |
| M27 | 3 | / | / | 16.65 | 17.35 | / | 40 | 41 |
| M30 | 3.5 | / | / | 18.28 | 19.12 | / | 45 | 46 |
| M33 | 3.5 | / | / | 20.58 | 21.42 | / | 49 | 50 |
| M36 | 4 | / | / | 22.08 | 22.92 | / | 53.8 | 55 |
| M39 | 4 | / | / | 24.58 | 25.42 | / | 58.8 | 60 |
| M42 | 4.5 | / | / | 25.58 | 26.42 | / | 63.1 | 65 |
| M45 | 4.5 | / | / | 27.58 | 28.42 | / | 68.1 | 70 |
| M48 | 5 | / | / | 29.58 | 30.42 | / | 73.1 | 75 |
| M52 | 5 | / | / | 32.5 | 33.5 | / | 78.1 | 80 |
| M56 | 5.5 | / | / | 34.5 | 35.5 | / | 82.8 | 85 |
| M60 | 5.5 | / | / | 37.5 | 38.5 | / | 87.8 | 90 |
| M64 | 6 | / | / | 39.5 | 40.5 | / | 92.8 | 95 |
Mechanical and physical properties:
| Mechanical or physical property |
Property class 8.8 |
| Tensile strength, Rm, | Min.800Mpa |
|
Stress at 0,2 % non proportional elongation, Rp0,2 |
Min.640Mpa |
|
Percentage elongation after fracture for machined test pieces, A |
Min.12% |
|
Percentage reduction of area after fracture for machined test pieces, Z |
Min.52% |
| Rockwell hardness | HRC22-34 |
Product Features:
A hex cap screw is a six-sided bolt with a trimmed hex head and a washer face on the bearing surface
Hex cap screws and hex bolts feature a hexagonal head that is utilized during the tightening of the fastener.
These fasteners are commonly used in construction,machine parts,and maintenance repairs.
Hex cap screws and hex bolts are manufactured in variety of sizes,finishes,grades,and materials depending on application.
Surface Treatment:
GEOMET 500B is applied to fasteners and many type of metallic parts to protect from corrosion, and it is used in many industries
Thin dry-film, non-electrolytic, self-lubricated
Water-based chemistry
Passivated zinc and aluminium flakes in a binder, patented chemistry
Chrome free alternative to DACROMET 500B
Metallic silver appareance
