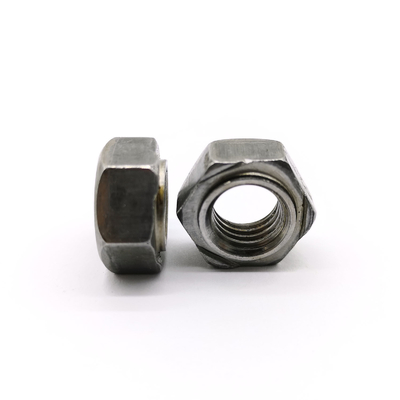

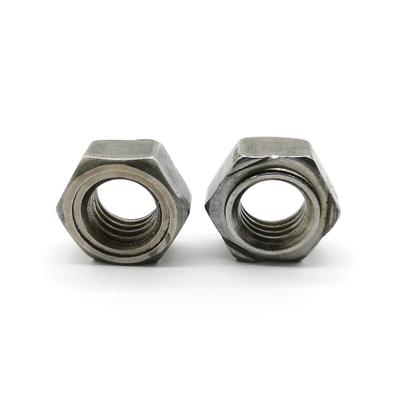

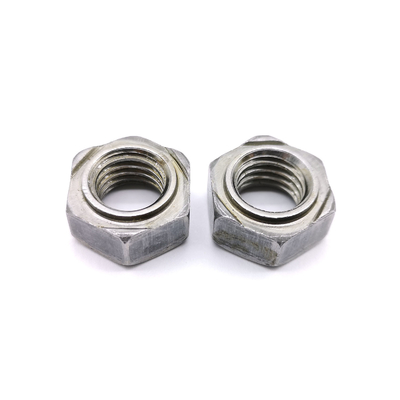

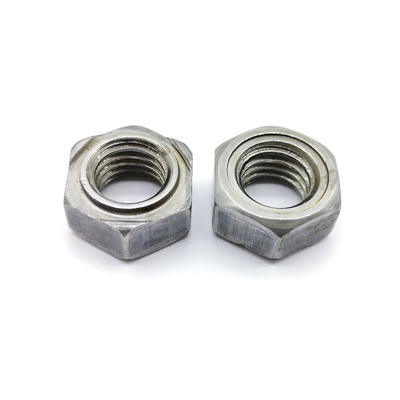

Steel Plain Hex Weld Nut DIN 929 Thread Hexagon Weld Nut M6 M8 M10 M12
| Place of Origin | China |
|---|---|
| Brand Name | XG |
| Certification | ISO9001,EN10204 3.1Certificate |
| Model Number | DIN929 |
| Minimum Order Quantity | 100PCS |
| Price | USD0.01-2/PCS |
| Packaging Details | Bulk into plastic bag and carton box, and then Pallet. |
| Delivery Time | 3-20work days |
| Payment Terms | T/T |
| Supply Ability | 100000PCS per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Standard | DIN929 | Grade | Class 4 |
|---|---|---|---|
| Finish | Plain | Material | 10B21 |
| Thread Fit | Coarse | Thread Direction | Right Hand |
| Specification | ISO898.2 | System Of Measurement | Metric |
| Name | Hex Weld Nuts | ||
| High Light | Steel Plain hex weld nut DIN 929,hex weld nut DIN 929 Thread xianggu,hexagon weld nut M6 M8 M10 M12 |
||
Product Description
Description:
DIN929 Steel Plain Hex Weld Nut Thread Size M6M8M10M12
DIN929 Steel Plain Hex Weld Nut Thread Size M6M8M10M12 Made In China.
| Products name | DIN929 Steel Plain Hex Weld Nut Thread Size M6M8M10M12 |
| Standard: | DIN,ASTM/ANSI JIS EN ISO,AS,GB |
| Material | Carbon Steel,Alloy Steel;Stainless Steel:SS304, SS316,SS316L |
| Steel Grade: 8.8,10.9,12.9,Grade2,5 and 8,Class A2-70,A4-70,A4-80 | |
| Finishing | Black Oxide,HDG(Hot Dip Galvanized),Zinc Plated,Dacromet |
| Related Products | Weld studs,Flat Washer,and Spring Washer |
| Applications | Nuclear power,Wind tower,Automotive industry,Railway,Electronic,Construction industry. |
| Stock Products | Hex weld nut most of sizes are in stock. |
| Get Free Samples for standard fastener from Jiangyin XiangGu Hardware Products Co.,Ltd | |
| Focus On Supplying High Quality Fasteners. | |
Drawing:
| Hexagon Weld Nuts | ||||||||||||
| DIN 929 | ||||||||||||
 |
||||||||||||
| d(mm) | P(mm) | d1(mm) | h1(mm) | h2(mm) | k(mm) | s(mm) | ||||||
| Nom | min | max | min | max | min | max | min | max | min | max | ||
| M3 | 0.5 | 4.5 | 4.395 | 4.47 | 0.45 | 0.55 | 0.15 | 0.25 | 2.75 | 3 | 7.28 | 7.5 |
| M4 | 0.7 | 6 | 5.895 | 5.97 | 0.55 | 0.65 | 0.25 | 0.35 | 3.2 | 3.5 | 8.78 | 9 |
| M5 | 0.8 | 7 | 6.87 | 6.96 | 0.6 | 0.7 | 0.3 | 0.4 | 3.7 | 4 | 9.78 | 10 |
| M6 | 1 | 8 | 7.87 | 7.96 | 0.6 | 0.75 | 0.3 | 0.4 | 4.7 | 5 | 10.73 | 11 |
| M8 | 1/1.25 | 10.5 | 10.34 | 10.45 | 0.75 | 0.9 | 0.35 | 0.5 | 6.14 | 6.5 | 13.73 | 14 |
| M10 | 1/1.25/1.5 | 12.5 | 12.34 | 12.45 | 1 | 1.15 | 0.4 | 0.65 | 7.64 | 8 | 16.73 | 17 |
| M12 | 1.25/1.5/1.75 | 14.8 | 14.64 | 14.75 | 1.2 | 1.4 | 0.6 | 0.8 | 9.64 | 10 | 18.67 | 19 |
| M14 | 1.5/2 | 16.8 | 16.64 | 16.75 | 1.6 | 1.8 | 0.8 | 1 | 10.57 | 11 | 21.67 | 22 |
| M16 | 1.5/2 | 18.8 | 18.605 | 18.735 | 1.6 | 1.8 | 0.8 | 1 | 12.57 | 13 | 23.67 | 24 |
FAQ:
Q1. Can I have a sample order for Hex flange bolt?
A:Yes,we welcome sample order to test and check quality.
Q2. What about the lead time?
A: 3-5 days for Sample preparing ,8-10 working days for mass production
Q3. Do you have any MOQ limit for hex flange bolt order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT for sample order,and it takes about 3-7days
Ship by Sea from Shanghai Port,and it takes 3-30days to arrive.
Q5. How to proceed an order for hex flange bolt?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
