DIN933 Automotive Fasteners Yellow Zinc Grade 8.8 Hex Bolt Coarse
| Place of Origin | China |
|---|---|
| Brand Name | XG |
| Certification | ISO9001,EN 3.1cert. |
| Model Number | DIN933 |
| Minimum Order Quantity | 100PCS |
| Price | USD0.01-2/PCS |
| Packaging Details | Bulk into plastic bag and carton box, and then Pallet. |
| Delivery Time | 3-20work days |
| Payment Terms | T/T |
| Supply Ability | 100000PCS per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Standard | DIN933 | Grade | Class 8.8 |
|---|---|---|---|
| Finish | Yellow Zinc | Material | C1035 |
| Head Type | Hex Head | Thread Fit | Coarse |
| Thread Length | Full Thread | Specification | ISO898-1 |
| Tensile Strength | 800Mpa Min. | Hardness | 23-32HRC |
| High Light | DIN 933 Automotive Fasteners,Automotive Fasteners Yellow Zinc Grade,8.8 Hex Bolt |
||
Product Description

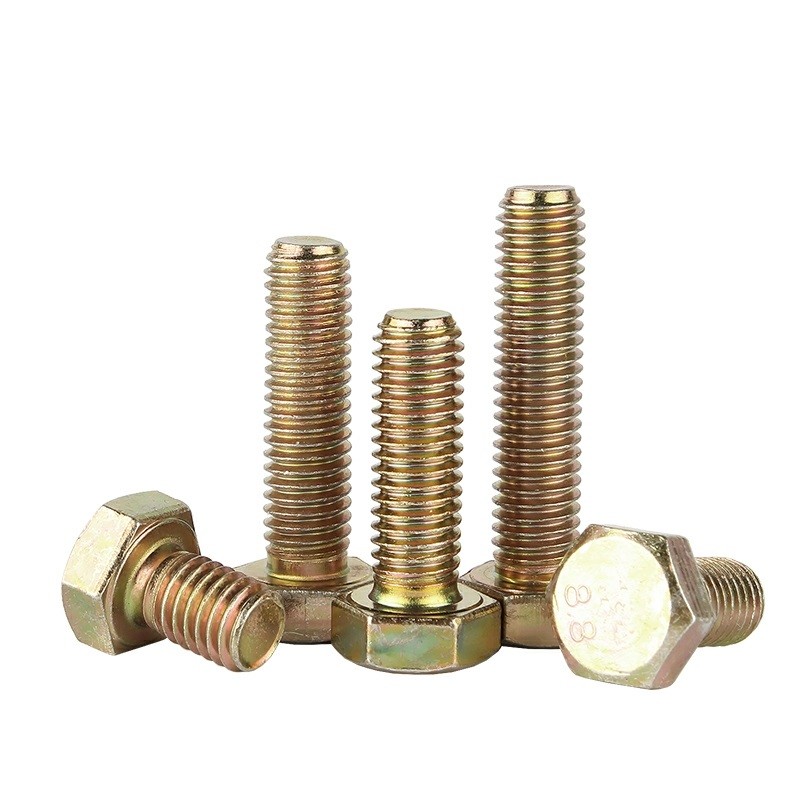

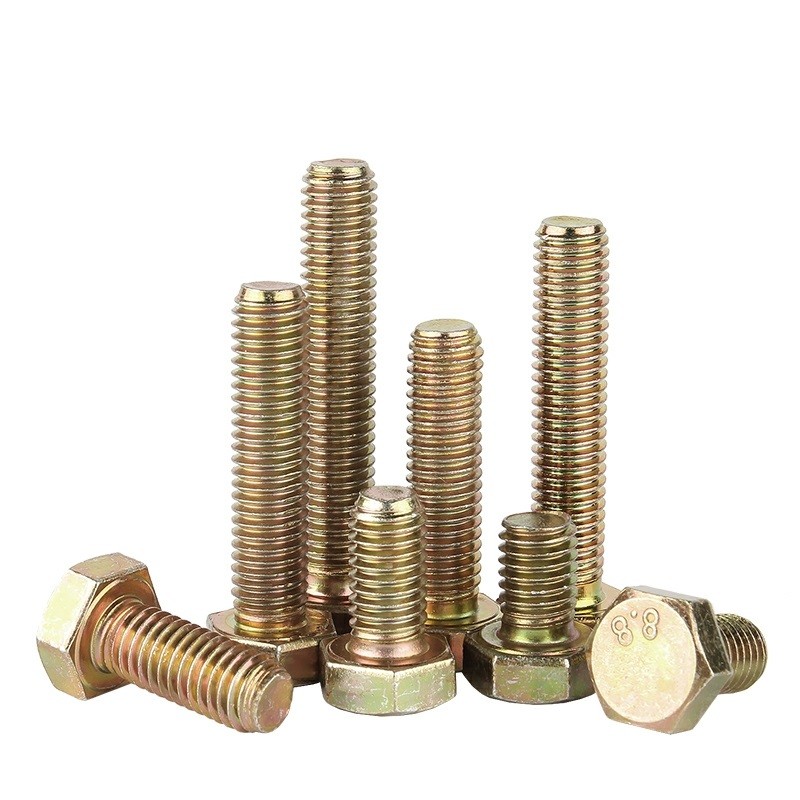

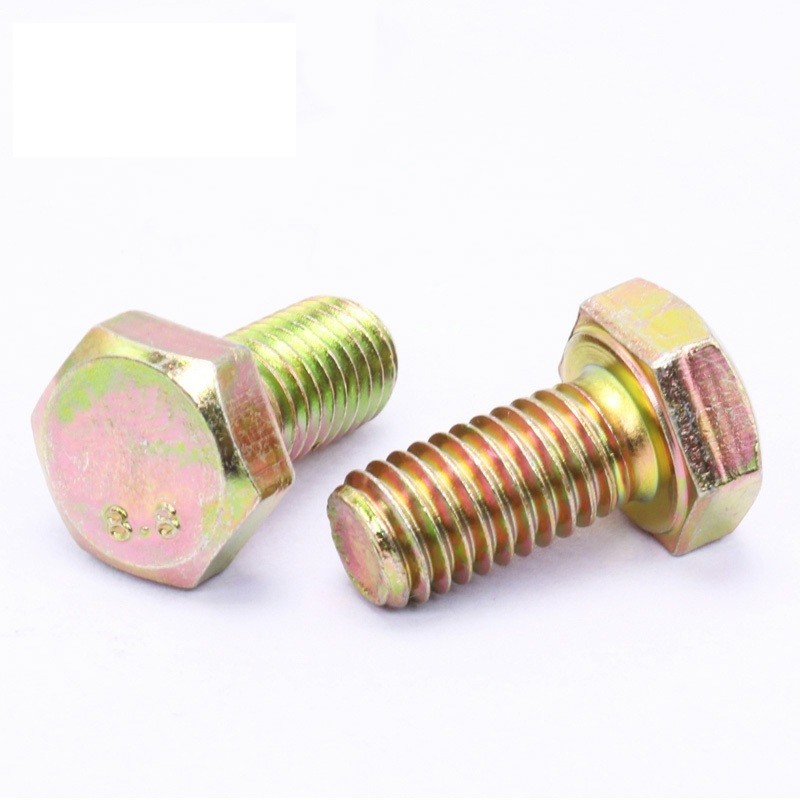

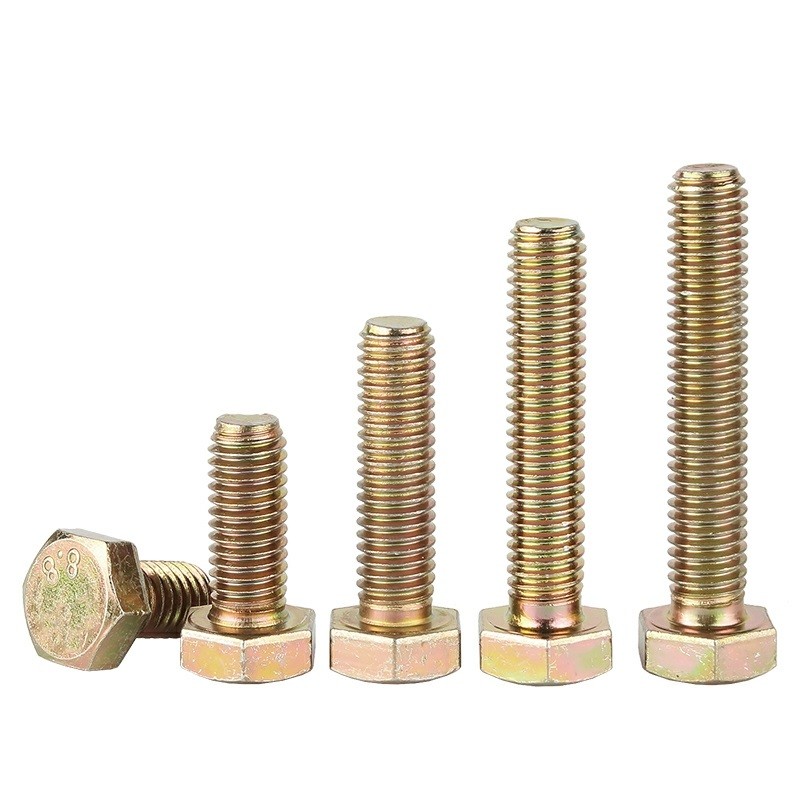

Automotive Fasteners DIN933 Yellow Zinc Grade 8.8 Hex Bolt
Automotive Fasteners DIN933 Yellow Zinc Grade 8.8 Hex Bolt Made In China.
Hex cap screws and head bolts feature a hexagonal head that is utilized during the tightening of the fastener.
A hex cap screw utilizes a washer face under the head and a chamfered end,while the hex bolts lack those features and requires a nut.
These fasteners are commonly used in construction,machine parts,and maintenance repairs.
Hex cap screws and hex bolts are manufactured in variety of sizes,finished,grades,and materials depending on application.
| Products name | Automotive Fasteners DIN933 Yellow Zinc Grade 8.8 Hex Bolt |
| Standard: | DIN,ASTM/ANSI JIS EN ISO,AS,GB |
| Material | Carbon Steel,Alloy Steel;Stainless Steel:SS304, SS316,SS316L |
| Steel Grade: 8.8,10.9,12.9,Grade2,5 and 8,Class A2-70,A4-70,A4-80 | |
| Finishing | Black Oxide,HDG(Hot Dip Galvanized),Zinc Plated,Dacromet |

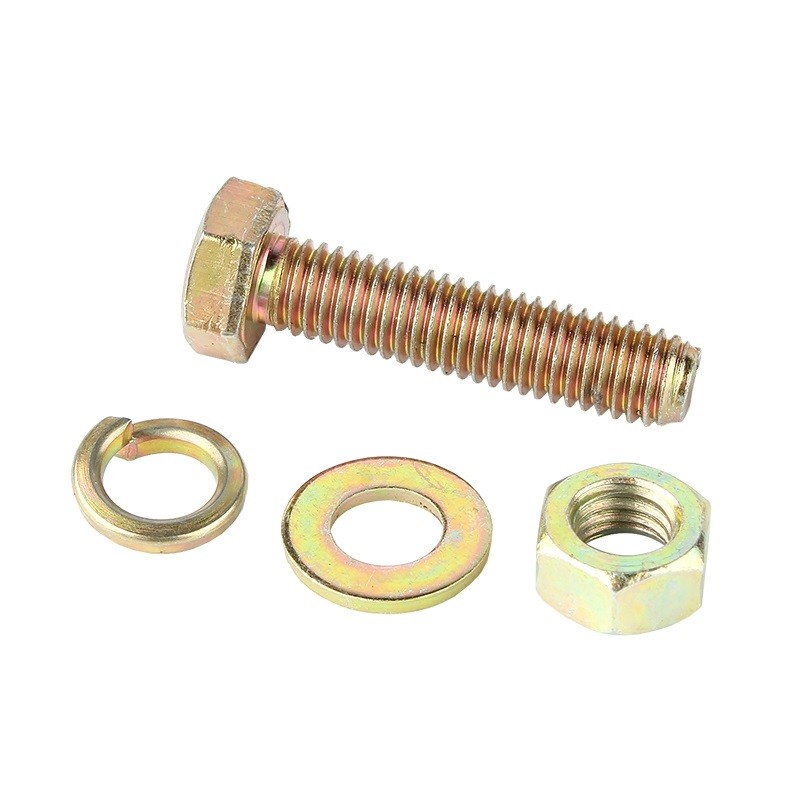

| Related Products | Hex Nuts,Flat Washer,and Spring Washer |
| Applications | Nuclear power,Wind tower,Automotive industry,Railway,Electronic,Construction industry. |
| Stock Products | Hex head screw most of sizes are in stock. |
| Get Free Samples for standard fastener from Jiangyin XiangGu Hardware Products Co.,Ltd | |
| Focus On Supplying High Quality Fasteners. | |
Product Drawing:
| Hex bolt fully threaded | ||||||||
| DIN933-1987 | ||||||||
 |
||||||||
| d(mm) | P(mm) | k(mm) | s(mm) | |||||
| A | B | max | min | |||||
| max | min | max | min | A | B | |||
| M1.6 | 0.35 | 1.22 | 0.98 | / | / | 3.2 | 3.02 | / |
| M2 | 0.4 | 1.52 | 1.28 | / | / | 4 | 3.82 | / |
| M2.5 | 0.45 | 1.82 | 1.58 | / | / | 5 | 4.82 | / |
| M3 | 0.5 | 2.12 | 1.88 | / | / | 5.5 | 5.32 | / |
| M3.5 | 0.6 | 2.52 | 2.28 | / | / | 6 | 5.82 | / |
| M4 | 0.7 | 2.92 | 2.68 | 3 | 2.8 | 7 | 6.78 | 6.64 |
| M5 | 0.8 | 3.65 | 3.35 | 3.74 | 3.26 | 8 | 7.78 | 7.64 |
| M6 | 1 | 4.15 | 3.85 | 4.24 | 3.76 | 10 | 9.78 | 9.64 |
| M7 | 1 | 4.95 | 4.65 | 5.04 | 4.56 | 11 | 10.73 | 10.57 |
| M8 | 1.25 | 5.45 | 5.15 | 5.54 | 5.06 | 13 | 12.73 | 12.57 |
| M10 | 1.5 | 6.56 | 6.22 | 6.69 | 6.11 | 17 | 16.73 | 16.57 |
| M12 | 1.75 | 7.68 | 7.32 | 7.79 | 7.21 | 19 | 18.67 | 18.48 |
| M14 | 2 | 8.98 | 8.62 | 9.09 | 8.51 | 22 | 21.67 | 21.16 |
| M16 | 2 | 10.18 | 9.82 | 10.29 | 9.71 | 24 | 23.67 | 23.16 |
| M18 | 2.5 | 11.72 | 11.28 | 11.85 | 11.15 | 27 | 26.67 | 26.15 |
| M20 | 2.5 | 12.72 | 12.28 | 12.85 | 12.15 | 30 | 29.67 | 29.16 |
| M22 | 2.5 | 14.22 | 13.78 | 14.35 | 13.65 | 32 | 31.61 | 31 |
| M24 | 3 | 15.22 | 14.78 | 15.35 | 14.65 | 36 | 35.38 | 35 |
| M27 | 3 | / | / | 17.35 | 16.65 | 41 | / | 40 |
| M30 | 3.5 | / | / | 19.12 | 18.28 | 46 | / | 45 |
| M33 | 3.5 | / | / | 21.42 | 20.58 | 50 | / | 49 |
| M36 | 4 | / | / | 22.92 | 22.08 | 55 | / | 53.8 |
| M39 | 4 | / | / | 25.42 | 24.58 | 60 | / | 58.8 |
| M42 | 4.5 | / | / | 26.42 | 25.58 | 65 | / | 63.1 |
| M45 | 4.5 | / | / | 28.42 | 27.58 | 70 | / | 68.1 |
| M48 | 5 | / | / | 30.42 | 29.58 | 75 | / | 73.1 |
| M52 | 5 | / | / | 33.5 | 32.5 | 80 | / | 78.1 |
FAQ:
Q1. Can I have a sample order for Hex flange bolt?
A:Yes,we welcome sample order to test and check quality.
Q2. What about the lead time?
A: 3-5 days for Sample preparing ,8-10 working days for mass production
Q3. Do you have any MOQ limit for hex flange bolt order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT for sample order,and it takes about 3-7days
Ship by Sea from Shanghai Port,and it takes 3-30days to arrive.
Q5. How to proceed an order for hex flange bolt?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
