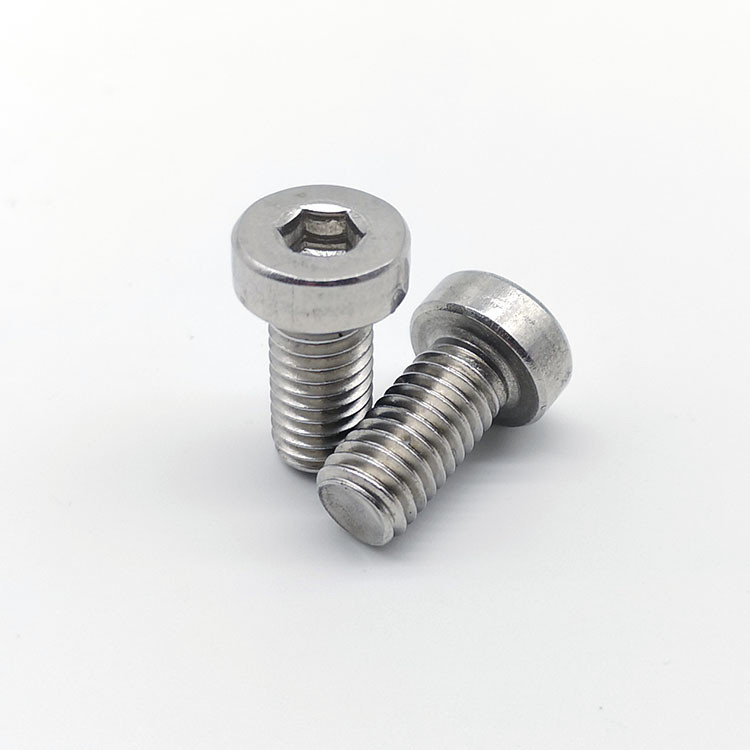

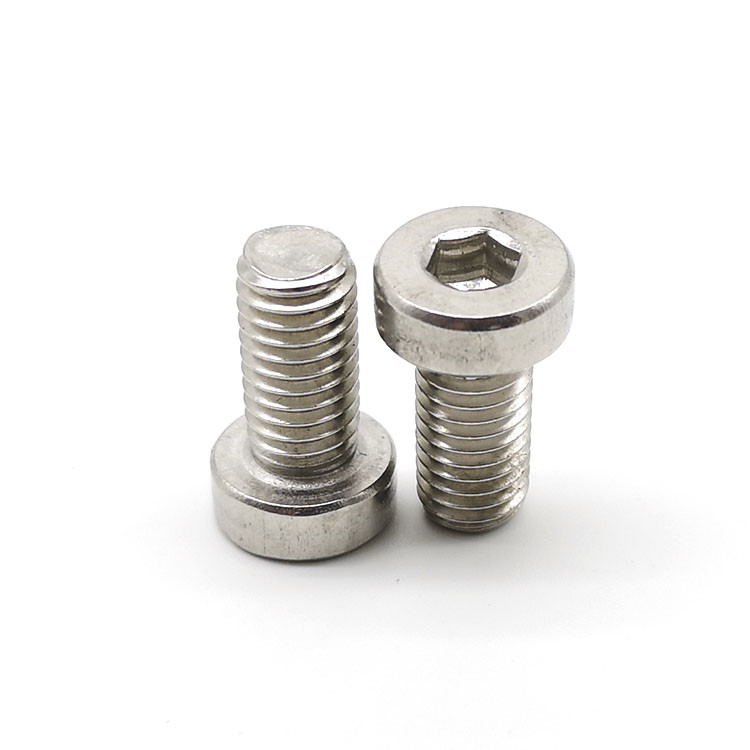

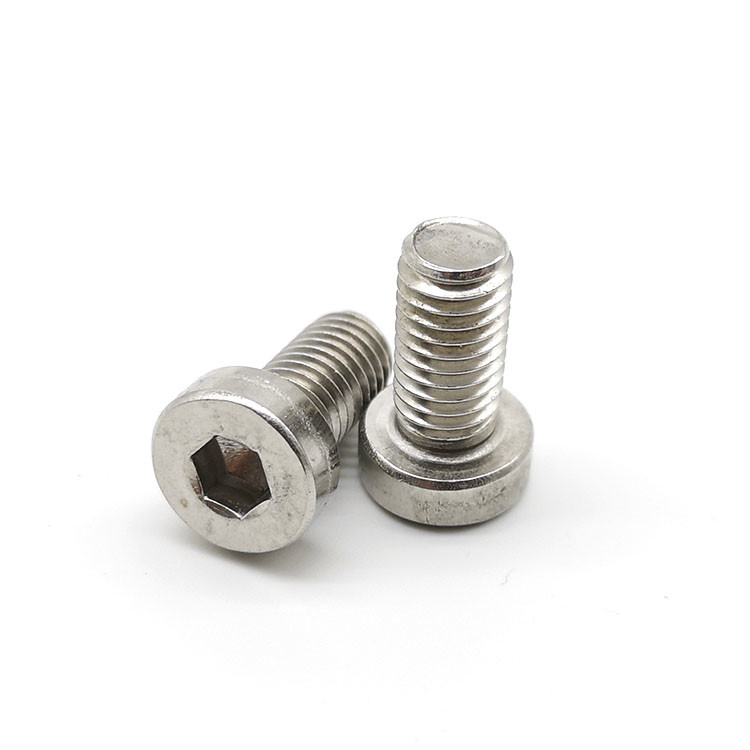

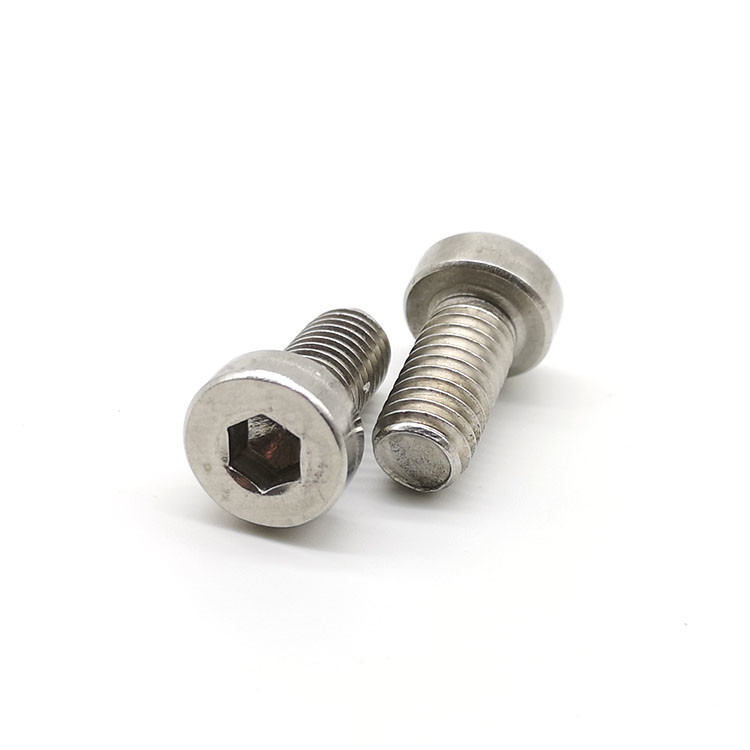

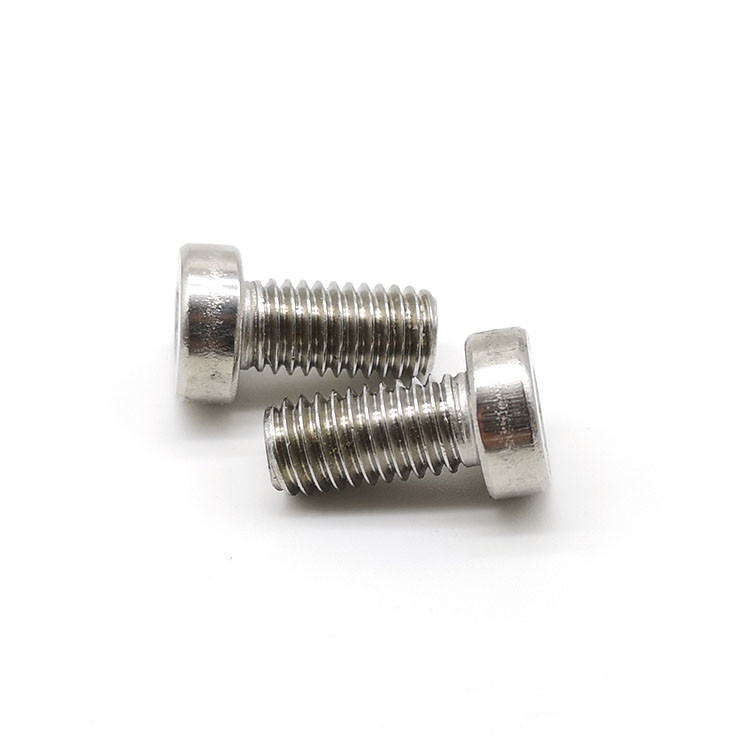

DIN 7984 SS304 automotive bolt Low Profile Head Hexagon Socket Cap Screws

  • DIN 7984 SS304 automotive bolt Low Profile Head Hexagon Socket Cap Screws
  • DIN 7984 SS304 automotive bolt Low Profile Head Hexagon Socket Cap Screws
  • DIN 7984 SS304 automotive bolt Low Profile Head Hexagon Socket Cap Screws
  • DIN 7984 SS304 automotive bolt Low Profile Head Hexagon Socket Cap Screws
  • DIN 7984 SS304 automotive bolt Low Profile Head Hexagon Socket Cap Screws
Place of Origin China
Brand Name XG
Certification ISO9001,EN10204 3.1Certificate
Model Number DIN7984
Minimum Order Quantity 100PCS
Price USD0.01-2/PCS
Packaging Details Bulk into plastic bag and carton box, and then Pallet.
Delivery Time 3-20work days
Payment Terms T/T
Supply Ability 100000PCS per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Standard DIN7984 Grade A2-70
Finish Bright And Clean Material Stainless Steel 304
Head Type Hex Socket Cap Head Thread Fit Coarse
Thread Length Full Thread Specification ISO3506-1
Tensile Strength 700Mpa Min. Drive Type Allen Drive
High Light

din 7984 screws xianggu

,

SS304 automotive bolt xianggu

,

Hexagon Socket Cap Screws xianggu
Leave a Message
Product Description

Description:

Automotive Fasteners DIN7984 SS304 Low Profile Head Hexagon Socket Cap Screws



Automotive Fasteners DIN7984 SS304 Low Profile Head Hexagon Socket Cap Screws Made In China.



Products name Automotive Fasteners DIN7984 SS304 Low Profile Head Hexagon Socket Cap Screws
Standard: DIN,ASTM/ANSI JIS EN ISO,AS,GB
Material Carbon Steel,Alloy Steel;Stainless Steel:SS304, SS316,SS316L
Steel Grade: 8.8,10.9,12.9,Grade2,5 and 8,Class A2-70,A4-70,A4-80
Finishing Black Oxide,HDG(Hot Dip Galvanized),Zinc Plated,Dacromet
Related Products Hex Nuts,Flat Washer,and Spring Washer
Applications Nuclear power,Wind tower,Automotive industry,Railway,Electronic,Construction industry.
Stock Products DIN7984 most of sizes are in stock.
Get Free Samples for standard fastener from Jiangyin XiangGu Hardware Products Co.,Ltd
Focus On Supplying High Quality Fasteners.





Drawings:





Hexagon Socket Head Cap Screws With Low Head
DIN 7984-2009
DIN 7984 SS304 automotive bolt Low Profile Head Hexagon Socket Cap Screws 0
d(mm) P(mm) b(mm) dk(mm) k(mm) s(mm) t(mm)
L≤125 125<L≤200 L>200 min max min max min max min max
M3 0.5 12 / / 5.32 5.5 1.86 2 2.02 2.1 1.38 1.62
M4 0.7 14 / / 6.78 7 2.66 2.8 2.52 2.6 2.18 2.42
M5 0.8 16 / / 8.28 8.5 3.32 3.5 3.02 3.1 2.58 2.82
M6 1 18 / / 9.78 10 3.82 4 4.02 4.12 2.88 3.12
M8 1.25 22 28 / 12.73 13 4.82 5 5.02 5.14 3.65 3.95
M10 1.5 26 32 / 15.73 16 5.82 6 7.025 7.175 4.35 4.65
M12 1.75 30 36 / 17.73 18 6.78 7 8.025 8.175 4.85 5.15
M14 2 34 40 / 20.67 21 7.78 8 10.025 10.175 5.15 5.45
M16 2 38 44 57 23.67 24 8.78 9 12.032 12.212 5.35 5.65
M18 2.5 42 48 61 26.67 27 9.78 10 12.032 12.212 6.32 6.68
M20 2.5 46 52 65 29.67 30 10.73 11 14.032 14.212 7.32 7.68
M22 2.5 50 56 69 32.61 33 11.73 12 14.032 14.212 7.82 8.18
M24 3 54 60 73 35.61 36 12.73 13 17.05 17.23 7.82 8.18





DIN 7984 SS304 automotive bolt Low Profile Head Hexagon Socket Cap Screws 1DIN 7984 SS304 automotive bolt Low Profile Head Hexagon Socket Cap Screws 2DIN 7984 SS304 automotive bolt Low Profile Head Hexagon Socket Cap Screws 3





FAQ:

Q1. Can I have a sample order for Hex flange bolt?

A:Yes,we welcome sample order to test and check quality.



Q2. What about the lead time?

A: 3-5 days for Sample preparing ,8-10 working days for mass production



Q3. Do you have any MOQ limit for hex flange bolt order?

A: Low MOQ, 1pc for sample checking is available.



Q4. How do you ship the goods and how long does it take to arrive?

A: Ship by DHL, UPS, FedEx or TNT for sample order,and it takes about 3-7days

Ship by Sea from Shanghai Port,and it takes 3-30days to arrive.



Q5. How to proceed an order for hex flange bolt?

A: Firstly let us know your requirements or application.

Secondly We quote according to your requirements or our suggestions.

Thirdly customer confirms the samples and places deposit for formal order.

Fourthly We arrange the production.
