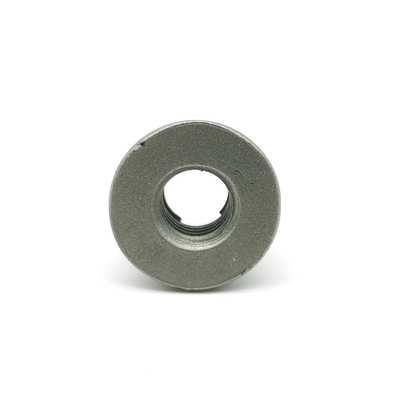

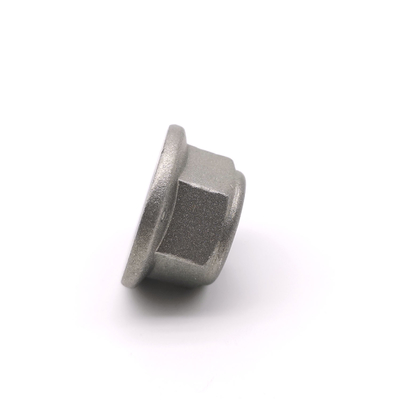

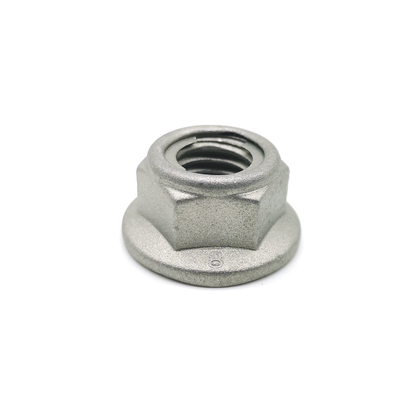

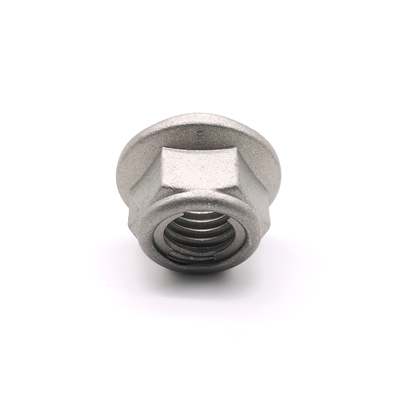

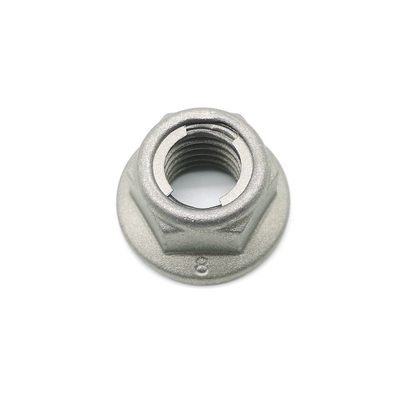

ISO7044 Class 10 Car Nut Bolt Plain Finish Prevailing Torque Metal Hex Flange Weld Nut

  • ISO7044 Class 10 Car Nut Bolt Plain Finish Prevailing Torque Metal Hex Flange Weld Nut
  • ISO7044 Class 10 Car Nut Bolt Plain Finish Prevailing Torque Metal Hex Flange Weld Nut
  • ISO7044 Class 10 Car Nut Bolt Plain Finish Prevailing Torque Metal Hex Flange Weld Nut
  • ISO7044 Class 10 Car Nut Bolt Plain Finish Prevailing Torque Metal Hex Flange Weld Nut
  • ISO7044 Class 10 Car Nut Bolt Plain Finish Prevailing Torque Metal Hex Flange Weld Nut
Place of Origin China
Brand Name XG
Certification ISO9001,EN10204 3.1Certificate
Model Number ISO7044
Minimum Order Quantity 100PCS
Price USD0.01-2/PCS
Packaging Details Bulk into plastic bag and carton box, and then Pallet.
Delivery Time 3-20work days
Payment Terms T/T
Supply Ability 100000PCS per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Standard ISO7044 Grade Class 10
Finish Plain And Oil Material C45
Thread Fit Coarse Thread Length Full Thread
Specification ISO898.2 Lock Type Metal Insert
Name Hex Flange Nuts
High Light

Class 10 car nut bolt xianggu

,

ISO7044 car nut bolt xianggu

,

Torque Metal Hex Flange Weld Nut xianggu
Leave a Message
Product Description

Description:

Automotive Fasteners ISO7044 Class10 Plain Finish Prevailing Torque Type All Metal Hex Flange Nut



Automotive Fasteners ISO7044 Class10 Plain Finish Prevailing Torque Type All Metal Hex Flange Nut Made In China.

Grip metric bolts more securely than nylon-insert flange locknuts.

Large base requires a greater amount of torque to loosen and will cover an oversized or poorly aligned hole.

We offer low carbon steel, medium carbon steel, alloy steel, stainless steel and brass, aluminum alloy Washers.

Flange Lock Nuts can be heated, oxidized black, galvanized, hot bucket galvanized, black zinc, copper plating, nickel plating, chromium plating, Dakota and other treatments to meet various corrosion resistance or strength requirements.

Please state this requirement in your inquiry.



Products name Automotive Fasteners ISO7044 Class10 Plain Finish Prevailing Torque Type All Metal Hex Flange Nut
Standard: DIN,ASTM/ANSI JIS EN ISO,AS,GB
Material Carbon Steel:Q235,#45,65Mn,#70;Stainless Steel:SS304, SS316,SS316L
Steel Grade: Class 4,Class 8,Class 10 and Class 12
Finishing Black Oxide,HDG(Hot Dip Galvanized),,Yellow Zinc Plated,Blue White Zinc Plated,Dacromet,PTFE
Related Products DIN933 Hex Bolts,DIN934 Hex Nuts,DIN125 Flat Washers
Application The flange makes the Cone Flange locknut ideal when assembling components that consist of thin materials, slots or non-precision oversize holes. Mating part must extend at least one thread past the flange nut top surface to assure locking element engagement. The flange will typically require more torque to produce a clamp load than non-flange nuts
Stock Products Flange nut in stock with Black Oxide,Zinc Plated,Yellow Zinc and HDG
Get Free Samples for standard fastener from Jiangyin XiangGu Hardware Products Co.,Ltd
Focus On Supplying High Quality Fasteners.



Drawings:



Prevailing Torque Type All-Metal Hexagon Nuts With Flange
ISO7044 & GB/T 6187.1-2016
ISO7044 Class 10 Car Nut Bolt Plain Finish Prevailing Torque Metal Hex Flange Weld Nut 0
d(mm) P(mm) dc(mm) e(mm) h(mm) s(mm)
max min min max min max
M5 0.8 11.8 8.79 5.7 6.2 7.78 8
M6 1 14.2 11.05 6.8 7.3 9.78 10
M8 1.25 17.9 14.38 8.74 9.4 12.73 13
M10 1.5 21.8 16.64 10.34 11.4 14.73 15
M12 1.75 26 20.03 12.57 13.8 17.73 18
M14 2 29.9 23.36 14.8 15.9 20.67 21
M16 2 34.5 26.75 17.2 18.3 23.67 24
M20 2.5 42.8 32.95 20.3 22.4 29.16 30



ISO7044 Class 10 Car Nut Bolt Plain Finish Prevailing Torque Metal Hex Flange Weld Nut 1ISO7044 Class 10 Car Nut Bolt Plain Finish Prevailing Torque Metal Hex Flange Weld Nut 2ISO7044 Class 10 Car Nut Bolt Plain Finish Prevailing Torque Metal Hex Flange Weld Nut 3



FAQ:
Q1. Can I have a sample order for Hex flange bolt?
A:Yes,we welcome sample order to test and check quality.

Q2. What about the lead time?
A: 3-5 days for Sample preparing ,8-10 working days for mass production


Q3. Do you have any MOQ limit for hex flange bolt order?
A: Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT for sample order,and it takes about 3-7days
Ship by Sea from Shanghai Port,and it takes 3-30days to arrive.

Q5. How to proceed an order for hex flange bolt?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
