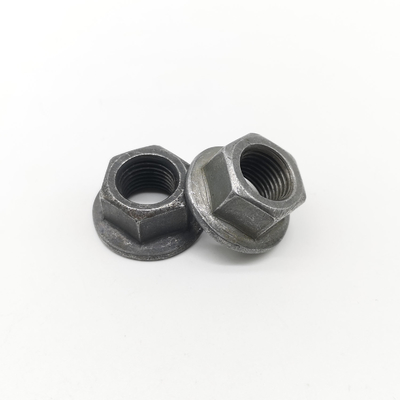

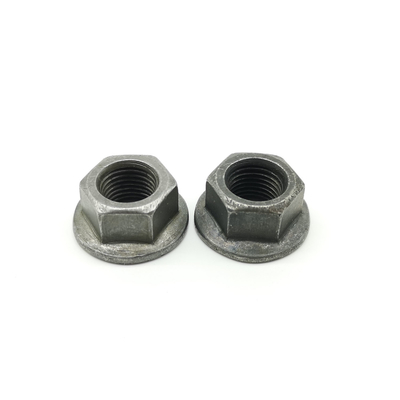

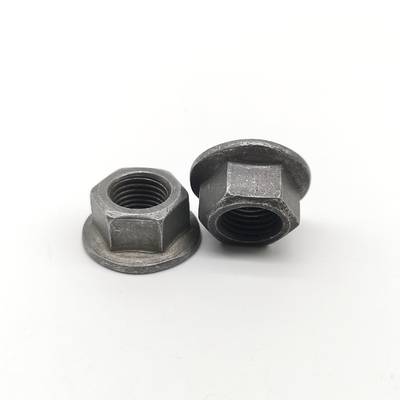

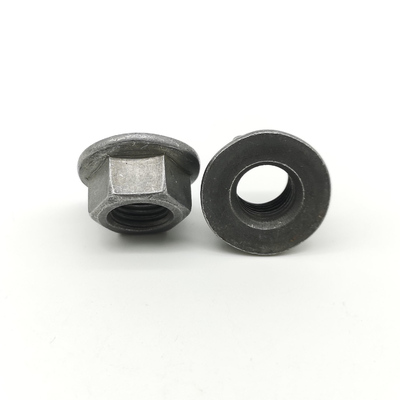

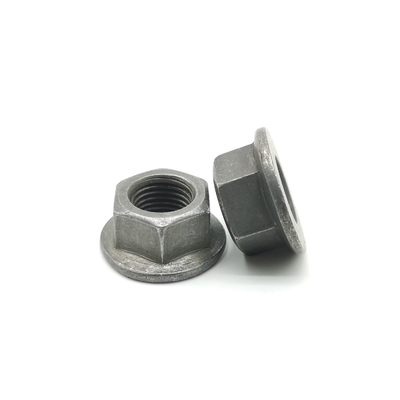

ISO 4161 Self Color Hex Flange Nut M10 Coarse Full Thread C45

  • ISO 4161 Self Color Hex Flange Nut M10 Coarse Full Thread C45
  • ISO 4161 Self Color Hex Flange Nut M10 Coarse Full Thread C45
  • ISO 4161 Self Color Hex Flange Nut M10 Coarse Full Thread C45
  • ISO 4161 Self Color Hex Flange Nut M10 Coarse Full Thread C45
  • ISO 4161 Self Color Hex Flange Nut M10 Coarse Full Thread C45
Place of Origin China
Brand Name XG
Certification ISO9001,EN10204 3.1Certificate
Model Number ISO4161
Minimum Order Quantity 100PCS
Price USD0.01-2/PCS
Packaging Details Bulk into plastic bag and carton box, and then Pallet.
Delivery Time 3-20work days
Payment Terms T/T
Supply Ability 100000PCS per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Standard ISO4161 Grade Class 10
Finish Plain And Oil Material C45
Thread Fit Coarse Thread Length Full Thread
Specification ISO898.2 Drive Type Allen Drive
Name Hex Flange Nuts
High Light

ISO 4161 xianggu

,

Self color hex flange nut xianggu

,

flange nut m10 xianggu
Leave a Message
Product Description

Description:

Automotive Fasteners ISO4161 Flange Nut Grade 10 Self-color Hexagon Nuts With Flange


Automotive Fasteners ISO4161 Flange Nut Grade 10 Self-color Hexagon Nuts With Flange Made In China.


Products name Automotive Fasteners ISO4161 Flange Nut Grade 10 Self-color Hexagon Nuts With Flange
Standard: DIN,ASTM/ANSI JIS EN ISO,AS,GB
Material Carbon Steel,Alloy Steel;Stainless Steel:SS304, SS316,SS316L
Steel Grade: 8.8,10.9,12.9,Grade2,5 and 8,Class A2-70,A4-70,A4-80
Finishing Black Oxide,HDG(Hot Dip Galvanized),Zinc Plated,Dacromet
Related Products Flange Bolts,Flat Washer,and Spring Washer
Applications Nuclear power,Wind tower,Automotive industry,Railway,Electronic,Construction industry.
Stock Products ISO4161 most of sizes are in stock.
Get Free Samples for standard fastener from Jiangyin XiangGu Hardware Products Co.,Ltd
Focus On Supplying High Quality Fasteners.


Drawings:



Hexagon Nuts With Flange
ISO4161 & GB/T 6177.1
ISO 4161 Self Color Hex Flange Nut M10 Coarse Full Thread C45 0
d(mm) P(mm) dc(mm) e(mm) k(mm) s(mm)
max min min max min max
M5 0.8 11.8 8.79 4.7 5 7.78 8
M6 1 14.2 11.05 5.7 6 9.78 10
M8 1.25 17.9 14.38 7.64 8 12.73 13
M10 1.5 21.8 16.64 9.64 10 14.73 15
M12 1.75 26 20.03 11.57 12 17.73 18
M14 2 29.9 23.36 13.3 14 20.67 21
M16 2 34.5 26.75 15.3 16 23.67 24
M20 2.5 42.8 32.95 18.7 20 29.16 30



ISO 4161 Self Color Hex Flange Nut M10 Coarse Full Thread C45 1ISO 4161 Self Color Hex Flange Nut M10 Coarse Full Thread C45 2ISO 4161 Self Color Hex Flange Nut M10 Coarse Full Thread C45 3



FAQ:
Q1. Can I have a sample order for Hex flange bolt?
A:Yes,we welcome sample order to test and check quality.

Q2. What about the lead time?
A: 3-5 days for Sample preparing ,8-10 working days for mass production


Q3. Do you have any MOQ limit for hex flange bolt order?
A: Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT for sample order,and it takes about 3-7days
Ship by Sea from Shanghai Port,and it takes 3-30days to arrive.

Q5. How to proceed an order for hex flange bolt?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
