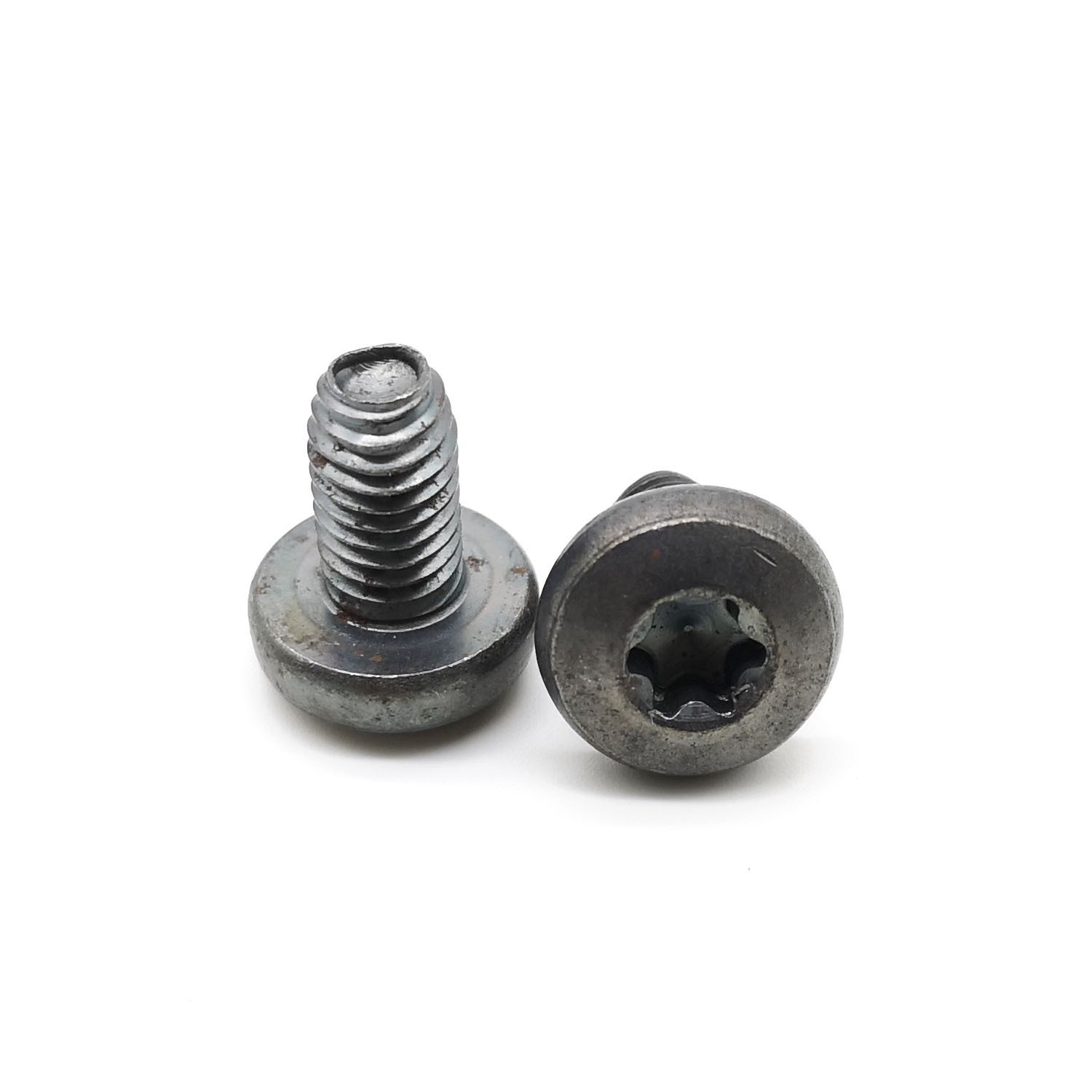

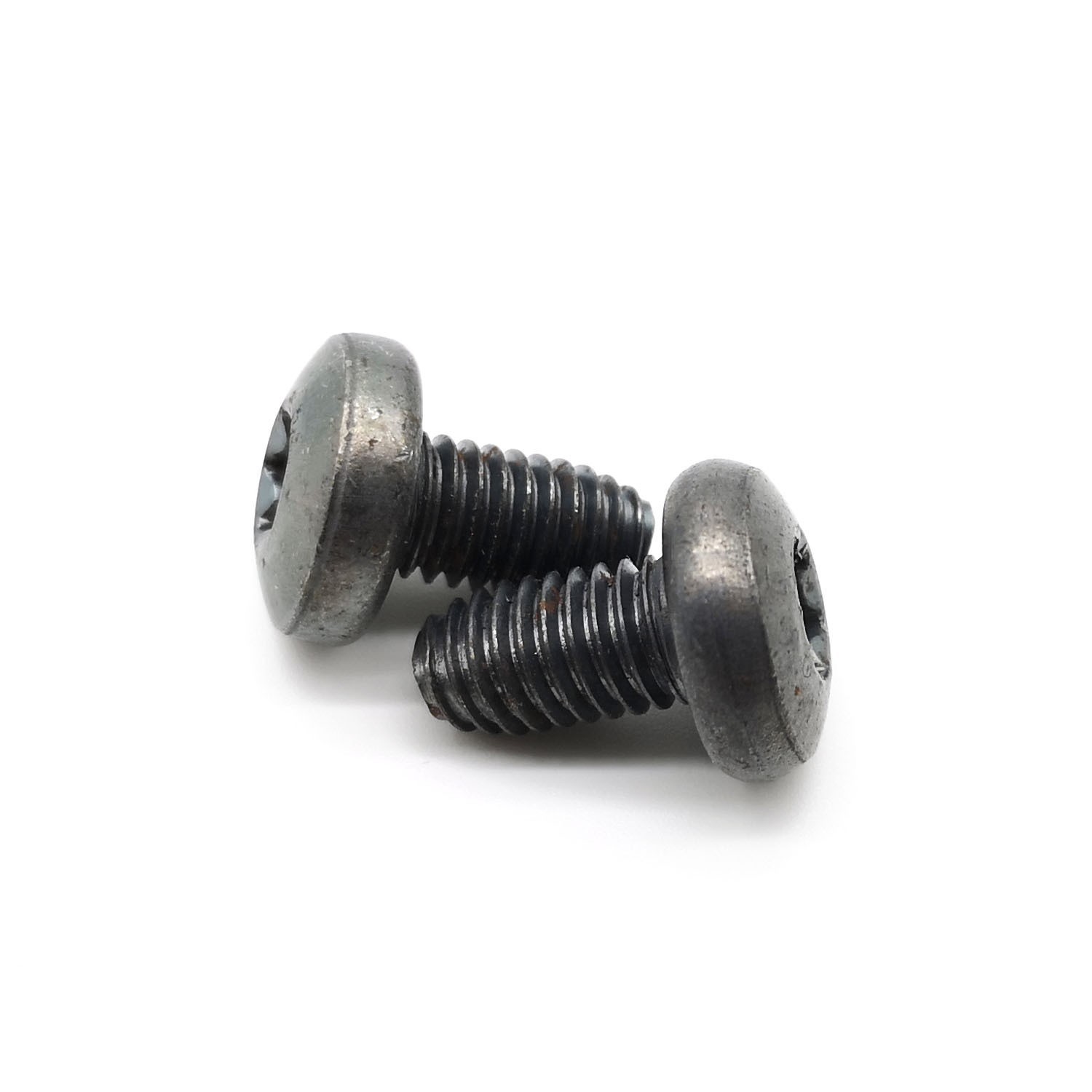

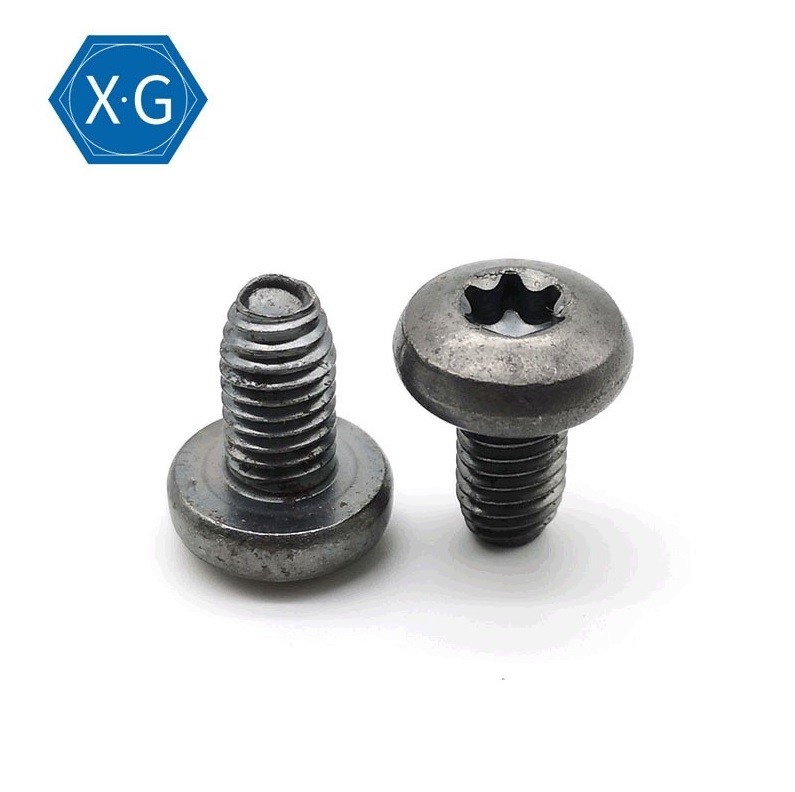

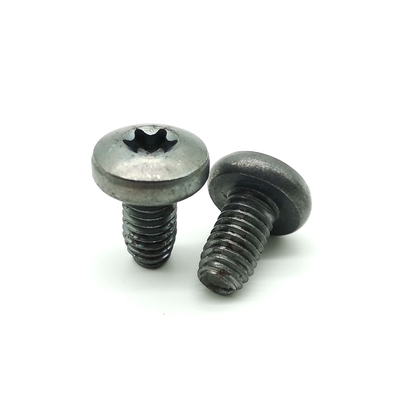

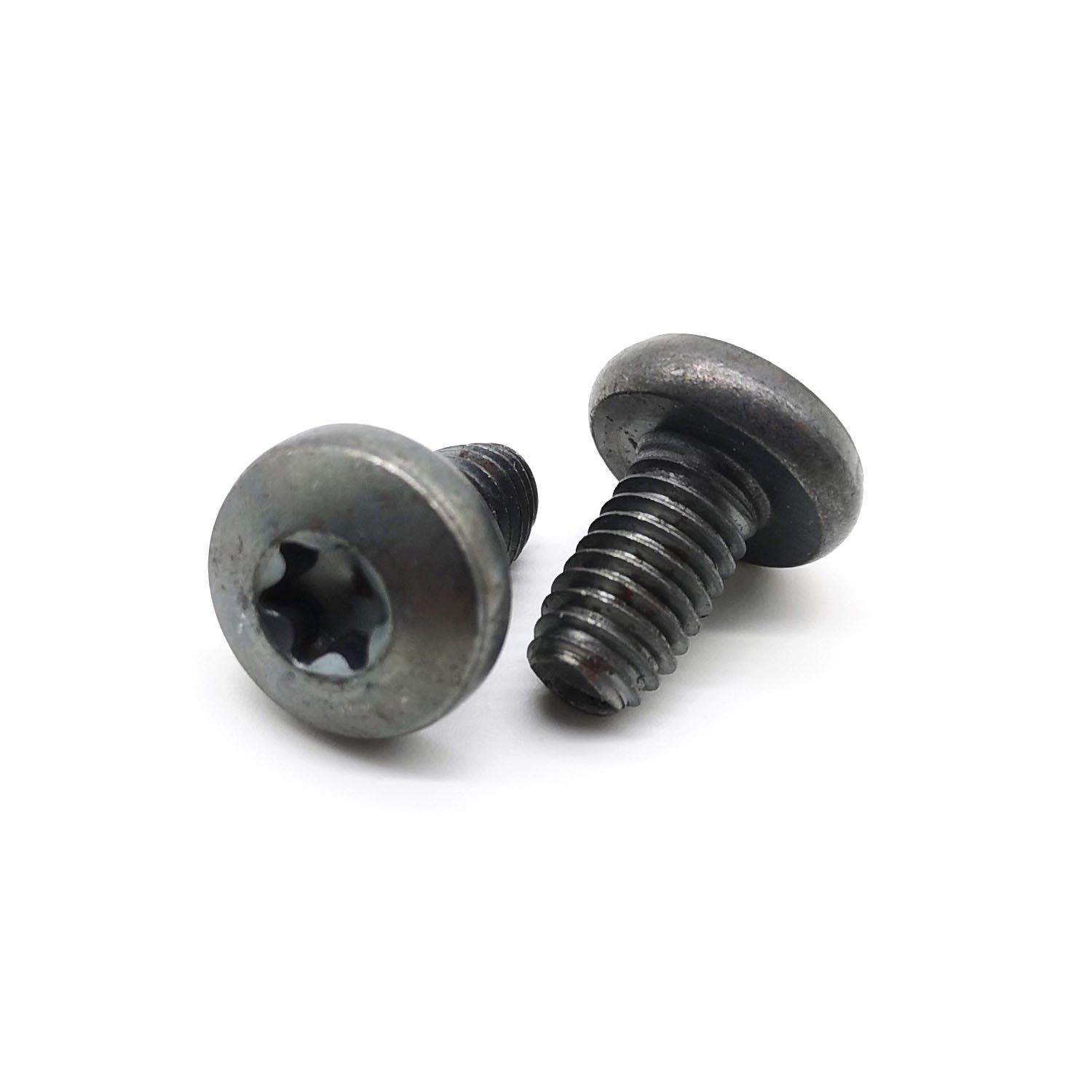

M8 Automotive Fastener DIN7500PE Triangular Torx Pan Head Thread Forming Screw
| Place of Origin | China |
|---|---|
| Brand Name | XG |
| Certification | ISO9001,EN10204 3.1Certificate |
| Model Number | DIN7500PE |
| Minimum Order Quantity | 100PCS |
| Price | USD0.01-2/PCS |
| Packaging Details | Bulk into plastic bag and carton box, and then Pallet. |
| Delivery Time | 3-20work days |
| Payment Terms | T/T |
| Supply Ability | 100000PCS per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Standard | DIN7500PE | Grade | Steel Case Hardened |
|---|---|---|---|
| Finish | Plain | Material | 10B21 |
| Thread Fit | Coarse Thread | Thread Length | Full Thread |
| Specification | ISO898.1 | Name | Torx Pan Head Forming Thread Screw |
| Head Type | Pan Head | Thread Type | Triangle Thread |
| Drive Type | Torx Drive | ||
| High Light | M8 Automotive Fastener xianggu,Automotive Fastener DIN7500PE xianggu,Triangular Torx Pan Head Thread Forming Screw xianggu |
||
Product Description
Description:
Automotive Fasteners M8 DIN7500PE Triangular Thread Torx Pan Head Screw Thread Forming Screw
Automotive Fasteners M8 DIN7500PE Triangular Thread Torx Pan Head Screw Thread Forming Screw Made In China.
| Products name | Automotive Fasteners M8 DIN7500PE Triangular Thread Torx Pan Head Screw Thread Forming Screw |
| Standard: | DIN,ASTM/ANSI JIS EN ISO,AS,GB |
| Material | Carbon Steel:Q235,#45,65Mn,#70;Stainless Steel:SS304, SS316,SS316L |
| Steel Grade: Class 4,Class 8,Class 10 and Class 12 | |
| Finishing | Black Oxide,HDG(Hot Dip Galvanized),,Yellow Zinc Plated,Blue White Zinc Plated,Dacromet,PTFE |
| Related Products | Wheel bolts,nuts and washers |
| Application | Cars and Trucks |
| Stock Products | Wheel Bolts in stock with Black Oxide,Zinc Plated,Yellow Zinc and HDG |
| Get Free Samples for standard fastener from Jiangyin XiangGu Hardware Products Co.,Ltd | |
| Focus On Supplying High Quality Fasteners. | |
Drawing:
| Hexalobular Socket Pan Head Thread Rolling Screws | ||||||||
| DIN 7500PE-2009 | ||||||||
 |
||||||||
| d(mm) | P(mm) | dk(mm) | k(mm) | t(mm) | 槽号 | |||
| min | max | min | max | min | max | |||
| M2 | 0.4 | 3.7 | 4 | 1.46 | 1.6 | 0.63 | 0.77 | T6 |
| M2.5 | 0.45 | 4.7 | 5 | 1.96 | 2.1 | 0.91 | 1.04 | T8 |
| M3 | 0.5 | 5.3 | 5.6 | 2.26 | 2.4 | 1.01 | 1.27 | T10 |
| M3.5 | 0.6 | 6.64 | 7 | 2.46 | 2.6 | 1.07 | 1.33 | T15 |
| M4 | 0.7 | 7.64 | 8 | 2.92 | 3.1 | 1.27 | 1.66 | T20 |
| M5 | 0.8 | 9.14 | 9.5 | 3.52 | 3.7 | 1.52 | 1.91 | T25 |
| M6 | 1 | 11.57 | 12 | 4.3 | 4.6 | 2.02 | 2.42 | T30 |
| M8 | 1.25 | 15.57 | 16 | 5.7 | 6 | 2.79 | 3.18 | T45 |
| M10 | 1.5 | 19.48 | 20 | 7.14 | 7.5 | 3.62 | 4.02 | T50 |
FAQ:
Q1. Can I have a sample order for Hex flange bolt?
A:Yes,we welcome sample order to test and check quality.
Q2. What about the lead time?
A: 3-5 days for Sample preparing ,8-10 working days for mass production
Q3. Do you have any MOQ limit for hex flange bolt order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT for sample order,and it takes about 3-7days
Ship by Sea from Shanghai Port,and it takes 3-30days to arrive.
Q5. How to proceed an order for hex flange bolt?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
