Grade 8 Din 6923 Flange Nuts Zinc Plated Carbon Steel Serrated Hex Flange Lock Nuts
| Place of Origin | China |
|---|---|
| Brand Name | XGFH |
| Certification | ISO9001 |
| Model Number | DIN6923 |
| Minimum Order Quantity | 100pcs |
| Price | 0.01-0.2usd/pc |
| Packaging Details | 20-25KG/Carton box and then pallet. |
| Delivery Time | 3-10 work days |
| Payment Terms | T/T, L/C |
| Supply Ability | 500000pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Hex Flange Nuts Serrated Face | Standard | DIN6923 |
|---|---|---|---|
| Material | Steel 35K | Grade | Class 8 |
| Finish | Blue White Zinc | Coating Thickness | 3-5μ |
| Thread | Coarse | Type | Serrated Flange Nut |
| System Of Measurement | Metric | Thread Direction | Right Thread |
| High Light | Grade 8 din 6923 flange nuts,din 6923 flange nuts Zinc Plated,Carbon Steel serrated hex flange lock nuts |
||
Product Description

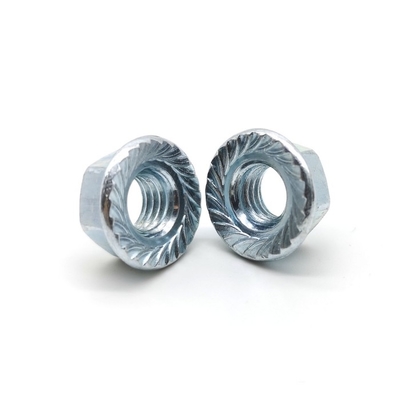

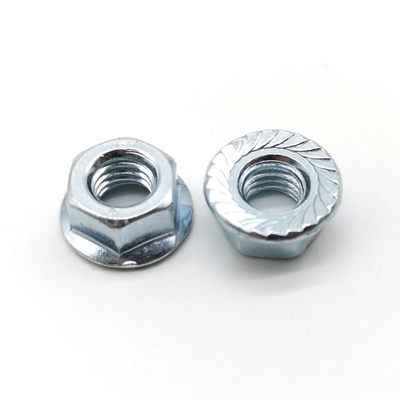

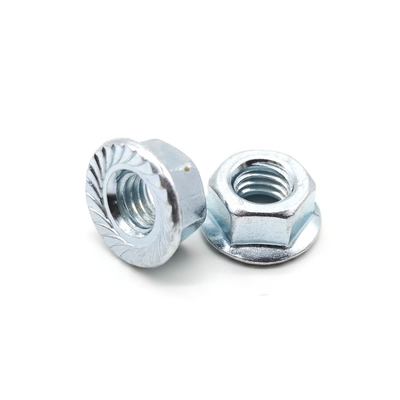

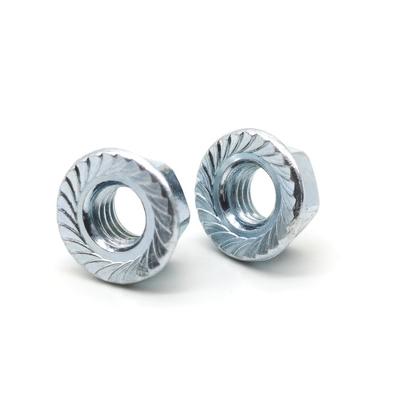

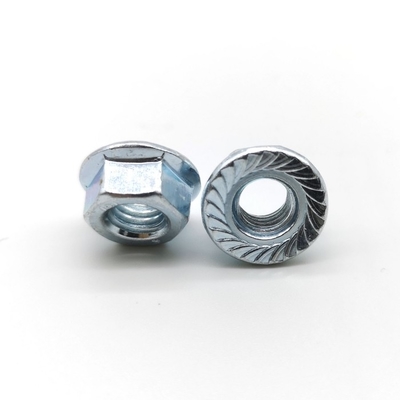

Hex Flange Nuts DIN6923 Grade8 Zinc Plated Carbon Steel Serrated Flange Nuts
Drawing:
| Hexagon nuts with flange | ||||||
| DIN 6923-1983 | ||||||
 |
||||||
| d(mm) | p(mm) | dc(mm) | m(mm) | s(mm) | ||
| max | min | max | min | max | ||
| M5 | 0.8 | 11.8 | 4.7 | 5 | 7.78 | 8 |
| M6 | 1 | 14.2 | 5.7 | 6 | 9.78 | 10 |
| M8 | 1/1.25 | 17.9 | 7.6 | 8 | 12.73 | 13 |
| M10 | 1/1.25/1.5 | 21.8 | 9.6 | 10 | 14.73 | 15 |
| M12 | 1.25/1.5/1.75 | 26 | 11.6 | 12 | 17.73 | 18 |
| M14 | 1.5/2 | 29.9 | 13.3 | 14 | 20.67 | 21 |
| M16 | 1.5/2 | 34.5 | 15.3 | 16 | 23.67 | 24 |
| M20 | 1.5/2.5 | 42.8 | 18.9 | 20 | 29.67 | 30 |
Features:
Metric Medium-Strength Steel Flange Nuts—Class 8
No need for a washer—these metric medium-strength steel nuts have a flange that distributes pressure across its surface the way a washer does. Skipping the washer saves assembly time.
Sometimes called collar nuts, the flange gives these nuts a wider profile than standard nuts, so they may not fit in tight spaces.
Made of medium-strength, Class 8 steel, they’re suitable for fastening most machinery and equipment.
All meet DIN 6923 and some meet ISO 4161 dimensional standards, which confirm their compatibility with other parts and tools. The two standards are functionally equivalent.
Unfinished steel nuts are best for dry environments, since moisture will cause them to rust. They are ready for painting and welding.
Zinc-plated steel nuts resist rust, extending their life
