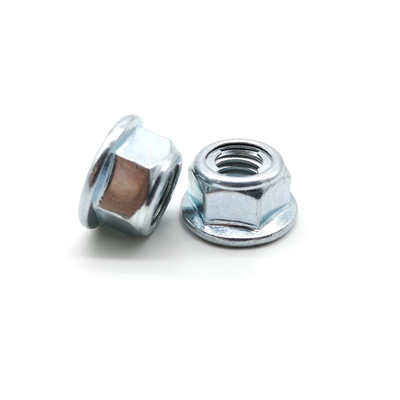

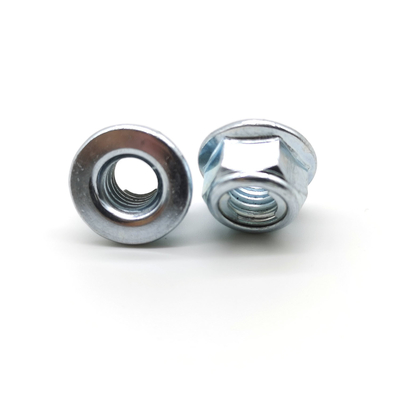

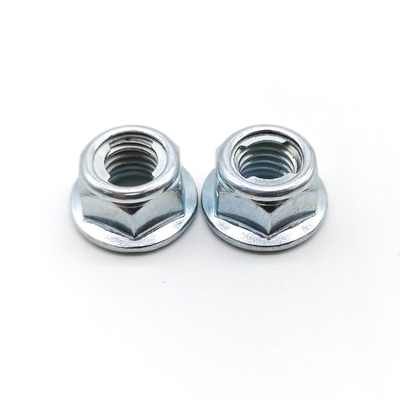

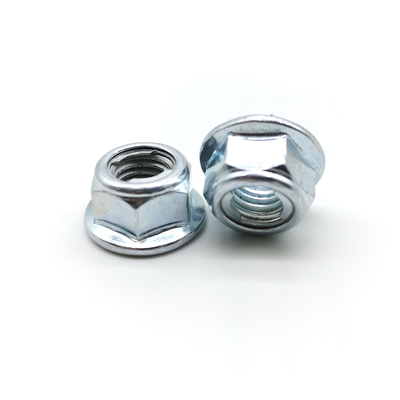

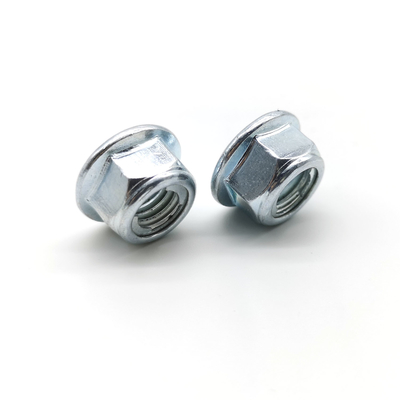

ISO7044 Low Strength Carbon Steel Flange Nuts Blue White Zinc M10x1 25 Flange Lock Nut

  • ISO7044 Low Strength Carbon Steel Flange Nuts Blue White Zinc M10x1 25 Flange Lock Nut
  • ISO7044 Low Strength Carbon Steel Flange Nuts Blue White Zinc M10x1 25 Flange Lock Nut
  • ISO7044 Low Strength Carbon Steel Flange Nuts Blue White Zinc M10x1 25 Flange Lock Nut
  • ISO7044 Low Strength Carbon Steel Flange Nuts Blue White Zinc M10x1 25 Flange Lock Nut
  • ISO7044 Low Strength Carbon Steel Flange Nuts Blue White Zinc M10x1 25 Flange Lock Nut
Place of Origin China
Brand Name XGFH
Certification ISO9001,EN10204 3.1Certificate
Model Number ISO7044
Minimum Order Quantity 100pcs
Price 0.01-0.2usd/pc
Packaging Details 20-25KG/Carton box and then pallet.
Delivery Time 3-10 work days
Payment Terms T/T, L/C
Supply Ability 500000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Hex Flange Lock Nuts Standard ISO7044
Material Q235 Grade Class 4
Finish Blue White Zinc Coating Thickness 3-5μ
Thread Coarse Type NON-Serrated Flange Nut
System Of Measurement Metric Thread Direction Right Thread
Lock Type Top Metal Insert
High Light

ISO7044 Carbon Steel Flange Nuts

,

flange nylon lock nut Blue White Zinc

,

M10x1 25 Flange Lock Nut
Leave a Message
Product Description

Product Description:



ISO7044 Low Strength Steel Blue White Zinc All Metal Insert Lock Flange Nuts



ISO7044 Low Strength Steel Blue White Zinc Metal Insert Lock Flange Nuts Made In China.

Grip metric bolts more securely than nylon-insert flange locknuts.

Large base requires a greater amount of torque to loosen and will cover an oversized or poorly aligned hole.

We offer low carbon steel, medium carbon steel, alloy steel, stainless steel and brass, aluminum alloy Washers.

Flange Lock Nuts can be heated, oxidized black, galvanized, hot bucket galvanized, black zinc, copper plating, nickel plating, chromium plating, Dakota and other treatments to meet various corrosion resistance or strength requirements.

Please state this requirement in your inquiry.



Products name ISO7044 Low Strength Steel Blue White Zinc Metal Insert Lock Flange Nuts
Standard: DIN,ASTM/ANSI JIS EN ISO,AS,GB
Material Carbon Steel:Q235,#45,65Mn,#70;Stainless Steel:SS304, SS316,SS316L
Steel Grade: Class 4,Class 8,Class 10 and Class 12
Finishing Black Oxide,HDG(Hot Dip Galvanized),,Yellow Zinc Plated,Blue White Zinc Plated,Dacromet,PTFE
Related Products DIN933 Hex Bolts,DIN934 Hex Nuts,DIN125 Flat Washers
Application The flange makes the Cone Flange locknut ideal when assembling components that consist of thin materials, slots or non-precision oversize holes. Mating part must extend at least one thread past the flange nut top surface to assure locking element engagement. The flange will typically require more torque to produce a clamp load than non-flange nuts
Stock Products Flange nut in stock with Black Oxide,Zinc Plated,Yellow Zinc and HDG
Get Free Samples for standard fastener from Jiangyin XiangGu Hardware Products Co.,Ltd
Focus On Supplying High Quality Fasteners.



Product Drawing:




Prevailing Torque Type All-Metal Hexagon Nuts With Flange
ISO7044 & GB/T 6187.1-2016
ISO7044 Low Strength Carbon Steel Flange Nuts Blue White Zinc M10x1 25 Flange Lock Nut 0
d(mm) P(mm) dc(mm) e(mm) h(mm) s(mm)
max min min max min max
M5 0.8 11.8 8.79 5.7 6.2 7.78 8
M6 1 14.2 11.05 6.8 7.3 9.78 10
M8 1.25 17.9 14.38 8.74 9.4 12.73 13
M10 1.5 21.8 16.64 10.34 11.4 14.73 15
M12 1.75 26 20.03 12.57 13.8 17.73 18
M14 2 29.9 23.36 14.8 15.9 20.67 21
M16 2 34.5 26.75 17.2 18.3 23.67 24
M20 2.5 42.8 32.95 20.3 22.4 29.16 30






ISO7044 Low Strength Carbon Steel Flange Nuts Blue White Zinc M10x1 25 Flange Lock Nut 1ISO7044 Low Strength Carbon Steel Flange Nuts Blue White Zinc M10x1 25 Flange Lock Nut 2

ISO7044 Low Strength Carbon Steel Flange Nuts Blue White Zinc M10x1 25 Flange Lock Nut 3




FAQ

Q: Are you trading company or manufacturer ?

A: We are factory and OEM are available.

Q: How long is your delivery time?

A: Generally it is 2-5 days if the goods are in stock,or it is 15-30 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: 30% T/T in advance ,balance before shipment or L/C.
If you have another question, please feel free to contact us.
