ISO7043 Hex Flange Lock Nut Zinc Plated Steel Nylon Self Locking Flange Nut
| Place of Origin | China |
|---|---|
| Brand Name | XGFH |
| Certification | ISO9001,EN10204 3.1Certificate |
| Model Number | ISO7043 |
| Minimum Order Quantity | 100pcs |
| Price | 0.01-0.2usd/pc |
| Packaging Details | 20-25KG/Carton box and then pallet. |
| Delivery Time | 3-10 work days |
| Payment Terms | T/T, L/C |
| Supply Ability | 500000pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Hex Flange Nylon Insert Lock Nuts | Standard | ISO7043 |
|---|---|---|---|
| Material | 35K | Grade | Class 8 |
| Finish | Zinc Plated | Thread | Coarse |
| Type | Flange Nut | System Of Measurement | Metric |
| Thread Direction | Right Thread | Lock Type | Nylon Insert |
| High Light | ISO7043 Hex Flange Lock Nut,Hex Flange Lock Nut Zinc Plated,Steel Nylon Self Locking Flange Nut |
||
Product Description
Product Description:

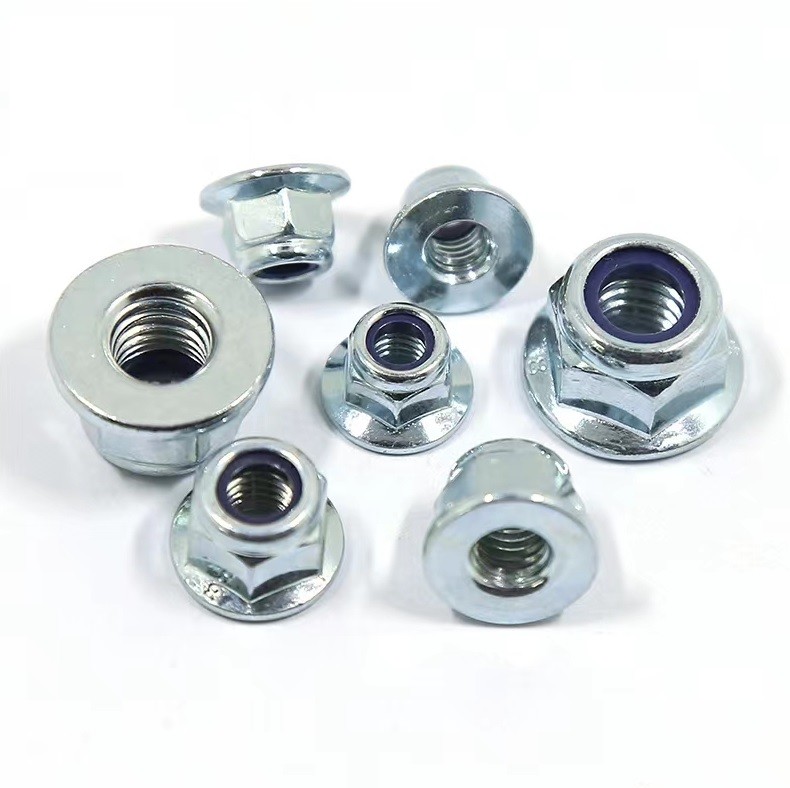

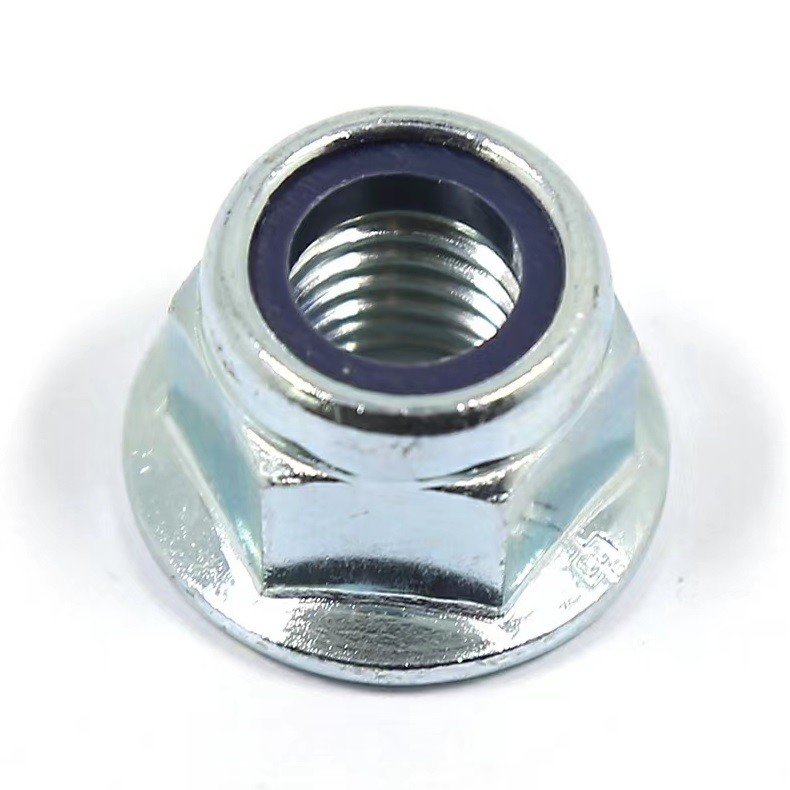

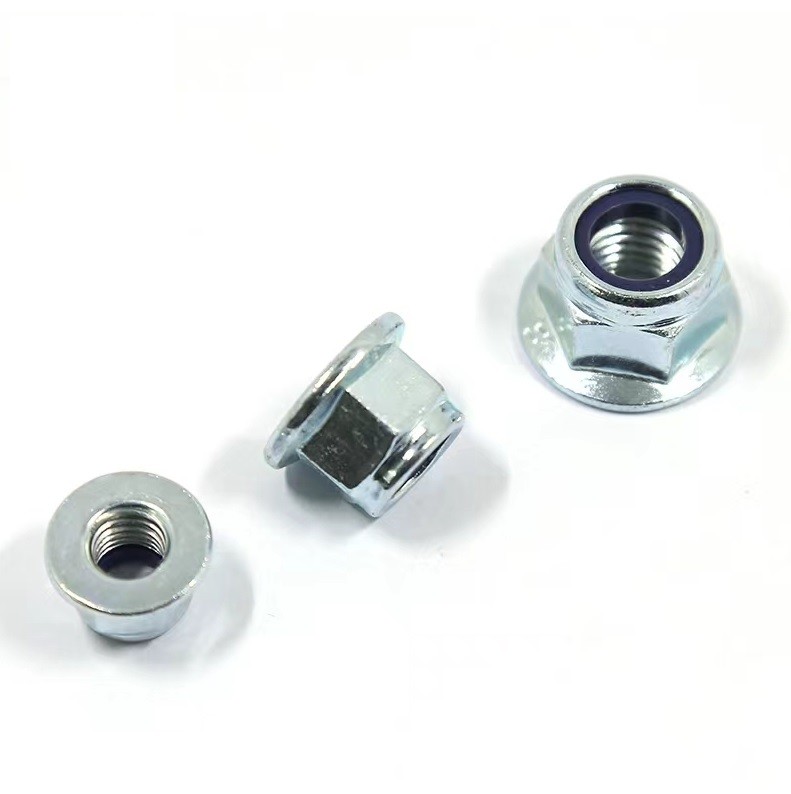

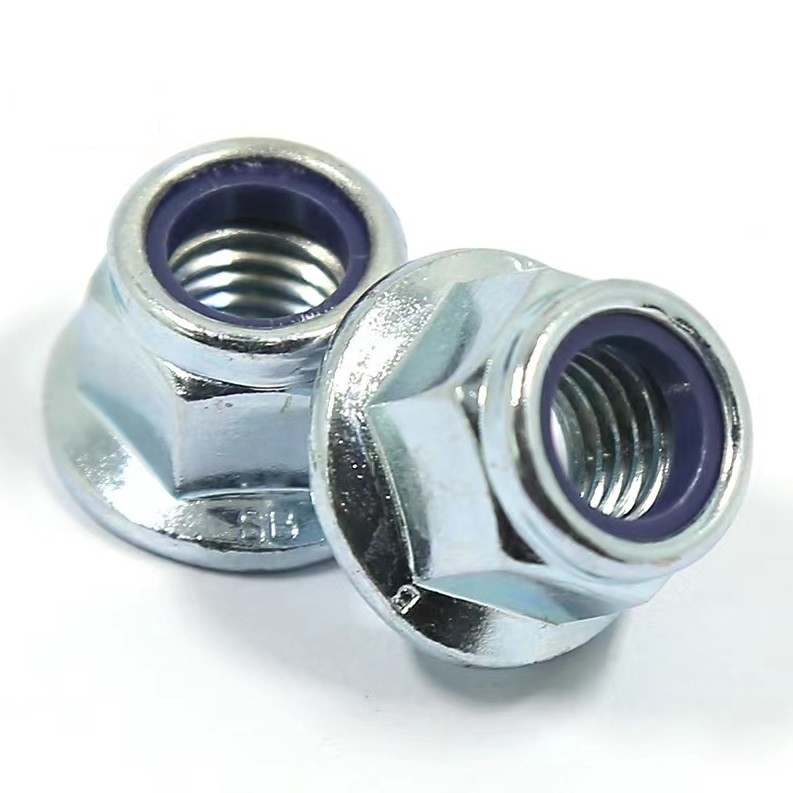

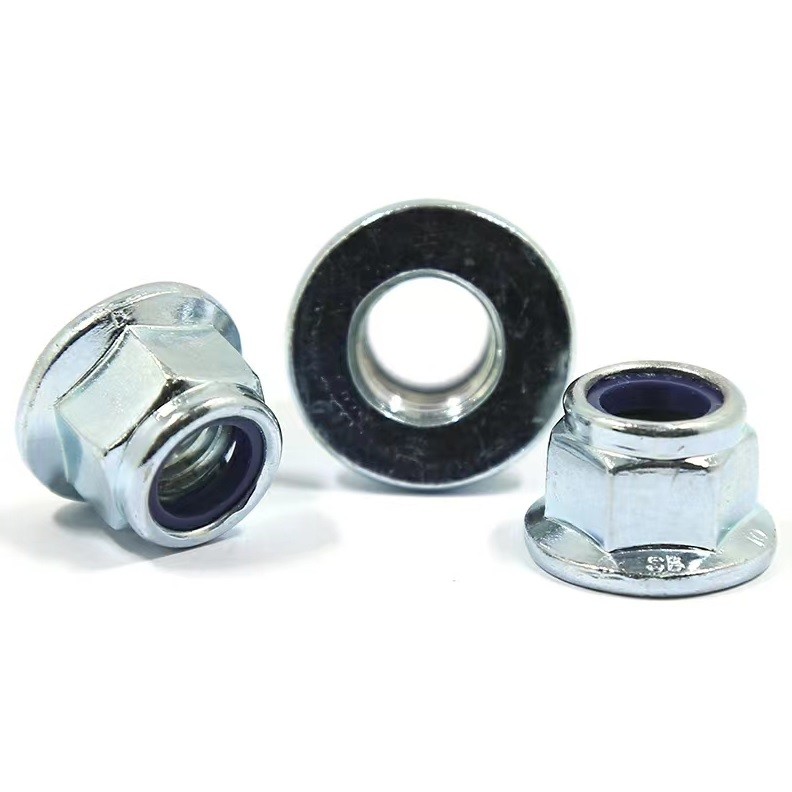

ISO7043 Zinc Plated Nylon Insert Flange Nut Hexagon Flange Lock Nuts
ISO7043 Zinc Plated Nylon Insert Flange Nut Hexagon Flange Lock Nuts Made In China.
The metric Nylon Insert Flange is a hex drive nut and washer combination.
This product combines the best attributes of both common hex nylon insert and flange type locknuts and requires sufficient thickness to accommodate wrenching height and nylon collar height.It’s common to find product with blue nylon rings,designating the part as metric.
We offer low carbon steel, medium carbon steel, alloy steel, stainless steel and brass, aluminum alloy Washers.
Flange nuts can be heated, oxidized black, galvanized, hot bucket galvanized, black zinc, copper plating, nickel plating, chromium plating, Dakota and other treatments to meet various corrosion resistance or strength requirements.
Please state this requirement in your inquiry.
| Products name | ISO7043 Zinc Plated Nylon Insert Flange Nut Hexagon Flange Lock Nuts |
| Standard: | DIN,ASTM/ANSI JIS EN ISO,AS,GB |
| Material | Carbon Steel:Q235,#45,65Mn,#70;Stainless Steel:SS304, SS316,SS316L |
| Steel Grade: Class 4,Class 8,Class 10 and Class 12 | |
| Finishing | Black Oxide,HDG(Hot Dip Galvanized),,Yellow Zinc Plated,Blue White Zinc Plated,Dacromet,PTFE |
| Related Products | ISO4017 Hex Bolts,ISO4032 Hex Nuts,ISO7089 Flat Washers |
| Application |
The flange makes the Nylon insert flange lock nut ideal when assembling components that consist of thin materials,slots or non-precision oversize holes. Mating part must extend at least one thread past the flange nut top surface to assure locking element engagement.The flange will typically require more torque to produce a clamp load than non-flange nuts. |
| Stock Products | Flange Lock nut in stock with Black Oxide,Zinc Plated,Yellow Zinc. |
| Get Free Samples for standard fastener from Jiangyin XiangGu Hardware Products Co.,Ltd | |
| Focus On Supplying High Quality Fasteners. | |
Product Drawing:
| Hexagon Flange Nut Nylon Insert | |||||||
| ISO 7043 & GB 6183.1 | |||||||
 |
|||||||
| d | p | dc | h | m | s | ||
| max | min | max | min | min | max | ||
| M5 | 0.8 | 11.8 | 6.52 | 7.1 | 4.7 | 7.78 | 8 |
| M6 | 1 | 14.2 | 8.52 | 9.1 | 5.7 | 9.78 | 10 |
| M8 | 1/1.25 | 17.9 | 10.4 | 11.1 | 7.64 | 12.73 | 13 |
| M10 | 1/1.25/1.5 | 21.8 | 12.8 | 13.5 | 9.64 | 14.73 | 15 |
| M12 | 1.25/1.5/1.75 | 26 | 15.4 | 16.1 | 11.57 | 17.73 | 18 |
| M14 | 1.5/2 | 29.9 | 16.9 | 18.2 | 13.3 | 20.67 | 21 |
| M16 | 1.5/2 | 34.5 | 19 | 20.3 | 15.3 | 23.67 | 24 |
| M20 | 1.5/2.5 | 42.8 | 22.7 | 24.8 | 18.7 | 29.16 | 30 |
