ISO4161 Metric Grade 8 Serrated Hex Flange Lock Nuts Geomet Steel
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xName | Hex Flange Lock Nuts | Standard | ISO4161 |
---|---|---|---|
Material | Steel 35K | Grade | Class 8 |
Finish | Geomet | Coating Thickness | 8-15μ |
Thread | Coarse | Type | Serrated Flange Nut |
System Of Measurement | Metric | Thread Direction | Right Thread |
Salt Spry Test | 1000hours | ||
High Light | ISO4161 serrated hex flange lock nuts,Grade 8 serrated hex flange lock nuts,serrated hex flange lock nuts Geomet Steel |
Product Description:

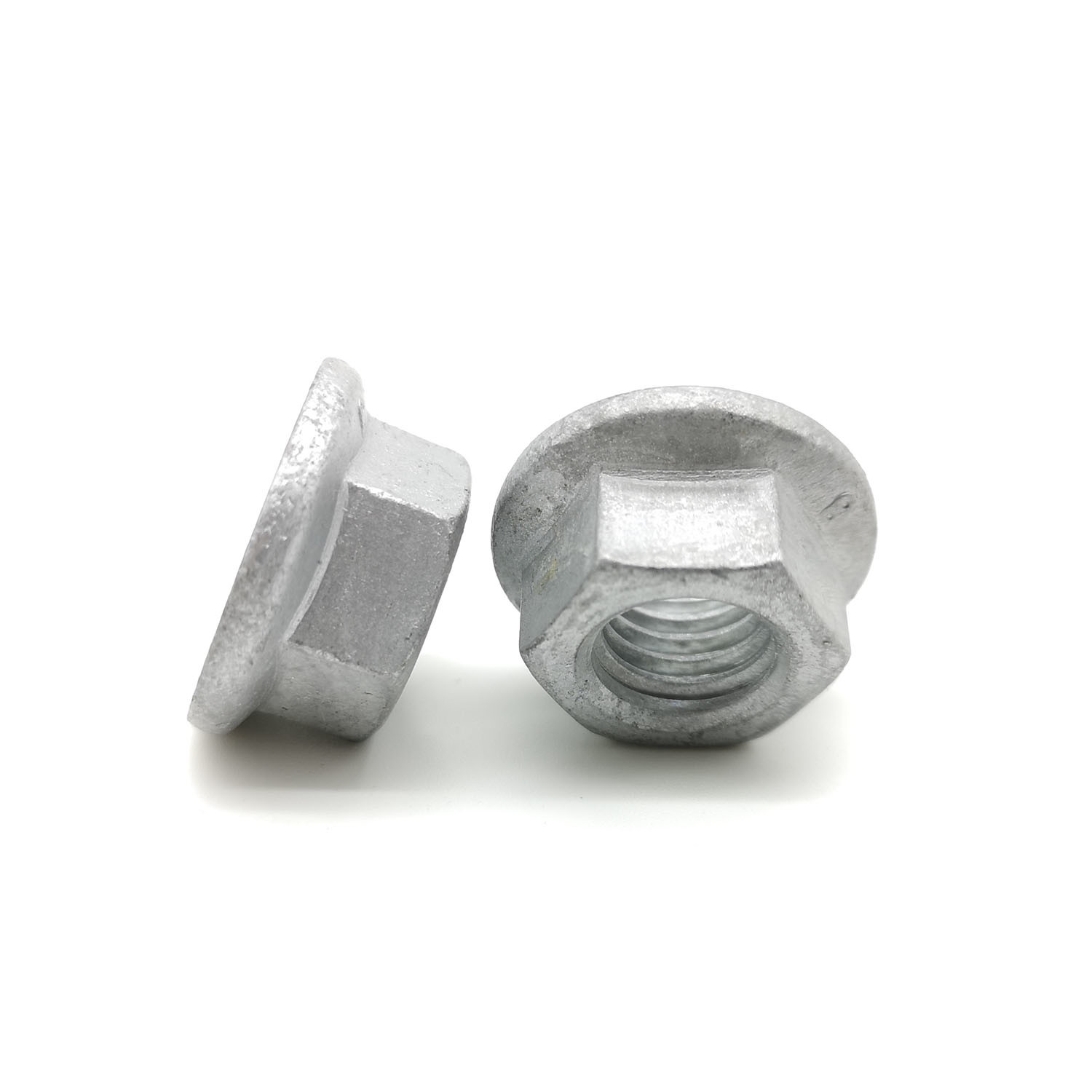

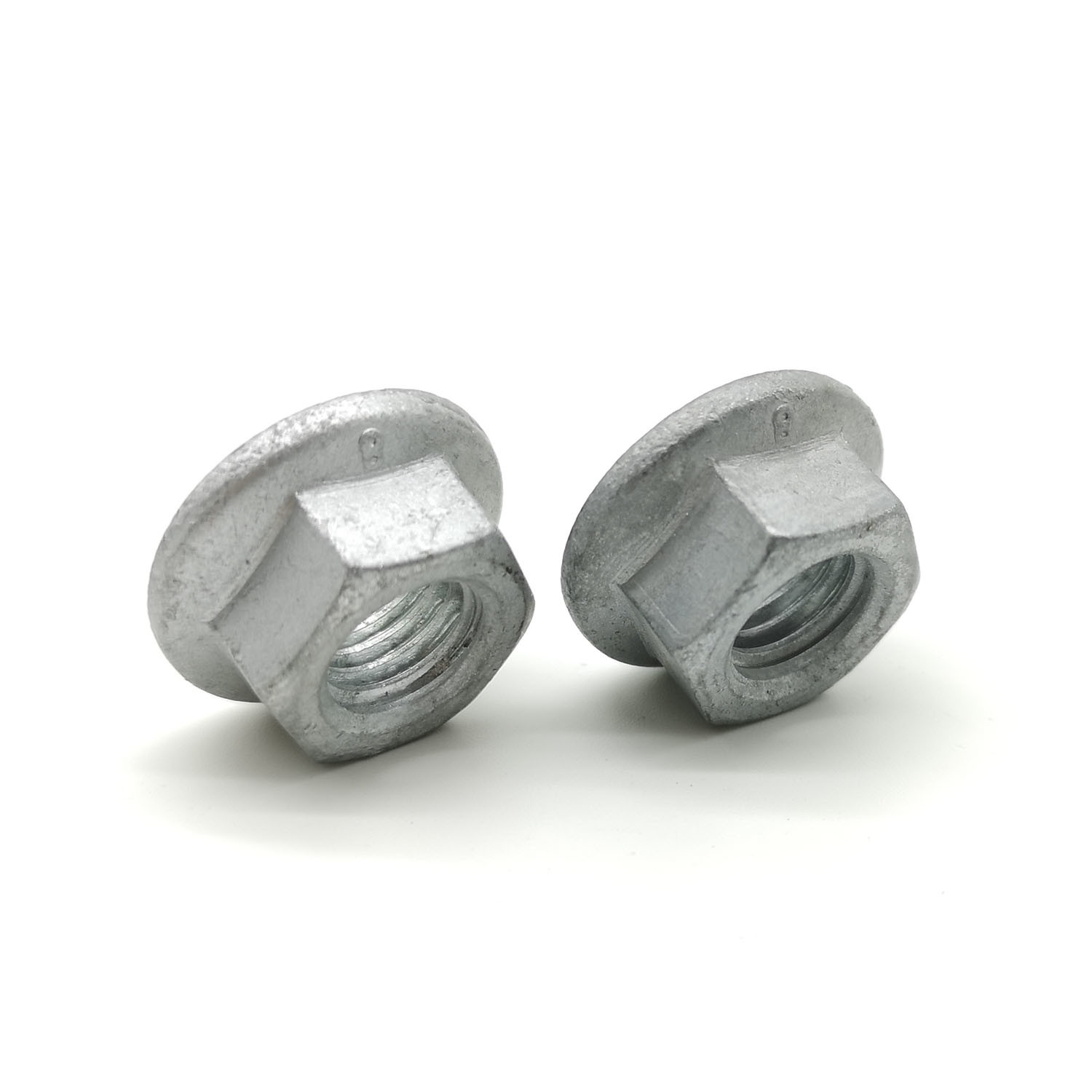

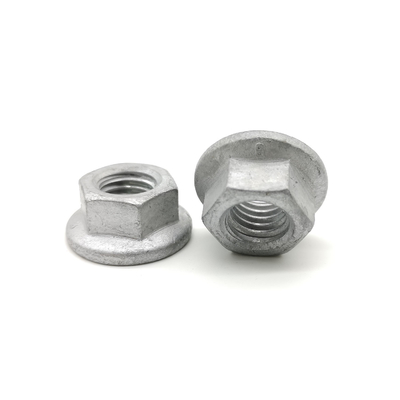

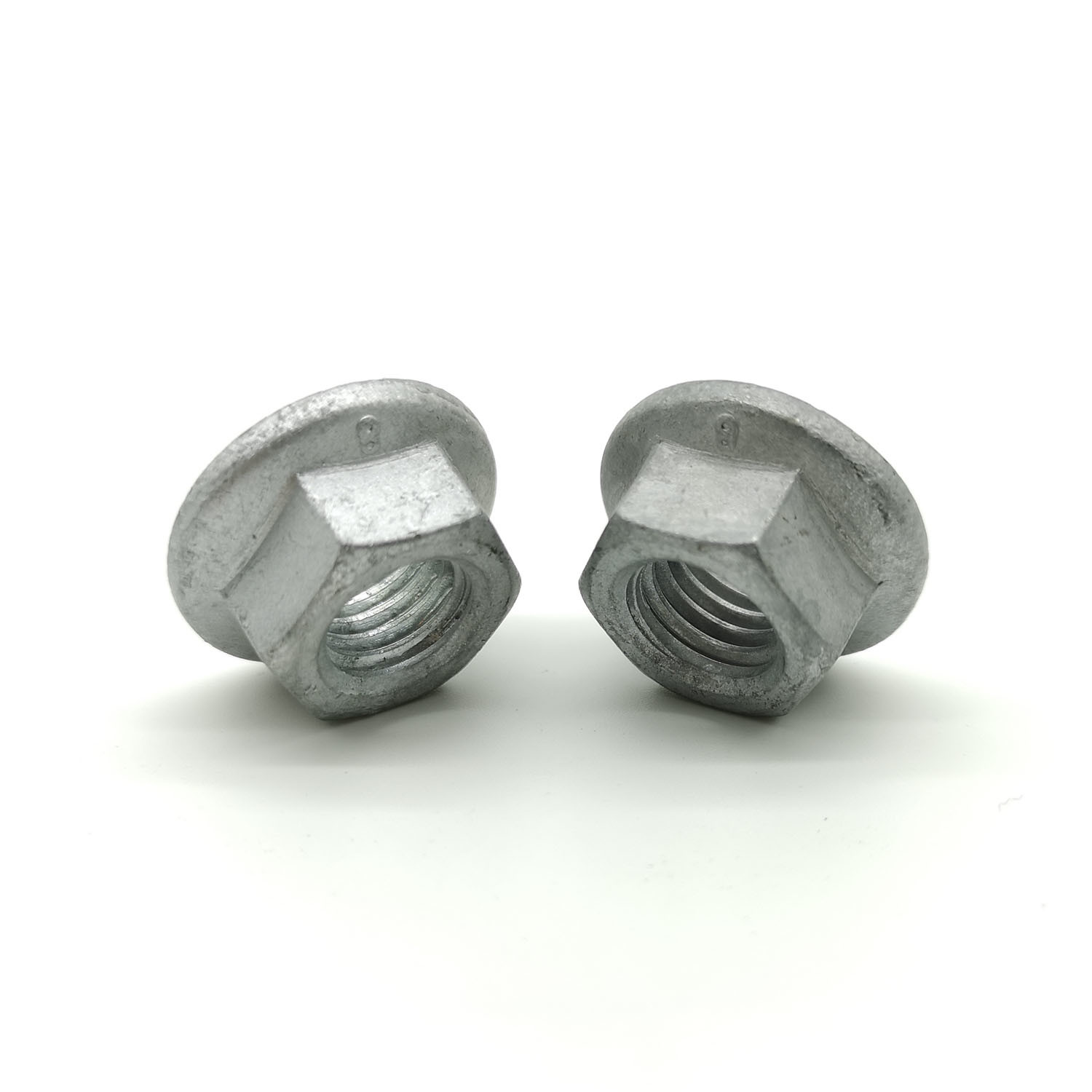

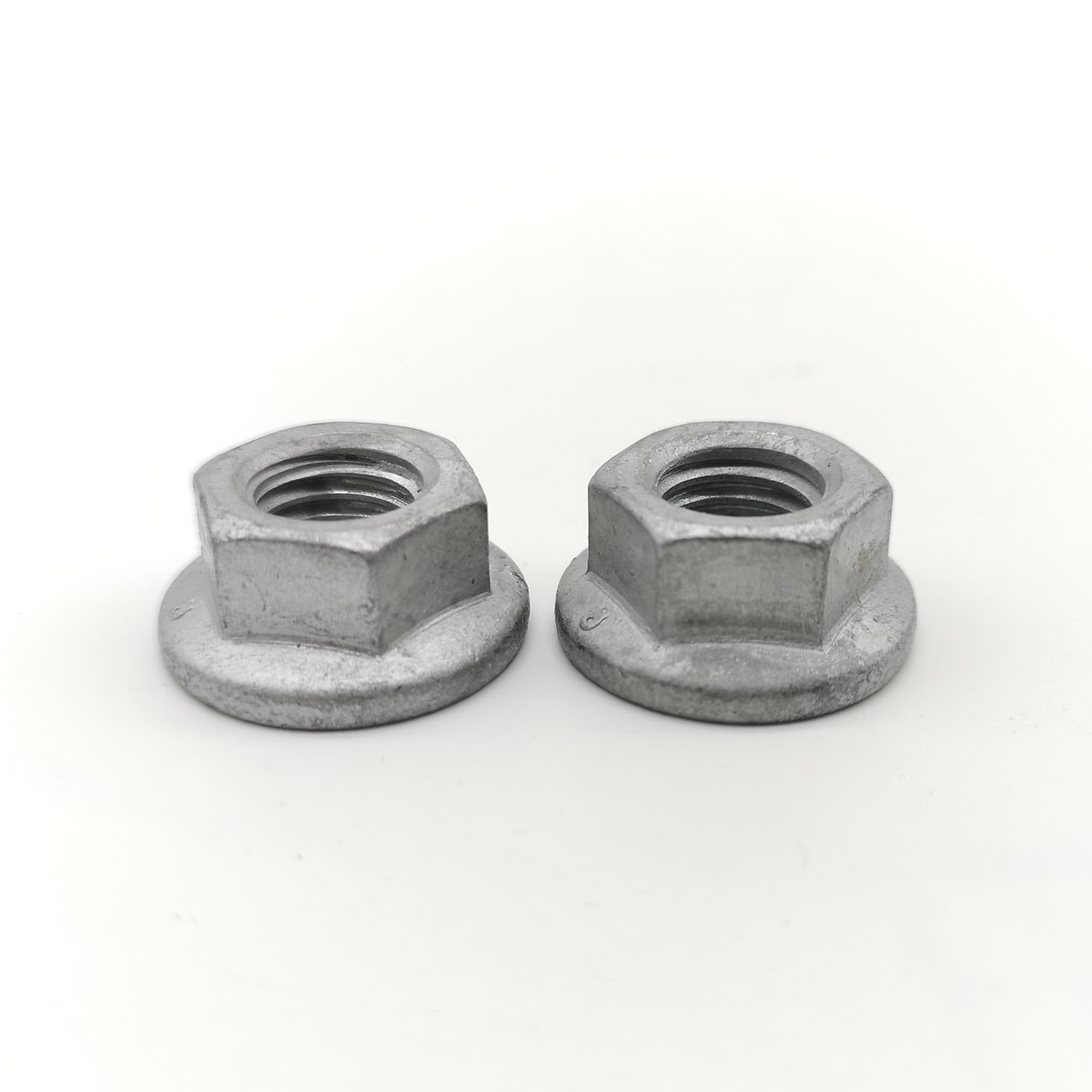

ISO4161 Geomet Finish Steel Grade 8 Serrated Flange LockNuts
ISO4161 Geomet Finish Steel Grade 8 Serrated Flange LockNuts Made In China.
Serrated hex flange nut have enlarged circular base distributes heavy pressures equally in order to assure a secure hold.
Large base requires a greater amount of torque to loosen and will cover an oversized or poorly aligned hole.
We offer low carbon steel, medium carbon steel, alloy steel, stainless steel and brass, aluminum alloy Washers.
Flange nuts can be heated, oxidized black, galvanized, hot bucket galvanized, black zinc, copper plating, nickel plating, chromium plating, Dakota and other treatments to meet various corrosion resistance or strength requirements.
Please state this requirement in your inquiry.
Products name | ISO4161 Geomet Finish Steel Grade 8 Serrated Flange LockNuts |
Standard: | DIN,ASTM/ANSI JIS EN ISO,AS,GB |
Material | Carbon Steel:Q235,#45,65Mn,#70;Stainless Steel:SS304, SS316,SS316L |
Steel Grade: Class 4,Class 8,Class 10 and Class 12 | |
Finishing | Black Oxide,HDG(Hot Dip Galvanized),,Yellow Zinc Plated,Blue White Zinc Plated,Dacromet,PTFE |
Related Products | DIN933 Hex Bolts,DIN934 Hex Nuts,DIN125 Flat Washers |
Application |
Flange nuts have a washer-like base to distribute pressure over a greater surface area and ensure the fastener stay tight. They are commonly used in manufacturing assembly lines where operations are speeded by using a single fastener instead of a nut and washer. |
Stock Products | Flange nut in stock with Black Oxide,Zinc Plated,Yellow Zinc and HDG |
Get Free Samples for standard fastener from Jiangyin XiangGu Hardware Products Co.,Ltd | |
Focus On Supplying High Quality Fasteners. |
Drawing:
Hexagon Nuts With Flange | |||||||
ISO4161 & GB/T 6177.1 | |||||||
d(mm) | P(mm) | dc(mm) | e(mm) | k(mm) | s(mm) | ||
max | min | min | max | min | max | ||
M5 | 0.8 | 11.8 | 8.79 | 4.7 | 5 | 7.78 | 8 |
M6 | 1 | 14.2 | 11.05 | 5.7 | 6 | 9.78 | 10 |
M8 | 1.25 | 17.9 | 14.38 | 7.64 | 8 | 12.73 | 13 |
M10 | 1.5 | 21.8 | 16.64 | 9.64 | 10 | 14.73 | 15 |
M12 | 1.75 | 26 | 20.03 | 11.57 | 12 | 17.73 | 18 |
M14 | 2 | 29.9 | 23.36 | 13.3 | 14 | 20.67 | 21 |
M16 | 2 | 34.5 | 26.75 | 15.3 | 16 | 23.67 | 24 |
M20 | 2.5 | 42.8 | 32.95 | 18.7 | 20 | 29.16 | 30 |
Features:
Metric Medium-Strength Steel Flange Nuts—Class 8
No need for a washer—these metric medium-strength steel nuts have a flange that distributes pressure across its surface the way a washer does. Skipping the washer saves assembly time.
Sometimes called collar nuts, the flange gives these nuts a wider profile than standard nuts, so they may not fit in tight spaces.
Made of medium-strength, Class 8 steel, they’re suitable for fastening most machinery and equipment.
All meet DIN 6923 and some meet ISO 4161 dimensional standards, which confirm their compatibility with other parts and tools. The two standards are functionally equivalent.
Unfinished steel nuts are best for dry environments, since moisture will cause them to rust. They are ready for painting and welding.
Zinc-plated steel nuts resist rust, extending their life
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory and OEM are available.
Q: How long is your delivery time?
A: Generally it is 2-5 days if the goods are in stock,or it is 15-30 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: 30% T/T in advance ,balance before shipment or L/C.
If you have another question, please feel free to contact us.
