M8M10M12 DIN6923 SS Carbon Steel Flange Nuts A4.80 Serrated Hex Flange Lock Nuts
| Place of Origin | China |
|---|---|
| Brand Name | XGFH |
| Certification | ISO9001,EN10204 3.1Certificate |
| Model Number | DIN6923 |
| Minimum Order Quantity | 100pcs |
| Price | 0.01-0.2usd/pc |
| Packaging Details | 20-25KG/Carton box and then pallet. |
| Delivery Time | 3-10 work days |
| Payment Terms | T/T, L/C |
| Supply Ability | 500000pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Hex Flange Nuts Serrated Face | Standard | DIN6923 |
|---|---|---|---|
| Material | Stainless Steel 316L | Grade | Class A4-80 |
| Finish | Passivate | Thread | Coarse |
| Type | Serrated Flange Nut | System Of Measurement | Metric |
| Thread Direction | Right Thread | ||
| High Light | DIN6923 SS Carbon Steel Flange Nuts,M8M10M12 serrated hex flange lock nuts,A4.80 serrated hex flange lock nuts |
||
Product Description
Product Description:

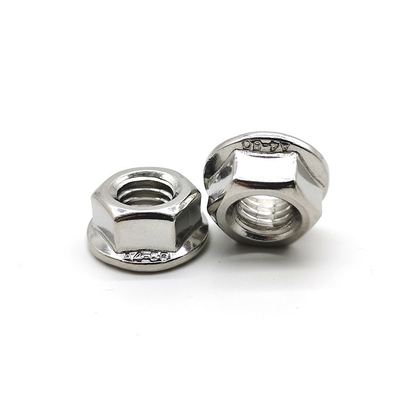

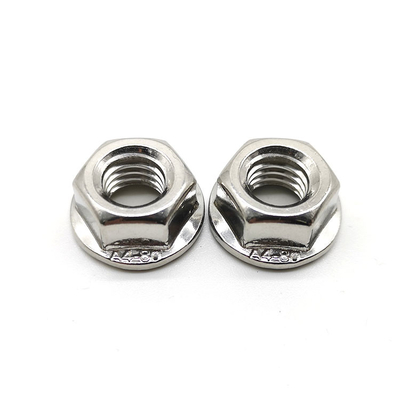

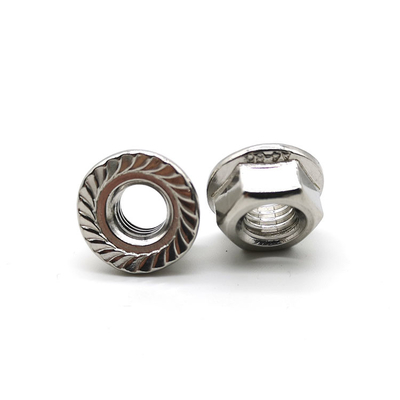

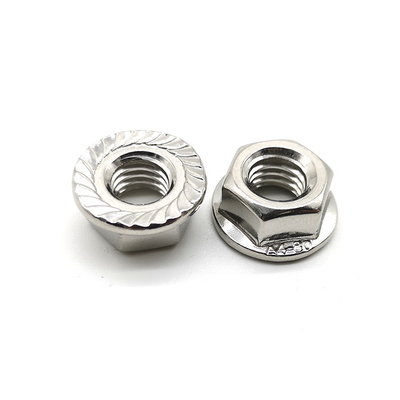

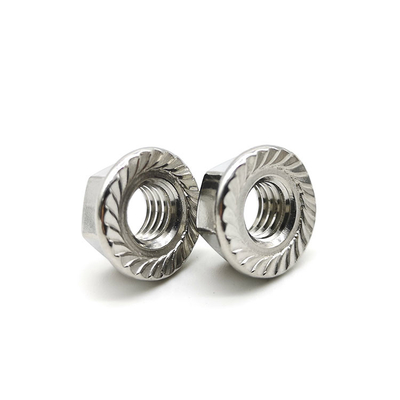

M8M10M12 DIN6923 Stainless Steel A4.80 Serrated Hex Flange Lock Nuts
M8M10M12 DIN6923 Stainless Steel A4.80 Serrated Hex Flange Lock Nuts Made In China.
Serrated hex flange nut have enlarged circular base distributes heavy pressures equally in order to assure a secure hold.
Large base requires a greater amount of torque to loosen and will cover an oversized or poorly aligned hole.
We offer low carbon steel, medium carbon steel, alloy steel, stainless steel and brass, aluminum alloy Washers.
Flange nuts can be heated, oxidized black, galvanized, hot bucket galvanized, black zinc, copper plating, nickel plating, chromium plating, Dakota and other treatments to meet various corrosion resistance or strength requirements.
Please state this requirement in your inquiry.
| Products name | M8M10M12 DIN6923 Stainless Steel A4.80 Serrated Hex Flange Nuts |
| Standard: | DIN,ASTM/ANSI JIS EN ISO,AS,GB |
| Material | Carbon Steel:Q235,#45,65Mn,#70;Stainless Steel:SS304, SS316,SS316L |
| Steel Grade: Class 4,Class 8,Class 10 and Class 12 | |
| Finishing | Black Oxide,HDG(Hot Dip Galvanized),,Yellow Zinc Plated,Blue White Zinc Plated,Dacromet,PTFE |
| Related Products | DIN933 Hex Bolts,DIN934 Hex Nuts,DIN125 Flat Washers |
| Application |
Flange nuts have a washer-like base to distribute pressure over a greater surface area and ensure the fastener stay tight. They are commonly used in manufacturing assembly lines where operations are speeded by using a single fastener instead of a nut and washer. |
| Stock Products | Flange nut in stock with Stainless Steel and Carbon Steel Black Oxide,Zinc Plated,Yellow Zinc and HDG |
| Get Free Samples for standard fastener from Jiangyin XiangGu Hardware Products Co.,Ltd | |
| Focus On Supplying High Quality Fasteners. | |
Drawing:
| Hexagon nuts with flange | ||||||
| DIN 6923-1983 | ||||||
 |
||||||
| d(mm) | p(mm) | dc(mm) | m(mm) | s(mm) | ||
| max | min | max | min | max | ||
| M5 | 0.8 | 11.8 | 4.7 | 5 | 7.78 | 8 |
| M6 | 1 | 14.2 | 5.7 | 6 | 9.78 | 10 |
| M8 | 1/1.25 | 17.9 | 7.6 | 8 | 12.73 | 13 |
| M10 | 1/1.25/1.5 | 21.8 | 9.6 | 10 | 14.73 | 15 |
| M12 | 1.25/1.5/1.75 | 26 | 11.6 | 12 | 17.73 | 18 |
| M14 | 1.5/2 | 29.9 | 13.3 | 14 | 20.67 | 21 |
| M16 | 1.5/2 | 34.5 | 15.3 | 16 | 23.67 | 24 |
| M20 | 1.5/2.5 | 42.8 | 18.9 | 20 | 29.67 | 30 |
Features:
Made from 316 stainless steel, these flange locknuts have excellent resistance to chemicals and salt water.
They have serrations that grip the material surface instead of the threads for easy installation and mild vibration resistance.
The flange distributes pressure where the nut meets the material surface, eliminating the need for a separate washer.
Height includes the flange.
Metric 316 stainless steel is also known as A4 stainless steel.
Nuts may be mildly magnetic.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory and OEM are available.
Q: How long is your delivery time?
A: Generally it is 2-5 days if the goods are in stock,or it is 15-30 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: 30% T/T in advance ,balance before shipment or L/C.
If you have another question, please feel free to contact us.
