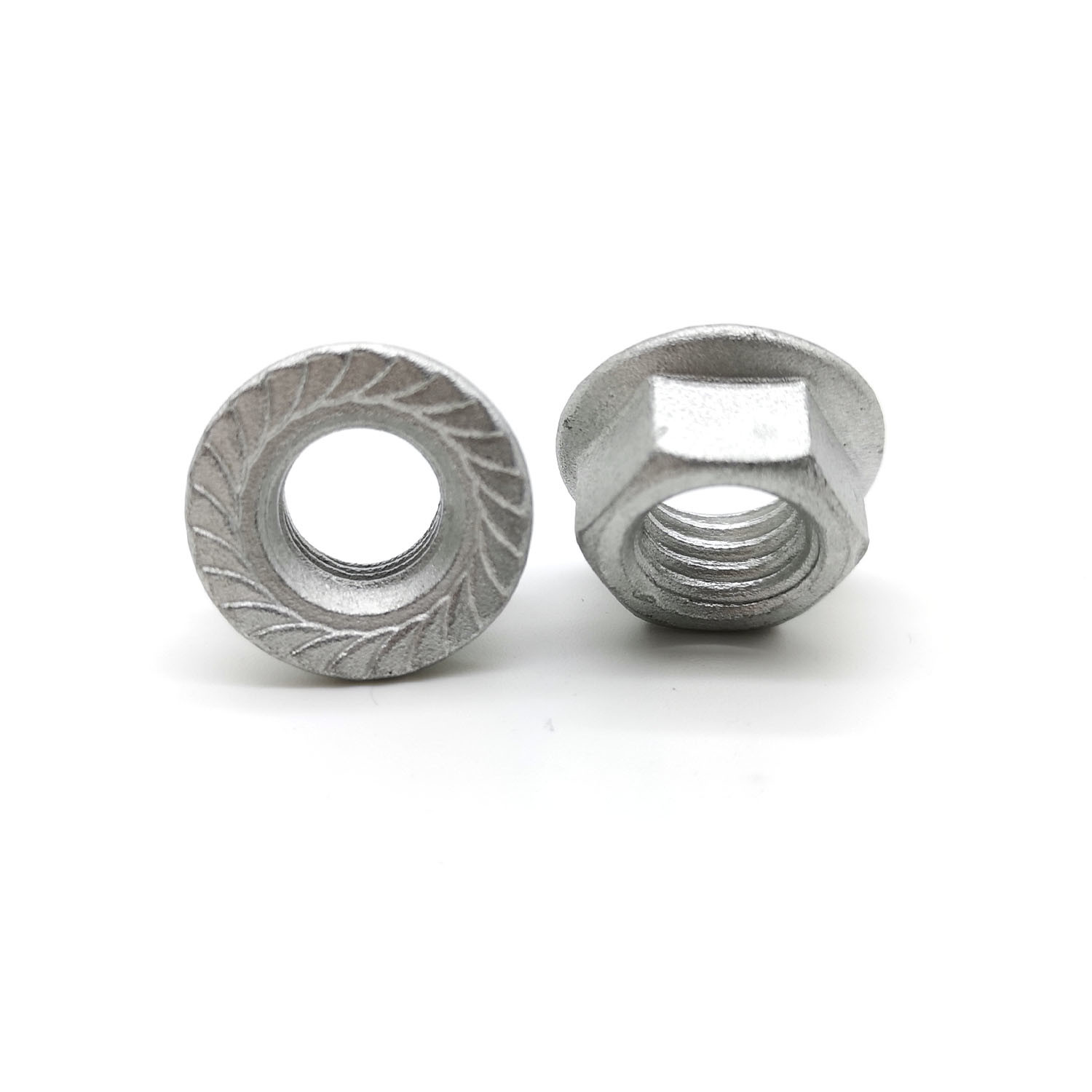

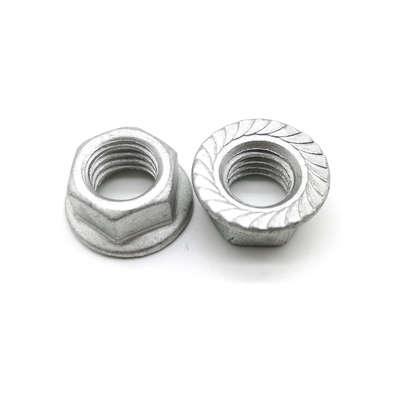

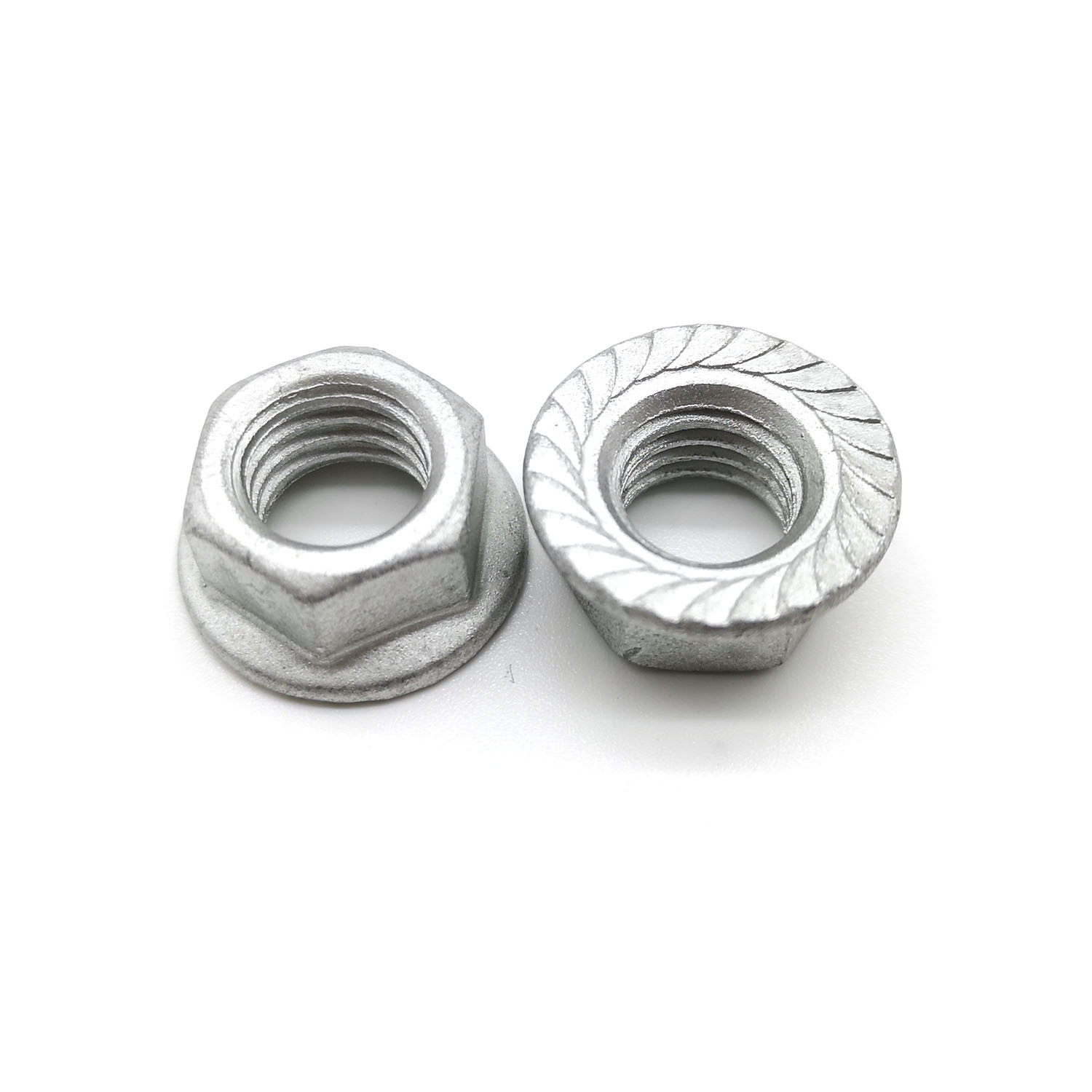

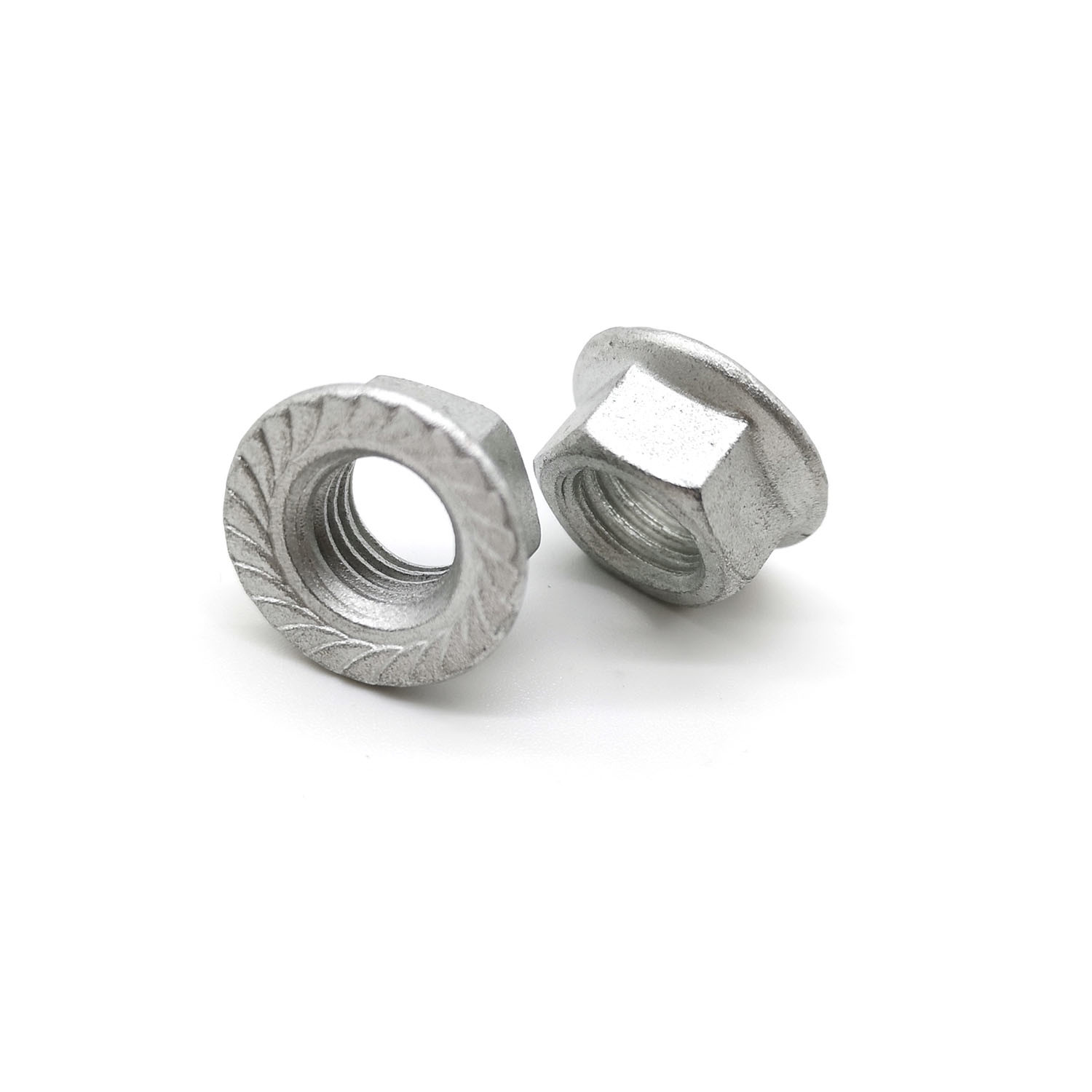

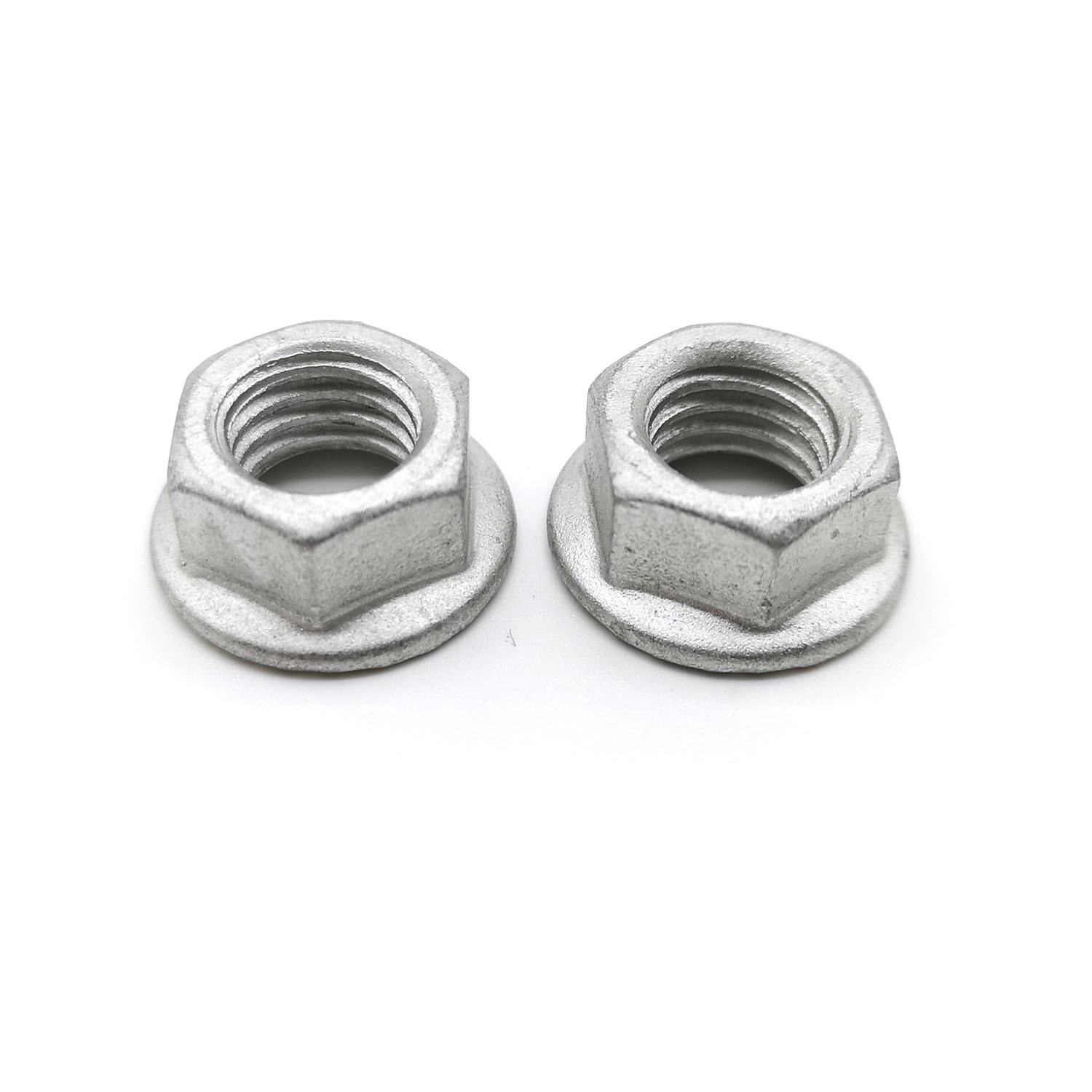

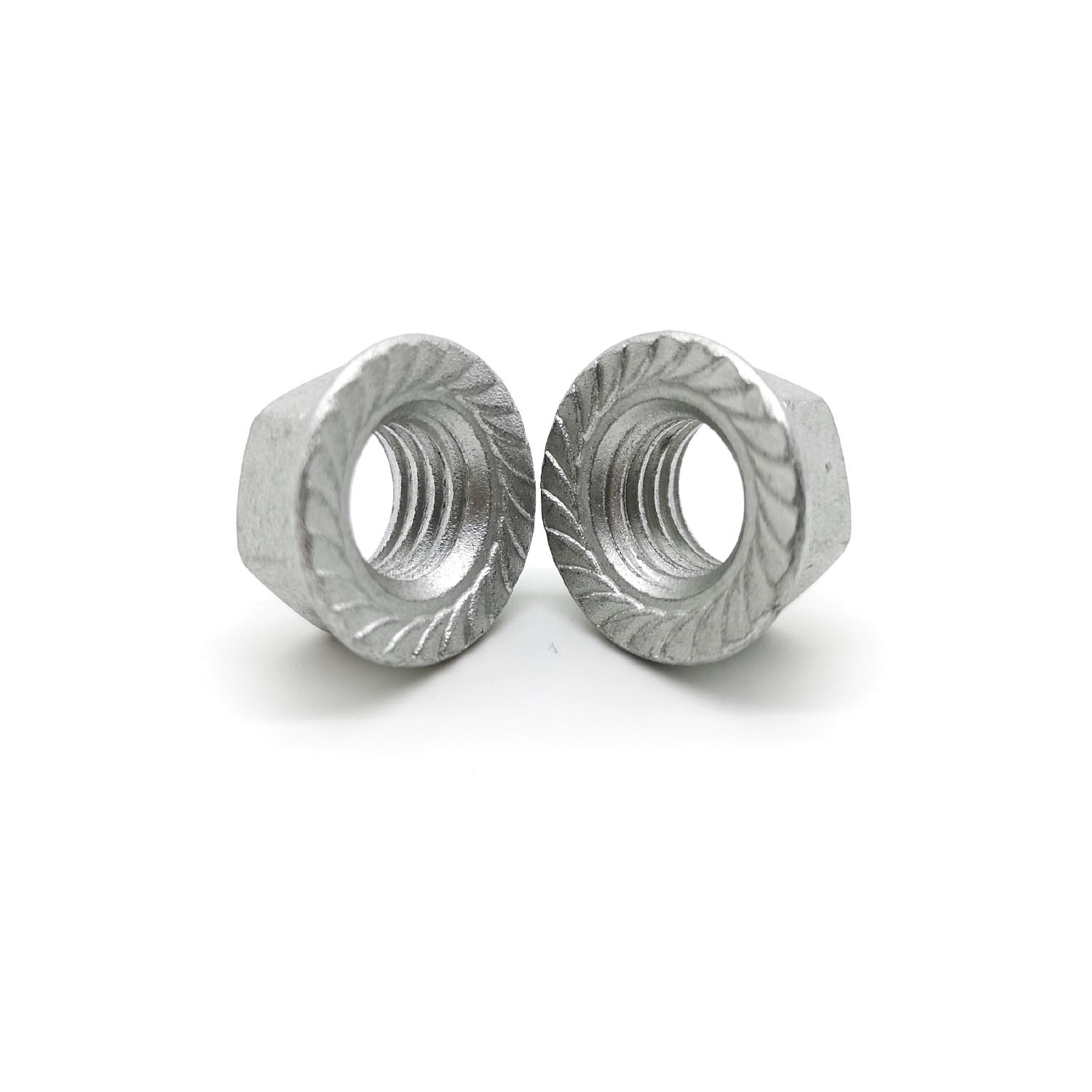

Dacromet Class 10 Din6923 Hexagon Flange Nut Medium Carbon Steel
| Place of Origin | China |
|---|---|
| Brand Name | XGFH |
| Certification | ISO9001,EN10204 3.1Certificate |
| Model Number | DIN6923 |
| Minimum Order Quantity | 100pcs |
| Price | 0.01-0.2usd/pc |
| Packaging Details | 20-25KG/Carton box and then pallet. |
| Delivery Time | 3-10 work days |
| Payment Terms | T/T, L/C |
| Supply Ability | 500000pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Hexagon Flange Nuts | Standard | DIN6923 |
|---|---|---|---|
| Material | Steel C1045 | Grade | Class 10 |
| Finish | Dacromet | Coating Thickness | 8-15μ |
| Thread | Coarse | Type | Serrated Flange Nut |
| System Of Measurement | Metric | Thread Direction | Right Thread |
| Heat Treatment | Quenched And Temper | Hardness | HRC 23-32 |
| High Light | Class 10 hexagon flange nut,Dacromet hexagon flange nut,din6923 hex flange nut |
||
Product Description
Product Description:
Dacromet Surface Treatment Medium Carbon Steel Class 10 Hexagon Flange Nut
Dacromet Surface Treatment Medium Carbon Steel Class 10 Hexagon Flange Nut Made In China.
Hexagon flange nut have enlarged circular base distributes heavy pressures equally in order to assure a secure hold.
Large base requires a greater amount of torque to loosen and will cover an oversized or poorly aligned hole.
We offer low carbon steel, medium carbon steel, alloy steel, stainless steel and brass, aluminum alloy Washers.
Flange nuts can be heated, oxidized black, galvanized, hot bucket galvanized, black zinc, copper plating, nickel plating, chromium plating, Dakota and other treatments to meet various corrosion resistance or strength requirements.
Please state this requirement in your inquiry.
| Products name | Dacromet Surface Treatment Medium Carbon Steel Class 10 Hexagon Flange Nut |
| Standard: | DIN,ASTM/ANSI JIS EN ISO,AS,GB |
| Material | Carbon Steel:Q235,#45,65Mn,#70;Stainless Steel:SS304, SS316,SS316L |
| Steel Grade: Class 4,Class 8,Class 10 and Class 12 | |
| Finishing | Black Oxide,HDG(Hot Dip Galvanized),,Yellow Zinc Plated,Blue White Zinc Plated,Dacromet,PTFE |
| Related Products | DIN933 Hex Bolts,DIN934 Hex Nuts,DIN125 Flat Washers |
| Application | Flange nuts have a washer-like base to distribute pressure over a greater surface area and ensure the fastener stay tight. |
| Stock Products | Flange nut in stock with Black Oxide,Zinc Plated,Yellow Zinc and HDG |
| Get Free Samples for standard fastener from Jiangyin XiangGu Hardware Products Co.,Ltd | |
| Focus On Supplying High Quality Fasteners. | |
Product Drawing:
| Hexagon Nuts With Flange | ||||||
| DIN 6923-1983 | ||||||
 | ||||||
| d(mm) | p(mm) | dc(mm) | m(mm) | s(mm) | ||
| max | min | max | min | max | ||
| M5 | 0.8 | 11.8 | 4.7 | 5 | 7.78 | 8 |
| M6 | 1 | 14.2 | 5.7 | 6 | 9.78 | 10 |
| M8 | 1/1.25 | 17.9 | 7.6 | 8 | 12.73 | 13 |
| M10 | 1/1.25/1.5 | 21.8 | 9.6 | 10 | 14.73 | 15 |
| M12 | 1.25/1.5/1.75 | 26 | 11.6 | 12 | 17.73 | 18 |
| M14 | 1.5/2 | 29.9 | 13.3 | 14 | 20.67 | 21 |
| M16 | 1.5/2 | 34.5 | 15.3 | 16 | 23.67 | 24 |
| M20 | 1.5/2.5 | 42.8 | 18.9 | 20 | 29.67 | 30 |
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory and OEM are available.
Q: How long is your delivery time?
A: Generally it is 2-5 days if the goods are in stock,or it is 15-30 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: 30% T/T in advance ,balance before shipment or L/C.
If you have another question, please feel free to contact us.
