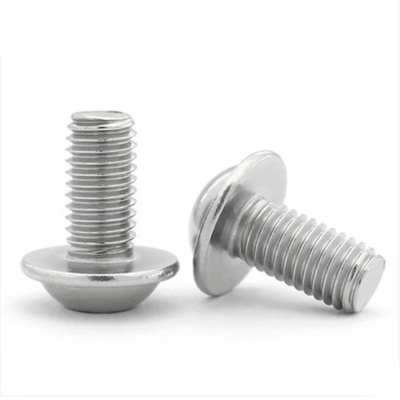

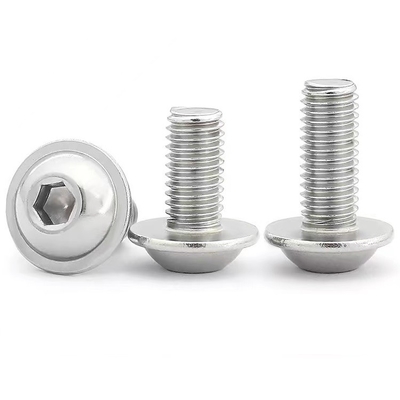

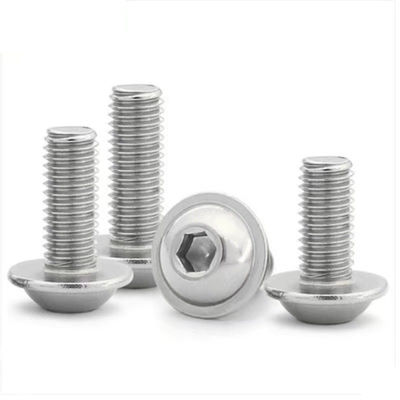

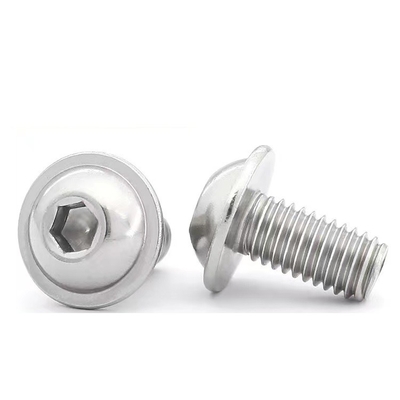

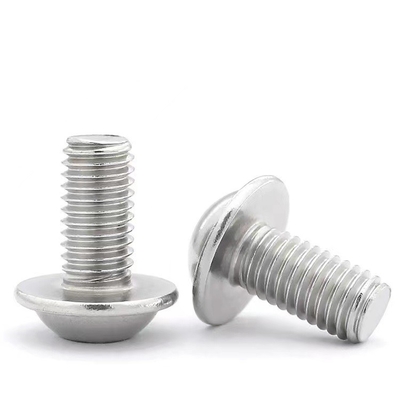

ISO7380.2 Stainless Steel Flanged Button Head Screws Hex Socket Round Hat A2-70

  • ISO7380.2 Stainless Steel Flanged Button Head Screws Hex Socket Round Hat A2-70
  • ISO7380.2 Stainless Steel Flanged Button Head Screws Hex Socket Round Hat A2-70
  • ISO7380.2 Stainless Steel Flanged Button Head Screws Hex Socket Round Hat A2-70
  • ISO7380.2 Stainless Steel Flanged Button Head Screws Hex Socket Round Hat A2-70
  • ISO7380.2 Stainless Steel Flanged Button Head Screws Hex Socket Round Hat A2-70
Place of Origin China
Brand Name XGFH
Certification ISO9001,EN10204 3.1Certificate
Model Number ISO7380.2
Minimum Order Quantity 100pcs
Price 0.01usd-0.2usd/pc
Packaging Details 25kg per carbon box and then pallet.
Delivery Time 2-15 work days
Payment Terms T/T, L/C
Supply Ability 100000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Standard ISO7380.2 Material Stainless Steel 304
Grade A2-70 Finish Clean And Passivate
System Of Measurement Metric Specification ISO3506-1
Thread Fit Coarse Thread Direction Right
Thread 6g/6h Head Type Flanged Round Head
Drive Hex Drive
High Light

Stainless steel Flanged Button Head Screws

,

6g/6h Stainless Steel Screws Nuts Bolts

,

A2-70 Stainless Screws Nuts Bolts
Leave a Message
Product Description

316 Stainless Steel Hex Drive Round Head Screws



Product Description:



They have a flange that distributes pressure across a wide surface, eliminating the need for a separate washer.

Head height includes the flange.



Product specifications:





Hexagon Socket Button Head Screws With Collar
ISO 7380-2-2011
ISO7380.2 Stainless Steel Flanged Button Head Screws Hex Socket Round Hat A2-70 0
d(mm) M3 M4 M5 M6 M8 M10 M12 M16
P(mm) 0.5 0.7 0.8 1 1.25 1.5 1.75 2
b(mm) 18 20 22 24 28 32 36 44
h(mm) min 0.55 0.65 0.8 1 1.25 1.7 2.1 2.5
max 0.7 0.8 1 1.2 1.5 2 2.4 2.8
dc(mm) min 6.32 8.82 11.1 12.9 17.1 21.06 25.16 33
max 6.9 9.4 11.8 13.6 17.8 21.9 26 34
dk(mm) min 4.9 6.8 8.4 9.6 12.8 16.1 18.9 25.5
max 5.2 7.2 8.8 10 13.2 16.5 19.4 26
ds(mm) min 2.86 3.82 4.82 5.82 7.78 9.78 11.73 15.73
max 3 4 5 6 8 10 12 16
k(mm) min 1.4 1.95 2.5 3 4.1 5.2 6.24 8.44
max 1.65 2.2 2.75 3.3 4.4 5.5 6.6 8.8
s(mm) Nom 2 2.5 3 4 5 6 8 10
min 2.02 2.52 3.02 4.02 5.02 6.02 8.025 10.025
max 2.08 2.58 3.08 4.095 5.14 6.14 8.175 10.175
t(mm) min 1.04 1.3 1.56 2.08 2.6 3.12 4.16 5.2









ISO7380.2 Stainless Steel Flanged Button Head Screws Hex Socket Round Hat A2-70 1





ISO7380.2 Stainless Steel Flanged Button Head Screws Hex Socket Round Hat A2-70 2
