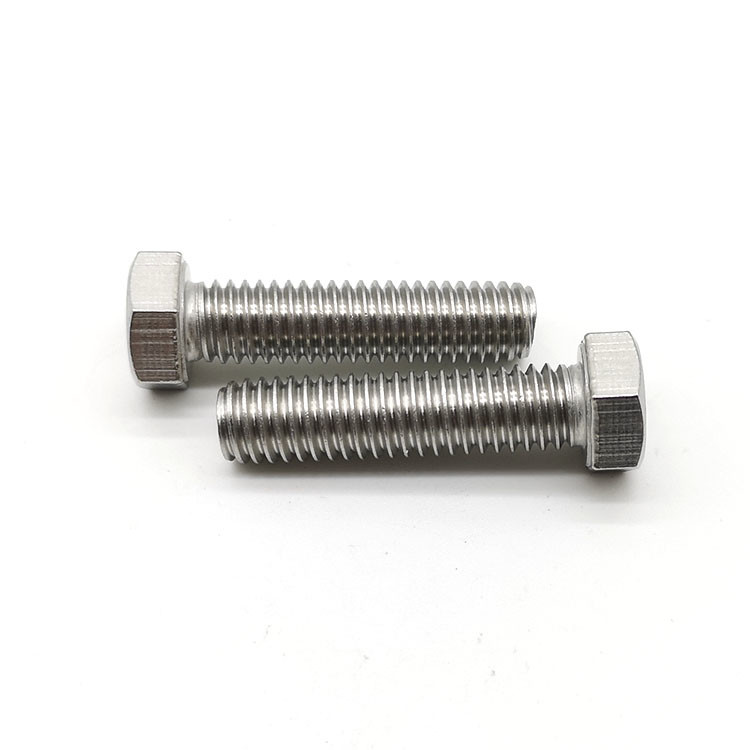

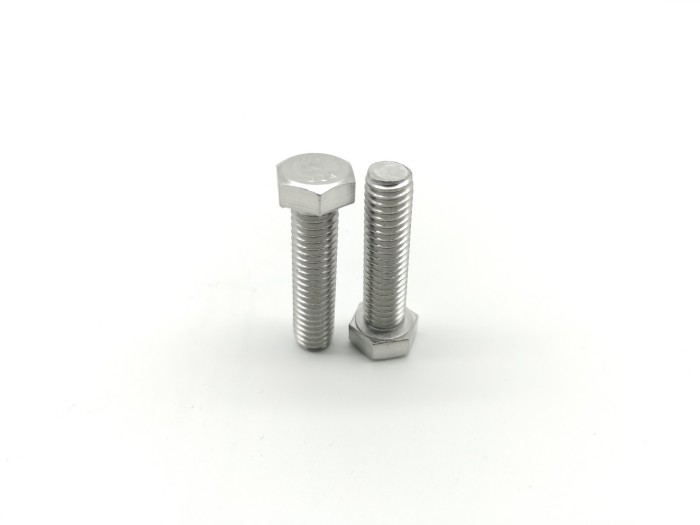

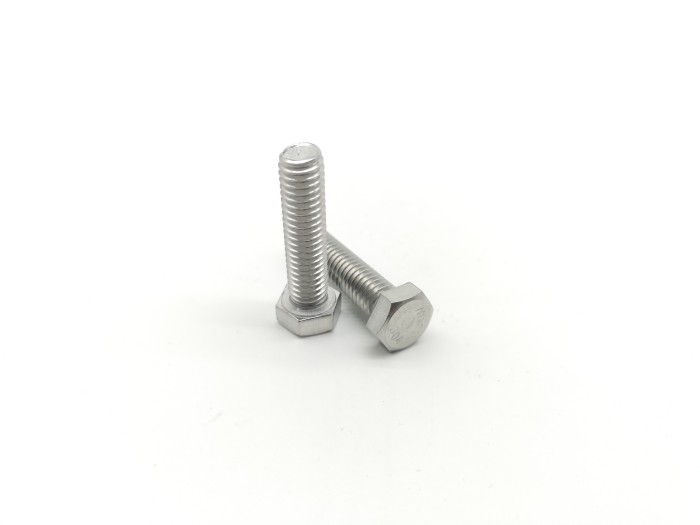

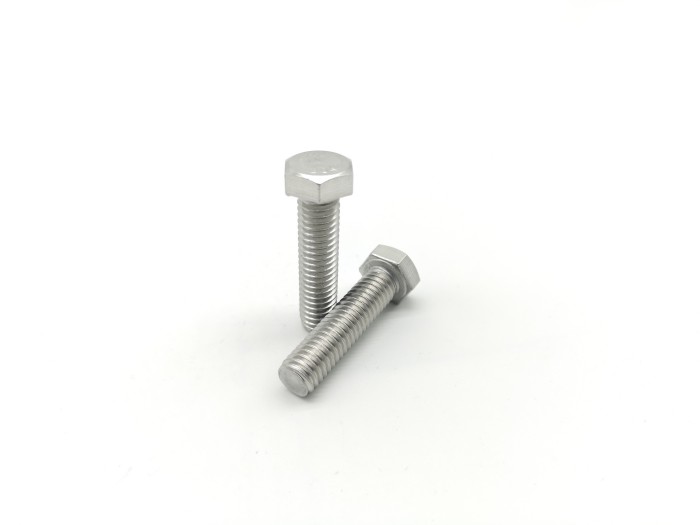

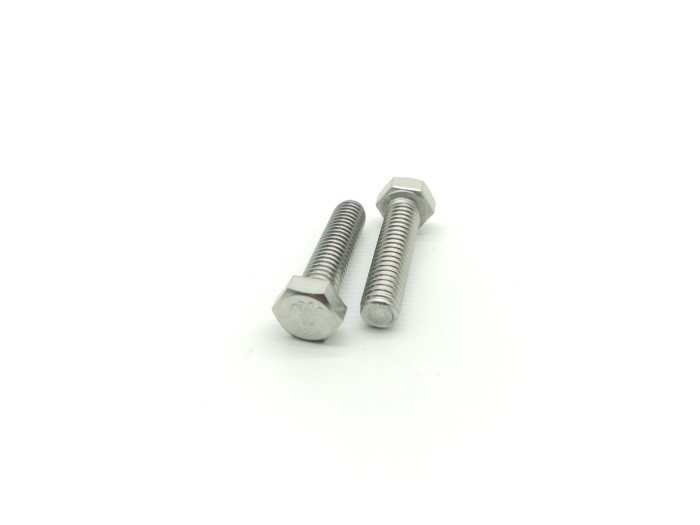

ISO4017/GB5783 SS304 Stainless Steel Hex Bolts Full Thread Hex Screw

ISO4017/GB5783 SS304 Stainless Steel Hex Bolts Full Thread Hex Screws

Product Description:

SUS304 Hexagon Bolts is a full thread, which can be used with a nut or in a threaded hole. The bolts are tightened with a wrench, usually with suitable hex nuts and washers.

These screws have good chemical resistance and may be slightly magnetic.

The length is measured from under the head.

SUS304 Hexagon Screw can be used for various fastening applications. They can be used in wood, steel and other industrial applications. Our hexagonal bolts have been used in construction, bridges and other industrial needs.

Product specifications:

Hexagon head bolts-Full thread--Product grades A and B
ISO4017 & GB/T5783
d	P(mm)	k(mm)				s(mm)
		A		B		min		max
		min	max	min	max	A	B
M1.6	0.35	0.975	1.225	0.9	1.3	3.02	2.9	3.2
M2	0.4	1.275	1.525	1.2	1.6	3.82	3.7	4
M2.5	0.45	1.575	1.825	1.5	1.9	4.82	4.7	5
M3	0.5	1.875	2.125	1.8	2.2	5.32	5.2	5.5
M3.5	0.6	2.275	2.525	2.2	2.6	5.82	5.7	6
M4	0.7	2.675	2.925	2.6	3	6.78	6.64	7
M5	0.8	3.35	3.65	3.26	3.74	7.78	7.64	8
M6	1	3.85	4.15	3.76	4.24	9.78	9.64	10
M8	1.25	5.15	5.45	5.06	5.54	12.73	12.57	13
M10	1.5	6.22	6.58	6.11	6.69	15.73	15.57	16
M12	1.75	7.32	7.68	7.21	7.79	17.73	17.57	18
M14	2	8.62	8.98	8.51	9.09	20.67	20.16	21
M16	2	9.82	10.18	9.71	10.29	23.67	23.16	24
M18	2.5	11.29	11.72	11.15	11.85	26.67	26.16	27
M20	2.5	12.29	12.72	12.15	12.85	29.67	29.16	30
M22	2.5	13.79	14.22	13.65	14.35	33.38	33	34
M24	3	14.79	15.22	14.65	15.35	35.38	35	36
M27	3	/	/	16.65	17.35	/	40	41
M30	3.5	/	/	18.28	19.12	/	45	46
M33	3.5	/	/	20.58	21.42	/	49	50
M36	4	/	/	22.08	22.92	/	53.8	55
M39	4	/	/	24.58	25.42	/	58.8	60
M42	4.5	/	/	25.58	26.42	/	63.1	65
M45	4.5	/	/	27.58	28.42	/	68.1	70
M48	5	/	/	29.58	30.42	/	73.1	75
M52	5	/	/	32.5	33.5	/	78.1	80
M56	5.5	/	/	34.5	35.5	/	82.8	85
M60	5.5	/	/	37.5	38.5	/	87.8	90
M64	6	/	/	39.5	40.5	/	92.8	95

Products Features:

Metric screws are also known as A2 stainless steel screws.

Match the thread spacing of mating components. Coarse threads are the industry standard; choose these screws if you don’t know the pitch or threads per inch. Screws that meet ASME or ISO (formerly DIN) specifications comply with these dimensional standards.

The chemical compositions of stainless steels suitable for fasteners in accordance with this part of ISO 3506-1.

Fasteners in accordance with this part of ISO 3506 shall be supplied clean and

bright. For maximum corrosion resistance, passivation is recommended. When passivation is required, it shall be performed in accordance with ISO 16048.
