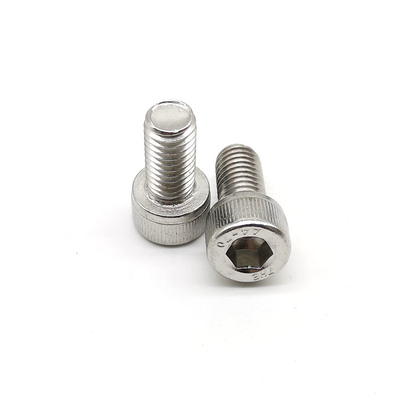

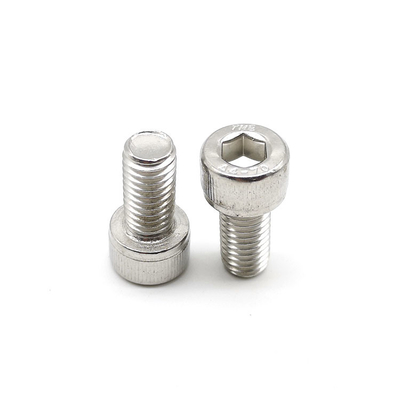

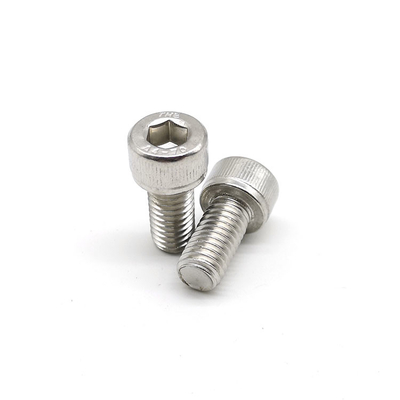

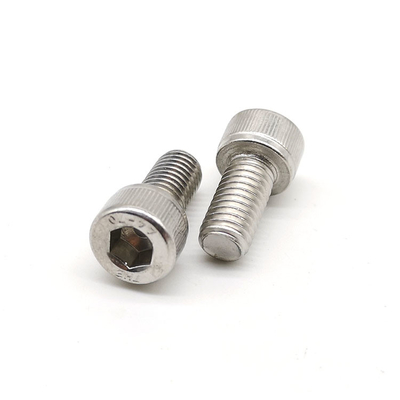

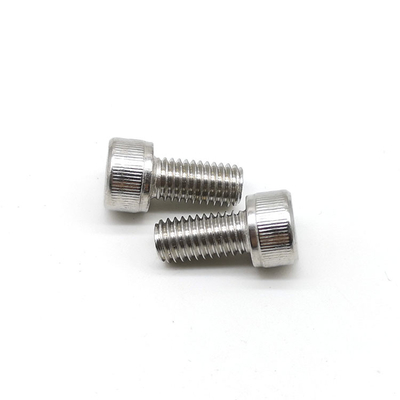

A4 70 316 M10 Stainless Steel Screws Nuts Bolts Allen Bolt Full Thread Socket Head Cap Screws DIN912

  • A4 70 316 M10 Stainless Steel Screws Nuts Bolts Allen Bolt Full Thread Socket Head Cap Screws DIN912
  • A4 70 316 M10 Stainless Steel Screws Nuts Bolts Allen Bolt Full Thread Socket Head Cap Screws DIN912
  • A4 70 316 M10 Stainless Steel Screws Nuts Bolts Allen Bolt Full Thread Socket Head Cap Screws DIN912
  • A4 70 316 M10 Stainless Steel Screws Nuts Bolts Allen Bolt Full Thread Socket Head Cap Screws DIN912
  • A4 70 316 M10 Stainless Steel Screws Nuts Bolts Allen Bolt Full Thread Socket Head Cap Screws DIN912
Place of Origin xxx
Brand Name XGFH
Certification ISO9001,EN10204 3.1Certificate
Model Number DIN912
Minimum Order Quantity 100pcs
Price 0.1-2.5usd/pc
Packaging Details 25kg per carbon box and then pallet.
Delivery Time 5-15 work days
Payment Terms T/T, L/C
Supply Ability 100000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Standard DIN912 Material Stainless Steel 316
Grade A4-70 Finish Clean And Bright
System Of Measurement Metric Thread Full Thread
Thread Fit Coarse Thread Direction Right
Head Marking XG A4-70 Drive Hex Socket Allen
High Light

316 m10 Stainless Steel Screws Nuts Bolts

,

full thread socket head cap screws

,

stainless steel socket head cap screws
Leave a Message
Product Description



Product Description:



ISO4762/DIN912 A4-70 Stainless Steel Hex Socket Head Cap Screws Full Thread Allen Screw



ISO4762/DIN912 A4-70 Stainless Steel Hex Socket Head Cap Screws Full Thread Allen Screw Made In China.

Hex socket head cap screws are ideal for precision work with close tolerances and applications needing a well tooled appearance.

Hex socket head bolts supply greater tensile strength than equivalent Hex head bolts,while requiring less surface area to counterbore.

This stainless steel material resists corrosion even when submerged in salt water.



Products name ISO4762/DIN912 A4-70 Stainless Steel Hex Socket Head Cap Screws Full Thread Allen Screw
Standard: DIN,ASTM/ANSI JIS EN ISO,AS,GB
Material Carbon Steel,Alloy Steel;Stainless Steel:SS304, SS316,SS316L
Steel Grade: 8.8,10.9,12.9,Grade2,5 and 8,Class A2-70,A4-70,A4-80
Finishing Black Oxide,HDG(Hot Dip Galvanized),Zinc Plated,Dacromet
Related Products Hex Nuts,Flat Washer,and Spring Washer
Applications Nuclear power,Wind tower,Automotive industry,Railway,Electronic,Construction industry.
Stock Products DIN912 Allen screws are in stock.
Get Free Samples for standard fastener from Jiangyin XiangGu Hardware Products Co.,Ltd
Focus On Supplying High Quality Fasteners.



Product Drawing:





Hexagon socket head cap screws
DIN 912-1983
A4 70 316 M10 Stainless Steel Screws Nuts Bolts Allen Bolt Full Thread Socket Head Cap Screws DIN912 0
d(mm) P(mm) b(mm) dk(mm) k(mm) s(mm) t(mm)
min max min max min max min
M1.4 0.3 14 2.46 2.74 1.26 1.4 1.32 1.36 0.6
M1.6 0.35 15 2.86 3.14 1.46 1.6 1.52 1.56 0.7
M2 0.4 16 3.62 3.98 1.86 2 1.52 1.56 1
M2.5 0.45 17 4.32 4.68 2.36 2.5 2.02 2.06 1.1
M3 0.5 18 5.32 5.68 2.86 3 2.52 2.58 1.3
M4 0.7 20 6.78 7.22 3.82 4 3.02 3.08 2
M5 0.8 22 8.28 8.72 4.82 5 4.02 4.095 2.5
M6 1 24 9.78 10.22 5.7 6 5.02 5.14 3
M8 1.25/1 28 12.73 13.27 7.64 8 6.02 6.14 4
M10 1.5/1.25/1 32 15.73 16.27 9.64 10 8.025 8.175 5
M12 1.75/1.5/1.25 36 17.73 18.27 11.57 12 10.025 10.18 6
M14 2/1.5 40 20.67 21.33 13.57 14 12.032 12.21 7
M16 2/1.5 44 23.67 24.33 15.57 16 14.032 14.21 8
M18 2.5/2/1.5 48 26.67 27.33 17.57 18 14.032 14.21 9
M20 2.5/2/1.5 52 29.67 30.33 19.48 20 17.05 17.23 10
M22 2.5/2/1.5 56 32.61 33.39 21.48 22 17.05 17.23 11
M24 3/2 60 35.61 36.39 23.48 24 19.065 19.28 12
M27 3/2 66 39.61 40.39 26.48 27 19.065 19.28 13.5
M30 3.5/2 72 44.61 45.39 29.48 30 22.065 22.28 15.5
M33 3.5/2 78 49.61 50.39 32.38 33 24.065 24.28 18
M36 4/3 84 53.54 54.46 35.38 36 27.065 27.28 19
M42 4.5/3 96 62.54 63.46 41.38 42 32.08 32.33 24
M48 5/3 108 71.54 72.46 47.38 48 36.08 36.33 28
M56 5.5/4 124 83.46 84.54 56.26 57 41.08 41.33 34
M64 6/4 140 95.46 96.54 63.26 64 46.08 46.33 38
M72*4 6/4 156 107.5 108.5 71.26 72 55.1 55.4 43
M80*4 6/4 172 119.5 120.5 79.26 80 65.1 65.4 48
M90*4 6/4 192 134.4 135.6 89.13 90 75.1 75.4 54
M100*4 6/4 212 149.4 150.6 99.13 100 85.12 85.47 60







A4 70 316 M10 Stainless Steel Screws Nuts Bolts Allen Bolt Full Thread Socket Head Cap Screws DIN912 1

A4 70 316 M10 Stainless Steel Screws Nuts Bolts Allen Bolt Full Thread Socket Head Cap Screws DIN912 2A4 70 316 M10 Stainless Steel Screws Nuts Bolts Allen Bolt Full Thread Socket Head Cap Screws DIN912 3



FAQ

Q: Are you trading company or manufacturer ?

A: We are factory and OEM are available.

Q: How long is your delivery time?

A: Generally it is 2-5 days if the goods are in stock,or it is 15-30 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: 30% T/T in advance ,balance before shipment or L/C.
If you have another question, please feel free to contact us.
