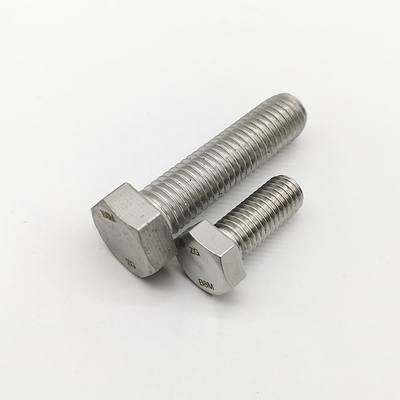

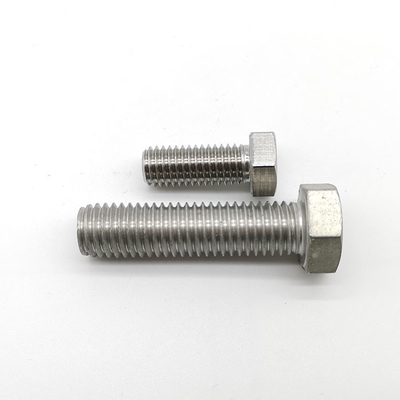

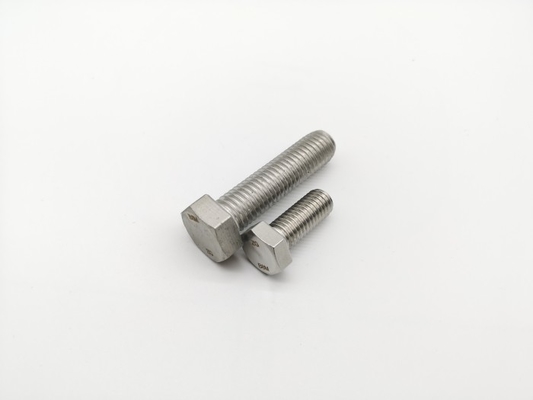

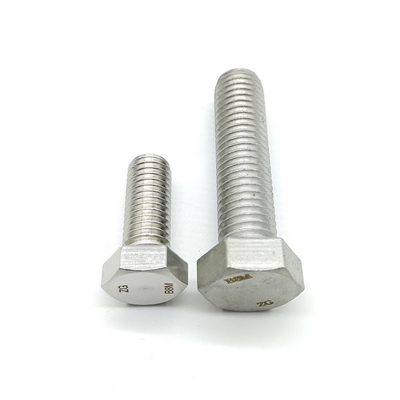

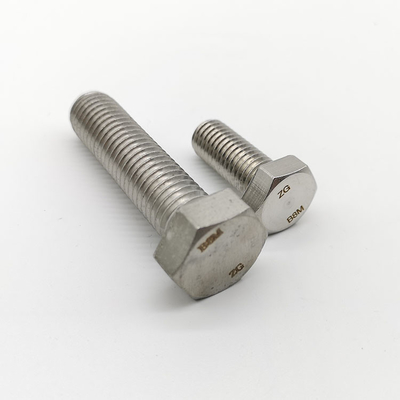

ASTM A193M Class B8M Hex Heavy Screws SS316 Stainless Steel Screws Nuts Bolts ANSI ASME B18 2.3 3M

  • ASTM A193M Class B8M Hex Heavy Screws SS316 Stainless Steel Screws Nuts Bolts ANSI ASME B18 2.3 3M
  • ASTM A193M Class B8M Hex Heavy Screws SS316 Stainless Steel Screws Nuts Bolts ANSI ASME B18 2.3 3M
  • ASTM A193M Class B8M Hex Heavy Screws SS316 Stainless Steel Screws Nuts Bolts ANSI ASME B18 2.3 3M
  • ASTM A193M Class B8M Hex Heavy Screws SS316 Stainless Steel Screws Nuts Bolts ANSI ASME B18 2.3 3M
  • ASTM A193M Class B8M Hex Heavy Screws SS316 Stainless Steel Screws Nuts Bolts ANSI ASME B18 2.3 3M
Place of Origin xxx
Brand Name XGFH
Certification ISO9001,EN10204 3.1Certificate
Model Number ASME B18.2.3.3M
Minimum Order Quantity 100pcs
Price 0.1-2.5usd/pc
Packaging Details 25kg per carbon box and then pallet.
Delivery Time 5-15 work days
Payment Terms T/T, L/C
Supply Ability 100000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Standard ASME/ANSI B18.2.3.3M Material Stainless Steel 316
Finish Clean And Bright Name Heavy Hex Bolts/Heavy Hex Screws
Specification ASTM A193M Grade Class B8M
Heat Treatment Carbide Solution Treated Screw Type Heavy Hex Head
System Of Measurement Metric Thread Coarse
High Light

ASTM A193M Class B8M Hex Heavy Screws

,

SS316 Stainless Steel Screws Nuts Bolts

,

ASME B18 2.3 3M
Leave a Message
Product Description

ASTM A193M Class B8M Stainless Steel 316 Heavy Hex Bolts ASME/ANSI B18.2.3.3M Hex Heavy Screws



Product Descriptions:



Made from 316 stainless steel, these Grade B8M screws are more corrosion resistant than 18-8 stainless steel screws and have excellent resistance to chemicals and salt water. They may be mildly magnetic. Also known as pressure bolts, these screws meet the high-pressure and high-temperature regulations of ASTM A193 and are used to secure pressure tanks, valves, and flanges.

Length is measured from under the head.

Screws should be used with Grade 8M nuts.



Mechanical Requirements:



Class B8M
Heat treatment Carbide solution treated
Tensile strength 515Mpa min.
Yield strength 205Mpa min.
Elongation 30% min.
Reduction 50% min.
Hardness 223HBW max.





Product Drawing:



Metric heavy hex screws
ASME/ANSI B18.2.3.3M
ASTM A193M Class B8M Hex Heavy Screws SS316 Stainless Steel Screws Nuts Bolts ANSI ASME B18 2.3 3M 0
d(mm) P(mm) b(mm) ds(mm) k(mm) s(mm)
L≤125 125<L≤200 L>200 min max min max min max
M12 1.75 30 36 49 11.73 12 7.24 7.76 20.67 21
M14 2 34 40 53 13.73 14 8.51 9.09 23.67 24
M16 2 38 44 57 15.73 16 9.68 10.32 26.67 27
M20 2.5 46 52 65 19.67 20 12.12 12.88 33 34
M24 3 54 60 73 23.67 24 14.56 15.44 40 41
M30 3.5 66 72 85 29.67 30 17.92 19.48 49 50
M36 4 78 84 97 35.61 36 21.72 23.38 58.8 60



Product Features:



Heavy Hex Screws Series should be used for nominal body diameters of 1-1⁄4 in [30 mm] and less.

For larger sizes, the Heavy Hex Screw Series should be used, except the maximum body diameter and radius of fillet may be the same as for the Heavy Hex Bolt Series.

The body diameter and head fillet radius for sizes of Heavy Hex Cap Screws and Bolts that are not shown in their respective tables in ASME B18.2.1 or ASME B18.2.3.3M may be that shown in the corresponding Hex Cap Screw and Bolt Tables respectively.



ASTM A193M Class B8M Hex Heavy Screws SS316 Stainless Steel Screws Nuts Bolts ANSI ASME B18 2.3 3M 1
